Модульная огнеупорная стенка/высокопрочная огнеупорная и влагостойкая изоляционная плита/предварительно спроектированные огнеупорные барьеры

Product Overview

Description







Fire Wall, Fire Barrier, BLAST WALL FEATURES

• Blast resistant, tested from 0.3 to 2 bar over pressure
• Resistant to hydrocarbon fires
• Impact resistant to 4000J after 180 minute fire test
• High energy absorption
• Hose stream resistant to a 5 Bar high pressure hose



It would be better if use it together with our  fireproof Calcium silicate Board  ,please move to here:







//fc.en.alibaba.com/productgrouplist-209842881/Calcium_Silicate_Board.html







If you also have blast-resistant design, please go ahead :

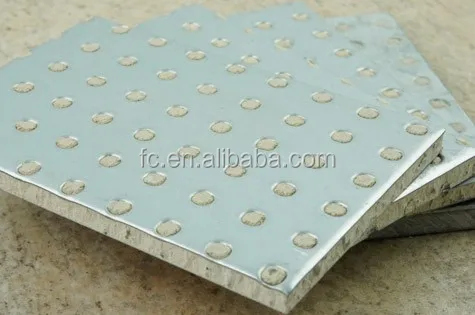

FC-Steel is  a steel composite panel of fibre reinforced cement mechanically bonded to punched steel sheets on both outer surfaces. It’s a unique non-combustible material  with highly impact and moisture resistant.  FC-Steel is lightweight and used in the construction of fire and blast resistant barriers, ceilings, doors, ductwork, enclosures and structures.



Whether for fire or blast, some of the most common systems utilizing FC-Steel are:

• Fire Rated Ventilation duct Systems
• Fire Rated Ceilings, Floors, Walls & Door Assemblies

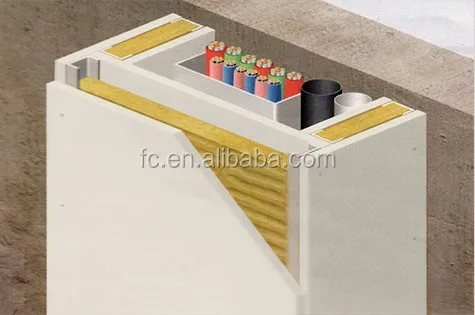

• Oil, Gas Pipe & Cable Tray Enclosures
• Fire Barriers,& Blast Barrier
• Outdoor & indoor transformer Barriers
• Protection from hydrocarbon fires & blasts
• Fire & Blast containment for gas storage
• Escape tunnels and shafts
• Portable Barriers
• Document Storage Vaults
• Acoustic Barriers & Enclosures
• Blast Walls & Doors
• Blast Resistant Duct



The sheets come 1200mm x 2400 mm (approximately 4 x 8 feet) in size and are available in the following options:

•    Standard 3/8" (9.5mm) thickness
•    Optional 1/4" (6mm)& 1/2" (12mm) thickness
•    Standard galvanized finish
•    Optional stainless steel finish
•    Other specialty metals available







FC-Steel is by far the most extensively tested material in Passive Fire Protection. It has been tested for the following characteristics:

• Four Hour Fire Resistant (240 minute) - integrity and insulation
• Blast Resistant - tested to 2 bar (200kN/m² overpressure)
• Hydrocarbon Fire Resistant
• Impact Resistant
• Moisture and Hose Stream Resistant
• Vibration Resistance
• Lightweight Space-Saving
• Demountable and Remountable
• Maintenance Free
• 40 Year Design Life

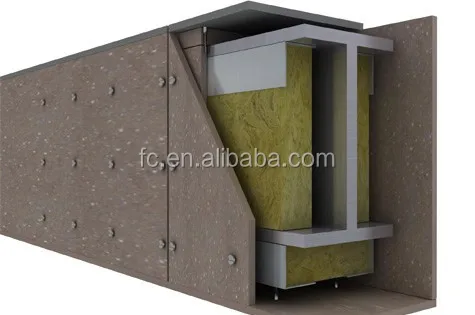

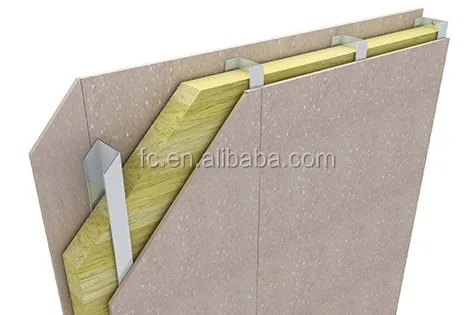

 Fire Barrier, Fire Wall, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
