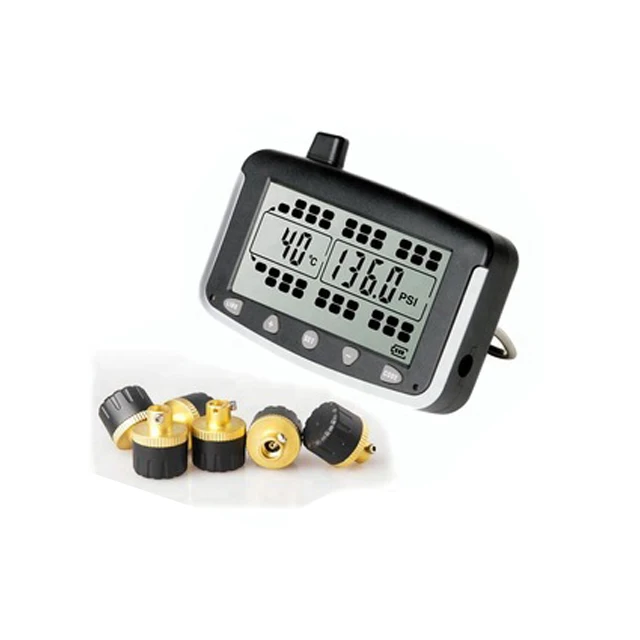

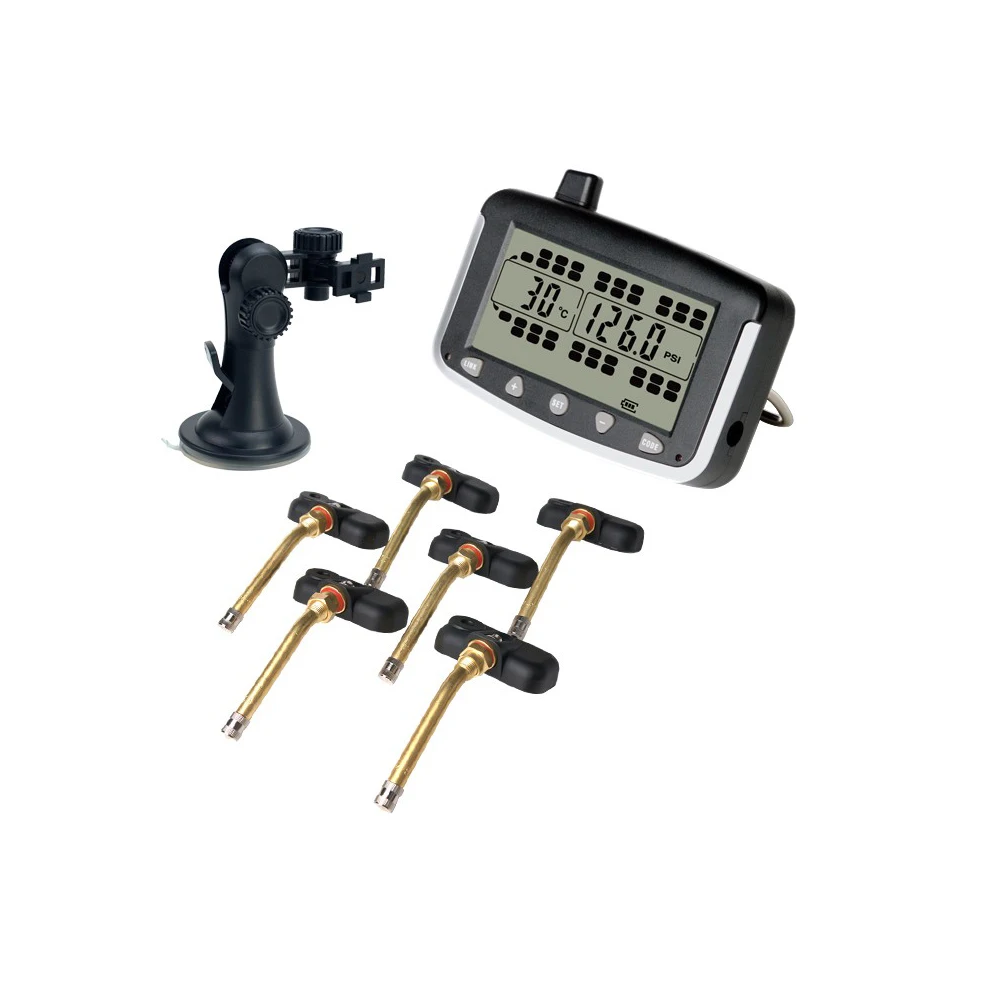

Truck and trailer RV motorhome external sensor Tire Pressure Monitoring System 38 tires TPMS

Product Overview

Description

Truck and trailer RV motorhome external sensor Tire Pressure Monitoring System 38 tires TPMS





1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires





2. Features:



Reliable and easy to install
Directly displays tire data on the vehicle display
Selectable pressure unit(PSI,BAR)
Selectable temperature unit (℃,℉)
Configurable high/low pressure alert setting
Configurable high temperature alert setting
Selectable trailer ID and tractor ID
High temperature setting by user
Enlargeable signal transmission in case of long distance from sensors to the receiver
Several ways for sensor coding
TPMS handheld tool coding available





3. Specifications:

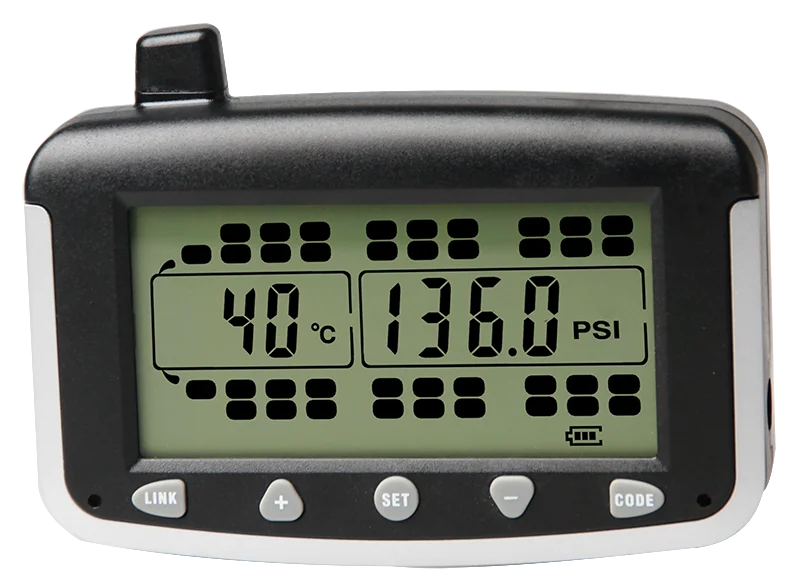

Video-in TPMS receiver Specifications:



Operating voltage:	12 to 24 V
Frequency	433.92MHz
Operating temperature	-20 to +85° C
Standby current:	140~170mA
Sensitivity:	-110~-116dBm





External Sensor Specifications:



Pressure range:	0 to 13 bar, 0 to 188 psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission power:	< 10 dBm
Transmission frequency:	433.92 MHz
Battery life:	2 years
Operating temperature:	-40 to +85° C
Weight:	28 grams
Size:	diameter:24 mm, height:29 mm



4. Our Facilities:





5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent







6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime





Looking Forward to Cooperating with You!
