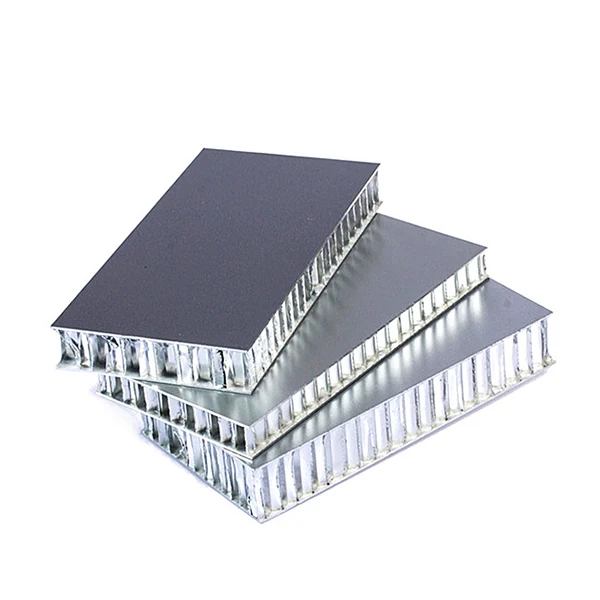

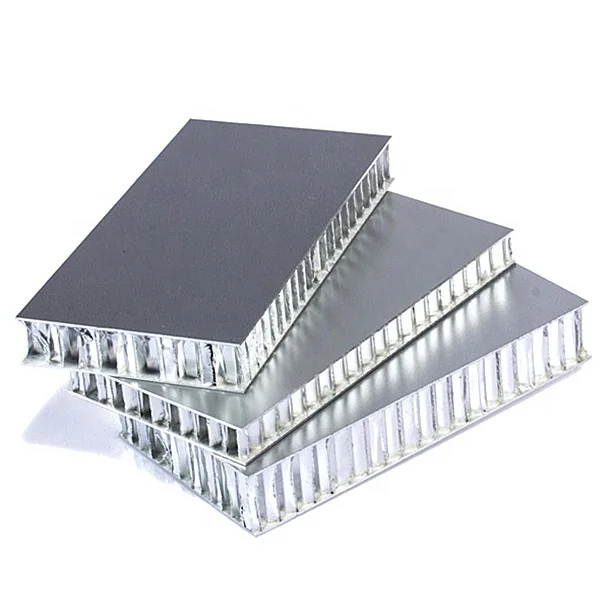

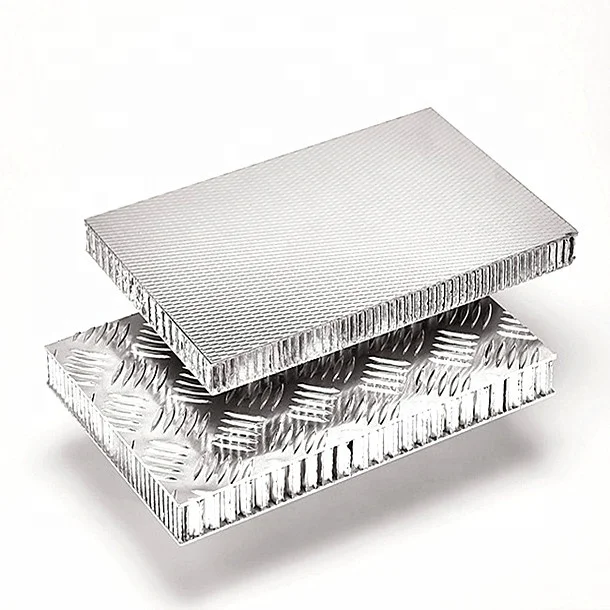

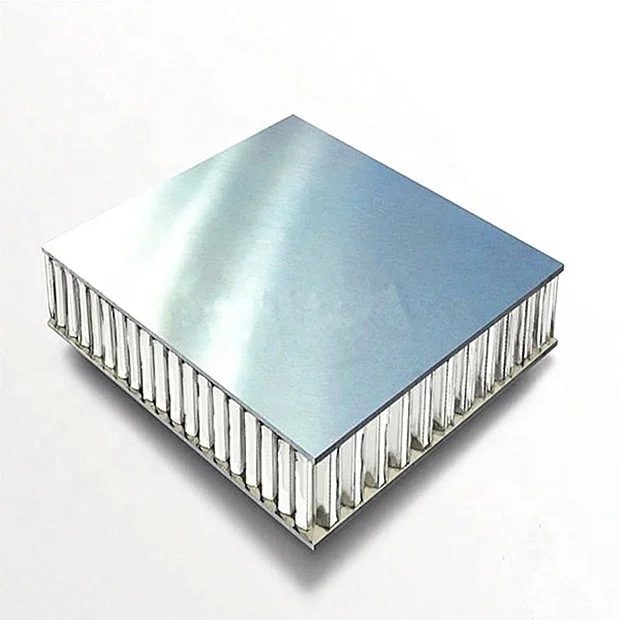

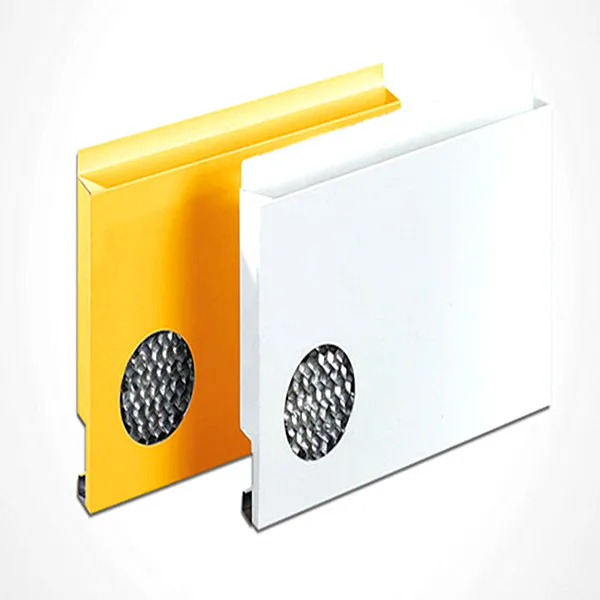

ACEBOND Honecyomb Panel Materials Customized Supplier Aluminium Metal Modern China Warehouse Honeycomb Panel
- Category: >>>
- Supplier: Top Ace Development Limited
Share on (60216550259):
Product Overview
Description
Product Description
Performance
◆ high rigidity with low weight
◆ visually appealing, even surfaces
◆ good air-borne sound insulation
◆ different thicknesses and formats
◆ particularly well-suited as carrier
◆ visually appealing, even surfaces
◆ good air-borne sound insulation
◆ different thicknesses and formats
◆ particularly well-suited as carrier
material for the most differing
surfaces and coatings
◆ easy to process
◆ approvals for specific applications
◆ short delivery times
◆ easy to process
◆ approvals for specific applications
◆ short delivery times
◆ cut to size on request

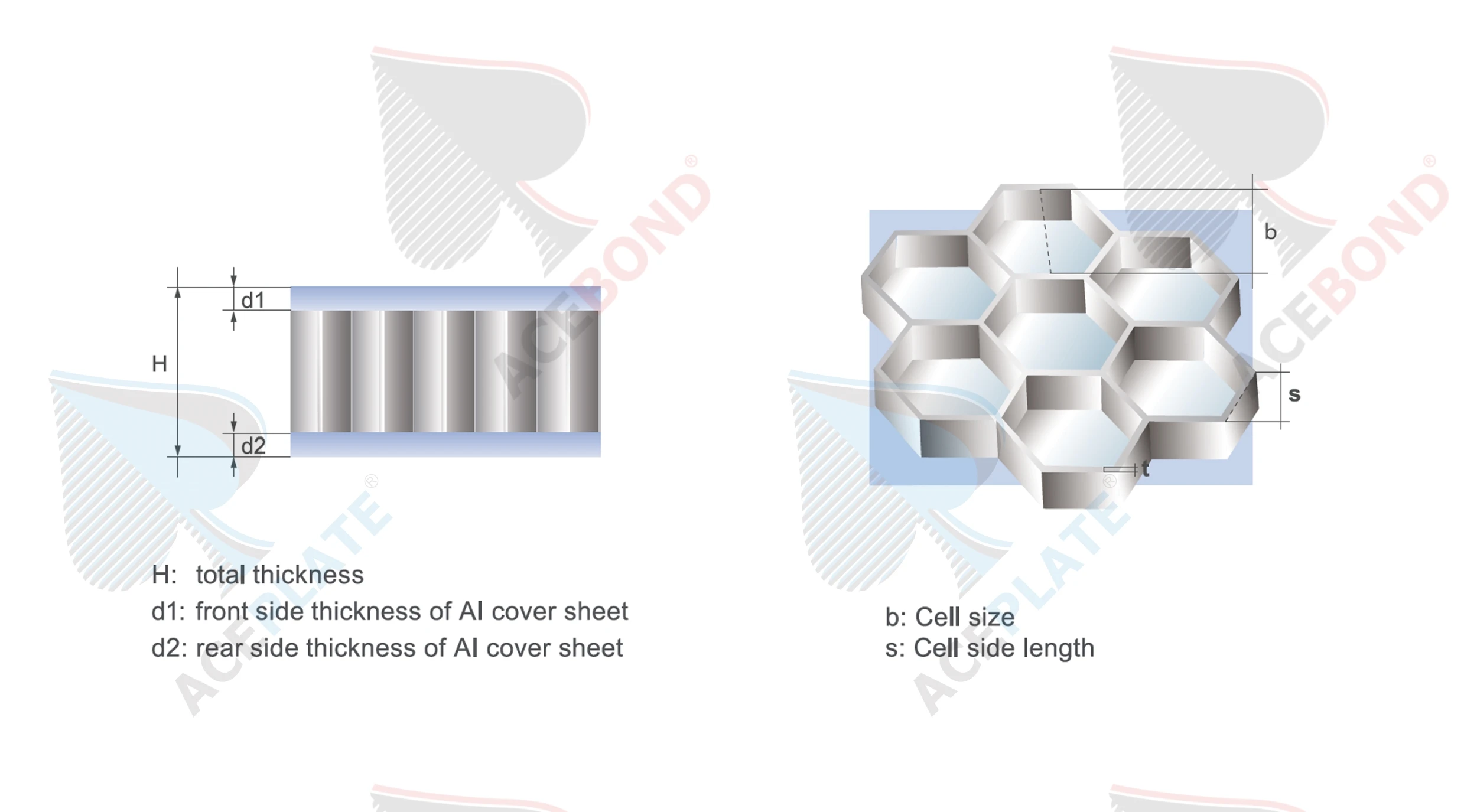

Product Specification
Front Side Aluminum Thickness: | 0.7-3.0mm, regular thickness is 0.7/1.0mm |
Rear Side Aluminum Thickness: | 0.5-3.0mm, regular thickness is 0.5/0.7/1.0mm |
Total panel Thickness: | 4-100mm, regular thickness is 6/8/10/12/15/20/25mm |
Width: | Up to 2200mm, regular width is 1220/1250/1500mm |
Length: | Up to 11000mm, regular length is 2000-5800mm |
Cell Size: | 6.93-25.98mm |
Cell Side Length: | 4-15mm, regular size is 6mm |
Cell Core Thickness: | 0.04-0.08mm, regular thickness is 0.06mm |
Color
We can produce all colors on our color chart & all professional color cards.
More Details
Aluminum Cover Sheet Alloy: | 1100/3003/5005/5754, etc. Standard is AA3003 |
Aluminum Honeycomb Core Alloy: | 3003/5052. Standard is AA3003 |
Adhesive: | Polyurethane glue/Thermal adhesive film |
Coating: | PVDF coating, PE coating & other special treatment, etc |
Color: | Solid/Metallic/Pearl/Brush, etc (color chart) RAL or customized color is accepted |
Panel Weight: | 5.0-7.5kg/㎡ |

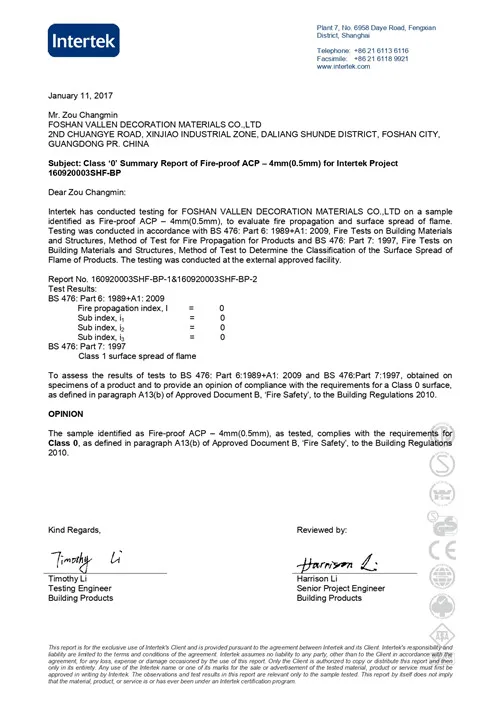

Fire Classification: | BS476 Part4 Noncombustible BS476 Part6&7 Class 0 |
Application & Project Case

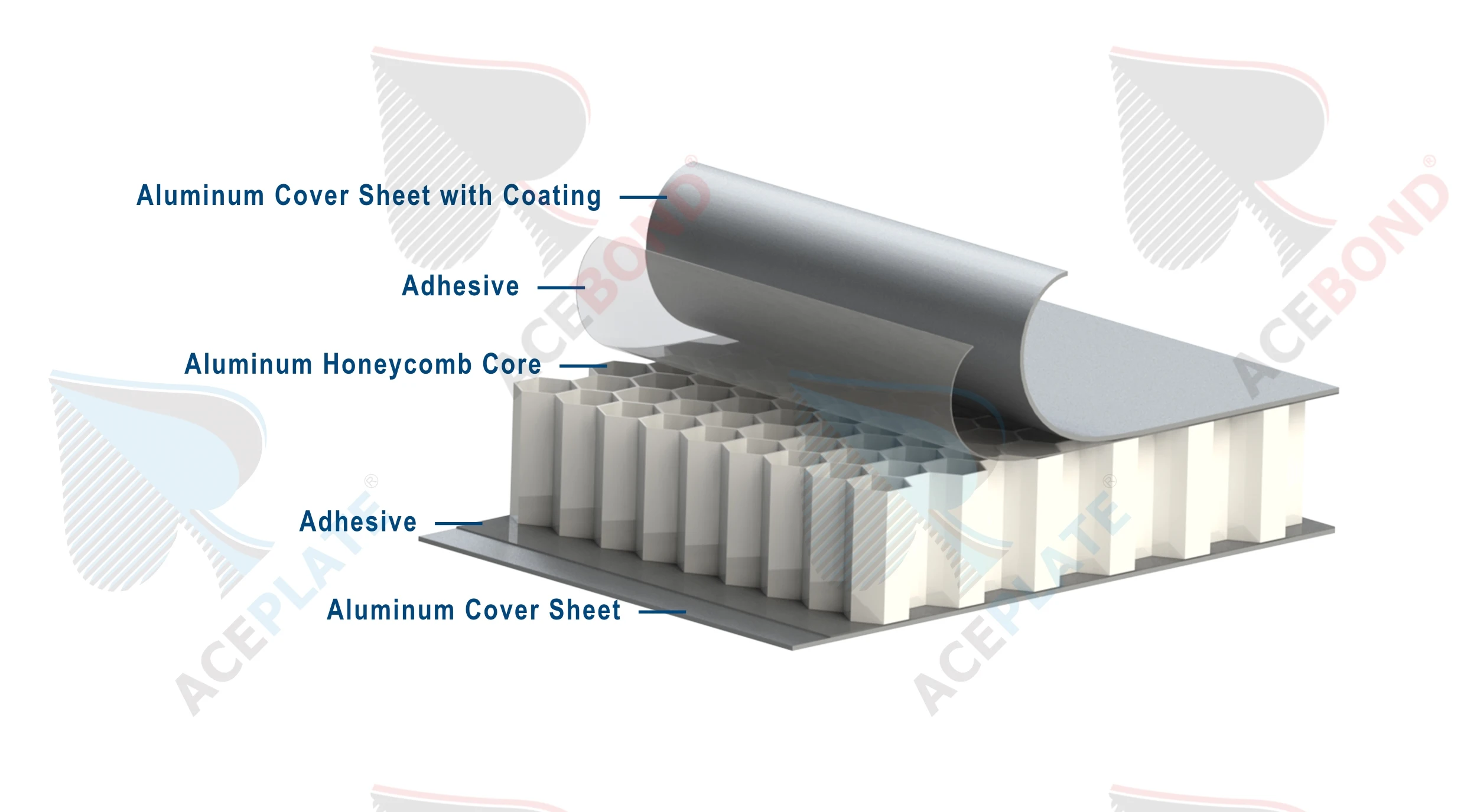

ACECOMB is an aluminium sandwich-type panel with high rigidity and extremely low weight. In contrast to conventional honeycomb composite panels, the system components, i.e. the “aluminium core” and the coil-coated “aluminium cover sheets” are bonded in a continuous process. The advantages are product quality and surface evenness; the material does not become brittle-hard but shows tough and resilient properties and an excellent peel strength. Following in the footsteps of the ACECOMB trademark, ACECOMB is the ideal material for a host of applications in transport, architecture or industrial production.

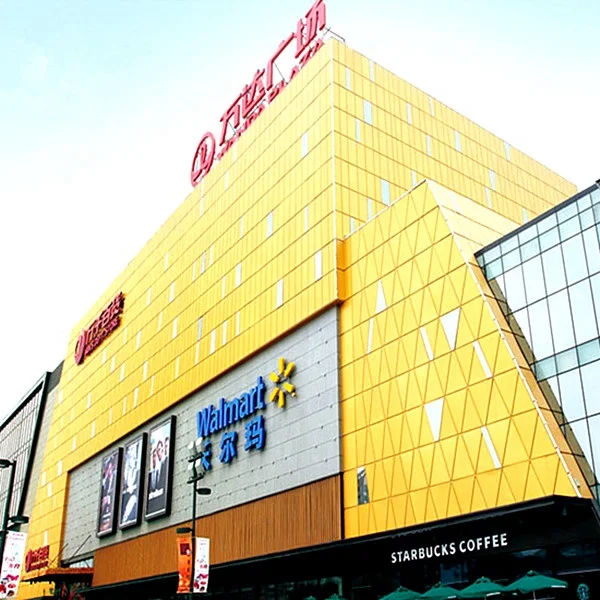

ARCHITECTURE
INTERIOR CONSTRUCTION
SHIPBUILDING
RAIL AND TRANSPORT VEHICLE CONSTRUCTION

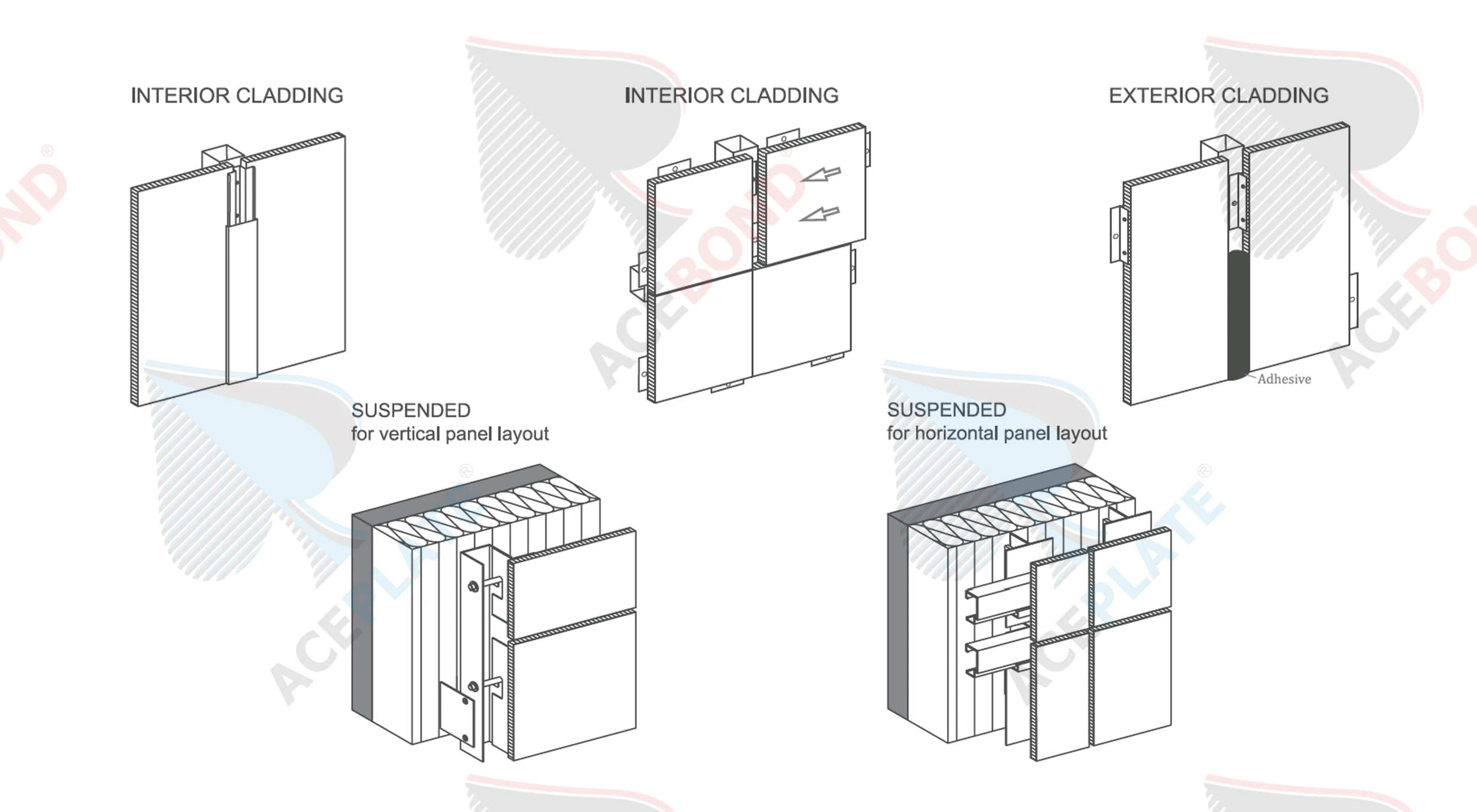

Installation Drawing

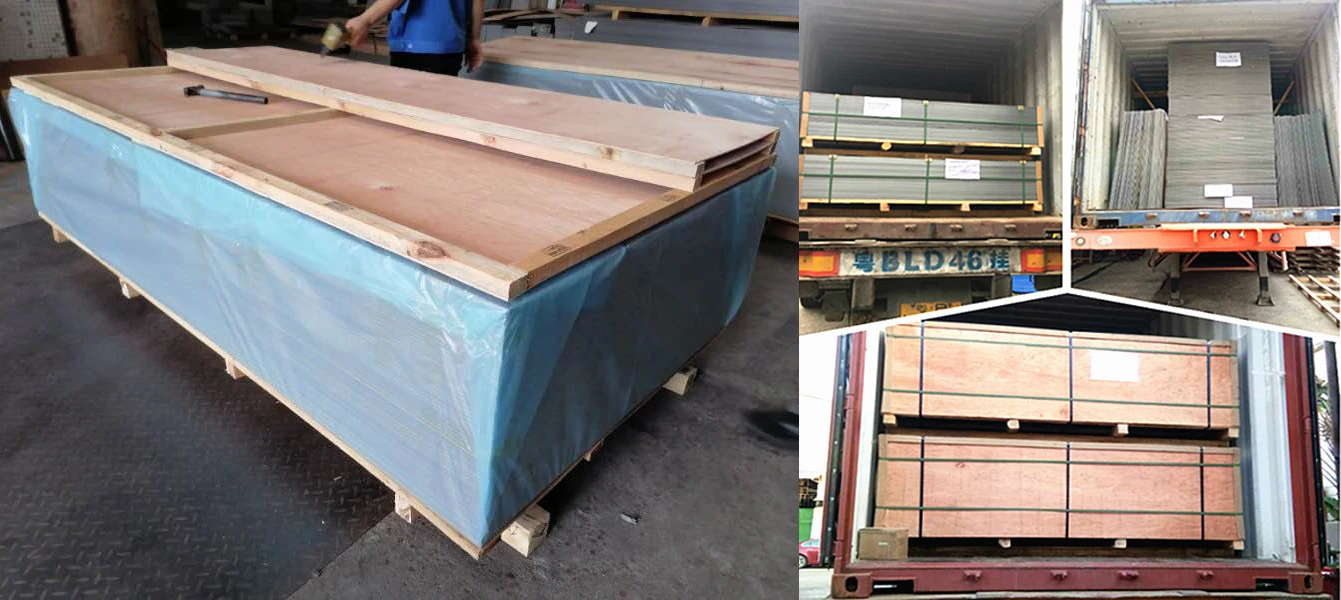

Packaging
Company Profile
Top Ace Development Limited is one of the largest architectural decoration material enterprises in Southern China. We are the project oriented manufacturer of aluminum composite panel, metal ceiling, solid aluminum panel, aluminum honeycomb panel and aluminum sandwich panel, providing good quality aluminum products according to customized designs. You design, we supply.

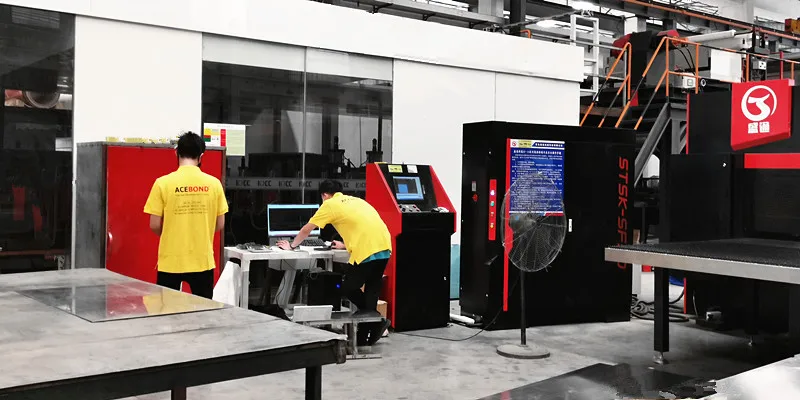

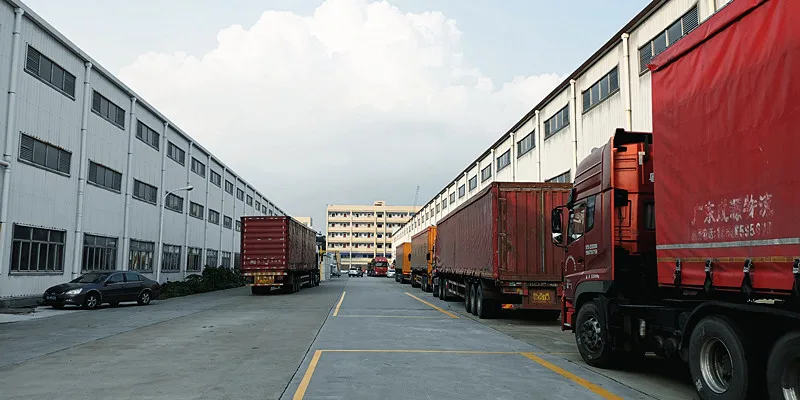

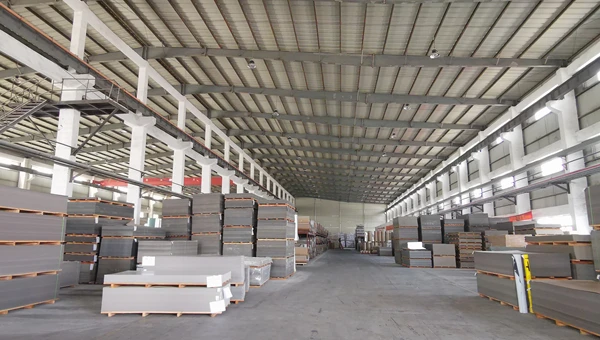

WORKSHOP&WAREHOUSE
We have invested advanced automatic production lines and machinery. Including 1 Ransburg automatic PVDF painting line from Japan, 2 automatic powder coating lines, 6 automatic ACP production lines, 4 sets of laser cutting machines and many CNC punching and bending machines.

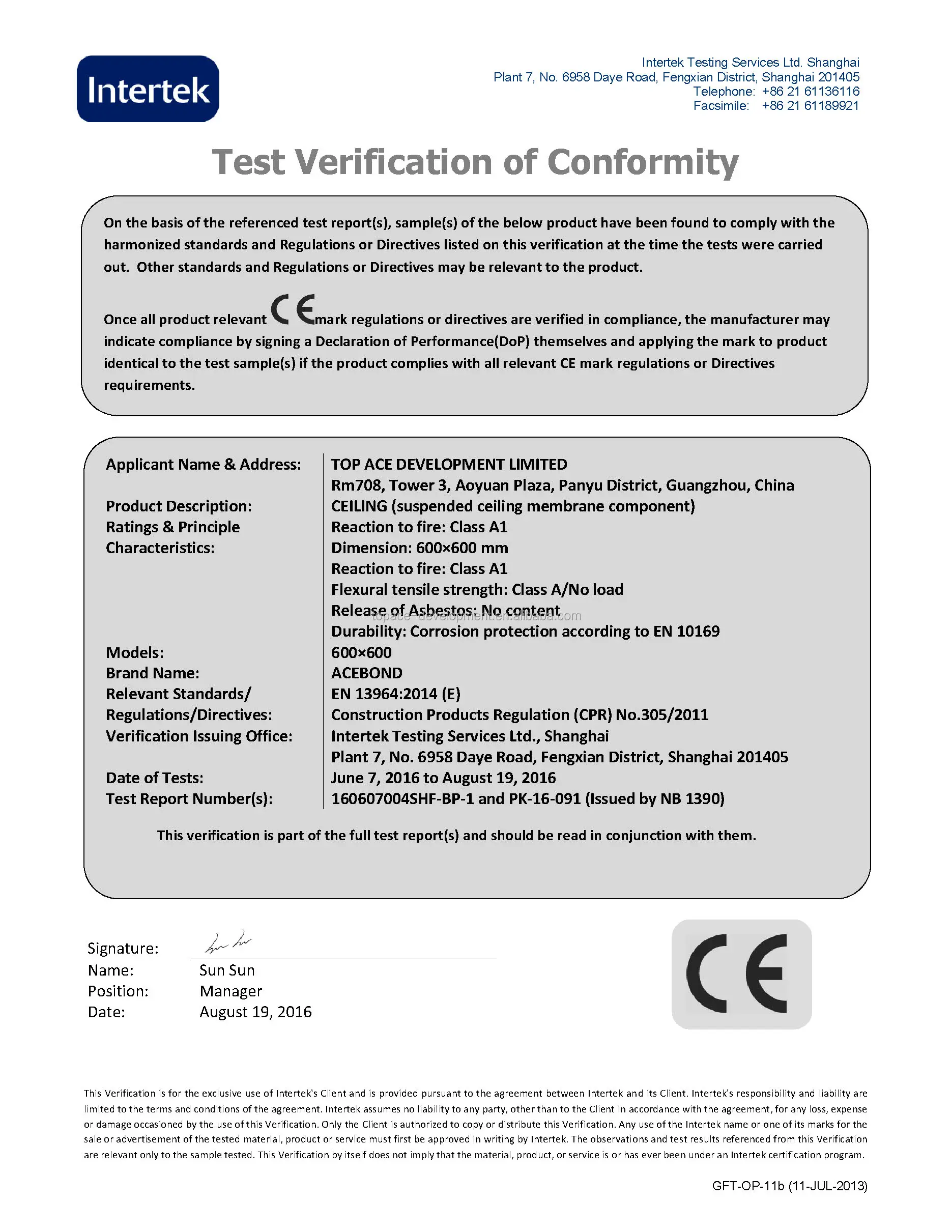

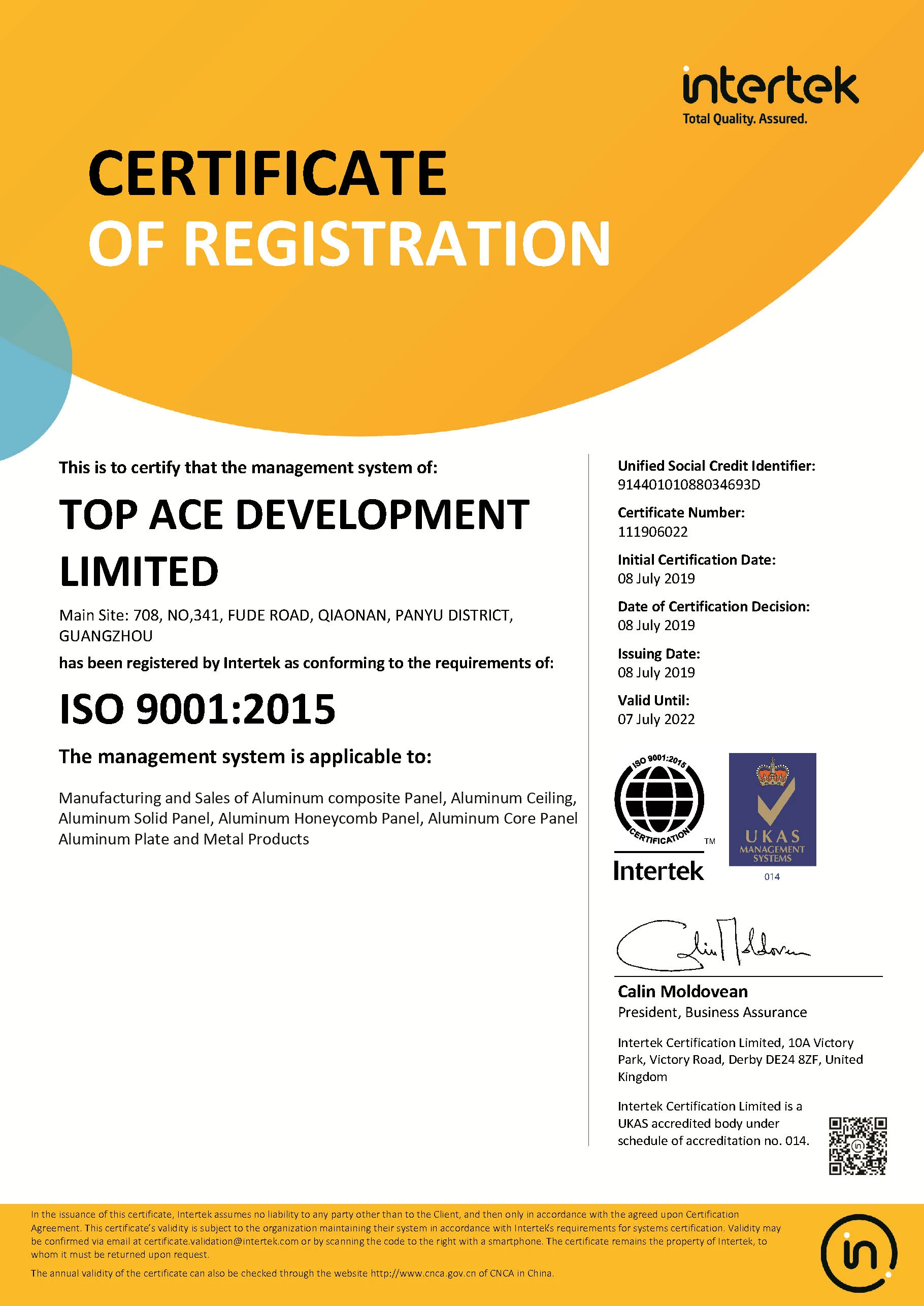

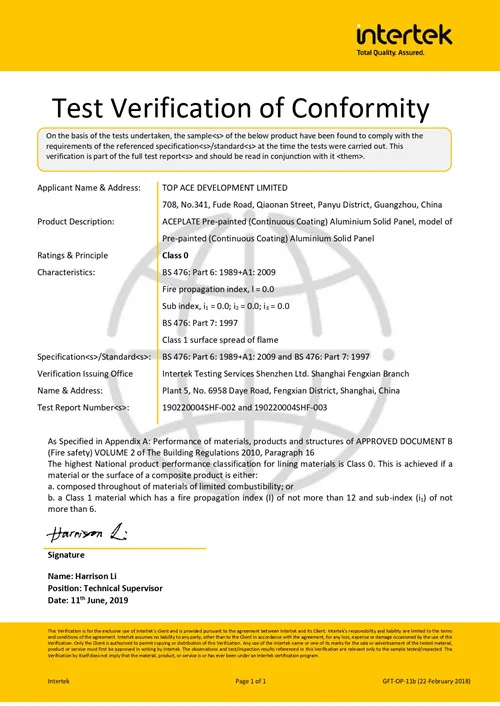

Certifications
FAQ
Q:Are you manufacture or simply trading company ?
A:We are the manufacture , welcome
you visit our factory.
Q:Do you provide free samples ?
A:We do provide free samples under the condition
that you assume the express shipping cost.
Q:How to place order ?
A:Please tell us the service you need, OEM or ODM, and the quantity ,
then we will make the PI for you.
Q:How did you test the product before they are packed?
A:We have the strict QC procedure , each product will be tested by three times
with professional machine before packing.
Q:What's the delivery time ?
A:Usually 15-20 days after receiving deposit.
Q:Where is the shipping port ?
A:We ship the products via Huangpu port, Guangzhou
or any other ports depend on your needs.
Q:What about the payment terms ?
A:30% TT advanced payment , balance
need to pay before shipment.
