high pressure regulator / low pressure regulator compressor air
US $117.20-$150.20
Low pressure regulator Pressure Reducing Valves price
- Category: Pressure Regulators >>>
- Supplier: Xi'an,Yunyi,Instrument,Co.,Ltd.
Share on:
Product Overview
Description
Low pressure regulator Pressure Reducing Valves price
Description low pressure regulator Pressure-Reducing Valves price
YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.

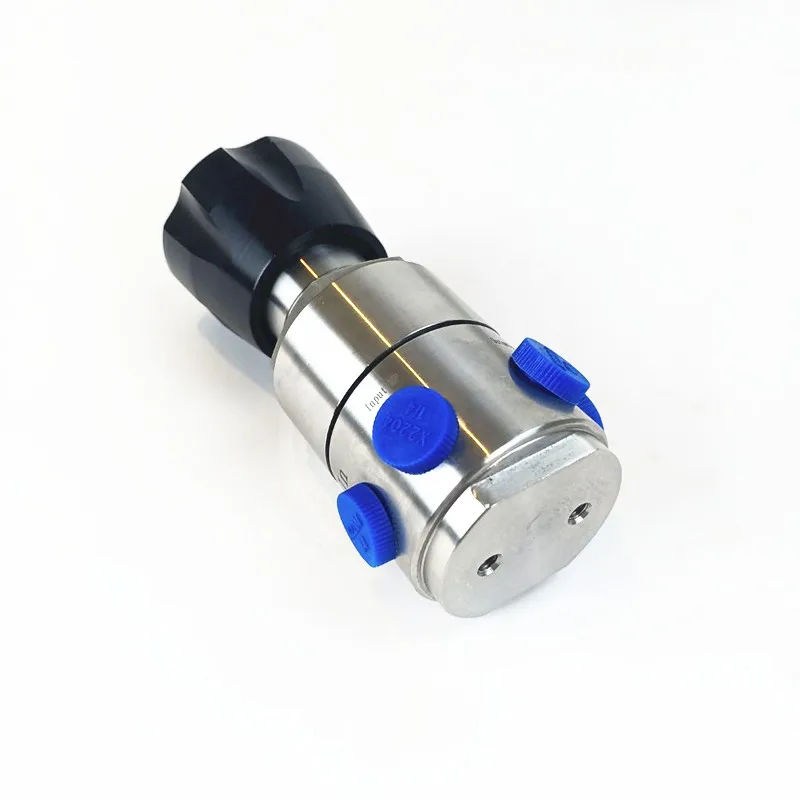

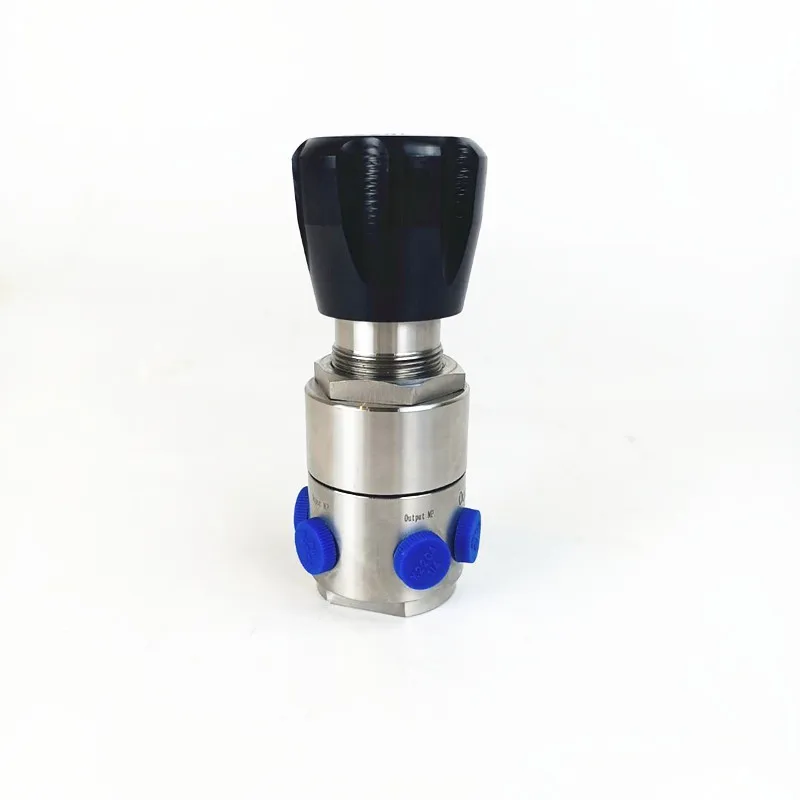

Detailed Images low pressure regulator Pressure-Reducing Valves price
Specification low pressure regulator Pressure-Reducing Valves price
| Material | 316 stainless steel |
| Max inlet pressure | 6000psi(413.7bar) |
| Outlet pressure range | 0 to 2500psi(172.4bar) |
| Discharge coefficient | (Cv)0.025 0.06(standard) 0.2 0.5 |
| Weight | 1.55kg |
| Max using temperature | ℃(℉):Teflon:66(150) PCTFE:80(175) PEEK: 260 (500). |
| Max inlet pressure | psi(bar ):Teflon:3600(248.2) PCTFE:6000(413.7) PEEK:3 600(248.2). |
Features low pressure regulator Pressure-Reducing Valves price
1. Light weight, small occupation space for installation, can meet a variety of gas or liquid applications.
2. The design of piston structure is compact.
3. Proper material adopts 316L stainless steel.
4. Installed with plate can be chosen.
5. Can be equipped with 20um filter at the entrance.
6.Pls make sure the using temperature, pressure,medium before choosing the product.
7. All of the 316L stainless steel meets the ASTM standard.
8.All of the Teflon,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.
Applications low pressure regulator Pressure-Reducing Valves price
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
Selection Guide low pressure regulator Pressure-Reducing Valves price
Model | Valve material | Inlet pressure | Outlet pressure | Pressure gauge | Inlet port | Outlet port |
YR31 | l 316L | 0-6000psig 0-3000psig 0-1500psig 0-1000psig | 0-4000 psig 0-2000 psig 0-1000 psig 0- 500 psig | l With gauge (mpa) l With gauge (psig) l Without gauge | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
