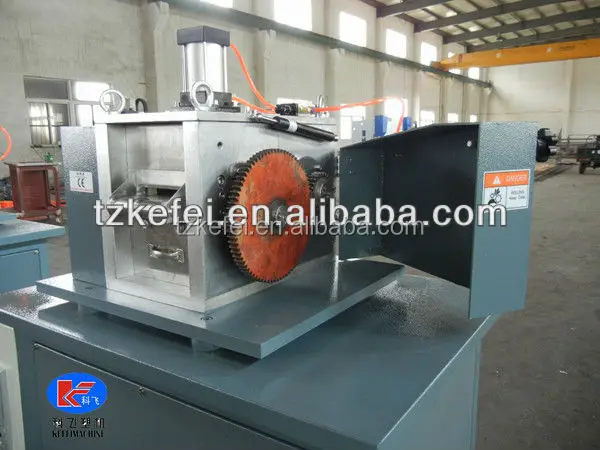

KEFEI brand PP PE PVC PC PET ABS PS PPS plastic pelletizing machine

Product Overview

Description

INTRODUCTION:

We are the special plastic pellet cutting machine manufacturer, was authenticated by Alibaba company, enjoying more than 10 years of honesty, cooperating with thousands of customers all the time, ensuring zero risk for your order, and the long term after-sale service for the plastic palletizing machine you buy from our company.



CHARACTER:

1,Using tungsten-carbide alloy from special alloy factory, ensuring the enduring time of cutting knife.

 2,Adopting wear resistant and high temperature resistant modified rubber, is nearly more than two times the service cycle of normal rubber roller.



3.,All plastic pelletizing machine applies the imported bearings to make sure the stability, precision and low voice.

 4,

3mm thickness of ss304 plate would be applied for panel of normal model, the bottom and feeding inlet which would easily erode is made of aluminium alloy.

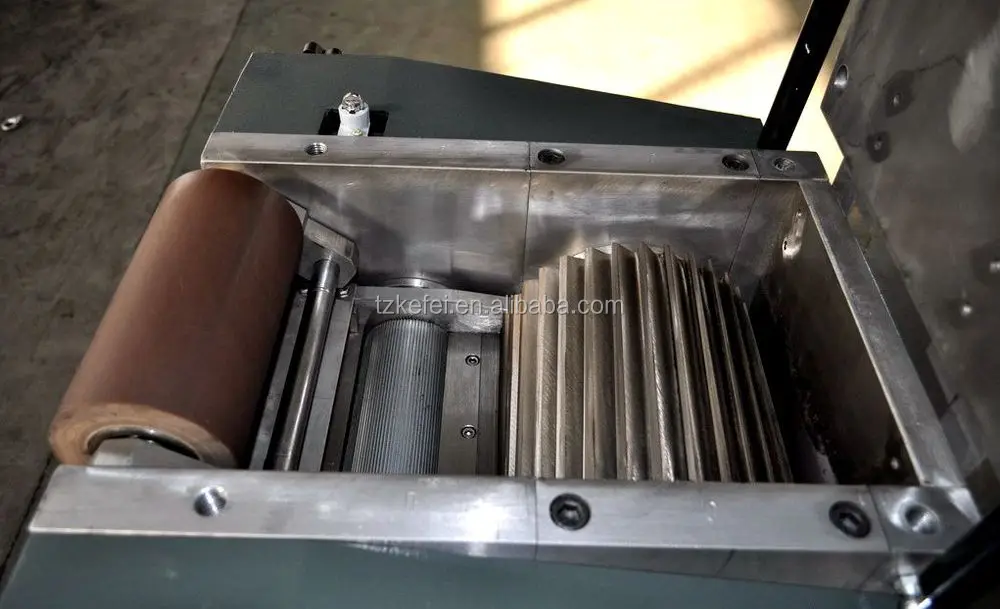

 5,The contacting part with raw material inside the cutting bin is completely made of ss304, also for cutting blade.



 6,The cutting machine is all made of ss304, including cutting blade and panel.



 7,Referring to the Germany cutting machine, the body of machine is much bigger, the stability and heat dispersion is much better, and there is quake proof rubber blanket installed under the cutting bin, the noise is reduced largely





Model	Motor power (kw)	Speed change	Strip cutting no.	Max. traction speed (m/min)	Granule size(mm)	Max. production capacity (kg/h)	Dia. X L of Rotating blade (mm)	Blade number	Dia. X L of Rubber roll (mm)	Dimension LxWxH (mm)
LQ-25	0.75	Electromagnetic slip or VFD	<=3	72	Φ3x3	<=40	Φ90x50	14	Φ60x50	550x500x1200
LQ-6	1.1/1.5/2/2	Electromagnetic slip or VFD	<=8	72	Φ3x3	<=60	Φ120x96	14	Φ90x70	600x500x1300
LQ-300 Gantry	3~4	Electromagnetic slip or VFD	<=18	96	Φ3x3	<=300	Φ160x150	24	Φ100x150	950x850x1600
LQ-300 Cantilever	3~4	Electromagnetic slip or VFD	<=14	96	Φ3x3	<=300	Φ200x100	32	Φ120x100	1270x750x1510
LQ-500 Gantry	5.5~7.5	Electromagnetic slip or VFD	<=30	96	Φ3x3	<=600	Φ200x200	32	Φ100x200	1000x950x1700
LQ-500 Cantilever	5.5~7.5	Electromagnetic slip or VFD	<=30	96	Φ3x3	<=500	Φ200x200	32	Φ120x200	1380x800x1700
