Product Overview
Description
HAITAI

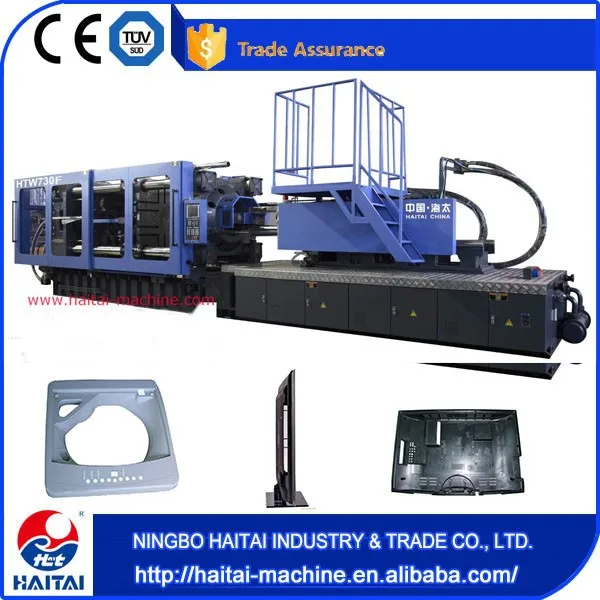

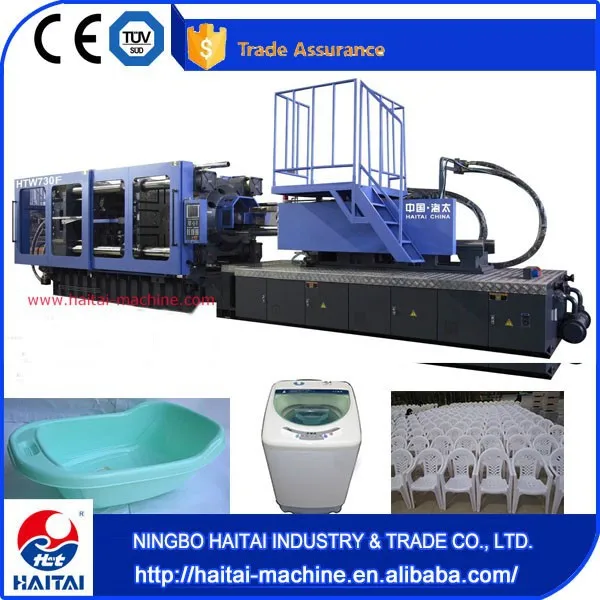

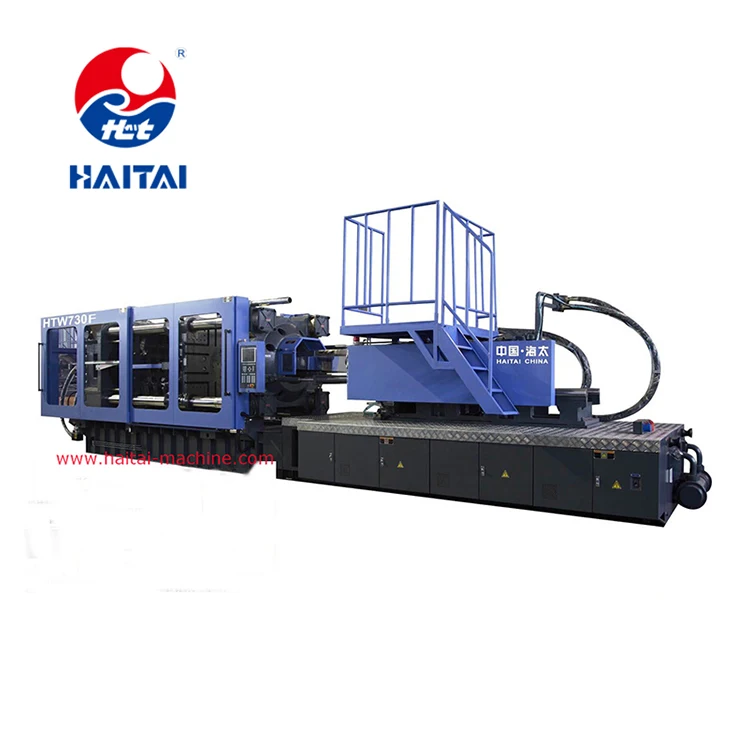

HTW F Series 730 Factory directly provide multifunction useful plastic chair injection mould manufacture
1. SPECIFICATIONS
Advantage:
fast system injection molding machineHTW/F series injection molding machines adopt optimized hydraulic system and high output volume of pump and motor. The injection rate can be increased greatly.
(1)Optimised hydraulic system produces very high injection rates and high injection pressures-up to 290MPA
(2)Special screw geometry greatly increases plasticising rate.
(3)Boosted plasticising rates, mould opening and closing speeds, ejetion speeds etc
(4)Clamping unit with improved rigidity meets the requirements of high injection speeds and pressures, and extends the service life of the mould
(5)Hydraulic accumulator is available as optional extra, with injection rate over 400mm per second![]()
.
2. TECHNICAL PARAMETERS
SPECIFICATION | HTW730 | ||||
| A | B | C | D | |
INJECTION UNIT |
| ||||
Screw diameter | mm | 90 | 95 | 105 | 110 |
Screw L/D ratio | L/D | 23.2 | 22 | 19.9 | 19 |
Shot volume(theoretical) | cm3 | 3181 | 3544 | 4330 | 4752 |
Injiection weight(ps) | g | 2895 | 3225 | 3940 | 4324 |
Injection rate | g/s | 574 | 640 | 781 | 858 |
Injection pressure | Mpa | 195 | 175 | 143 | 130 |
Screw pressure | rpm | 115 | |||
CLAMPING UNIT |
| ||||
Clamping force | kN | 7300 | |||
Open stroke | mm | 950 | |||
Space between tie bars(W×H) | mm | 950×950 | |||
Max.Mold height | mm | 960 | |||
Min.Mold height | mm | 400 | |||
Ejector stroke | mm | 280 | |||
Ejector force | kN | 210 | |||
OTHERS |
| ||||
Max.Pump pressure | MPa | 16 | |||
Pump motor power | kW | 37+37 | |||
Heating power | kW | 56.7 | |||
Machine dimension(L×W×H) | m | 11.43×2.40×3.14 | |||
Oiltank cubage | L | 1200 | |||
Machine weight | t | 37 | |||
| |||||
| PLATEN DIMENSIONS |  |
| MOULD SPACE DIMENSOINS |  |
