ET700 Electric Hydraulic Operating Table For Orthopedics, General surgery, Gynecology

Product Overview

Description

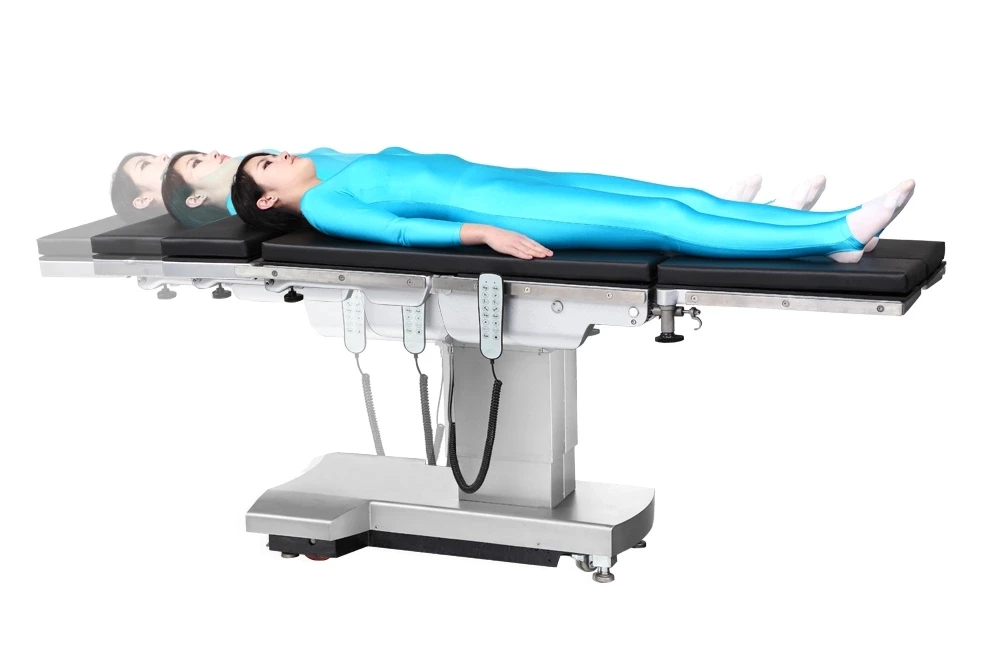

ET700 Operating Table



With reference to the advantages of congener products from home and abroad,can meet the demands of different positions  on operation.

24V battery that meets the operating demands for one week,better ensure the table work under safe voltage.

Electromotion facilitates the various adjustment of positions,intellectualized reposition enables the table a quick return to  horizontal position.Automatically lockable remote control in case of wrong operation.

Large-scale elevation makes it easier for C-arm fluoroscopy examination .

With built-in kidney bridge.suits for kidney operation .

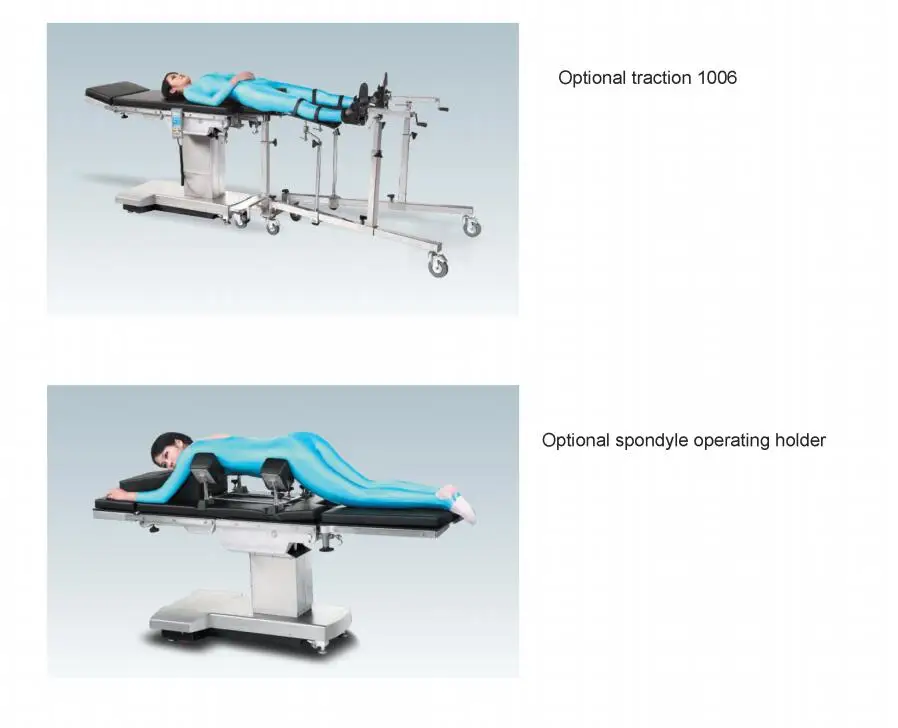

Optional traction for orthopedics,head rest for Aural surgery,extend functions of the table The cover all adopted premium 304 stainless steel,the main body used cast aluminum,anti-rust and corrosionthe tabletop adopted phenol aldehyde Photograph board which is suitable for X-Ray.

Key parts,such as electrical pump and electromagnetic valve,adopted imported products from Taiwan.



Features:

With bulit-in kidney bridge, suits for kidney operation.

Optional traction for orthopedics, head rest for auralsurgery, extend functions of the table. The cover all adopted premium 304 stainless steel, the main body used cast aluminum, anti-rust and adopted premium 304 stainless steel, the main body used cast aluminum, anti-rust and corrosion the table top adopted phenol aldehyde photograph board which is suitable for X-ray.



Technical Data	data
Tabletop Length/width	1960mm/500mm

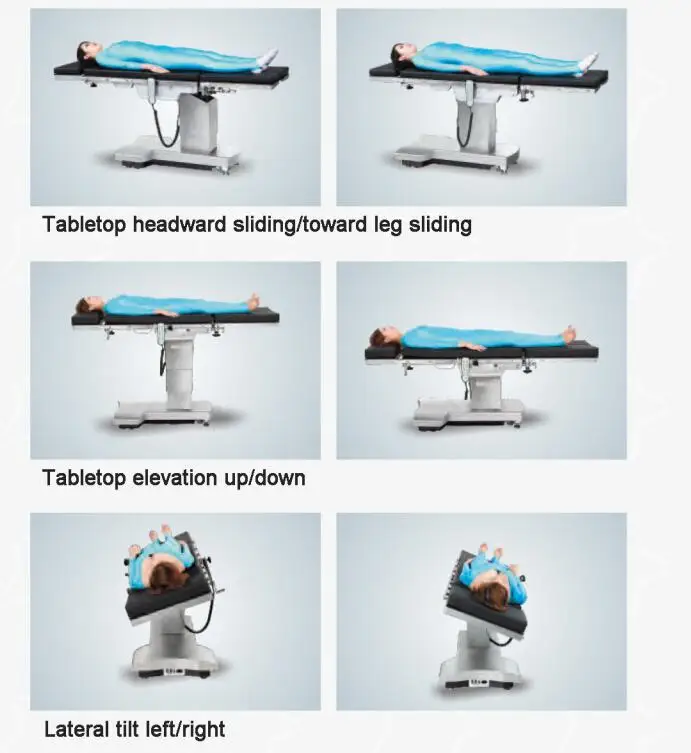

Tabletop Elevation(up/down)	1100/690mm

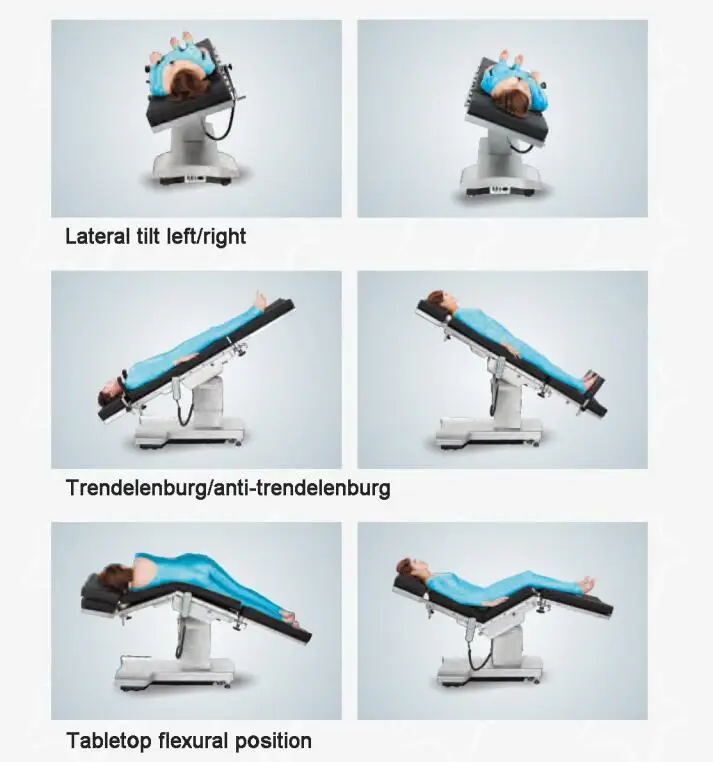

Trendelenburg/Anti-tredelenburg	30°/30°
lateral tilt	20°/20°

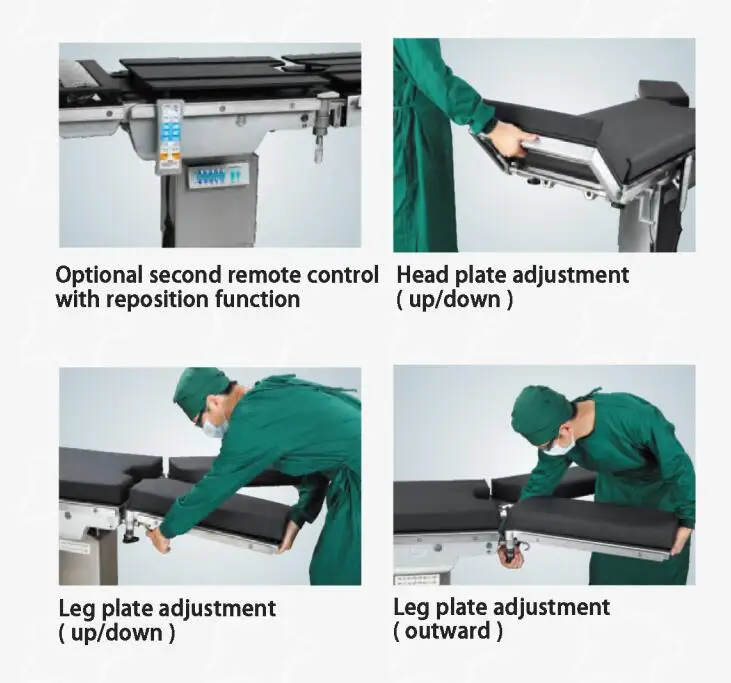

Head plate adjustment	up:60°/down:85°
Leg plate adjustment	up:15° ,down:90°,outward:90°
Back plate adjustment	up:85°/down:40°
Kidney bridge	100mm
Horizontal sliding	340mm
