Product Overview

Description

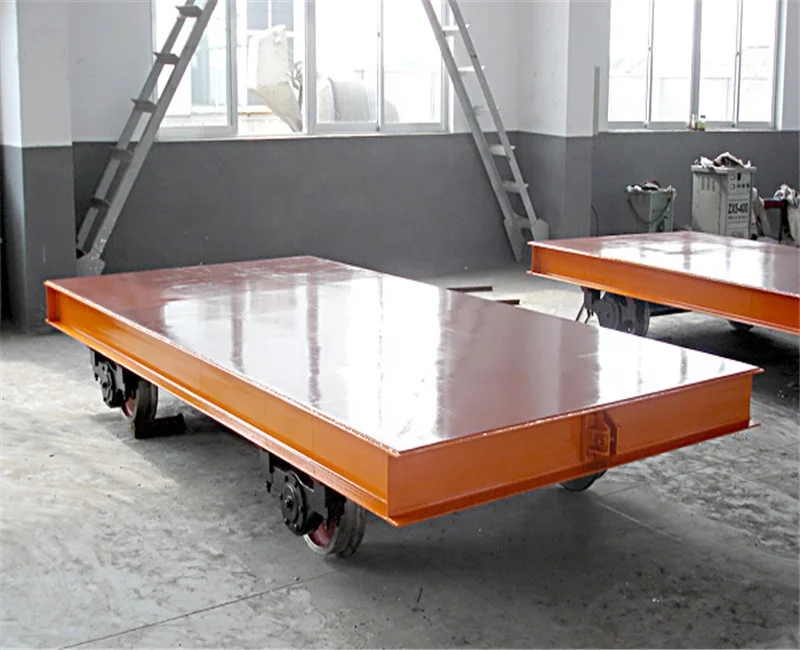

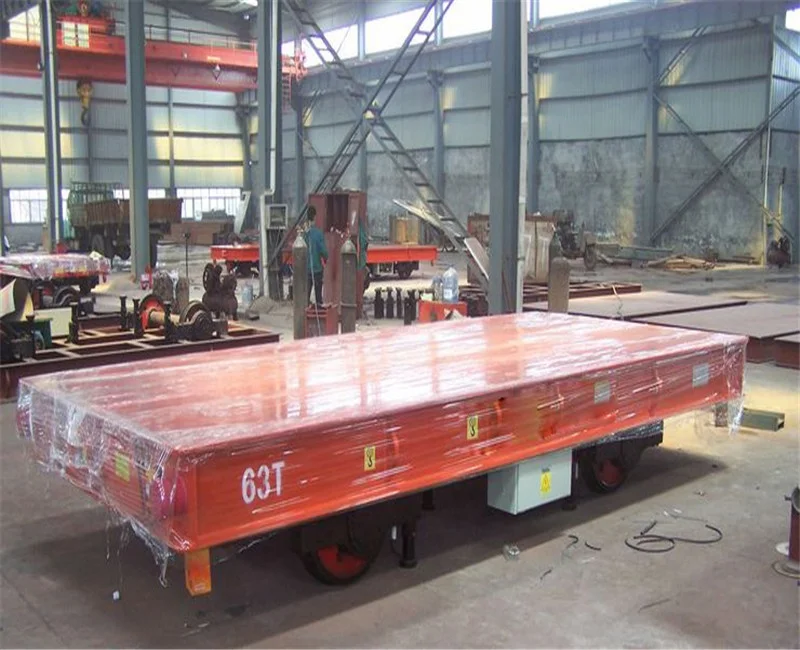

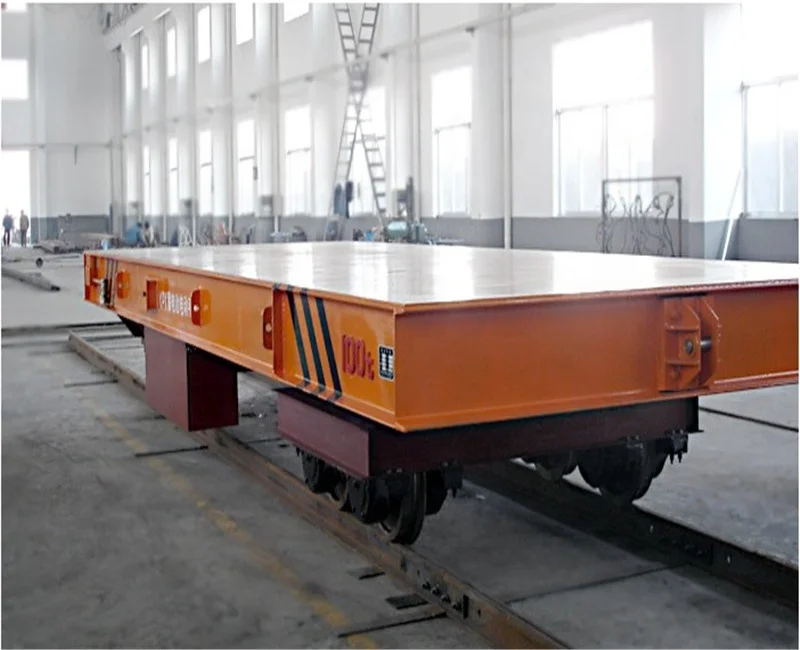

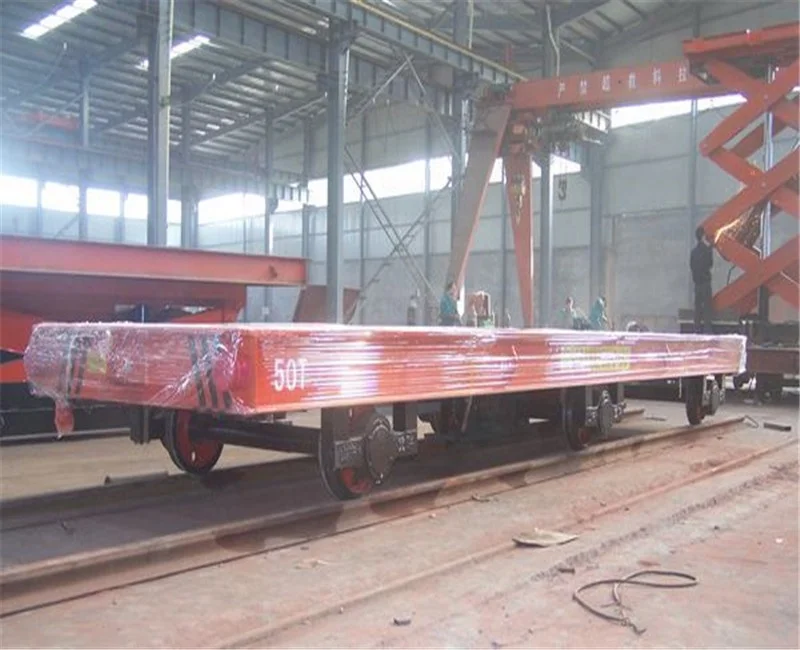

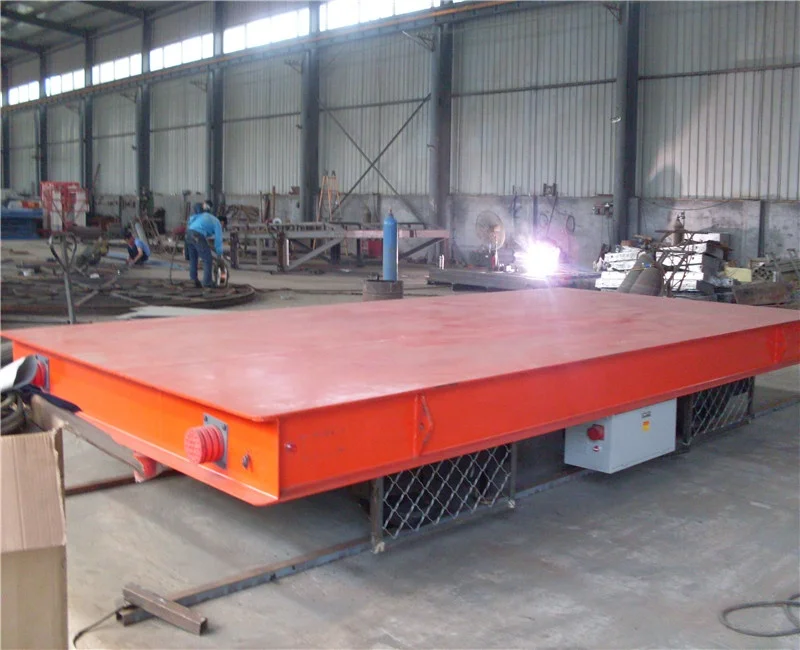

KPD series battery powered rail electric flat car with professional engineer design



KPD low voltage power track flatcar and KPX railway battery flat car



Product description

1.KPX railway battery flat car is powered by the storage battery. It is a kind of transport vehicles indoor.The batteries supply electricity to the DC motor through the electrical control system. Then the reducer drives the wheels of the flat carts start, stop, go forward and backward, and the speed can be adjusted at the same time. The professional charger can give electricity to the battery when the battery is no power.



2.KPX series battery railway flat car the DC rechargeable battery. It has many characteristics, such as simple structure, easy operation, carrying capacity and so on. Besides, it can be used in special occasions without power and transport for long distance.



3.This series car can be widely used in machinery factories, warehouses and metallurgical plants as a workshop transport or with the crane transport heavy loads over cross.



4. It mainly includes car frame, brushless DC motor, reducer, wheel, storage battery, charger, etc.It also can be used in the ferry condition and flammable, explosive environment and the hydraulic lifting device can be installed on the flat carts. This kind of heavy duty electric flat car for shipbuilding is suitable to be used in the long running distance transportation and low using frequency





Technical parameter



Model	KPX-50
Rated Load(t)	50Ton
Table Size(mm)	3600*2000*500
Wheel Base(mm)	2600
Rail Gauge(mm)	1435
Wheel Diameter(mm)	300
Wheel Quantity	4
Ground Clearance(mm)	50
Running Speed(m/min)	0-25
Motor Power	1.6
Battery Capacity(Ah)	160
Battery Voltage(V)	48
Running Time When Full Load	4.8
Running Distance for One Charge(Km)	7.2
Max Wheel Load(KN)	42.6
Reference Weight(t)	4.2
Recommended Rail Model	P18





Application of 100 ton trolley

This series' flat carts can be used in the ferry condition and flammable, explosive environment,high-temperature condition and so on.The transfer car is suitable for various industries, steel mill, transfer steel products such as steel structure,

steel pipe, steel billets, steel ladle and coil, etcfrom one location to another; Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the

painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.
