Semi Automatic 1000b/h Small Plastic Bottle Blow Molding Machine
- Category: >>>
- Supplier: Shanghai,Nancheng,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Semi Automatic 1000b/h Small Plastic Bottle Blow Molding Machine

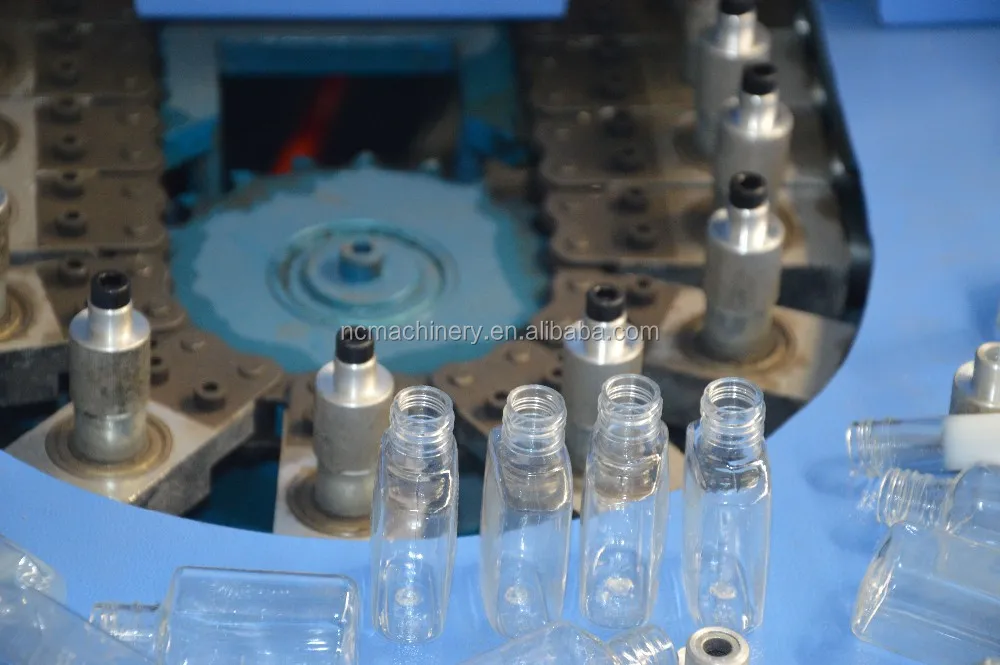

NC series semi automatic bottle blowing machine is the most stable two step blow down equipment of our factory, from one cavity to four cavity, the maximum is 20L,suitable for blowing PET, PP crystal forming kind raw material any shape carbonated beverage bottles, mineral water bottles, cosmetics bottles, wide diameter bottles, high temperature resisting bottles and other plastic container.
Machine components of
ZG1000A semi-auto blowing machine
Item | Name | Brand |
Pneumatic components | Cylinder | TAIWAN Air TAC |
Electrical components | Main computer | TAIWAN DELTA |
Human machine interface (HMI) | TAIWAN DELTA | |
Relay | KOREA AUTONICS | |
Photoelectric switch | TAIWAN Air TAC | |
Remark | All the components are selected with Internationally applied high-tech products. | |
1. Technical Parameters of ZG1000A blowing machine
Model | ZG1000A | |
Output | Based on bottle shape | 800-1200PCS/H |
Product Specifications | Bottle neck size | 10mm-120mm |
Bottle body diameter | 15mm-130mm | |
Bottle height | 50mm-350mm | |
Mold Specifications | Cavity | 2cavities |
Mold thickness | 100~250mm | |
Max stretching distance | 430*380mm | |
Machine Power | Power Voltage | 380v 3Phase / 220v 3Phase 50/60HZ |
Installed power / Actual power | 18kw/10kw | |
Air Source | High pressure air compressor | 1.2m3/min 3.0MPa |
Air dryer | 0.6m3/min 1.0MPa | |
Water chiller | Chilled water yield | 15L/min |
Blowing machine size | Length*width*height/weight
| 1700*650*1700mm/1000kg |
Heater size | Length*width*height/weight
| 1700*600*1450mm/300k |
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running
conditon in our factory!
Responsible Man(General Manager):Jason
Cel.Phone:0086-15221595986
Tel.Phone:0086-21-37575536
