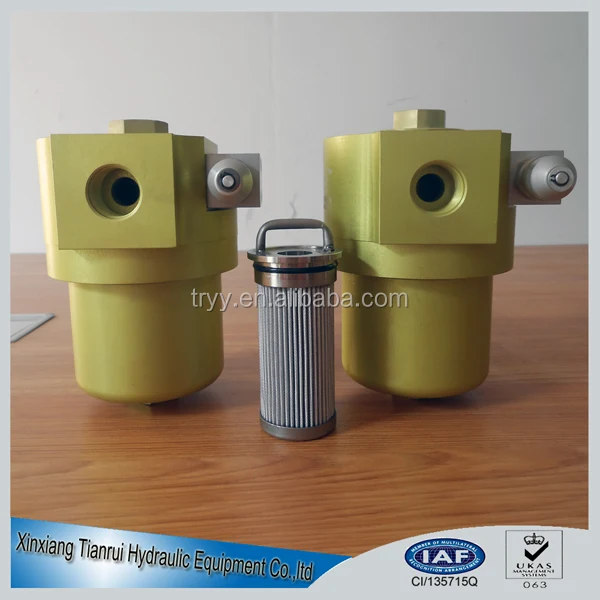

Up drawing Core Hydraulic Oil Lubricating Oil Fuel Hydraulic Pressure Line Filter

 1.DESCRIPTION

It is installed in thehigh-pressure hydraulic system to filter solid particle and slimesin medium and effectively control cleanliness.It can be assembled electrical differential indicator,bypass-valve and fuel outlet valve according to the need. The filter element of it is washed very easy. It can be effective separation of oil before and after filtering. Mainly used in aviation manufacturing, repair tester and cleaning equipment of the enterprise.

 2.TECHNICAL DATA

Operating pressure (max): 21MPa       Operating temperature:- 25℃~110℃

Indicating pressure drop: 0. 5MPa      By-pass valve unlocking pressure: 0.6MPa

3.Our company strictly enforce quality standards

♦ISO4572 hydraulic fluid power-Filter-Mulit-pass method for evaluating filtration performance

♦ISO2941 hydraulic fluid power-Filter elements- Verification of collapse/burst resistance

♦ISO2942Hydraulic fluid power-Filter elements-Verification of fabrication integrity

♦ISO2943Hydraulic fluid power-Filter elements-Verification of material compatibility with fluids

♦ISO3723 Hydraulic fluid power-Filter elements-Method for end load test

♦ISO3724 Hydraulic fluid power-Filter elements-Verification of flow fatigue characteristics

♦ISO3768 Hydraulic fluid power-Filters-Evaluation of pressure drop versus flow characteristics

4.ODERING INFORMATION

     Filter type:  FMQ   660   S5  T  FC  1   B7

(660 is the code of Flow rate . S5 is the code of Type of indicators .T is the code of  By- pass valve.FC is the code of Filtrate media and precision.1 is thecode of  sealing material.B7 is the code of Port size)

 4.CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RTING FLOW RATES(Unit:1×10⁵Pa  Medium parameters:30cst  0.86Kg/dm³)

5.DIMENSIONAL LAYOUT
