factory price cocoa beans drying machine
- Category: >>>
- Supplier: Taizhou Jincheng Pharmaceutical Machinery Co. Ltd.
Share on (60217874651):
Product Overview
Description

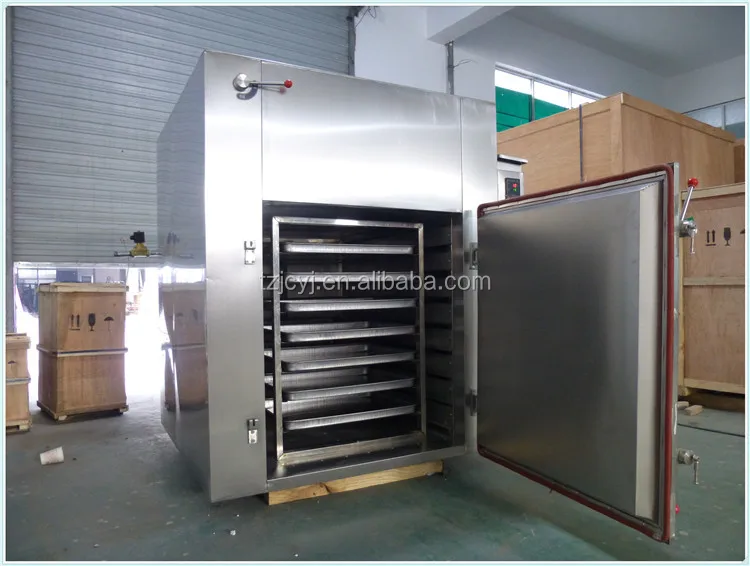

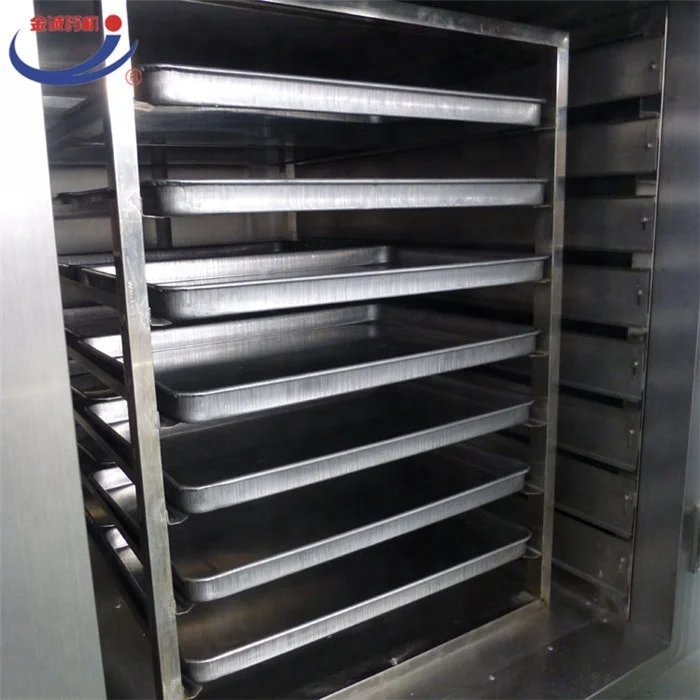

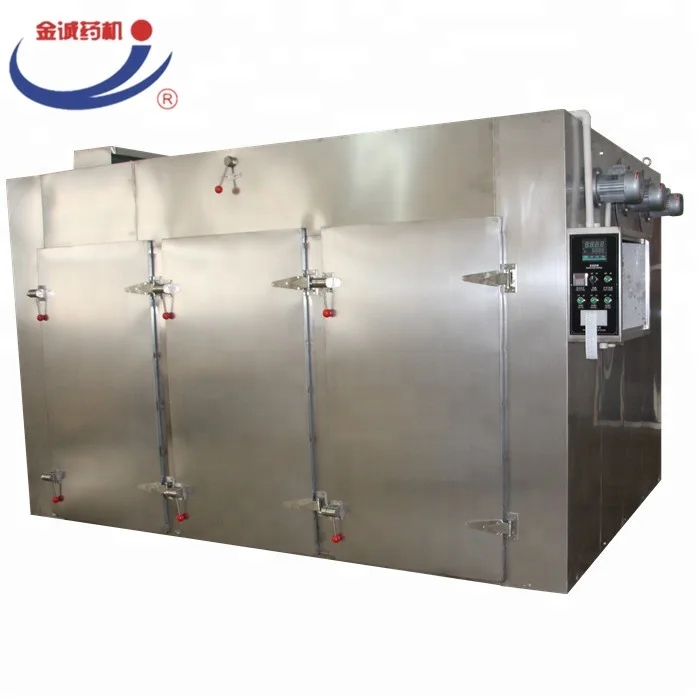

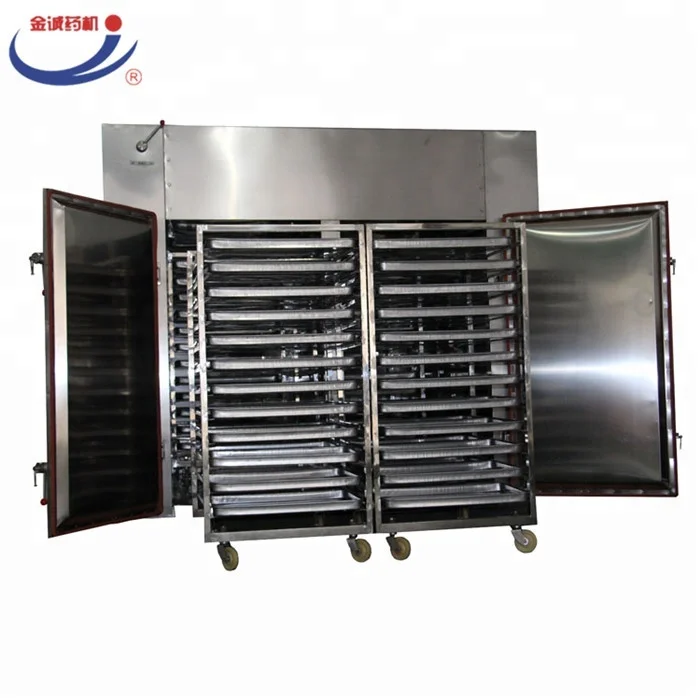

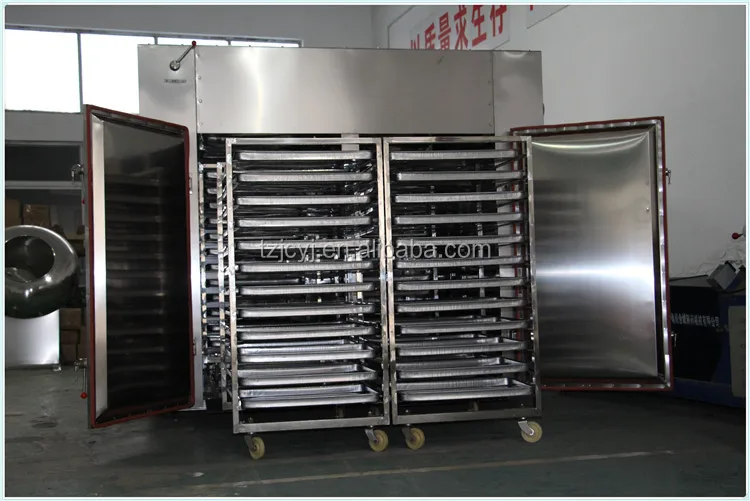

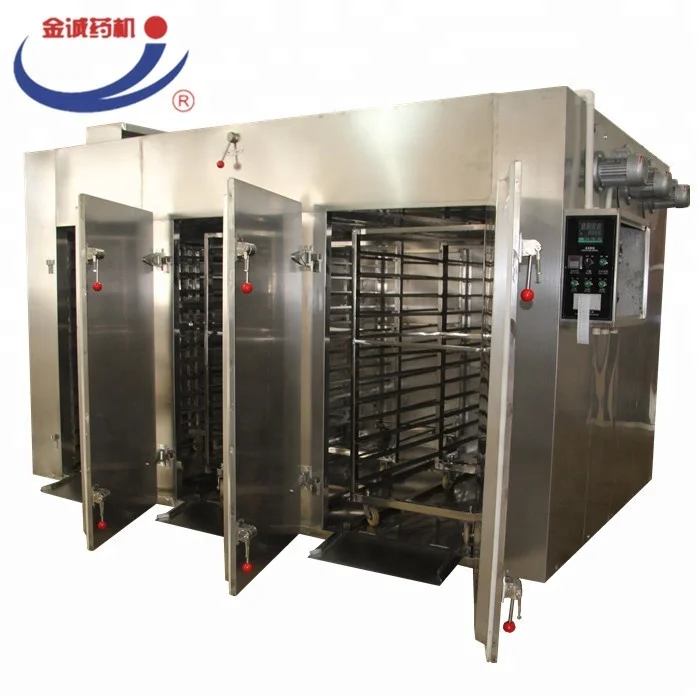

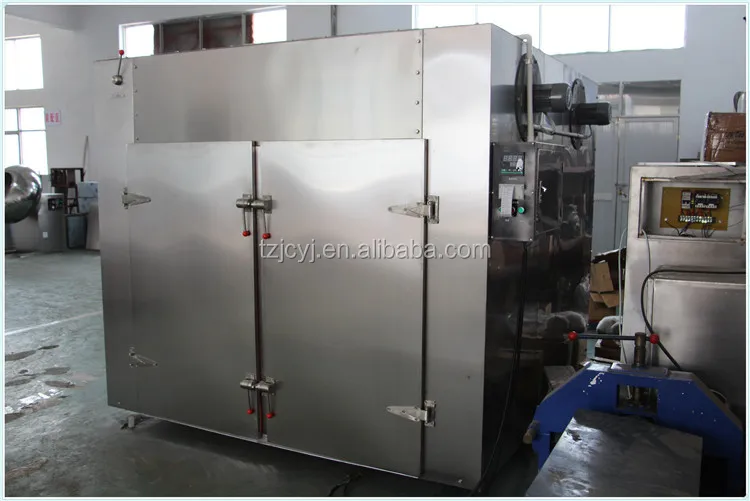

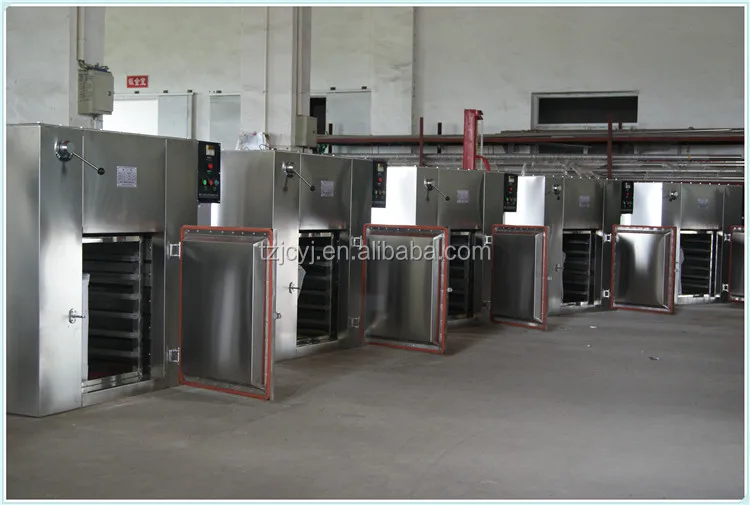

Cocoa beans drying machine
Product Description
1)Use Scope:
Our cocoa beans drying machine is specially designed for fruit and vegetable. It use hot air to instead the solar light and the shift fan make the hot air cycling evenly in the oven. Thus the fruit and vegetable can be dried.In this way,the cocoa beans drying machine we can produce dried vegetable and fruit without the limits of the weather. What is more, the time cost is shorten greatly.
2)Product Features:
1.Most hot air is circled inside the oven, high heat efficiency, save energy.
2. Equipped with forced ventilation and adjustable air distribution plates.
3. A wide selection of heat source such as steam, hot water, electricity, far infrared, etc.

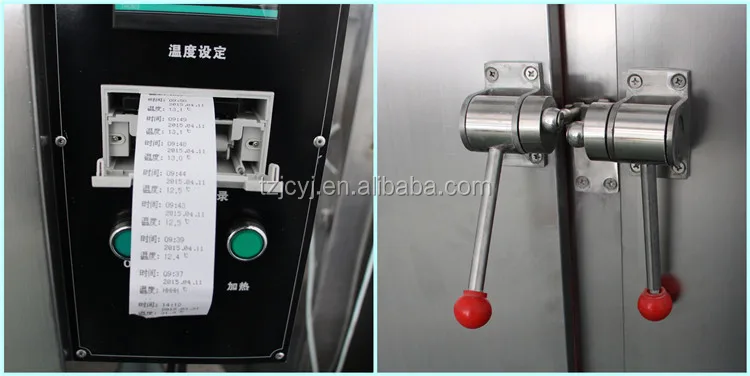

4. Low machine noise, balance running process, automatic temperature control system, easy installation and maintenance.

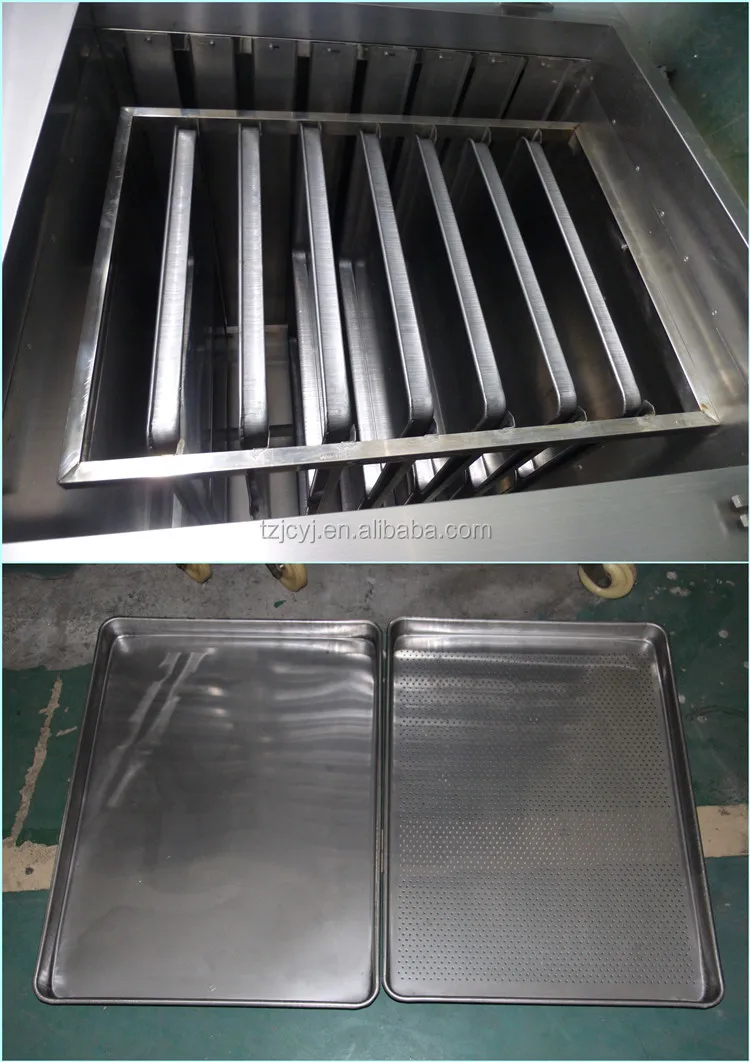

5. Inside wall is stainless steel, outside wall is carbon steel (with nice cover painting).
6.Wide application.Such as food, vegetables,fruits,fish,shrimp,sea cucumber etc
Specification of cocoa beans drying machine
Model | RXH-2-C | RXH-4-C | RXH-5-C | RXH-7-C |
Capacity (kg/time) | 15 | 30 | 40 | 60 |
Drying Area(m*m) | 2 | 4 | 5 | 7 |
Fan power(kw) | 0.45 | 0.45 | 0.45 | 0.45 |
Wind (m3/h) | 900
| 1300 | 1400 | 1400 |
Heating power(kw) | 6 | 8 | 8 | 9 |
Temperature(℃) | ±2 | ±2 | ±2 | ±2 |

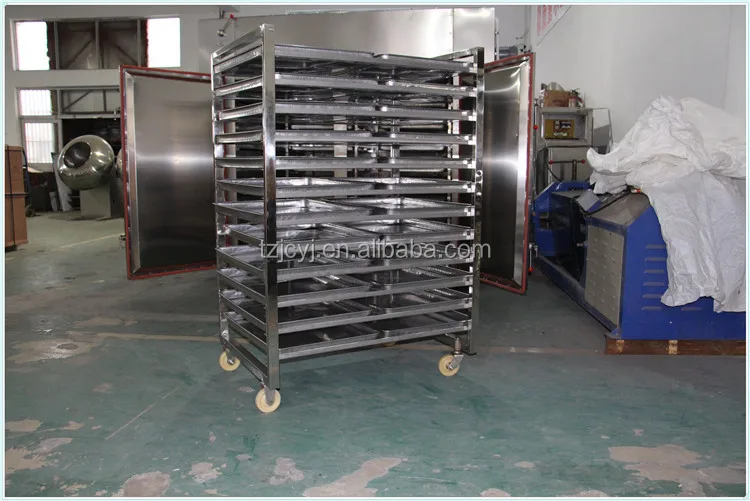

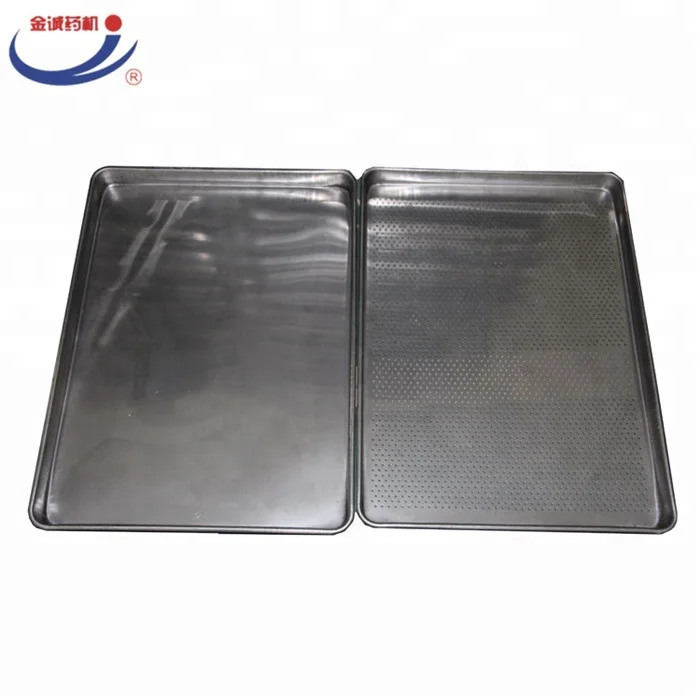

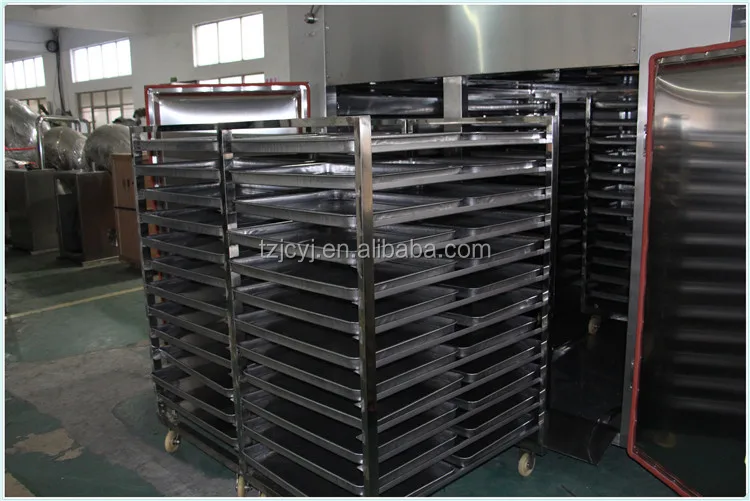

Tray no | 6 | 12 | 16 | 24 |
Packing size(mm) | 1000×860×1260 | 1100×860×1780 | 1500×1000×2044 | 1500×1000×2160 |
Model | RXH-14-C | RXH-27-C | RXH-41-C | RXH-54-C |
Capacity (kg/time) | 120 | 240 | 360 | 480 |
Drying Area(m*m) | 14 | 27 | 41 | 54 |
Volume (m*m*m) | 2.5 | 4.9 | 7.4 | 10.3 |
Fan power(kw) | 0.45 | 0.9 | 1.35 | 1.8 |
Wind (m3/h) | 1420 | 5320 | 9000 | 9800 |
Heating power(kw) | 18 | 24 | 36 | 48 |
Temperature(℃) | ±2 | ±2 | ±2 | ±2 |
Tray no | 48 | 96 | 144 | 192 |
Packing size(mm) | 2250×1200×2160 | 2250×2160×2160 | 3290×2160×2160 | 4360×2160×2160 |
weight(kg) | 1050 | 1100 | 1950 | 2380 |
Product Overviews
Packaging & Shipping
We pack our machine in export standard polywooden box. And export machine from shanghai ,qingdao or ningbo port.

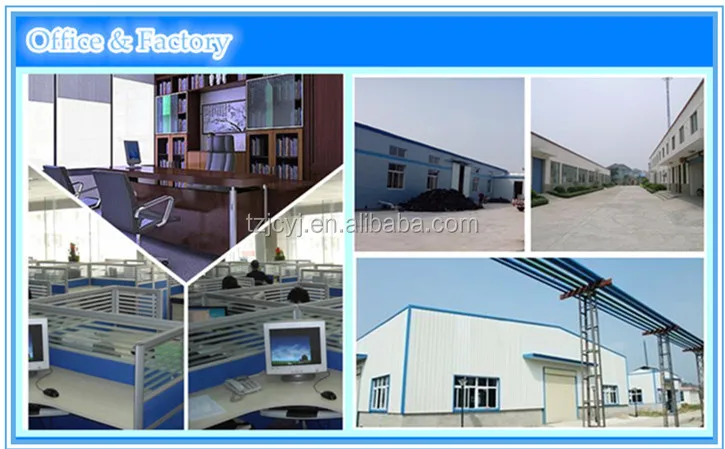

Company Information
ü 30 years professional in pharmaceutical &food &Chemical machinery
ü A full range of technical support ,not only for our machines ,but also for your production process
ü Competitive price&good quality
FAQ
How to Order
1. Customer send us an inquiry.
2. Confirmmachine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us boutQuality , Service, Market Feedback & Suggestion.And we can do better
About after sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
