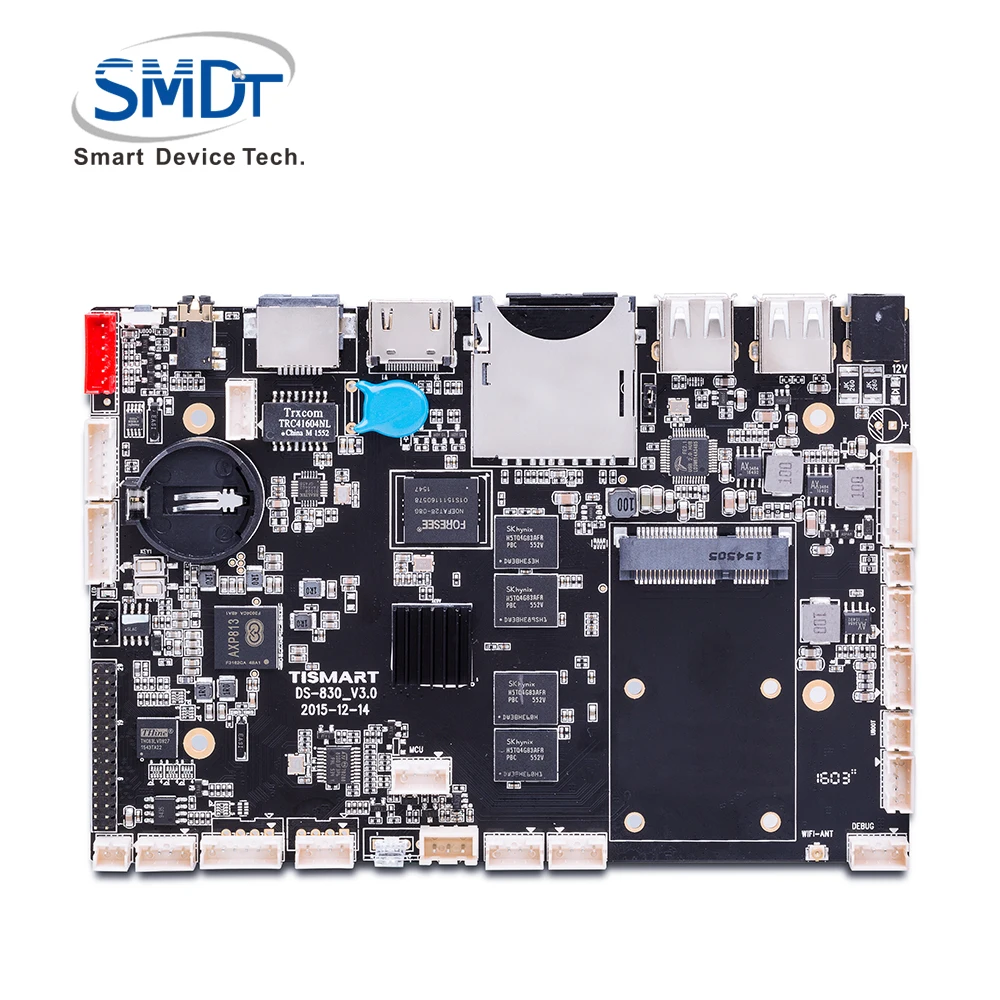

China Shenzhen Wholesale Gps Pos Universal Mini Industrial All In One Rockchip Motherboard
Product Description

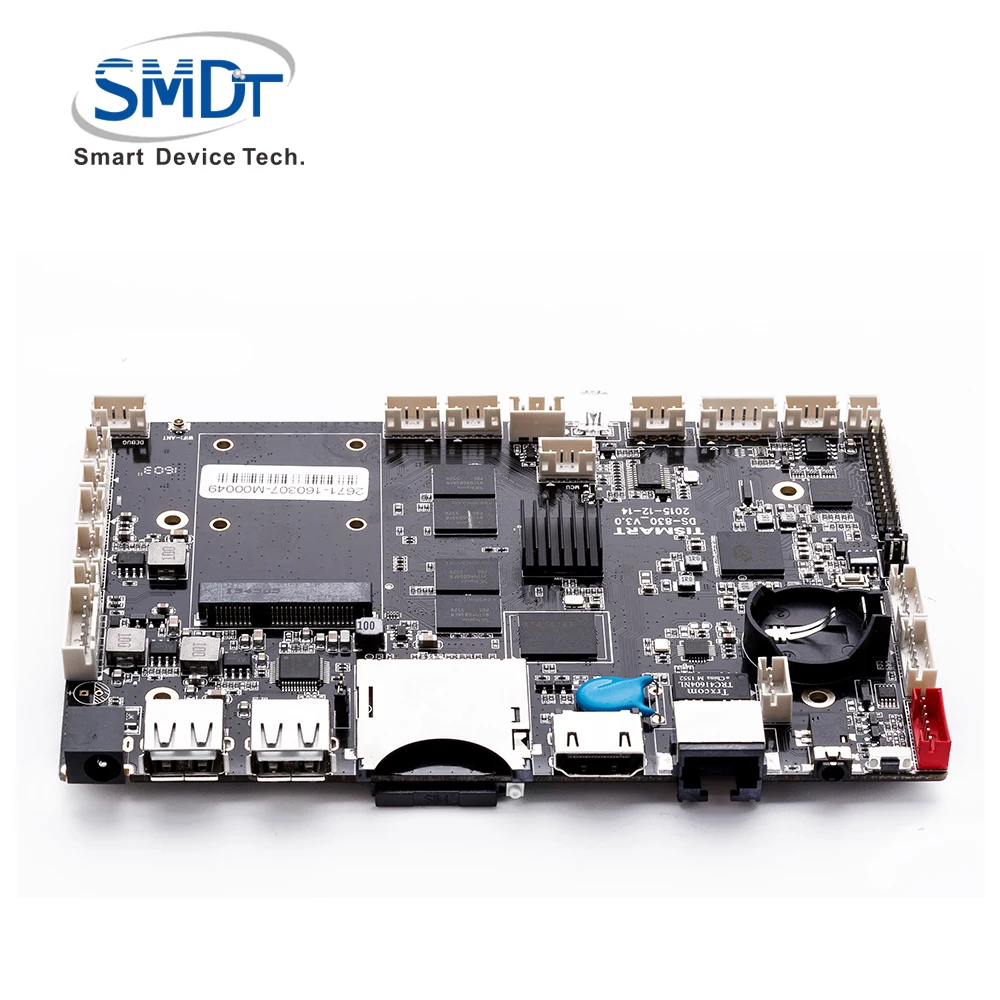

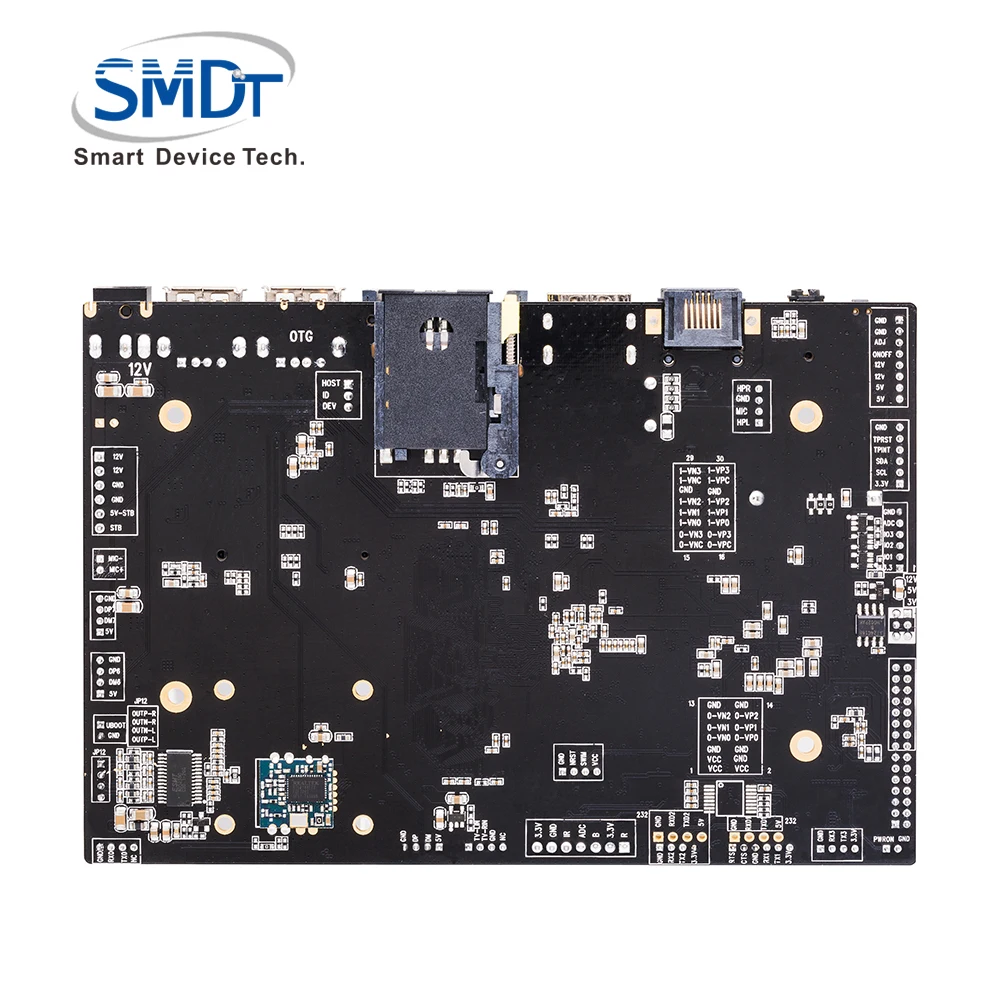

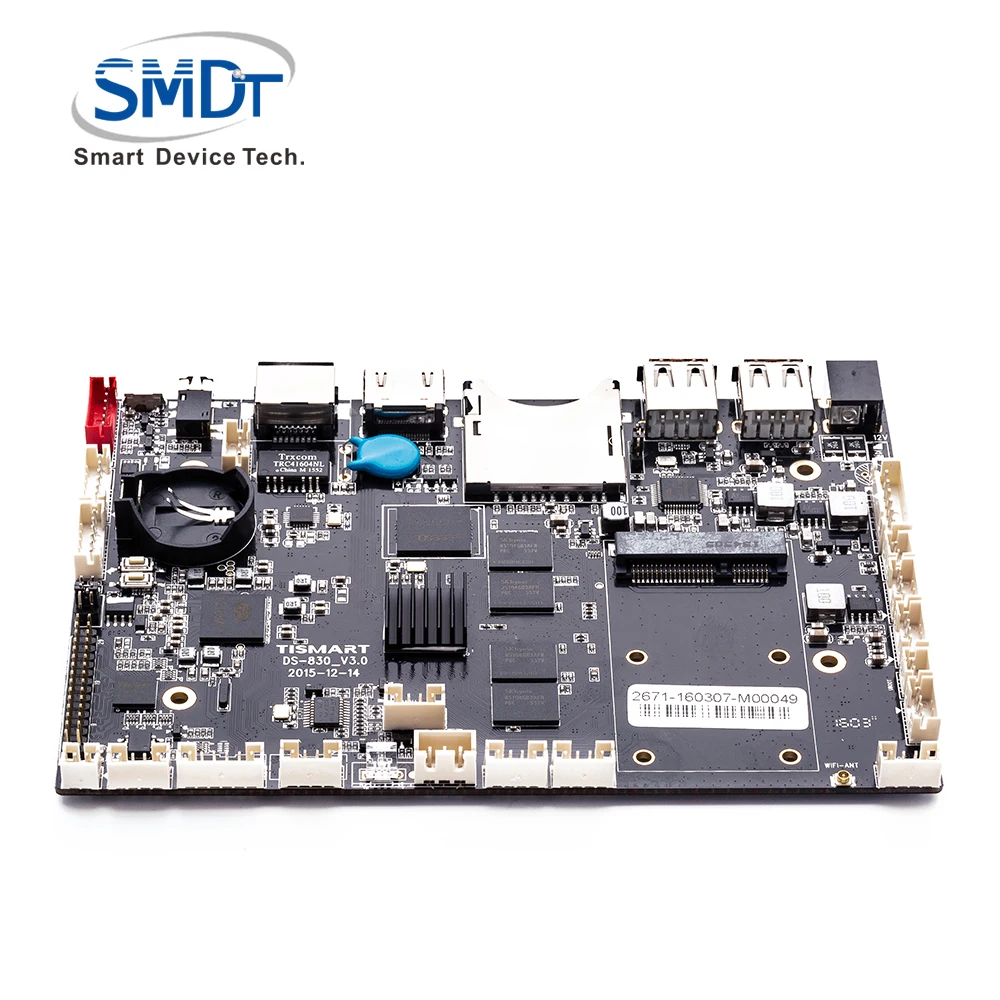

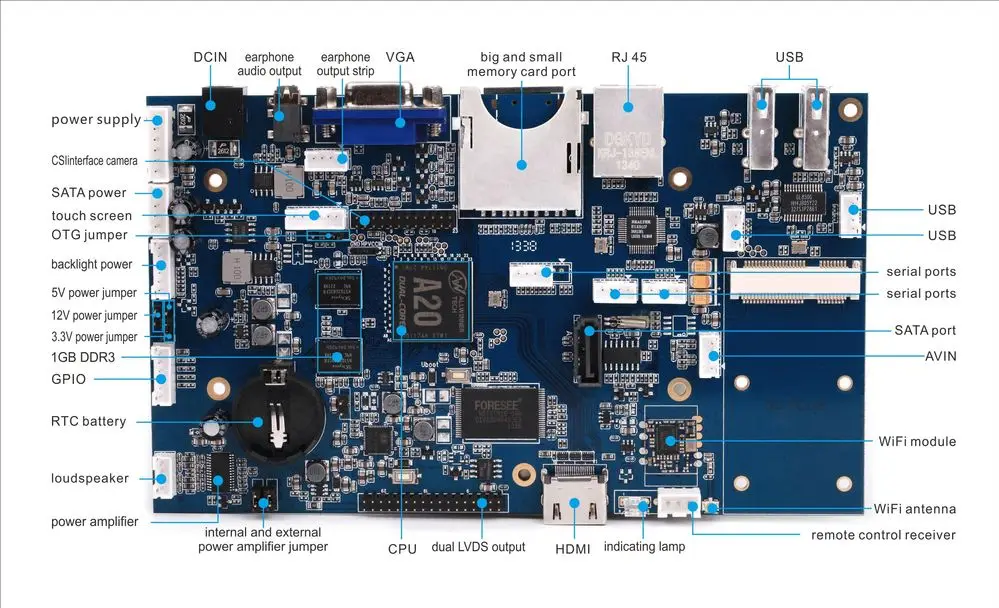

MBOX106GS digital scutcheon board adopts Allwinner A20 dual-core ARM Cortex-A7 framework CPU, combining two ARM Mali-400MP image processing units, which has strong capability of video processing and compatible with most video and image decoding format.

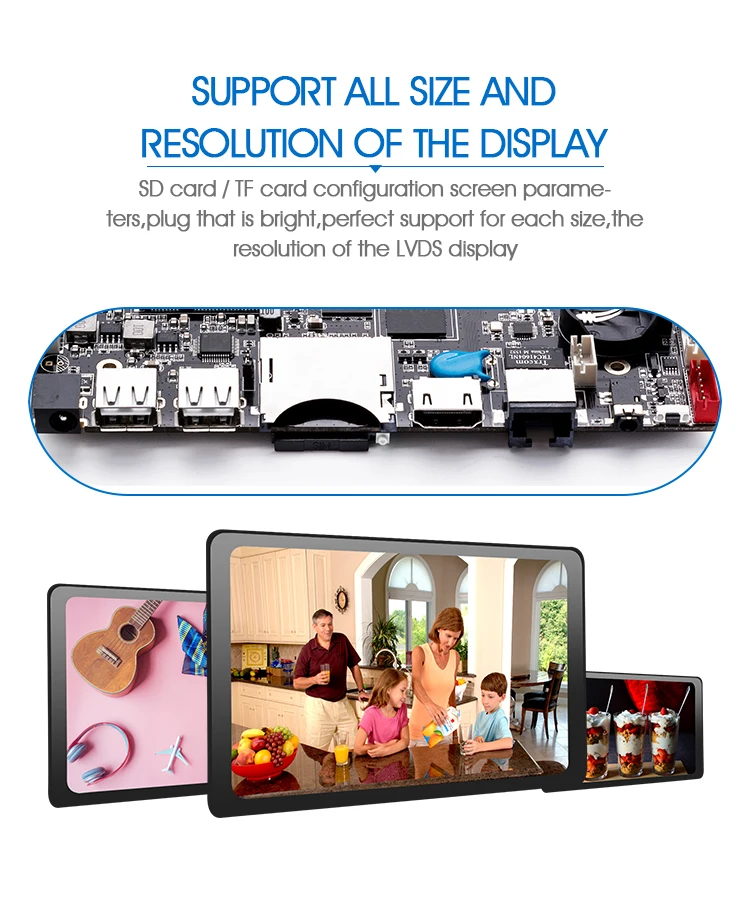

MBOX106GS carries Android 4.2 system and standard 1GB DDR3 and 4GB NAND, supports HDMI/VGA video output, dual eight LVDS driver, dynamically allocate LCD parameters, able to drive 7 inches to 60 inches LCD panel at the same time support mainstream 40 types touching panels of infrared/optics/elastic wave/resistance/capacitance. 4 USB ports and 4 UART extended ports, realizing support for variable touching panels/3G module/printer/camera/card reader/barcode scanner/coin collector/USB/mobile hard disk and external extended devices etc, which satisfy different customer demand. Combining RJ45/WiFi/3G in one, so as to adapt to variable network environment. At the same time it combines AV IN input, realizing remote control extension application. Adding SATA port to mass storage. The product is much suitable for digital scutcheon advertising machine and HD network play box.
Features
1. High Integration Intensity: integrating USB/LVDS/Ethernet/HDMI/WIFI in one, simplifying whole machine design. SD card can be inserted.
2. Built-in PCI-E 3G module: support Huawei, ZTE and many PCI-E 3G module, more suitable for remote maintenance of advertising all-in-one machine, saving labor cost.
3. Ample Extended Interfaces: four USB interfaces (two pins, two standard USB interfaces), two extensible serial ports, which can satisfy variable requirements of peripheral in the market.
4. High Definition:maximum support 1080P decoding and variable LCD panels with LVDS signal.

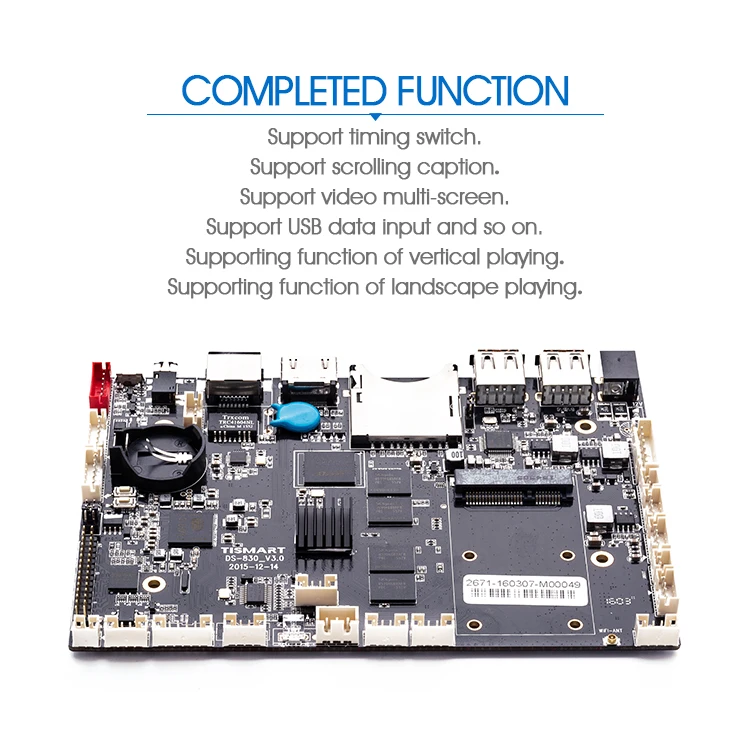

5. Completed function:support portrait and landscape screen, video multi-screen, scrolling screen, timing switch, USB data input and so on.

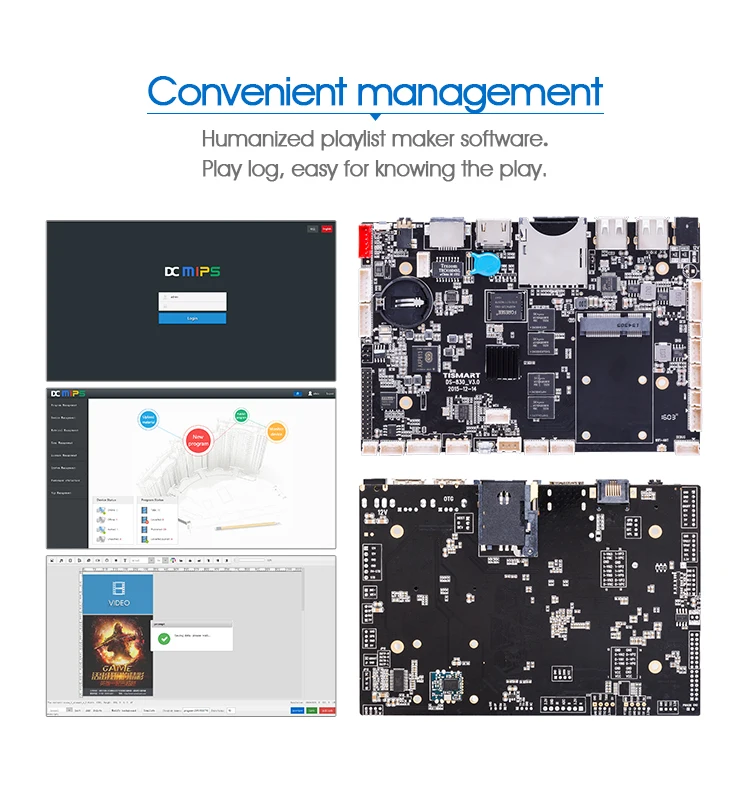

6. Convenient management:humanized play list maker software, convenient for advertising play management and control. Play log, easy for knowing the play.
Hardware Index.
Built-in memory: NAND FLASH 4G(optional)
Video play: support wmv,avi,flv,rm,rmvb,mpeg,ts,mp4 etc.
Ethernet: one,10M or 100M self-adapting Ethernet
SD card: compatible with SD and TF card
LVDS Output: one,can drive 50 or 60Hz LCD panel
HDMI Output: one, support 1080P output
Audio and Video Output: support CVBS video output,left and right channel output, built-in dual-channel 4R/20W,8R/10W amplifier
RTC Real Time Clock: support Timing Switch: support System Upgrade: support USB upgrade,network upgrade
Size: 100.3*170mm, thickness 1.6mm.
Application.
