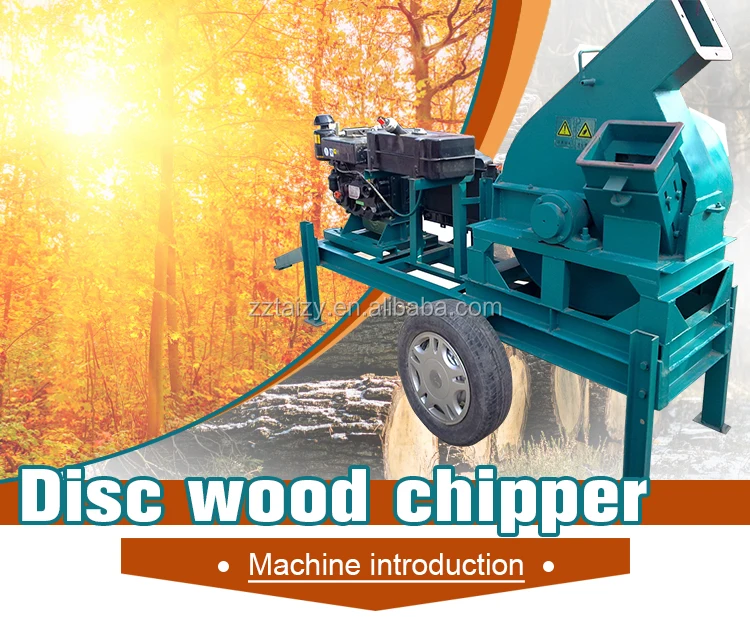

Wood chipping machine Diesel engine wood chipper

Introduction of mobile industrial wood chipper machine:

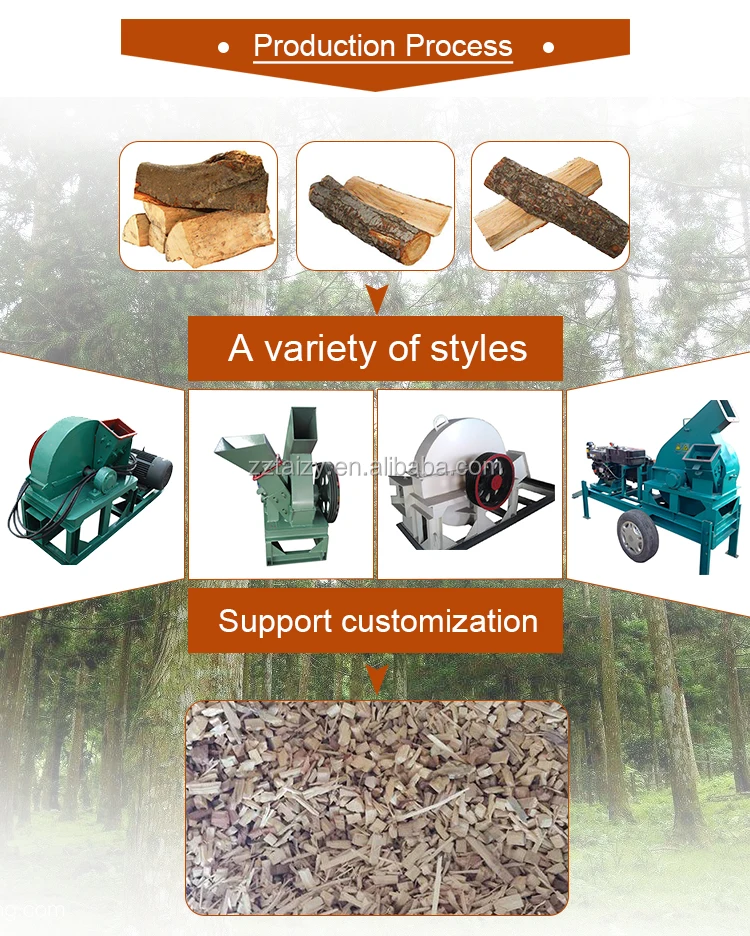

Wood slice machine also called wood chipper machine, common type have disc and drum-type . The size can be raw materials including logs, slab, veneer, bamboo, brushwood, corn stalk, cotton stalk, reed,and other nonwood fiber rod cutting into homogeneous sheet stock, stock piece length according to need to be in a certain range adjustment. Is paper industry, plank industry way before the production of ideal equipment.





Features of mobile industrial wood chipper :

1. To adjust the wood chipper machine to get different length wood chipper, according to the different length requirements
2. Small land using:
The wood chipper machine has a compact and scientific design, it can save the working site.
3. Various Capacity for the wood chipper machine, you can choose a better capacity wood chipper machine according to your actual requirements.

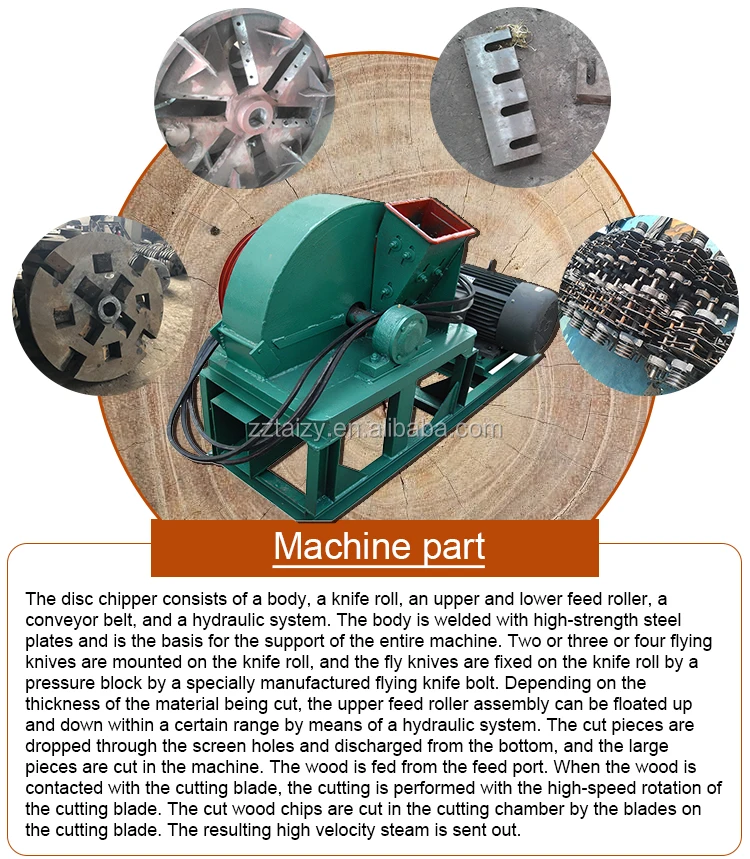

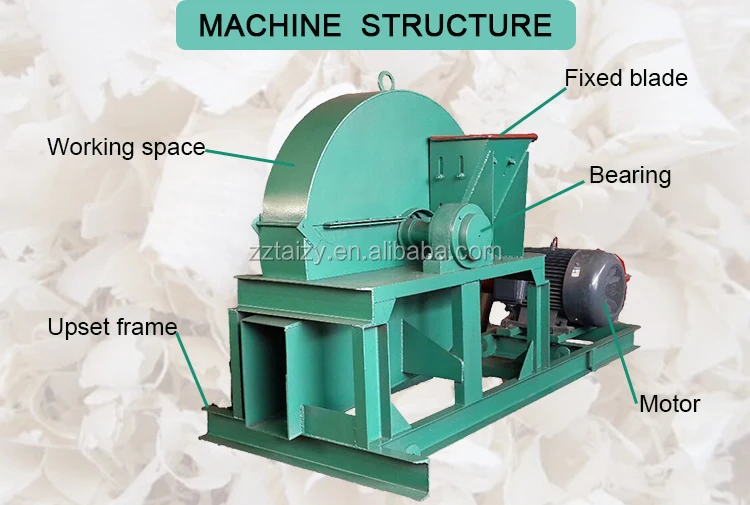

Main parts of the mobile industrial wood chipper machine:

The stand, feed port, cutter, casing, chipping blade, and electronic component, the machine can adjust the peel and cut blade according to your need, the production of different specifications, and thickness of the chip.



Parameters of mobile industrial wood chipper machine

Model	Blades	Entrance dimension (mm)	Cutter diameter (mm)	Blades dimension (mm)	Capacity (t/h)	Speed of spindle(r/min)	Power (kw)	Dimension (mm)
420	3	150*150	420	150*70*8	0.6-1.5	600	7.5	1200*500*800
600	3	180*150	600	200*100*10	1.5-3	600	15	1500*570*1050
700	3	190*200	650	230*120*12	2-6	600	18.5	1500*680*1100
800	4	200*200	735	230*120*12	3-8	550	30	1850*730*1240
950	4	230*250	830	250*120*12	5-10	550	37	1900*820*1500
1150	4	300*330	1150	340*150*14	8-13	600	75	2560*1150*1800
1410	4	400*400	1410	480*170*18	10-16	600	110	2900*1400*2350
