White Heat shrinkable cable identification marker sleeves

Product Overview

Description

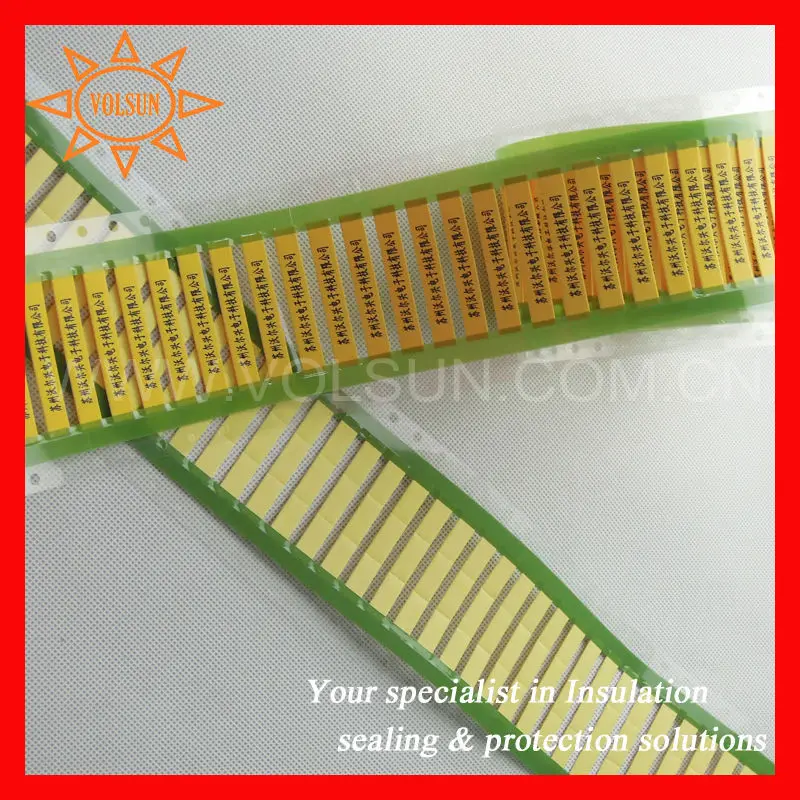

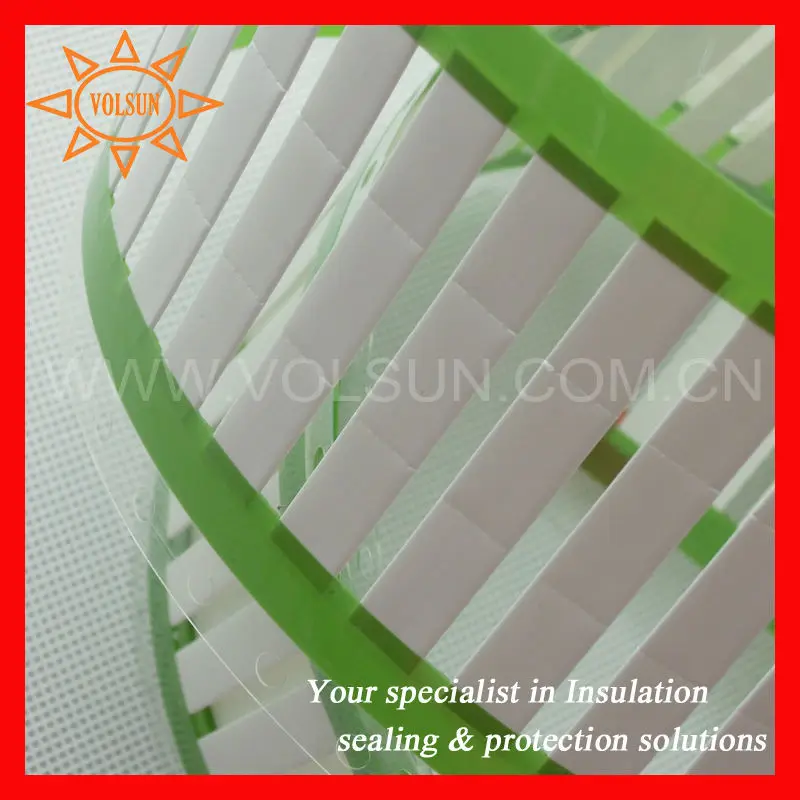

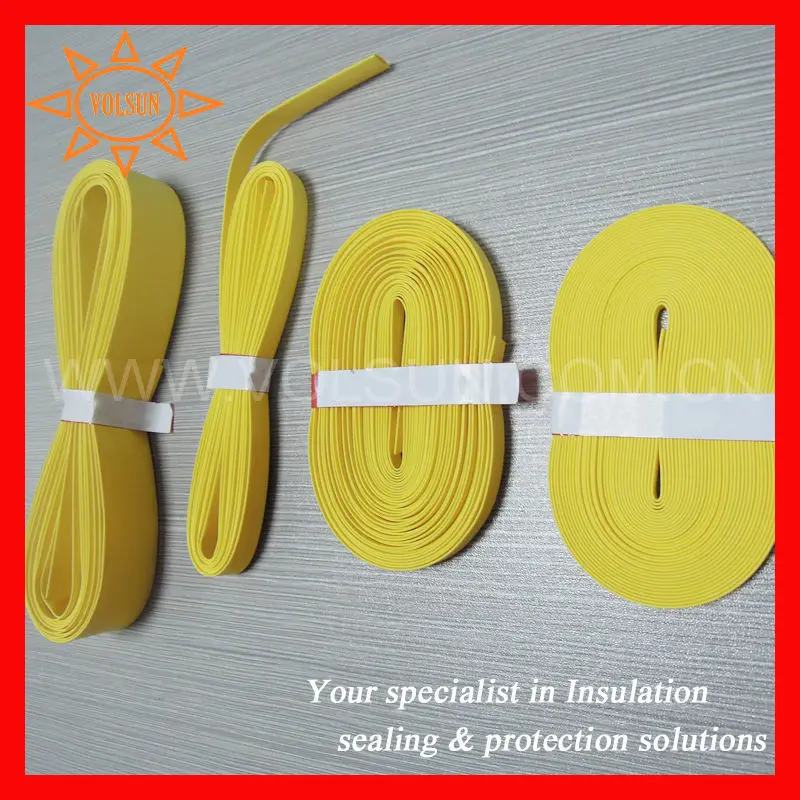

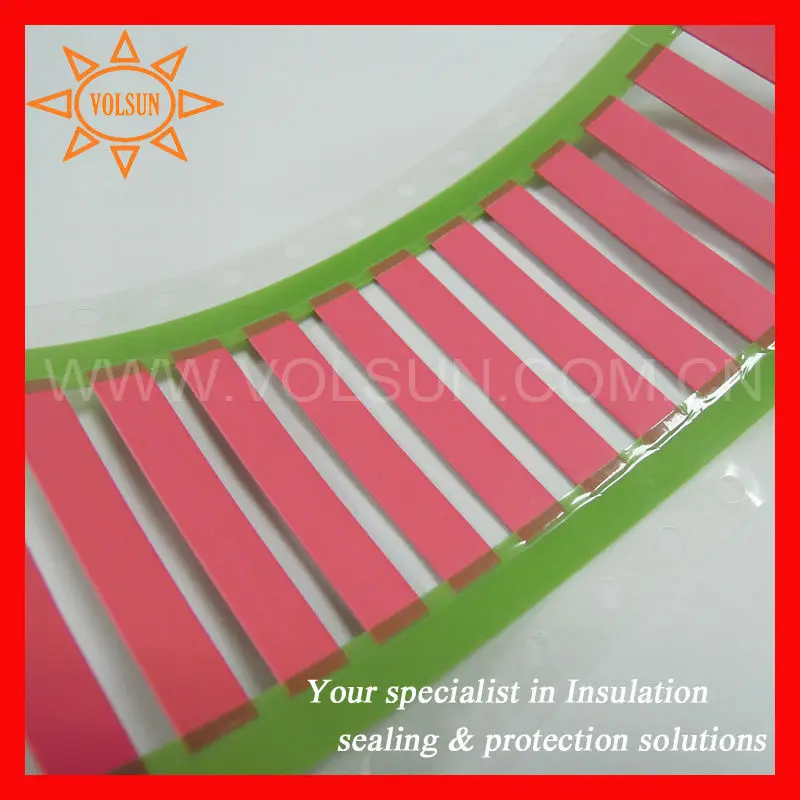

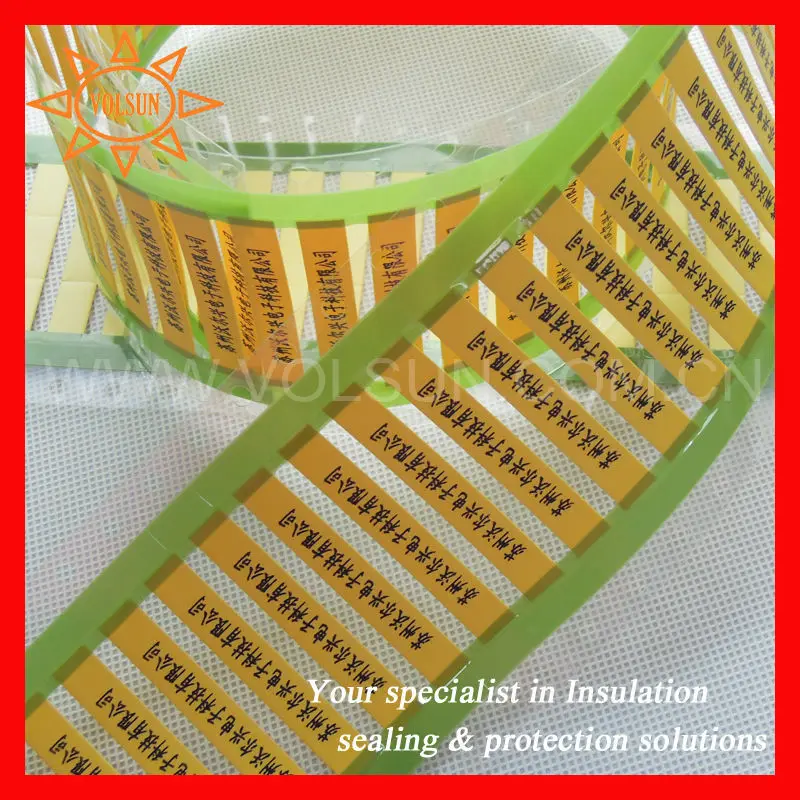

White Heat shrinkable cable identification marker sleeves





Description



White Heat shrinkable cable identification marker sleeves series is halogen free, environmentally friendly, heat shrinkable identification sleeves. It is made of cross-linked environmentally friendly polyolefin bombarded by high power electron beam with electronic accelerators to meet high end markets where highly reliable, economical and environmentally friendly cable& wire identification is required. It accords to the requirements of UL224, CAN/CSA C22.2. Shrink ratios, both 2:1 and 3:1 are available. See the below tables.









White Heat shrinkable cable identification marker sleeves Features

²  Halogen free, ideally used for electronic or electrical   circuits, communications, architectural industries

²  Temp. Resistance: 125°C

²  Highly flame retardant, VW-1

²  ROHS compliant and meet SONY SS-00259

²  High reliability, permanent identification

²  Heat sensitive, shrinking quickly

²  Computerized lettering or fonts at your disposal.

²  Standard Color: yellow, white





Rated Temperature

Continuous operating temperature: -55°C~125°C/-67°F~275°F

Min. shrink temperature: 85°C/185°F

Full recovery temperature: 115°C~200°C/239°F~392°F, 8~3minutes

Max. storage and transportation temperature: ≤50°C/122°F





Standards

²  Material Standard: UL224, CAN/CSA C22.2

²  Color Code Soundness: SAE-AS 81531and MIL-STD-202F/215J

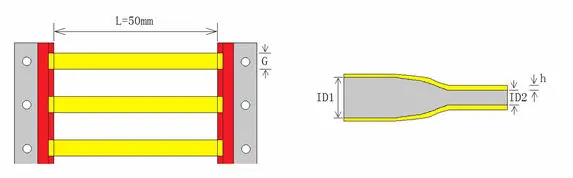

Structure





Dimension(2:1, middle wall)







Dimension(3:1, middle wall)

Standard Packaging Data







Physicochemical& Electrical Performance





Package Information







SGS Certification
