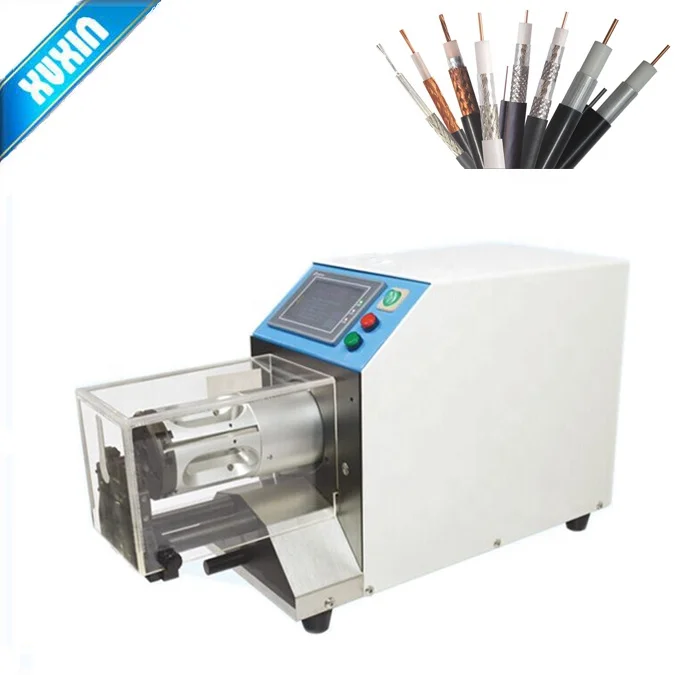

RG6/RG12 Coaxial cable cutting& stripping machine ; High Quality Semi automatic coaxial wire stripper

Product Overview

Description

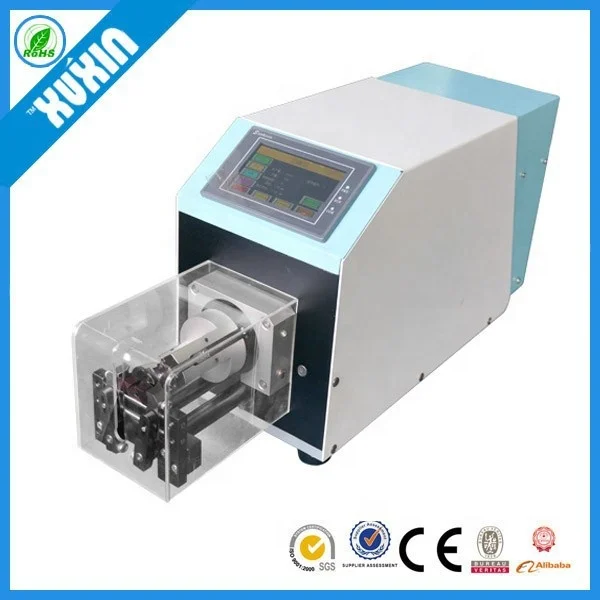

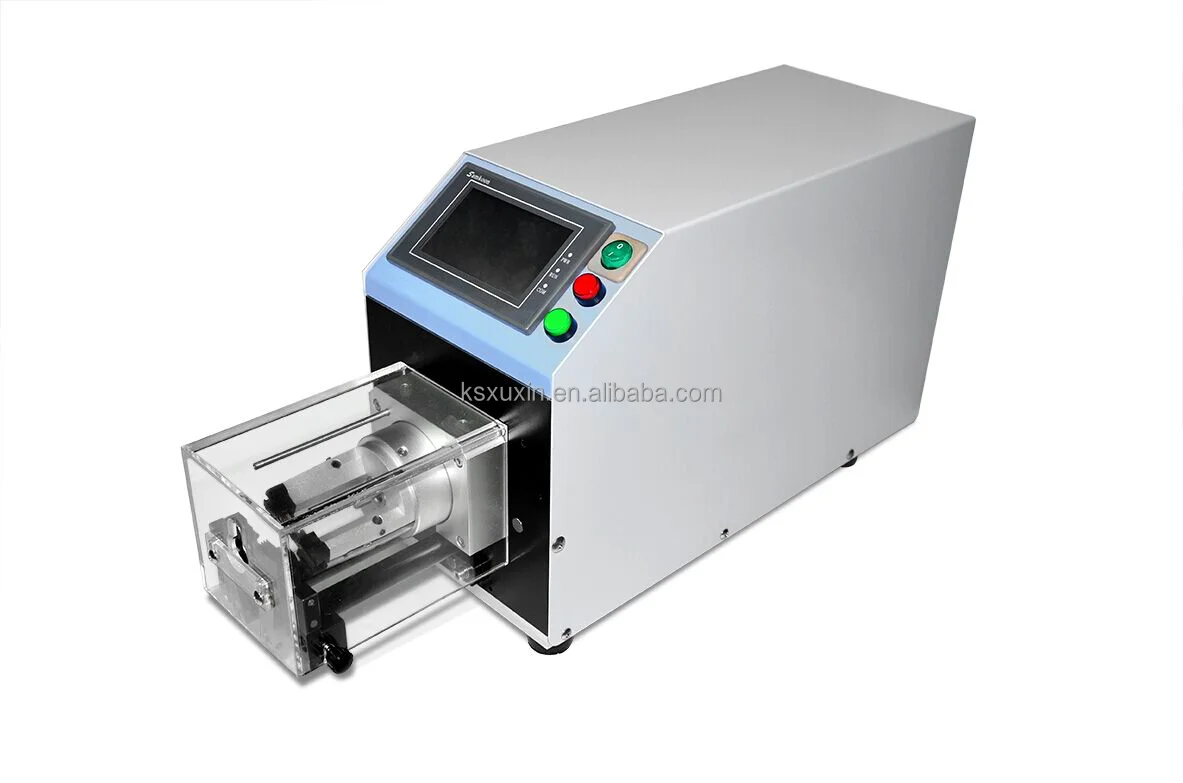

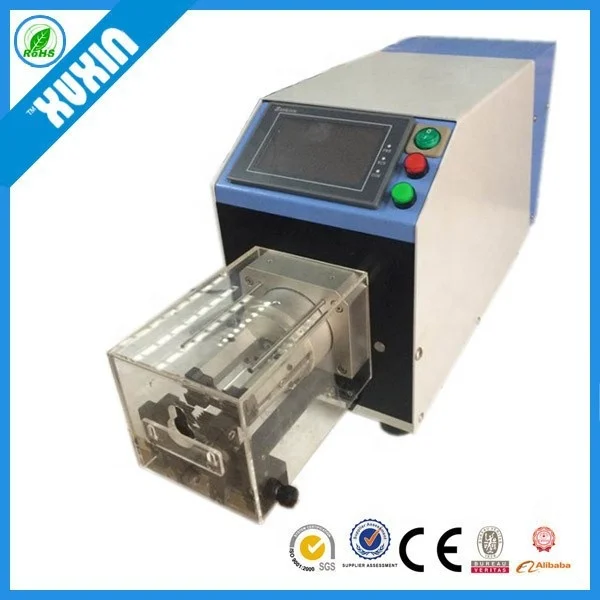

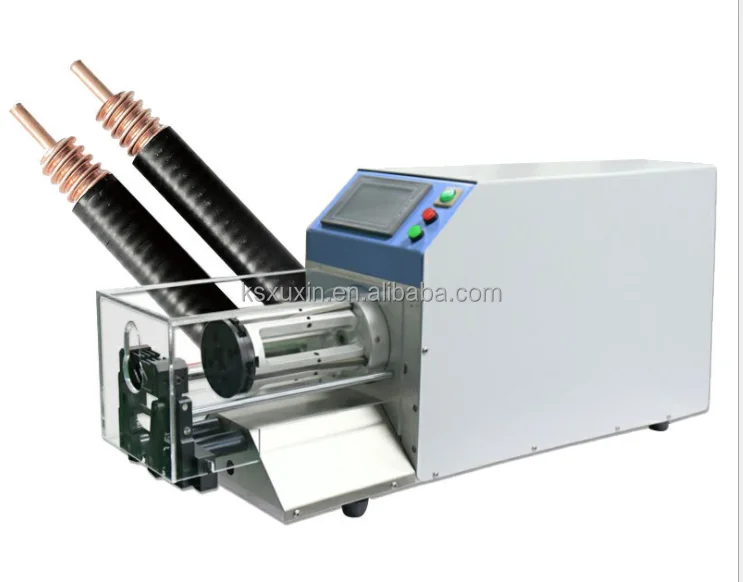

RG6/RG12 coaxial cable cutting &  stripping machine X-504T

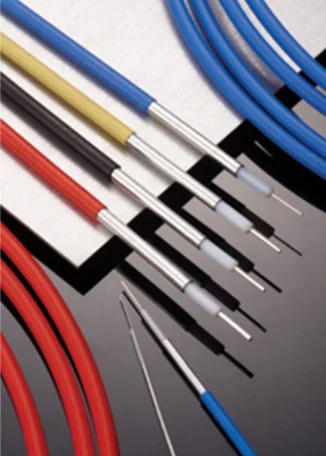

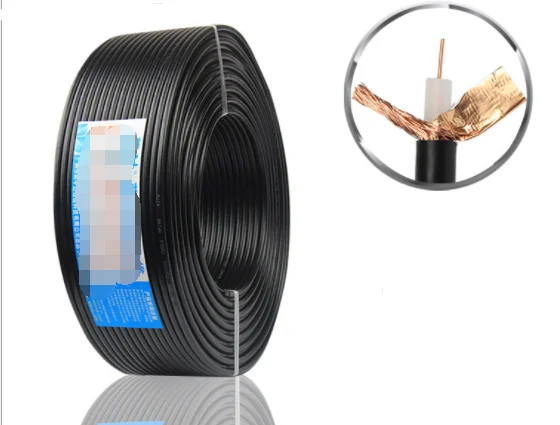

 Before use machine :                  After use machine









Apply for:

Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other various products of wire processing.

Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.



 Specification:

Name	X-504T  Coaxial Stripping & cutting Machine

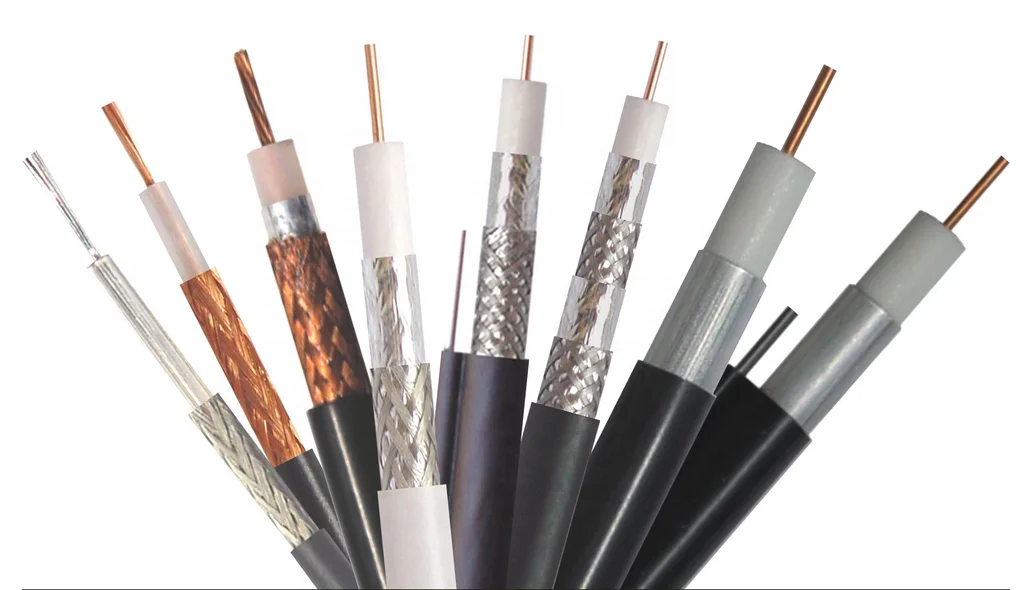

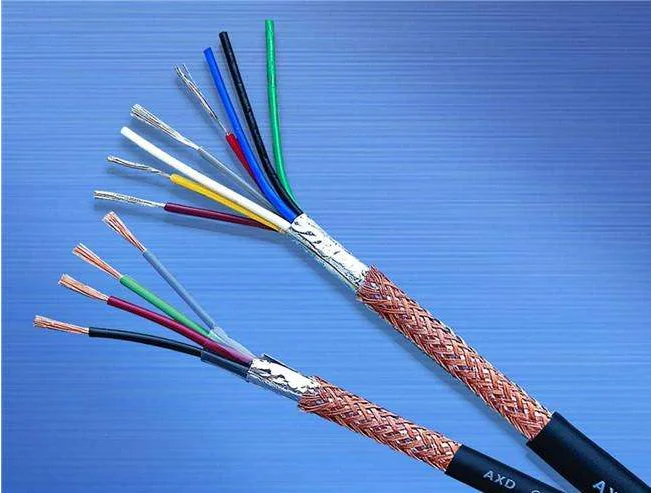

Cable Type	coaxial-cable,tri-axial cable,shield wire,rigid cable
Max. Cable Diameter	0.2-up to 6.99mm
Cutting depth of the unit	0.01mm
Max. stripping length	48mm
Max. stripping stratums	9
Drive mode	Motor/ Ball screw drive(Japan)
Display	Touch curtain
Blade	2 pieces   Material:imported tungsten steel(Switzerland)
Centering slab	2 pieces    Material:imported tungsten steel
Trapper	Automatic self aligning,motor drive, the clamping process control
Productivity	500-700pcs/h(depend on the cable length and type)
Opening way	Manual operation/Pedal
Power	220V/50Hz   380W
Weight	25Kg
Boundary dimension	525x186x278mm
Work environment	0-45°C,moderate dry,non-shake







Features:
It adopts the most advanced carbide tuming and accordingly improve the accuracy and speed.It is main used for the process of coaxial-cable and special single line.
It adopts the axis positioning device and carbide tuming and can peel at most 9 stratums without changing the blade.Alao,it can equip with Set Controller and display the cutting diameter.
