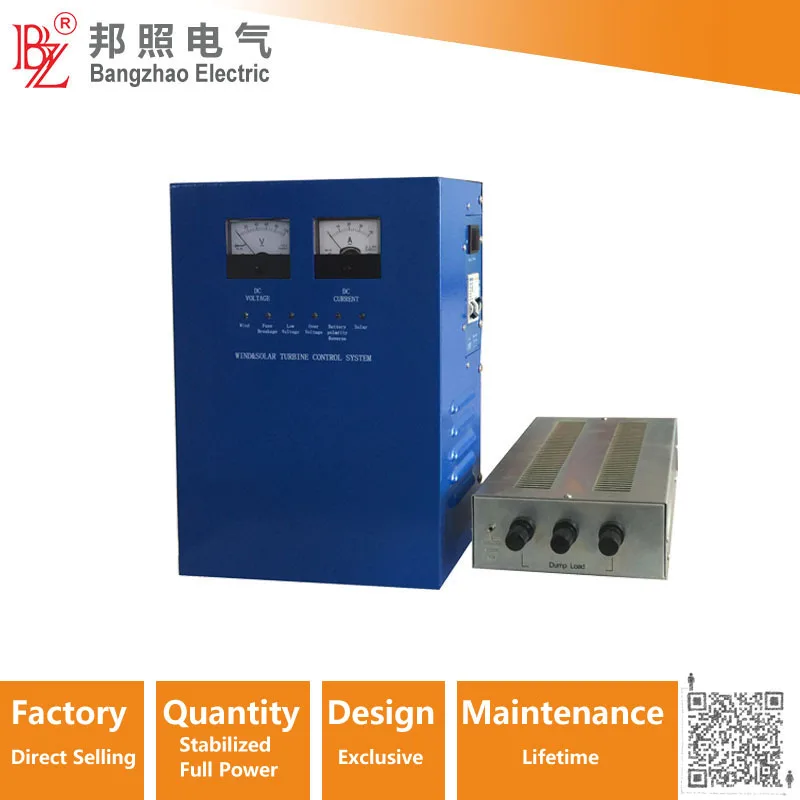

1KW 12VDC Off Grid Wind Generator System PMW Controller with dump load

Product Overview

Description

  1KW-12VDC Off - Grid Wind Generator System PMW Controller with dump-load

• The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard also with users’ technical requirements.


• The big screen LCD display. Clearly present the working status of the wind turbine, solar panel, battery and controller.(Wind turbine voltage, current, power; battery charging current, voltage.)


• Two sets of control systems:PWM constant voltage system and three-phase dump load system.


• PWM constant voltage control is 120% of the rated power of the wind turbine. In case exceeding of PWM’s capacity, the three-phase dump load will automatically start immediately to ensure safe running of the overall wind turbine system.


• When the battery disconnect or damage, the three-phase dump load will start automatically to avoid the wind turbine idling and runaway accident.


• When the strong or super-strong wind conditions PWM control to ensure battery charged by the wind turbine with constant voltage and current.


• The protection function of battery: polarity reverse protection, disconnection and damage protection.


• Over-charging protection of the battery: When the battery is full (the battery voltage getting 125% of the rated voltage), the controller will carry out three-phase dump load automatically to stop charging the battery.


• Auto recharging of battery: When the battery voltage reduces to 108% of the rated voltage,it stops three-phase dump load to recharge battery automatically.


• For the different wind turbine type, the controller can be equipped with mechanical yawing, furled empennage, mechanical or hydraulic, pneumatic, electric magnetic and other brake functions.


• The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On the other way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.


• The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.


•  Optional communication Mode:RS232,RS485,GPRS,USB,RJ45 ect, Can monitor multiple devices running.



Type	1KW-24Vdc	1KW-48Vdc	1KW12V
Wind turbine rated power	1KW	1KW	1KW
Wind turbine max. power	2KW	2KW	2KW
Battery	24Vdc	48Vdc	12Vdc
Function	Rectifier,charge, control
Display mode	LCD
Display content	Wind turbine voltage, wind turbine current, wind turbine power, battery voltage,  charge current
PWM constant pressure voltage	>28Vdc	>56Vdc	>14Vdc
3-phase load voltage of the wind turbine	29±1Vdc	58±1Vdc	15±1Vdc
Recovery charging voltage of the wind turbine	27±1Vdc	54±1Vdc	13.5±1Vdc
Low-voltage of the battery	20±1Vdc	40±1Vdc	10±1Vdc
Self-provided connecting wire of the battery	>8mm²	>6mm²	>16 mm²
PWM fuse	63A	25A	100A
Charging fuse	63A	32A	125A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)
Cooling method	Forced air cooling

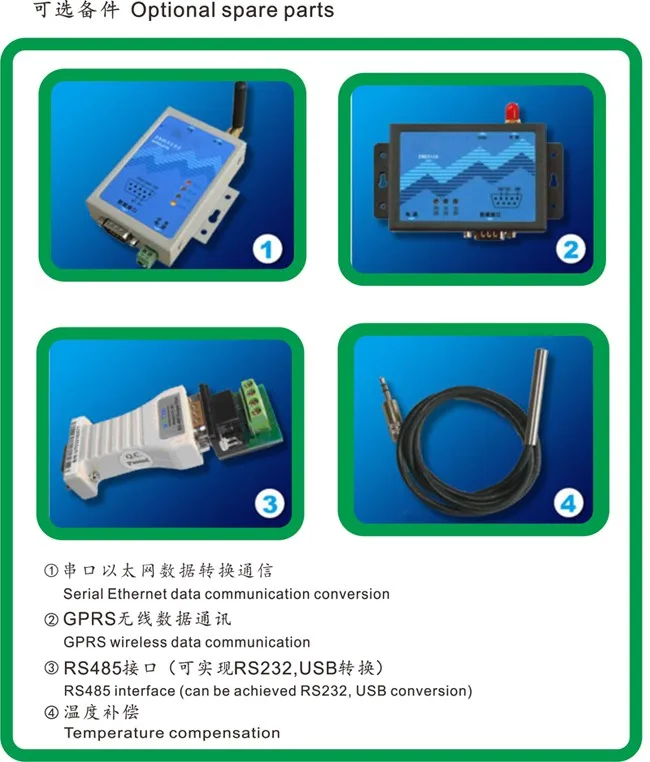

*Communication interface (optional)	RS485/USB/GPRS/Ethernet
*Temperature compensation(optional)	-4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C
Size of the controller (mm)	480*360*230	480*360*230	480*360*230
Weight of the controller	12Kg	11Kg	12 Kg
Size of the load (mm)	395*300*125	395*300*125	395*300*125
Weight of the load	5.5 Kg	5 Kg	5.5Kg







*Above parameter only for reference

1. Could be custom made to user specifications.  2, Could have solar power control subject to user demand.





Q 1. What's the payment term?

A. We accept TT,Western Union,Paypal,MoneyGram.



Q 2.How's the delivery time ?

A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?

A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.



Q 4.Would you accept to use our logo ?

A.It's no problem to do OEM.

Q 5.We want to know month capacity.

A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.

Q 6.Where is your market?

A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 7. What kind of certificate you have ?

A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .



Q8. What is the warranty period ?

A. Normally 1 year ,if order quantity enough can be extended to 5 years.



Q 8.How about the lifetime?

A:The life time for inverterl is 15-20years.



OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.



Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.

2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most



Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.

2.By our forwarding agent(by air or by sea).

3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
