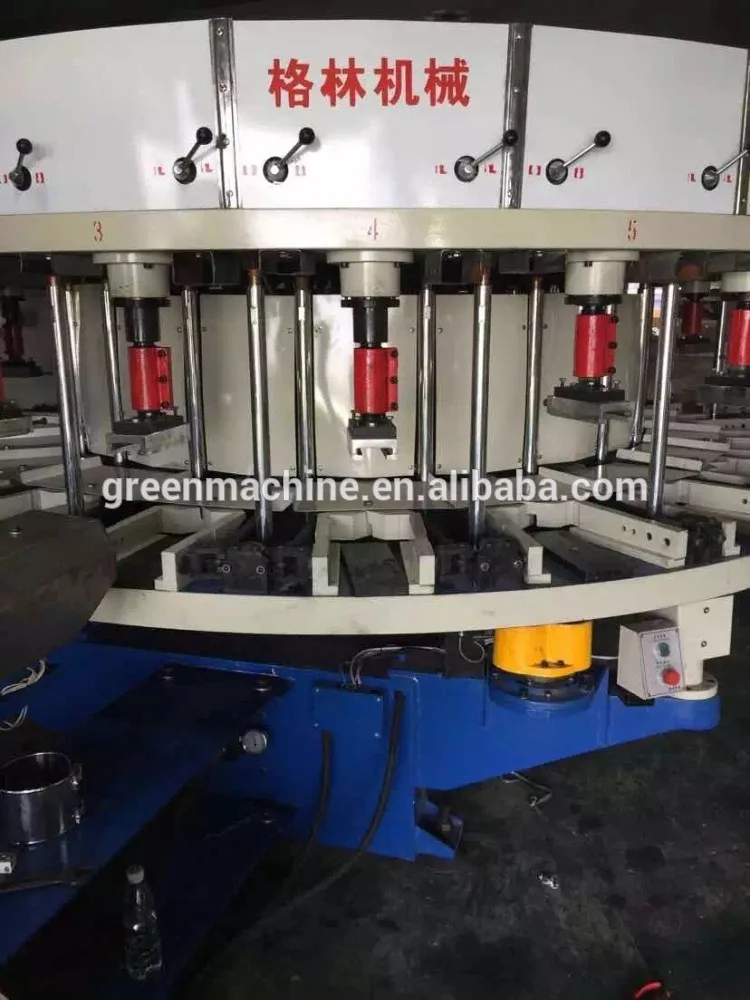

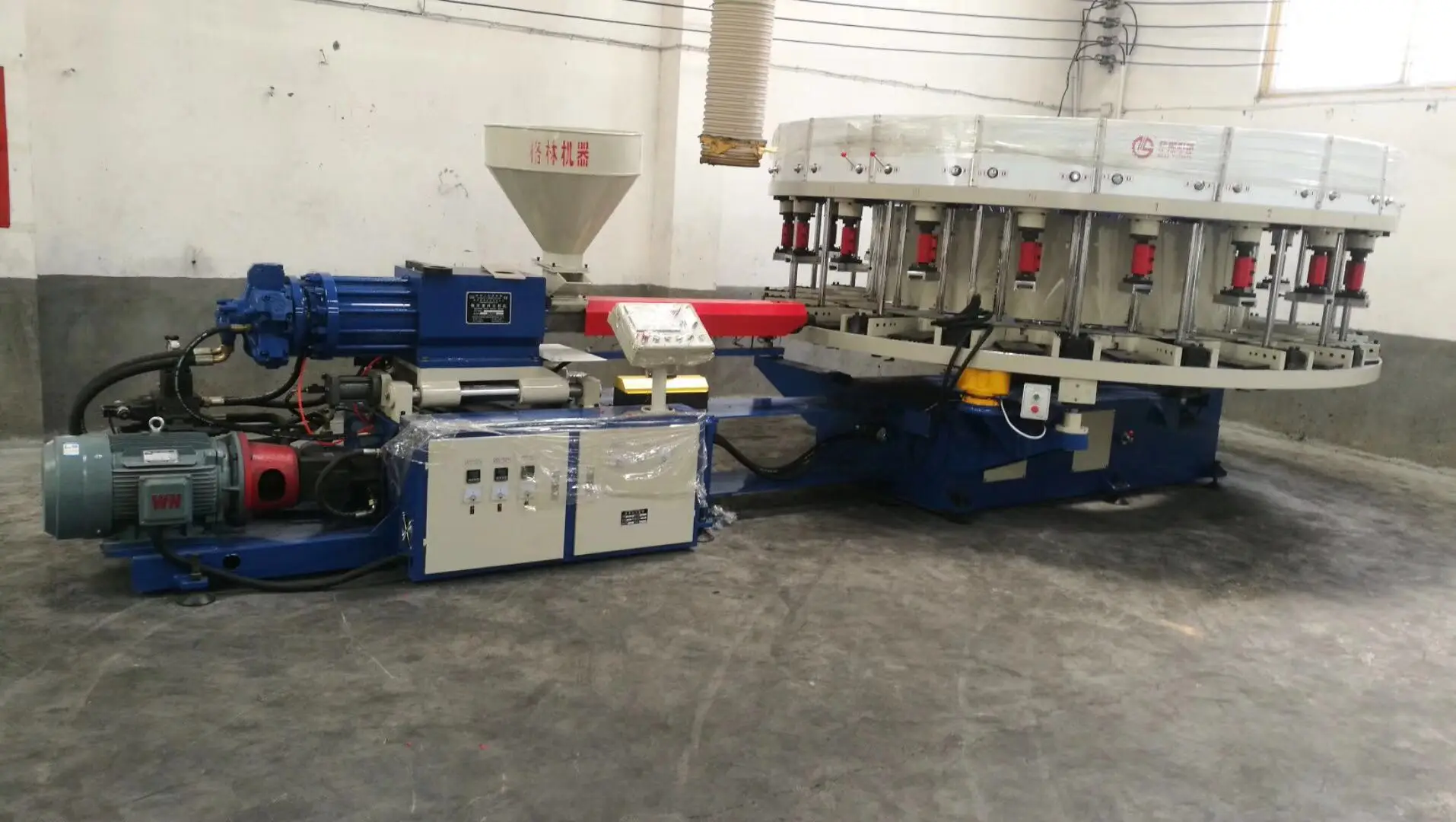

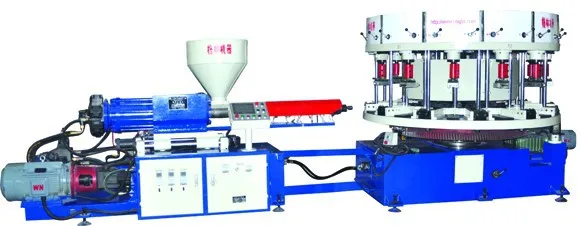

1.PLC controlled, preplasticized by hydraulic motor, driven by full hydraulic pressure, and cycled
automatically.
2.High plastifying capacity, the plastifying temperaturecan be controlled automatically by preselection.3.It adopts 12/16/24 points measuring and the injection volume can be chosen according to the
requirements of the moulds at each working position.
4.The function of empty mould selection has been provided.
5.The round table is indexed by a frequency converter.
6.Parallel mould plate closing mechanism is adopted, which linked with a toggle system operatedby single cylinder.
7.The machine is equipped with two time pressure injection system and the cramp pressing and
mould closing order selecting function.
8.The round table indexes smoothly and it's movement can easily be adjusted.
9.The round table rotation, plasticizing and oil supply for the injection are controlled independently.
10.There are many working positions, the time for setting is longenough, and guarantees the setting quality of shoe soles.
Main technical data
ITEM
UNIT
MODEL
SZ-16
SZ-20
SZ-24
Number of stations
pca
16
20
24
Screw Diameter
mm
75
75/60
75/60
Screw rotating speed
r/min
0-160
0-160
0-160
Screw length and diameter ratio
18:01
18:01
18:01
Max injection capacity
cm3
580
580
580
Plastifying Capacity
g/s
40
40
40
Sliding platform travel
Mpa
5
5
5
Travel for lifting the cramp
Mpa
3
3
3
Clamp mould style
Scissors
Scissors
Scissors
Last trip
mm
60
60
60
Shoe Cramp height
mm
210-260
210-260
210-260
Mould frame dimensions
mm(LxWxH)
340x180x60
340x180x60
340x180x60
Total power of the whole machine
KW
20.5
31.5
31.5
Outline dimensions of the whole machine
mm(LxWxH)
6610x3115x1790
6610x3310x1790
7260x3960x1790
Total wegight of the whole machine
kg
9400
9800
13200
Customer visiting

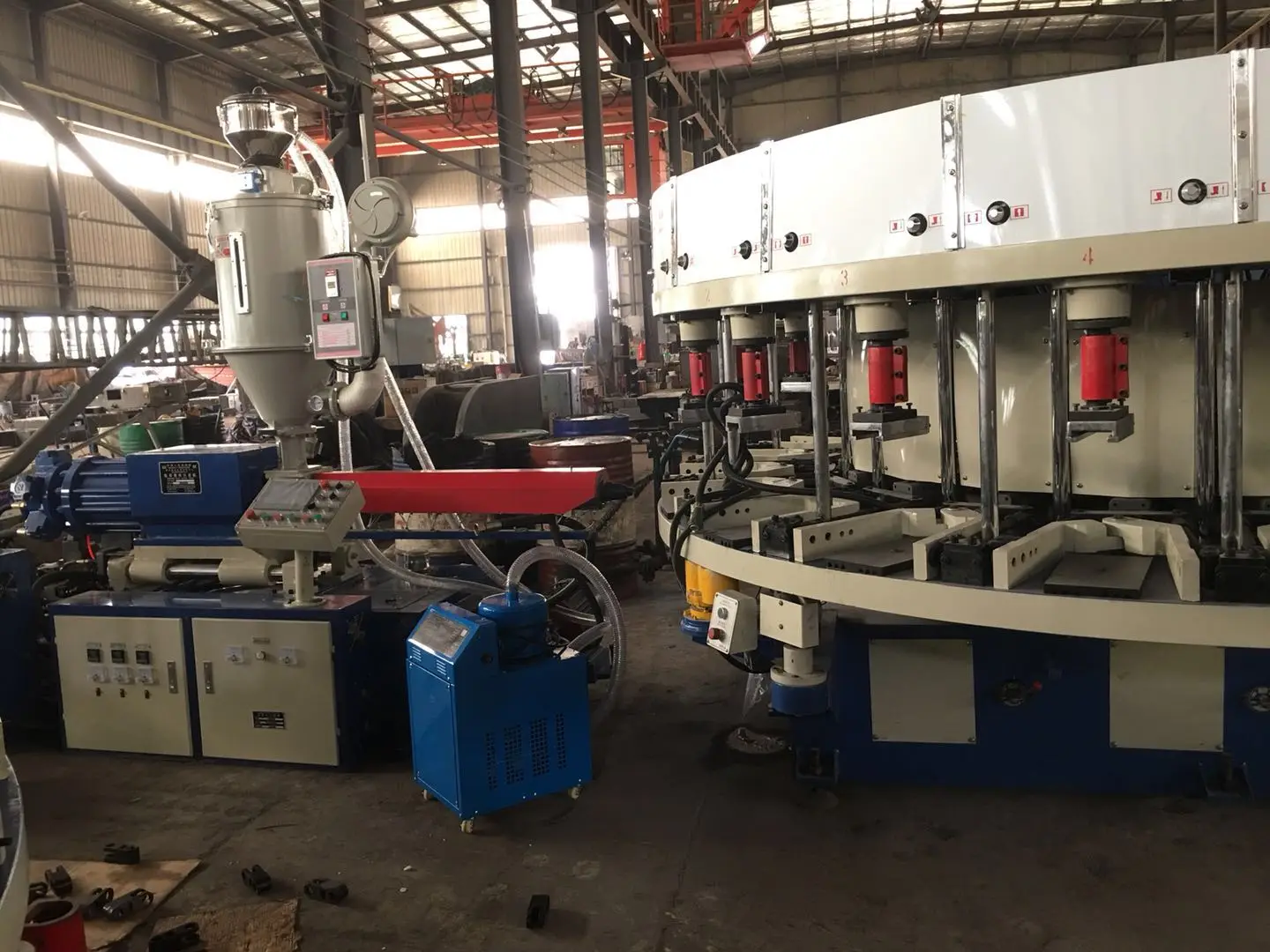

Our factory
Packaging & Shipping
Our Services
We offer not only the products , but also solutions.
For all our machines, we provide:
Operation Manual , operation or repair vedio
1Year guarantee. The whole life technican support
Available to send our engineer to client factory to install the machines, train the workers, repair the machines.
Company Information
Hubei Ezhou green machinery Co.,LTD was established after the original Hubei Echeng general machinery factory co.,Ltd. It’s engaged in all kinds of shoe-making machinery design,manufacture, sales and service for more than 40years.Our machine can make all kinds of shoes such as rain boots, sports shoes,canvas shoes,casual shoes, jungle shoes, martin shoes, safety shoes,sandals,slippers, pvc/tpr/tpu/rubber/pu/plastic shoes and so on. It’s main products are: 8,12,16,20,24 single and double color fully automatic rotary injection moulding machine, all kinds of single, double, three color plate forming machine,shoes machine,double density rubber moulding machine, PU casting and disc machine,and various auxiliary machinery and other professional shoe-making equipment. Our products have got CE,patent and are of high quality. We will provide customers with a full range of technical support and after-sale service.
FAQ
1. Are you manufacturer?
Yes, we are manufacturer for shoe making machine and shoe mold. Welcome to visit our factory!
Address: No.10 Fanchuan Road Economic Development Zone Ezhou, Hubei, China.
2. Why choose us?
We specialized in all kinds of shoe-making machines and moulds for more than 40 years.
We will keep superior quaility and competitive offers for global valued customers.
We will provide our customers with a full range of technical support and after-sale service.
We have worked for many countries, such as India, Turkey, Mexico,Brazil, Tailand, Pakistan,Morocco,Colombia, Kenya,and so on....
3. What's the price of your machine?
The price of our machine is not lowest, but competitive . We keeped high quality and competitive price for our customers.
4. Can you provide the machine detailed information and video?
Yes, we can provide the detailed information of machine and video to you if you want it.
5. How about the delivery time?
The delivery time is about 30-45 days. Because we need arrange production line, and after finished, we need test the machine some days. If you are urgently, we can try our best to arrange the production.
6. Will your company will send the technical workers to my factory?
Yes, we will send our technical workers to your factory and install the machine and teach your workers how to operate the machine. But your factory need arrange the living and food.
