Telecom 4' Cable Entry System For Feeder Cable
- Category: >>>
- Supplier: Xiamen Hdg Telecom Equipment Limited
Share on (60219126695):
Product Overview
Description
Product Description

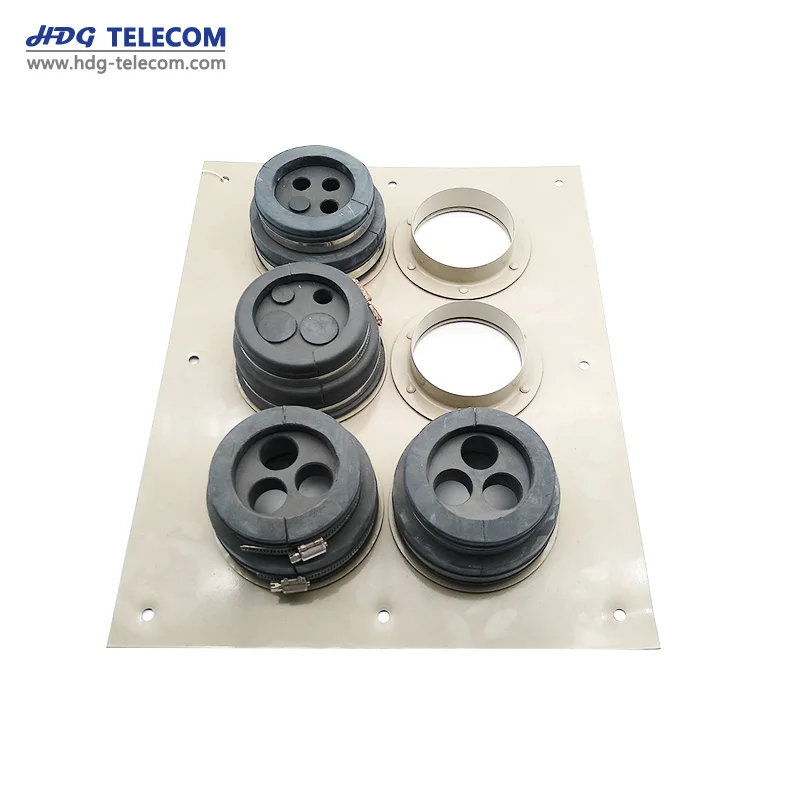

4" Feeder Cable Entry Boot Assembly Kit

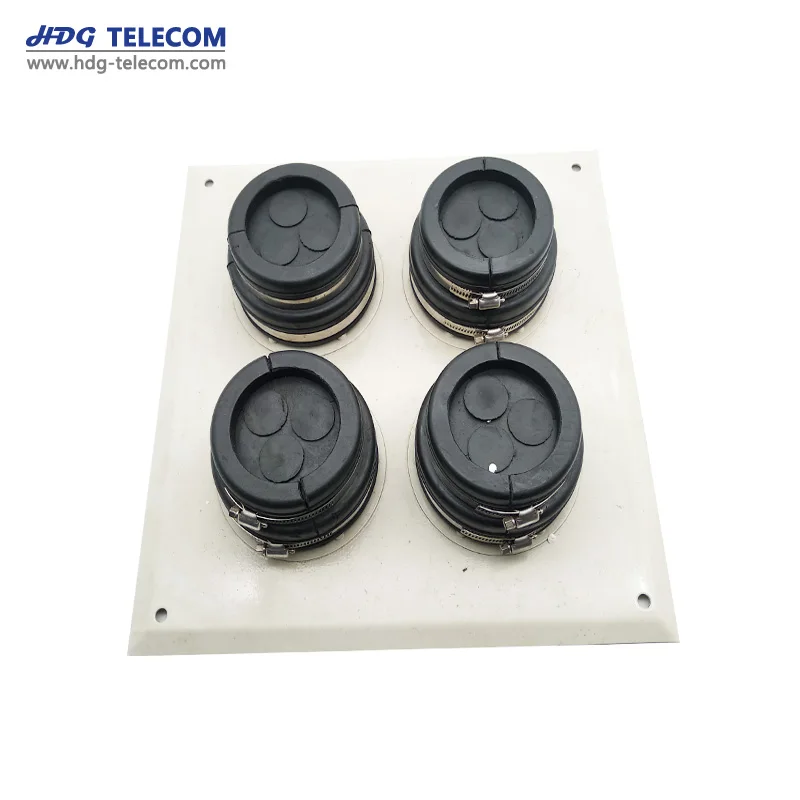

Aluminum panel with 2x2 hole
Material: EPDM for boot, 304 stainless steel for hose clamp
Used in both interior and exterior wall
Each feed-thru entry panel includes a set of wall attachment hardware

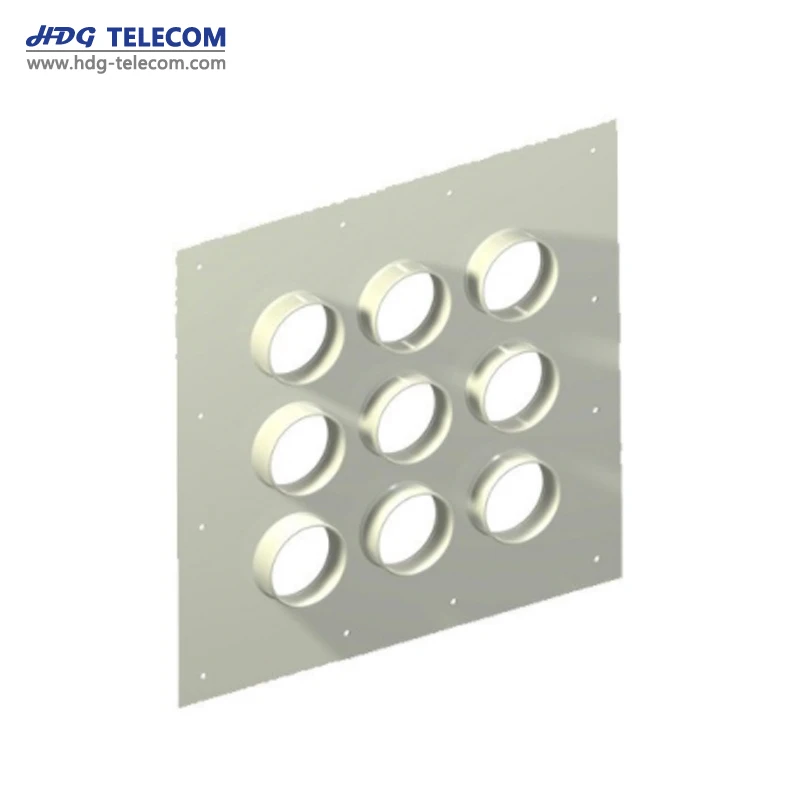

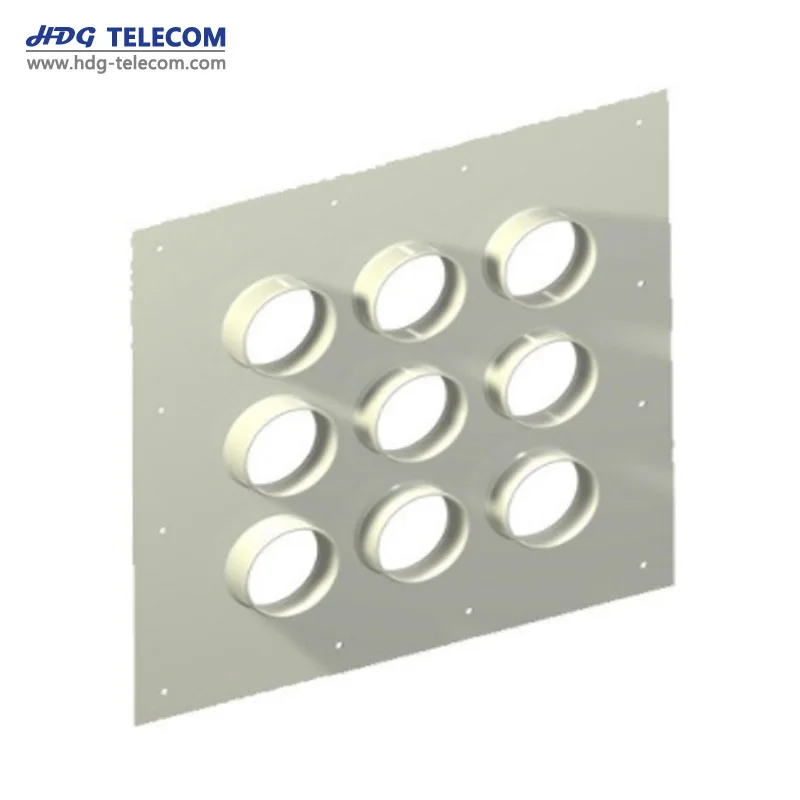

Feeder cable entry panel, also called feed thru plate, it enable multiple feeder cable runs to enter buildings & BTS shelters for preventing moisture from entering the building. With a cushion insert in entry boot to hold the coax in place.
Note: The matched entry boot assembly kit should be ordered seperately.
Note: The matched entry boot assembly kit should be ordered seperately.
Part No | Port Layout | Nos of Port |
CES-CEP-11 | 1*1 | 1 |
CES-CEP-12 | 1*2 | 2 |
CES-CEP-13 | 1*3 | 3 |
CES-CEP-14 | 1*4 | 4 |
CES-CEP-22 | 2*2 | 4 |
CES-CEP-23 | 2*3 | 6 |
CES-CEP-24 | 2*4 | 8 |
CES-CEP-25 | 2*5 | 10 |
CES-CEP-26 | 2*6 | 12 |
CES-CEP-33 | 3*3 | 9 |
CES-CEP-34 | 3*4 | 12 |
CES-CEP-36 | 3*6 | 18 |
CES-CEP-44 | 4*4 | 16 |
CES-CEP-46 | 4*6 | 24 |
Include :
1. A outer boot. (EPDM Rubber or natural rubber)
2. A selectable inner cushion insert. (EPDM Rubber or natural rubber)
3. Two hose clamp. (Stainless steel 304)
1. A outer boot. (EPDM Rubber or natural rubber)
2. A selectable inner cushion insert. (EPDM Rubber or natural rubber)
3. Two hose clamp. (Stainless steel 304)

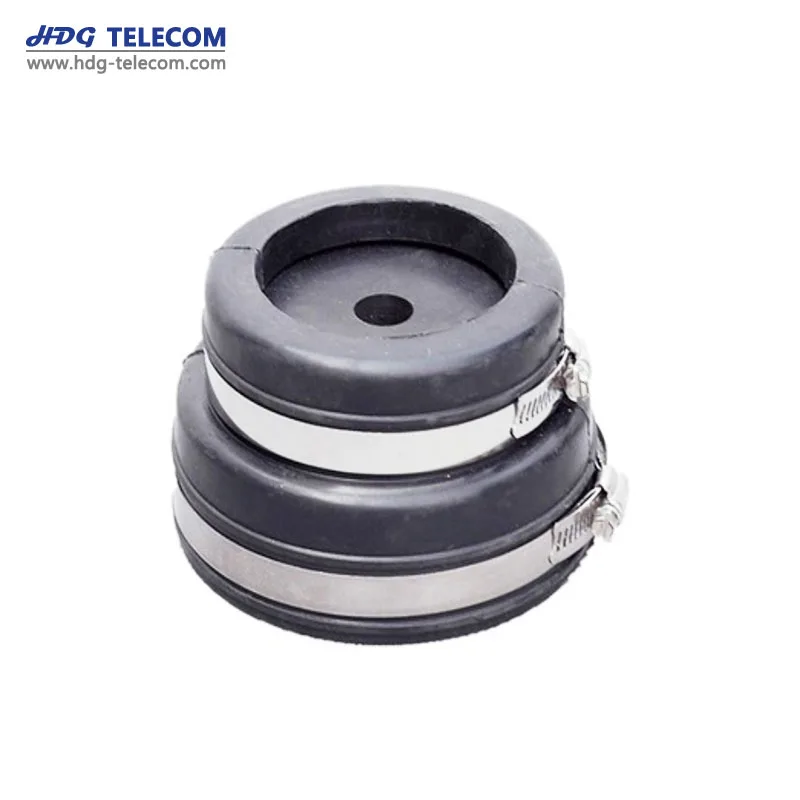

The 4" cable entry boot assembly kit, is made of EPDM rubber or natural rubber. The material is unaffected by ozone, sunlight, aging, or temperature extremes. It is to be installed to the 4" port on entry panel, and allow the various coaxial cable go into the BTS shelter through them.
Name | Matching cable | Item No | Specification |
Selectable Boot Assembly Kit | 1/2'' super flexible cable | BAK-12S-1 | 1/2'' S*1 |
BAK-12S-2 | 1/2'' S*2 | ||
... | ... | ||
BAK-12S-9 | 1/2'' S*9 | ||
1/2'' cable | BAK-12-1 | 1/2'' *1 | |
BAK-12-2 | 1/2'' *2 | ||
... | ... | ||
BAK-12-8 | 1/2'' *8 | ||
7/8'' cable | BAK-78-1 | 7/8'' *1 | |
BAK-78-2 | 7/8'' *2 | ||
BAK-78-3 | 7/8'' *3 | ||
BAK-78-4 | 7/8'' *4 | ||
1-1/4'' cable | BAK-114-1 | 1-1/4'' *1 | |
1-5/8'' cable | BAK-158-1 | 1-5/8'' *1 | |
2-1/4'' cable | BAK-214-1 | 2-1/4'' *1 |
Material: rubber
Size: OD for 4" boot, holes ID: 1/2", 7/8", 1-1/4, 1-5/8"

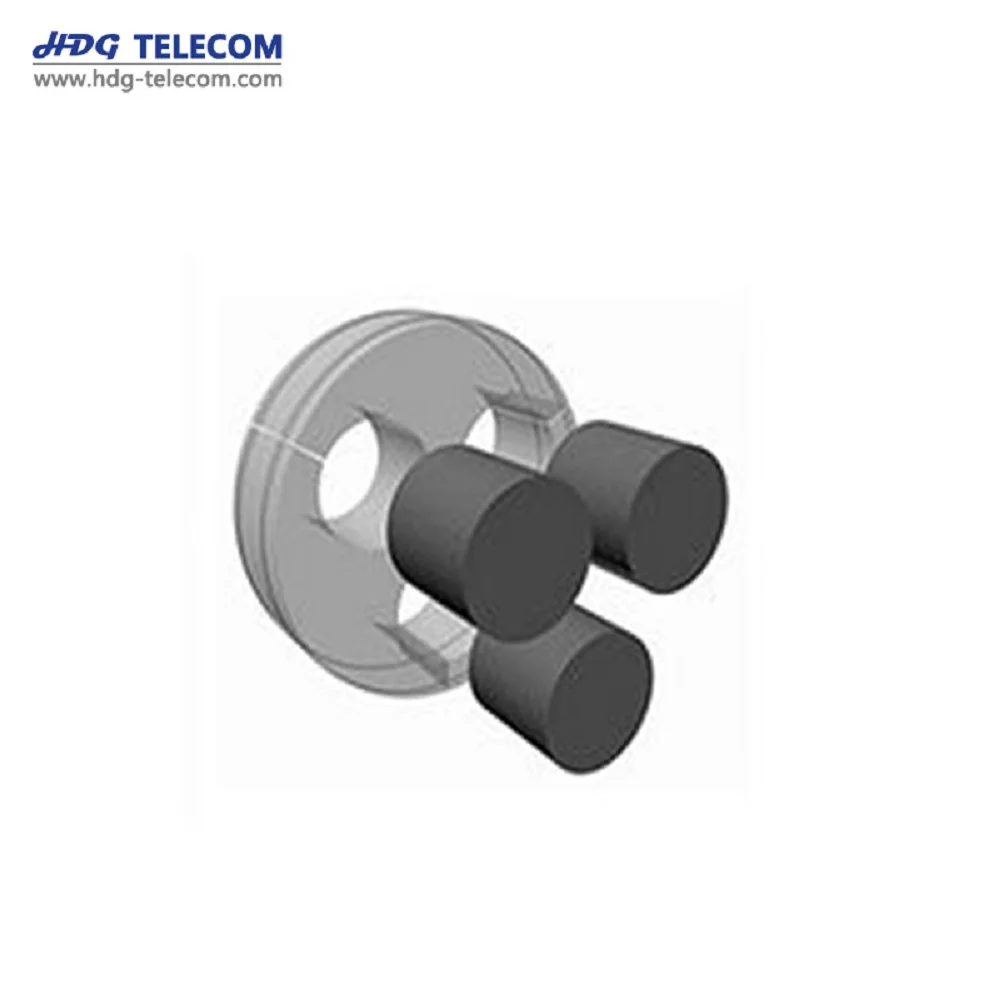

The cushion plugs is made from rubber, the material is unaffected by ozone, sunlight, aging, or temperature extremes. It is to be installed to the cable cushion insert when the hole of cushion have not cable through.
Name | Matching cable | Item No | Specification |
Selectable cushion insert | 1/2'' super flexible cable | CCI-12S-1 | 1/2'' S*1 |
CCI-12S-2 | 1/2'' S*2 | ||
... | ... | ||
CCI-12S-9 | 1/2'' S*9 | ||
1/2'' cable | CCI-12-1 | 1/2'' *1 | |
CCI-12-2 | 1/2'' *2 | ||
... | ... | ||
CCI-12-8 | 1/2'' *8 | ||
7/8'' cable | CCI-78-1 | 7/8'' *1 | |
CCI-78-2 | 7/8'' *2 | ||
CCI-78-3 | 7/8'' *3 | ||
CCI-78-4 | 7/8'' *4 | ||
1-1/4'' cable | CCI-114-1 | 1-1/4'' *1 | |
1-5/8'' cable | CCI-158-1 | 1-5/8'' *1 | |
2-1/4'' cable | CCI-214-1 | 2-1/4'' *1 |
Application: cell site, installed to cushion insert when the hole of cushion have no cable through
Size: 1/2", 7/8", 1-1/4", 1-5/8"
Name | Matching cable | Item No | Specification |
Selectable Cushion Plug | 1/2'' super flexible cable holes | CP-12S | 1/2''S |
1/2'' cable holes | CP-12 | 1/2'' | |
7/8'' cable holes | CP-78 | 7/8'' | |
1-1/4'' cable holes | CP-114 | 1-1/4'' | |
1-5/8'' cable holes | CP-158 | 1-5/8'' | |
2-1/4'' cable holes | CP-214 | 2-1/4'' |
Related Product
Trade Information
Trade terms | FOB, CIF, DDU, EX-WORKS |
Payment terms | T/T, L/C, Western Union, MoneyGram, Paypal |
MOQ | 100 |
Supply capability | 50000 pieces per month |
Lead time | 7-10 days |
Shipment | Sea, Air, Express |
Port | XIAMEN |
Sample availability | Yes |
Sample time | 3-5 days |
Packaging | Carton, Pallet |
Packing & Delivery
Our usual packing is export carton with tape and packing belt, pallet packing.
Other packing is also available by your requirement.
Samples or small batches delivered by DHL、TNT、FedEx、UPS.
Batch cargo are delivered by air or sea.
Other transports are available by requirement.
