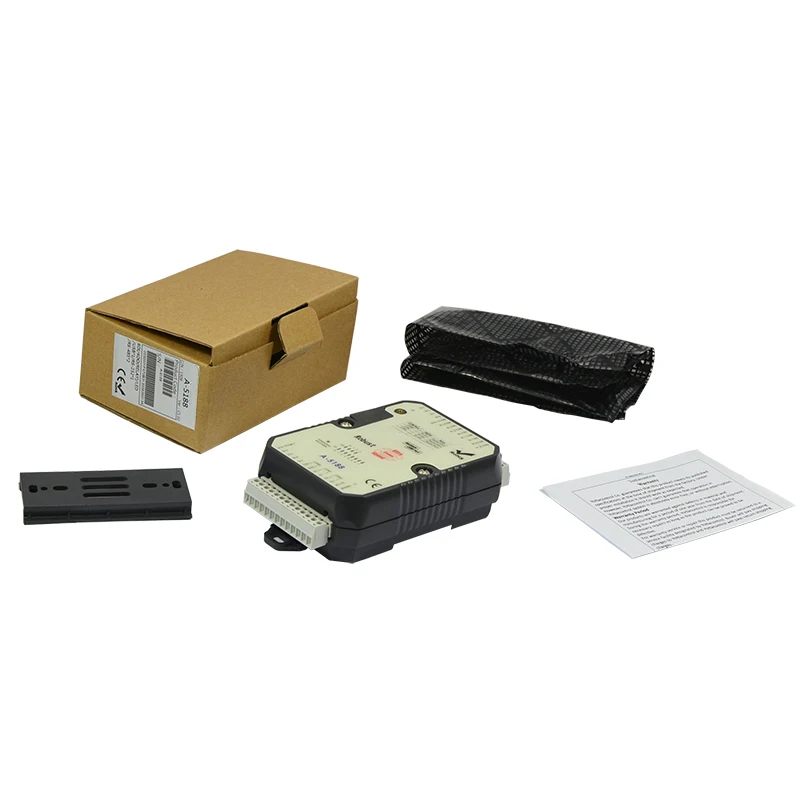

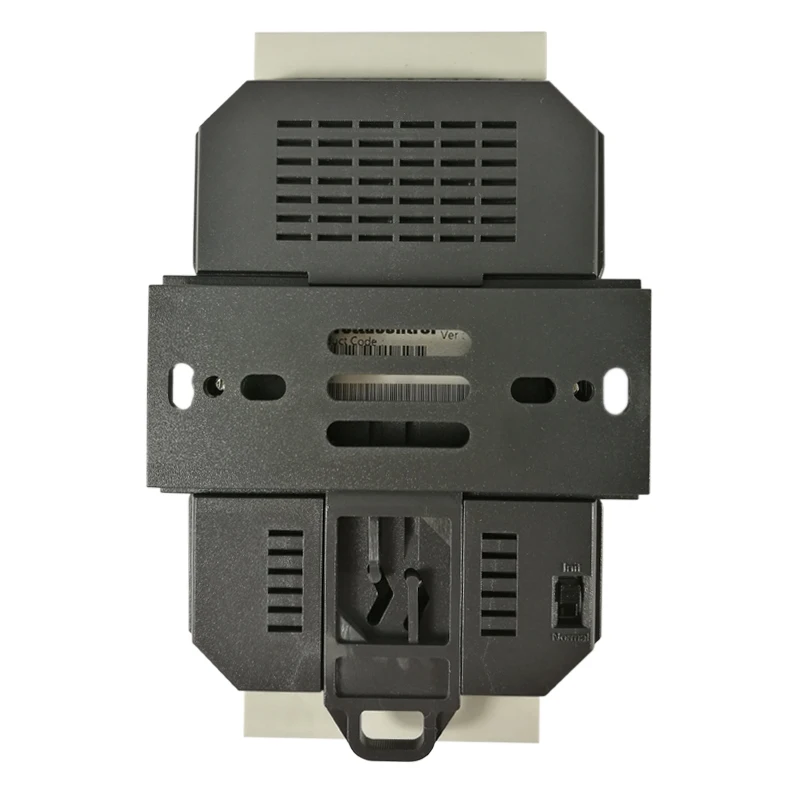

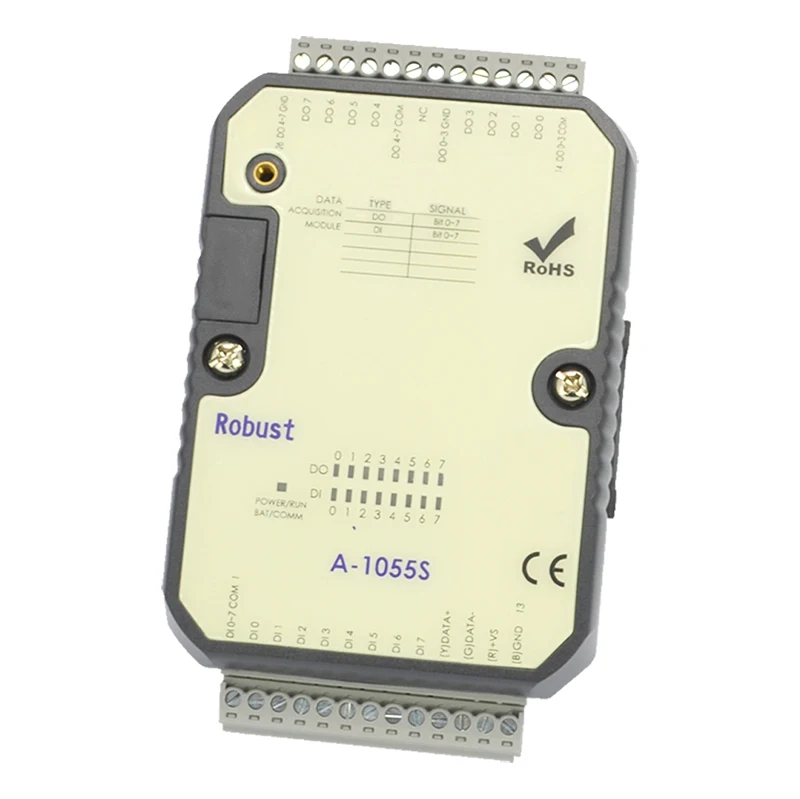

8DI 8DO Digital Modbus I/O Module(A 1055S)
- Category: >>>
- Supplier: Shenzhen ATC Technology Co. Ltd
Share on (60219154388):
Product Overview
Description
Product Description
1) 8DI, 8DO NPN/PNP(Isolation input) Source output
2) Support RS-485 Modbus RTU / ASCII
3) LED Indicate state of DI/DO
4) Digital input Isolation voltage: 5000 VDC
4) Digital input Isolation voltage: 5000 VDC
5) Dual watchdog timer
6) Surge , EFT and ESD protection
7) Wide operation temperature : -20 ~ +75 °C
8) Free PC configuration software "ATC Utility"
6) Surge , EFT and ESD protection
7) Wide operation temperature : -20 ~ +75 °C
8) Free PC configuration software "ATC Utility"
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | ATC |
Model Number | A-1055S |
Inputs | 8DI |
Outputs | 8DO(Source Output) |
Input Isolation Voltage | 5000 VDC |
Output Frequency | 10Hz |
Interface Type | RS-485 |
Support Protocols | ModBus RTU / ModBus ASCII |
Baud Rate | 1200bps ~ 115200bps |
Data Bit | 8 bits |
Parity | Odd, Even, None |
Stop Bits | 1,2 bit |
Protection | Surge , EFT and ESD protection |
Operation temperature | -20 ~ +75 °C |
Configuration tool | Free PC configuration software "ATC Utility" |

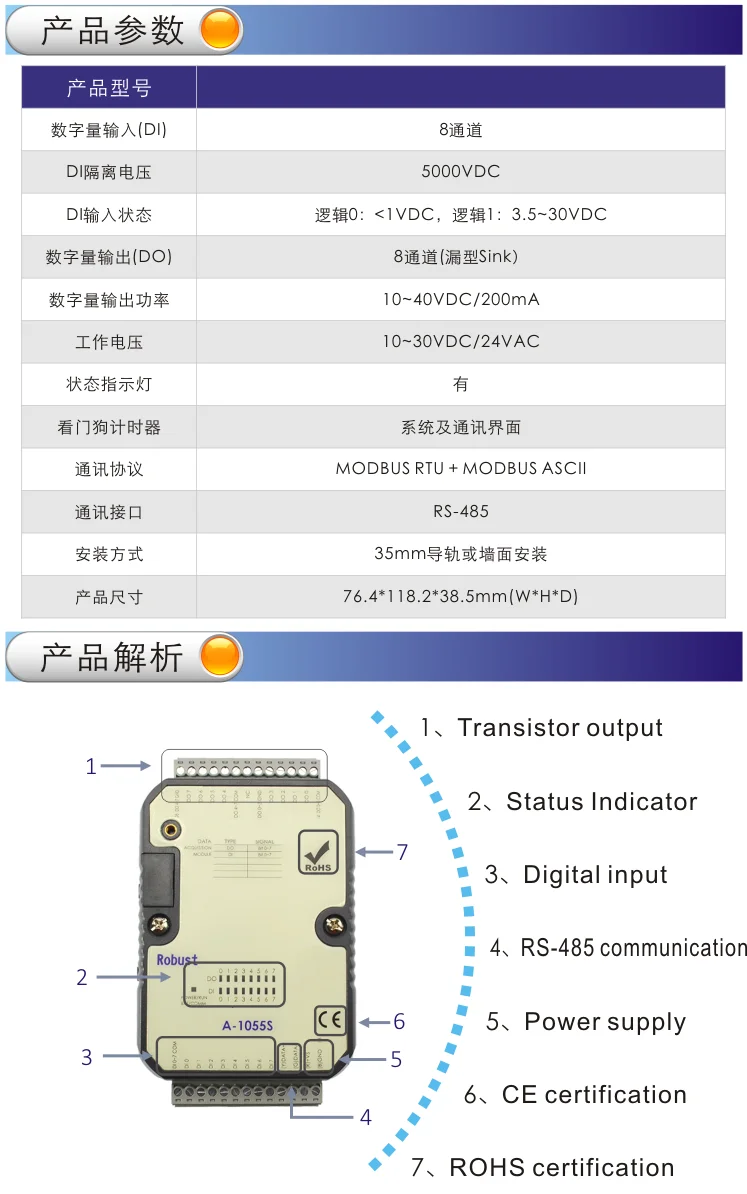

Product analysis
Protocol

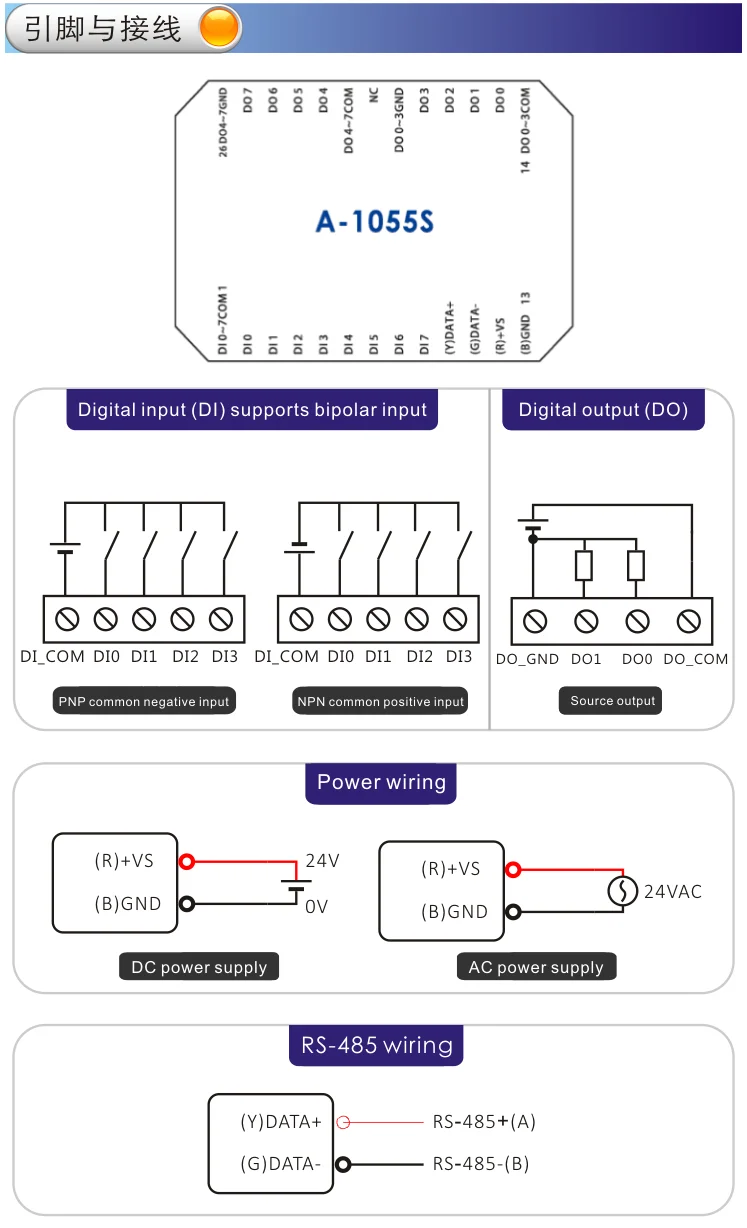

Pins and wiring
Software download
Details Images
