LSR Liquid Silicone Rubber injection molding machine Vertical type slide table lsr injection machine injection moulder with CE

Product Overview

Description

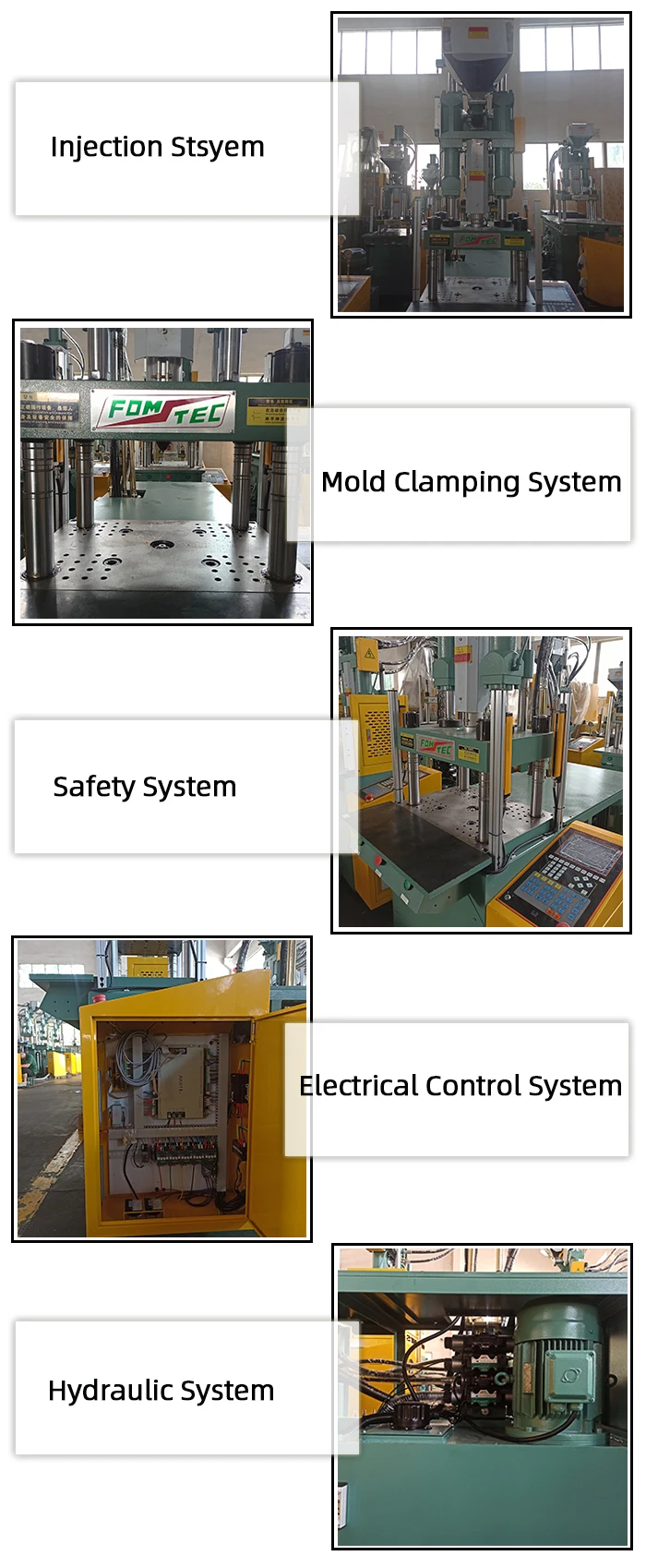

MACHINE FEATURES:

 vertical injection molding machine price , servo plastic injection molding machinery

l  Vertical clamping and injection design, especially suitable for the insert molding production

Plastic Injection Molding MACHINE, SMALL VERTICAL INJECTION MOLDING MACHINE

l Dual sliding platen, effective to increase production flexibility and machine safety factor

liquid silicone rubber molding,lsr injection molding machine

l Selectable electric power injection unit,stable and high precision.

small vertical injection molding machine price,Taiwan brand inijection molding machine

l  User-friendly LCD display shows various functions with 66 sets of mold memory

baby nipple vertical machine,lsr vertical injection molding machine

l  Injection and clamping controlled by multiple pressures and speeds ensure easy setting

     and accurate processing     plastic injection molding machine, plastic machinery

liquid silicone rubber bottle, lsr bottle molding machine

l  The P.I.D temperature control is accurate for every section

Vertical Injection Molding Machine PRICE, plastic Injection Molding Machine PRICE

l  Dual injection and carriage design provides smooth movement and precision molding

máquina de fabricación de plástico,    máquina de moldeo por inyección vertical

l  Professional designed screw and barrel, suitable for various plasticizing demands

nipple injecton molding machine,feeding bottle injection molding

l  High torque screw motor ensures superior plasticizing ability Bakelite machine for plastic

máquina de moldeo por inyección de plastic,    mesa corrediza

l  Oil-less bushings used on all moving units for better cleanness and easy maintenance

feeding bottle injection machine,feeding bottle horizontal machine

l  High-rigid frame structure assures stable and smooth sliding movement

 Rotary table injection machinery, shoes sole molding machine



SPECIFICATION : rotary table machine,cheap injection machine

micro injection molding machine, small injection molding machine,  13ton injection molding machine



DESCRIPTION		UNIT	FT400-LSR
Injection Unit	Screw Diameter	mm	Φ28	Φ33	Φ36
	Maximum Injection Pressure	kg/cm2	2000	1531	1210
	Injection Rate	cm3/sec	42	55	70
	Screw Stroke	mm	120
	Theoretical Shot Volume	cm3	74	97	122
Clamping Unit	Clamping Force	ton	40
	Demolding Force	ton	8.4
	Top Platen Size	mm	550x395
	Bottom Platen Size	mm	390x820
	Mold Size	mm	410x255
	Minimum Mold Thickness	mm	150/250
	Opening Stroke	mm	200
	Maximum Open Daylight	mm	350/450
	Ejector Force	ton	1.5
	Ejector Stroke	mm	55
Others	Hydraulic System Pressure	kg/cm2	140
	Oil Tank Volume	L	195
	Electric Power	hp(kW)	7.5(5.5)
	Barrel Heating Power	kW	3.6
	Total Wattage	kW	9.1
	Machine Weight (approx.)	ton	2
	Machine Dimensions (approx.)	m	1.8x1.0x2.4
	20/200kg Feeding machine	Weight	500kg
	20kg Feeding machine	Weight	350kg

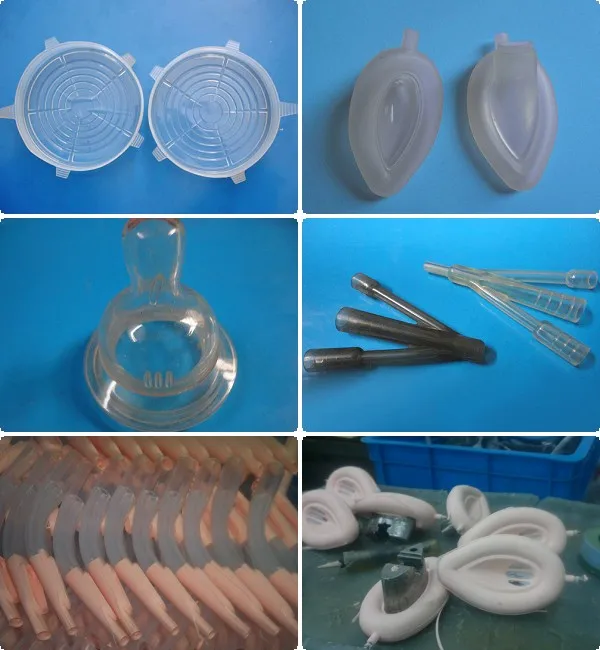

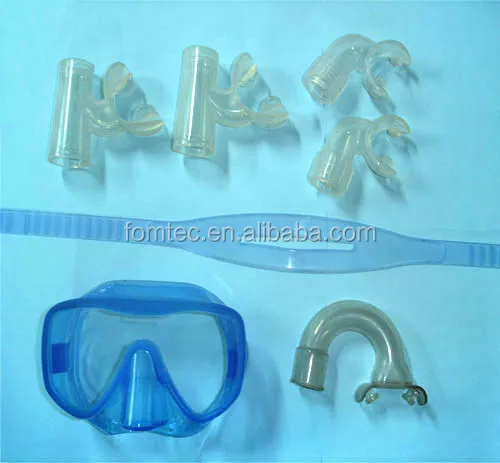

PRODUCT APPLICATION

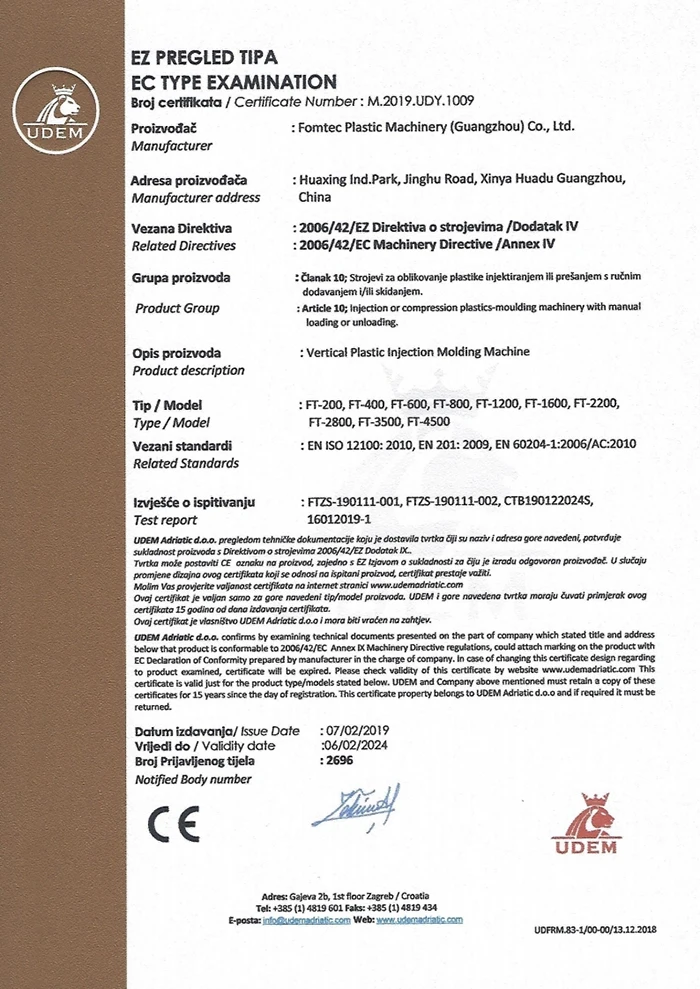

INSPECTION CERTIFICATION

OVER MOLDING INJECTION MACHINE, OVER MOLDING INJECTION MOLDING

EXISTING CUSTOMERS

 Plastic Injection Molding MACHINE, SMALL VERTICAL INJECTION MOLDING MACHINE

OVER MOLDING INJECTION MACHINE,

FACTORY TRAVEL

 filter moldingmachine   nipple injection molding machine  ,baby bottle injection molding machine



GLOBAL SERVICES medical devices injection molding machine
