150Mbps Ralink RT5370 mini usb wifi adapter with soft AP function, work out of box with RPI.

Product Overview

Description

150Mbps Ralink RT5370 mini usb wifi adapter with soft AP function, work out of box with RPI.



Skype: xiaohui12199



1. General description:

 FX-5370A mini usb wifi adapter allows you to connect your laptop or desktop to any Wireless-N networks in your home or office. The Wireless-N (802.11n) USB 2.0 Adapter is great for those who want to upgrade older computers to be able to access the internet over a Wireless-N network.At 5 times faster than traditional Wireless-G (802.11b) networks, Wireless-N networks allow for high speed data transfers, online gaming, and lightning fast downloads. The Wireless-N USB 2.0 Adapter gives you access to all the high-speed features of Wireless-N networks on older and newer computers. Its simple and easy setup means you'll be surfing the internet, downloading movies, and e-mail in no time. This item also provide Support Skybox, Openbox, Raspberry Pi, Wifi Reciver soft AP function.



2. Main features:

* Ralink RT5370 Chipset wifi adapter with soft AP function

* Mini portable USB 2.0 design.

* Wireless N speed up to 150Mbps, ideal for internet surfing and online gaming.

* Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b standards.

* Provides two work modes: Infrastructure and Ad-Hoc.

* MIMO technology makes wireless transmission rates up to 150Mbps wifi antenna.

* 150Mbps Wireless Wifi USB Dongle/Wireless USB Adapter/Wireless Network Card

* CCA technology enhances your signal stablility by automatically avoiding channel conflicts.

* Supports 64/128-bit WEP, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions.

* Supports WIN2K, XP, VISTA, WIN7, MAC, LINUX operating system.

* Supports wireless roaming technology for high-efficient wireless connections.

* Seamlessly compatible with 802.11b/g/n devices.



3. Datasheet and Specification:

Hardware
Interface	1 X USB 2.0 Port
Chipset	Ralink RT5370
Product Weight	0.01kg
Package Weight	0.04kg
Product Size	15x6x21mm
Package Size	91x16x116mm
Package	Wireless Adapter,Resource CD
Wireless
Standard	IEEE 802.11g, IEEE 802.11b, IEEE 802.11n
Speed	802.11n: 6.5-150Mbps 802.11g: 6/9/12/18/24/36/48/54   802.11b: 1/2/5.5/11Mbps
Frequency	2.4 ~ 2.4835GHz
Transmit Power	100mw
Security	WPA-PSK/WPA2-PSK, WPA/WPA2, 64/128/152bit WEP encryption
Reception Sensitivity	150M: -68dBm@10%PER 130M: -68dBm@10%PER         108M: -68dBm@10%PER   54M: -68dBm@10%PER  11M: -85dBm@10%PER 6M: -88dBm@10%PER          1M: -90dBm@10%PER
Wireless Modes	Wireless Client, Soft AP, Client + AP
Software
OS Support	Windows XP/XP64/Vista/Vista64 Windows 7/Windows7 x64 Windows 8 MAC OS, Linux
Environment	Operating Temperature: -30°C~70°C (-22~158) Storage Temperature: -40°C~70°C (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

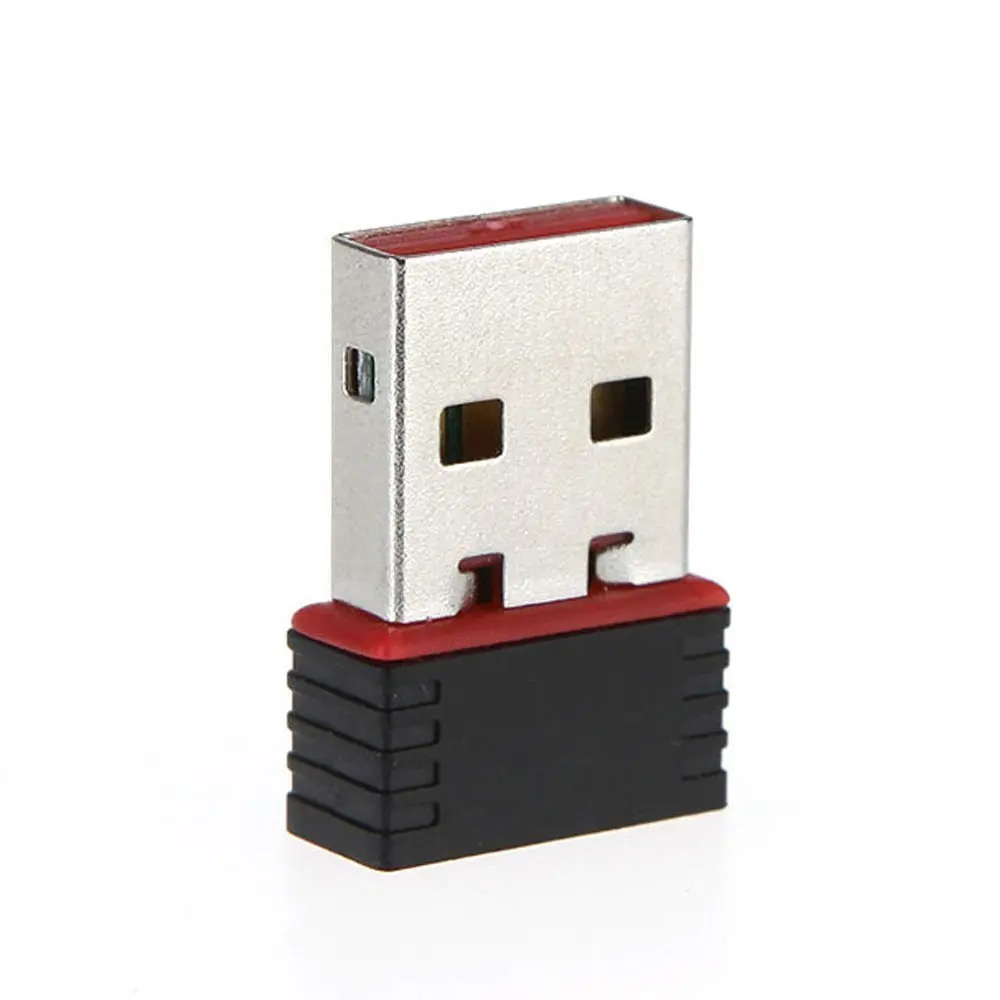

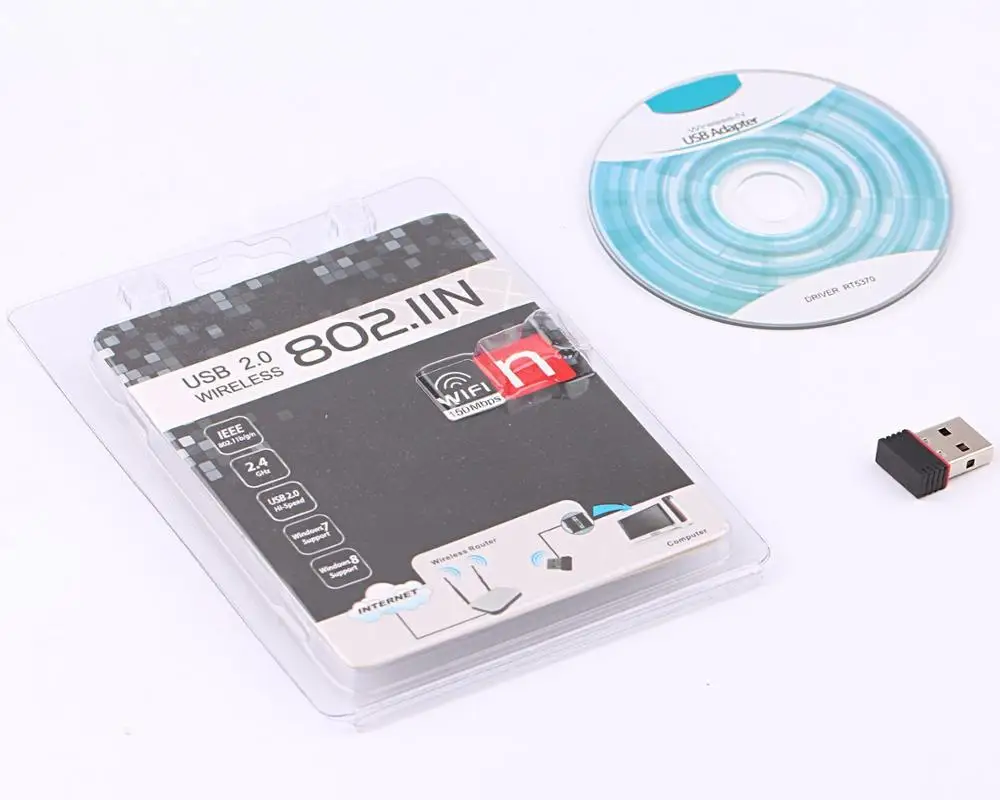

4. Product picture:
