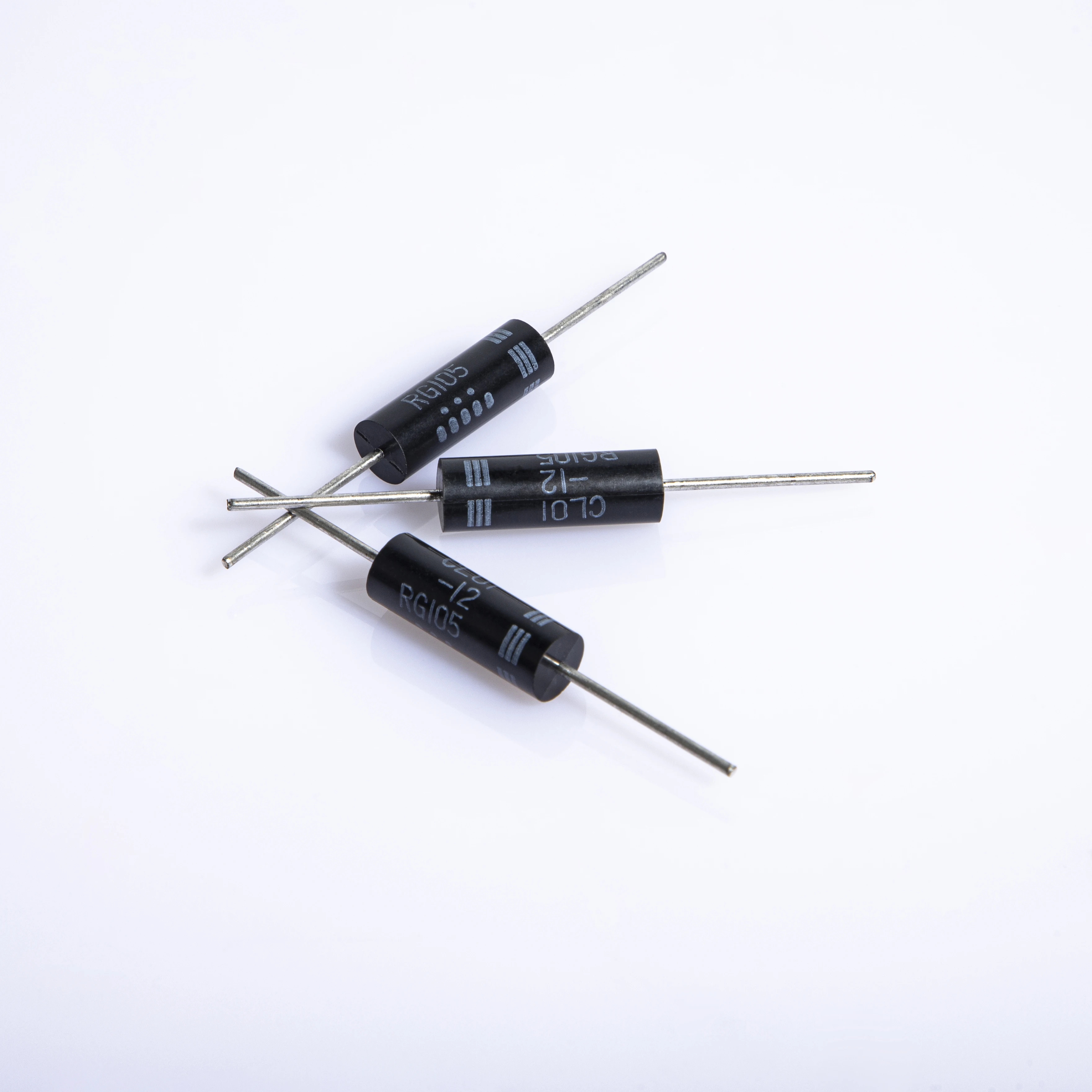

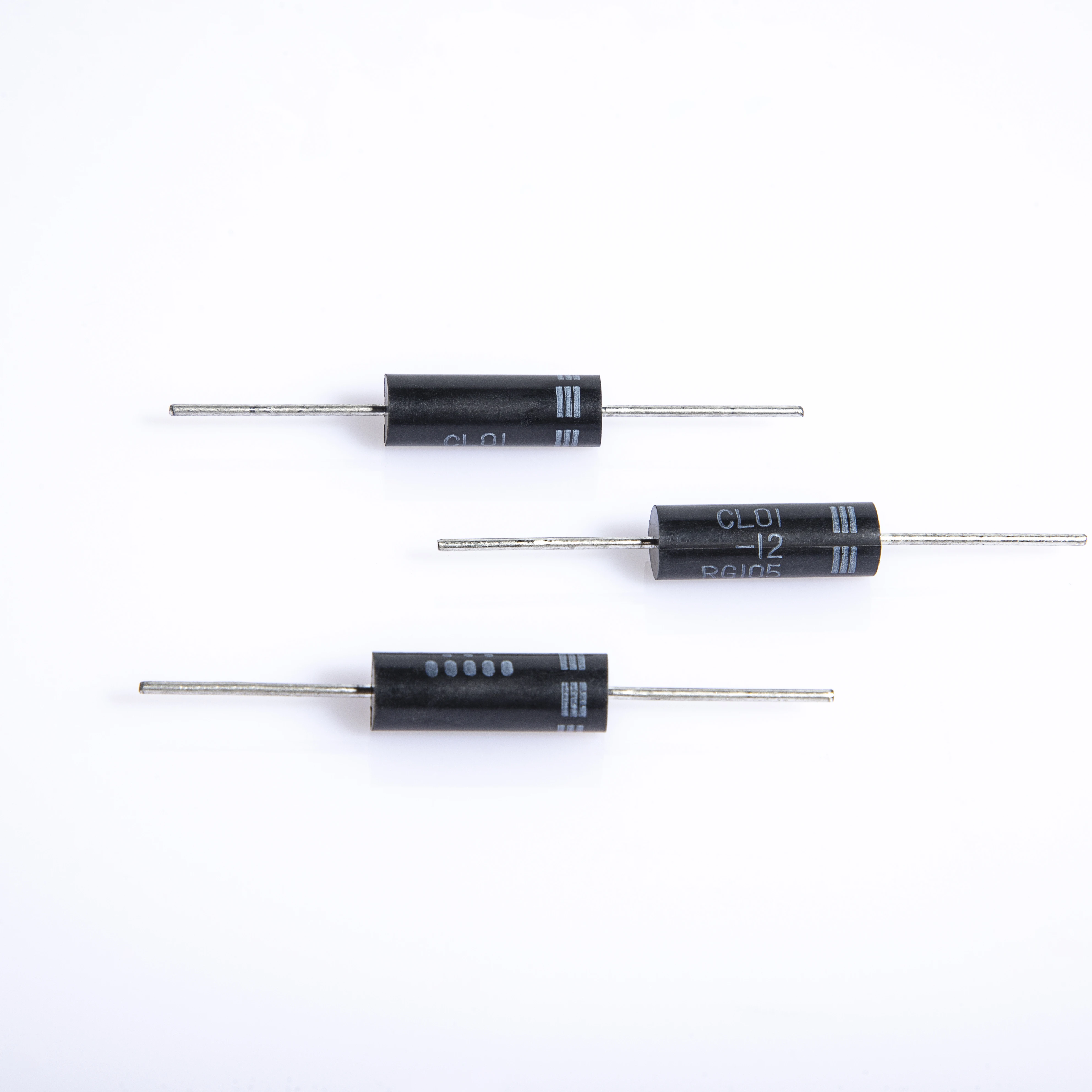

12KV high voltage power rectifier diode of 350mA to 500mA CL01 12

Product Overview

Description



12KV high voltage rectifier diode of 350mA to 500mA CL01-12 :

Repetitive Peak Reveres (VRRM):              12KV Maximum Junction Temperature (Tjmax):     130 °C Storage Temperature(Tstg):                        -40~+130 °C Average Forward Current(IO):                    350 mA Forward Surge Current(IFSM):                   30 A

Absolute Maximum Ratings

No.	Item	symbol	Rating	Unit	Conditions
1	Repetitive Peak Reveres	VRRM	12	KV
2	Maximum Junction Temperature	Tjmax	130	℃
3	Storage Temperature	Tstg	-40~+130	℃
4	Average Forward Current	IO	350	mA
5	Forward Surge Current	IFSM	30	A



Electrical Characteristics (Tamb=25℃,unless otherwise specified )

No.	Item	symbol	Rating	Unit	Conditions
1	Normal Temperature Reverse Current	IR1	5.0max	μA	VR=VRRM
2	High Temperature Reverse Current	IR2	50max	μA	VR=VRRM Tamb=100℃
3	Reverse Breakdown Voltage	VF	12.0	V	IF=350mA
4	Avalanche Breakdown Voltage	V(BR)	9.5 min.	KV	IR=100uA





Type	Peak reverse repetitive voltage Vrrm KV	Average  forward current  Lf(av) mA	Max. forward  voltage  Vfm V	Max forward surge current lfsm A	Leakage current lrrm uA	Time of  reverse recovery Trr nS	Dimension φ*A mm
CL01-09	9	350	10	30	5		7.5*22
CL01-12	12	350	13	30	5		7.5*22
CL01-15	15	350	16	30	5		7.5*22
CL04-09	9	500	10	40	5		7.5*22
CL04-12	12	500	13	40	5		7.5*22
CL04-15	15	500	16	40	5		7.5*22
CL01-10D	10	350	11	30	5		5*9
CL01-12D	12	350	13	30	5		5*9
CL01-15D	15	350	16	30	5		5*9



Related Products

Packing: 200 pcs in one bag, 25 bags in one carton
