Eva foam rubber vulcanizing press machine for EVA foam slippers and soles

Product Overview

Description

        Eva foam rubber vulcanizing press machine for EVA foam                                         slippers and soles





Purpose and perfomance:



1.Produce various EVA foam slippers ,foam sheet ,insulation materials ,sports protective materials ,life jackets ,sponges and other thermoset rubber products .

2.Small temperature difference ,reliable pressure performance ,automatically pressure com-pensation during curing process .

3.Main frame uses cast steel ,piston adapts chilled cast iron,with surface rigidity of HR-75-80.



Feature:



1.Automatic closing,bumping,pressurizing and open operations .

2.High speed closing and pressurization for better product quality ,quick release valve for fast opening with speed adjustable ,depressurization and delay opening can be adjusted to match the thickness of products.

3.Special designed heating platens for unifying temperature distribution.



Technical parameter:

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25MN	0.5MN	0.8MN	1.0MN	1.6MN	2.5MN
Hot plate spacing	125mm	125mm	125mm	125mm	125mm	200mm
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2kw	2.2kw	2.2kw	2.2kw	3kw	5.5kw
The thermal power	2.4kw/board	3kw/board	3kw	7.5kw/board	9kw/board	10.8kw/board
Size(L*W*H)mm	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300

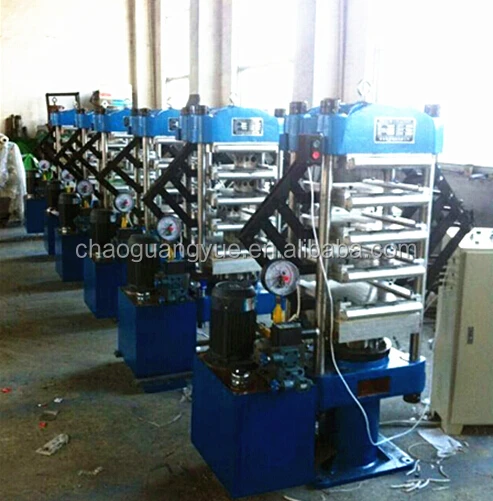

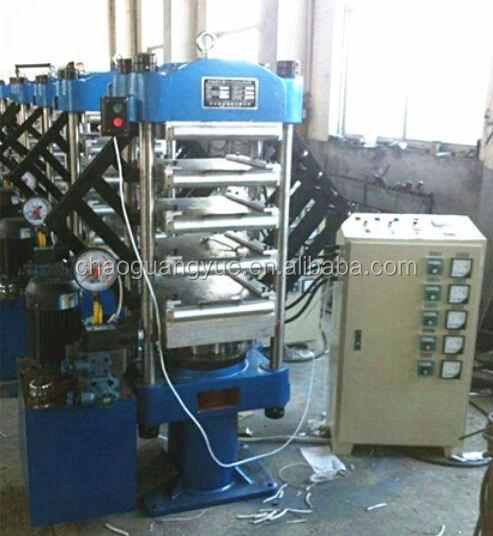

Column type EVA foam vulcanizing press machine

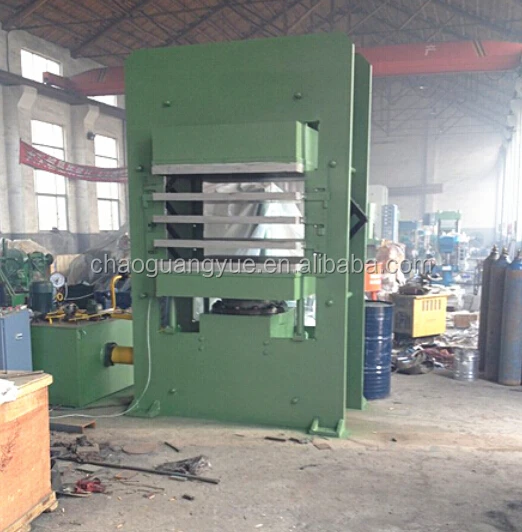

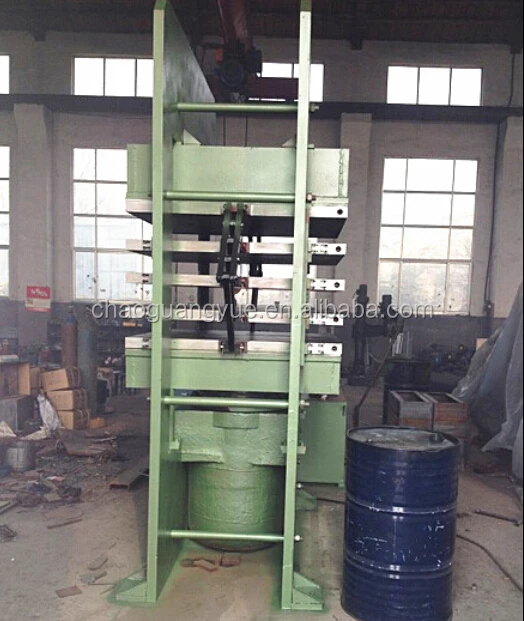

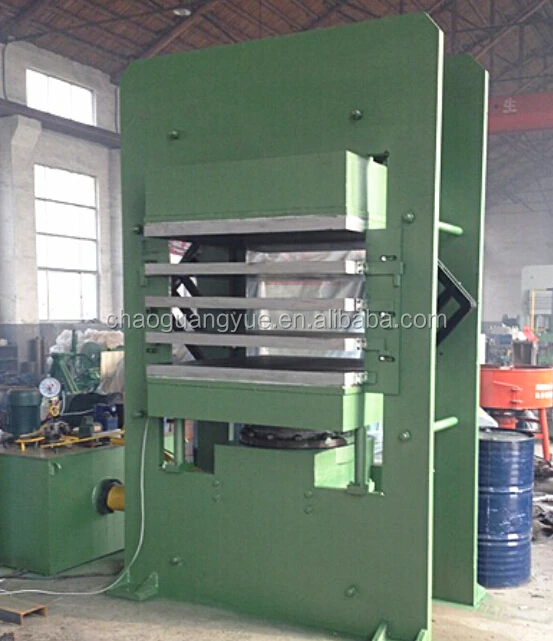

Frame type EVA foam vulcanizing press machine





Our packing way :Export standard (wooden package )  or according to your requirement .





Our Services :



1. We will design,manufacture,install and test the machines according to  customers' requirement .Relevant personnel  training for customers,ensure that customers fully grasp the use and maintenance of technology.



2 .Our service department  listen to customers' feedback at any time and provide spare parts timely.



Welcome to visit our factory and we can show you the machine in working condition:





 If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
