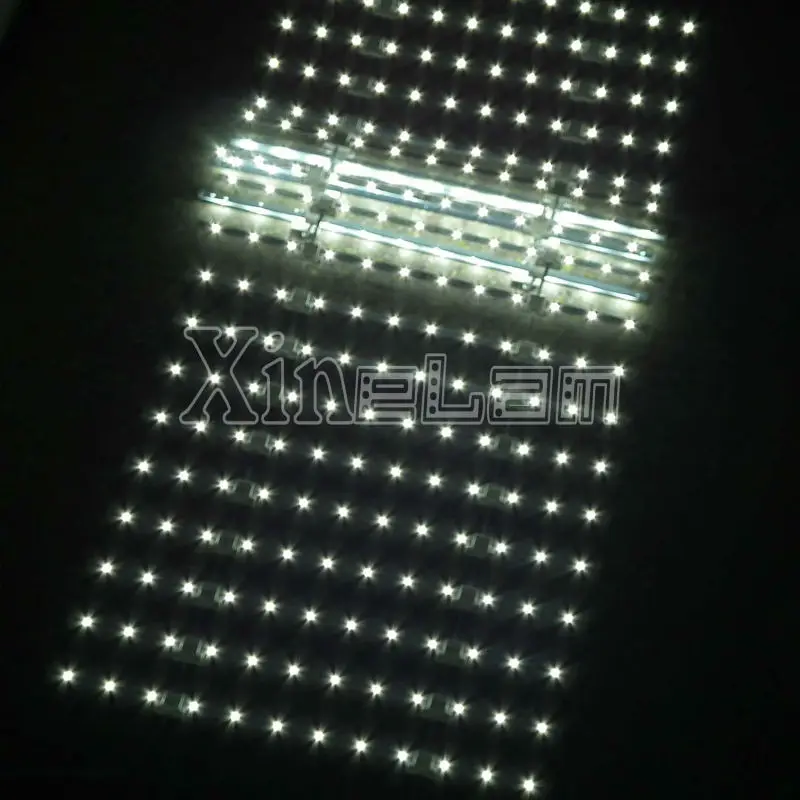

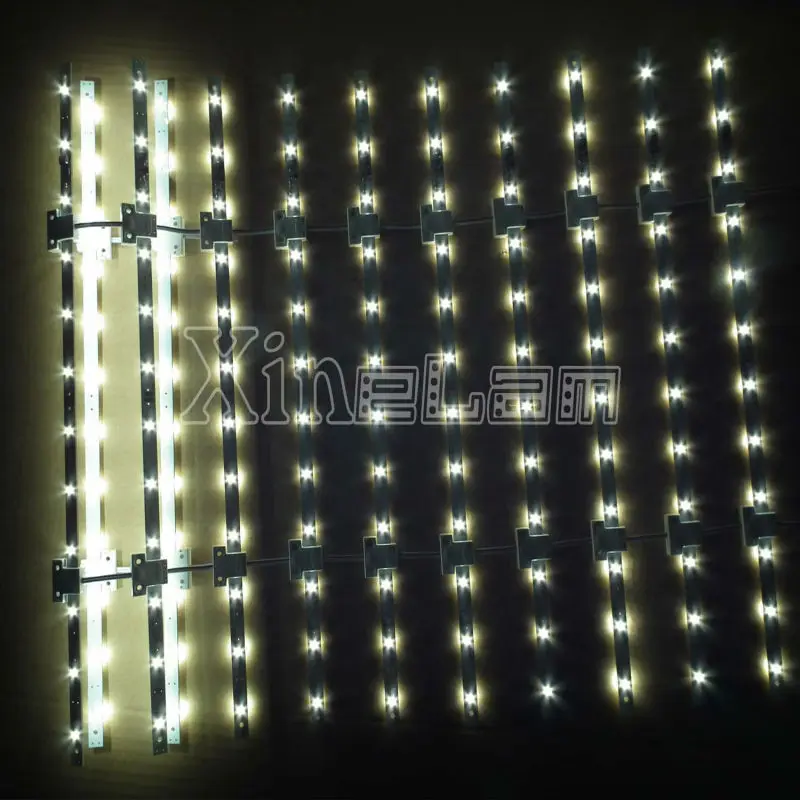

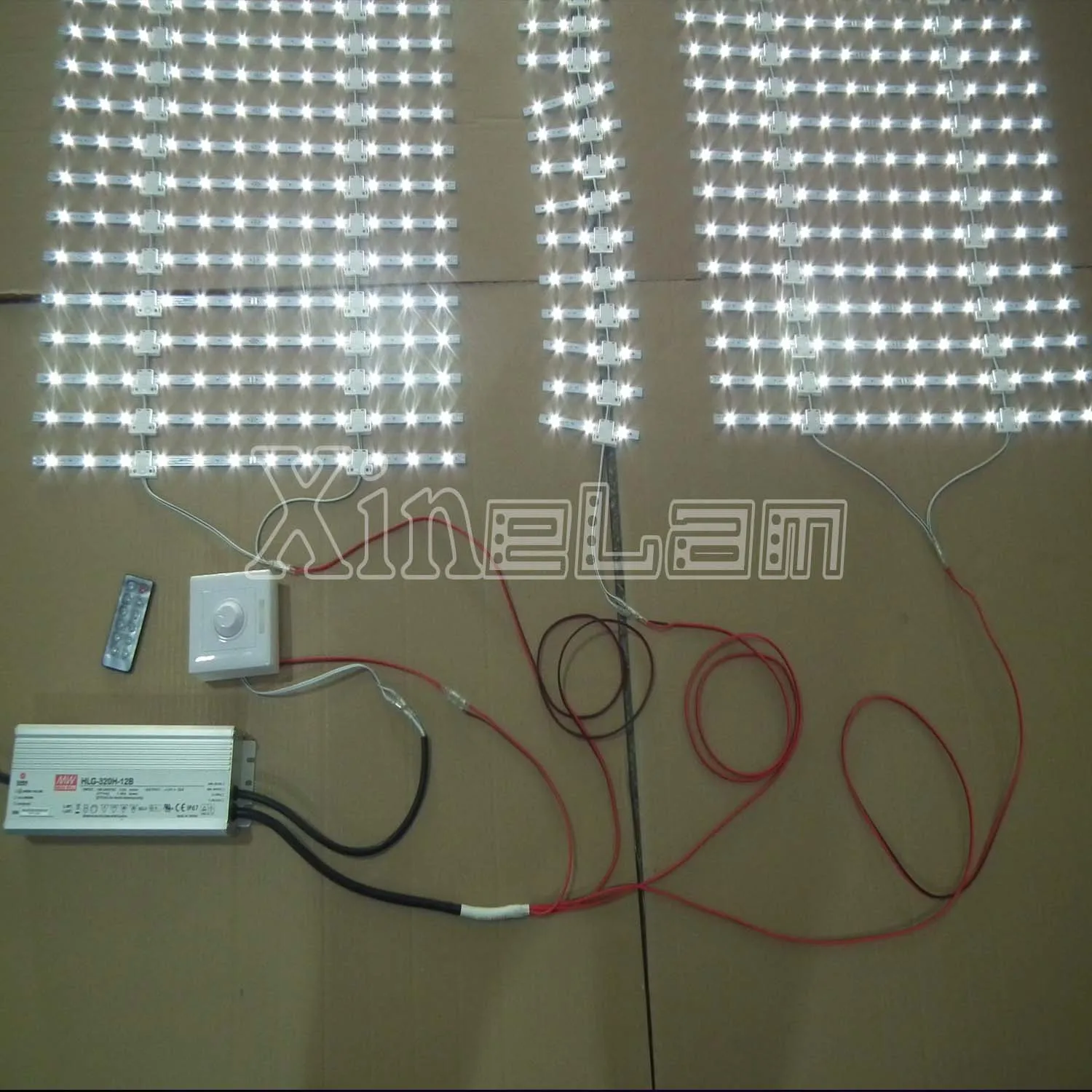

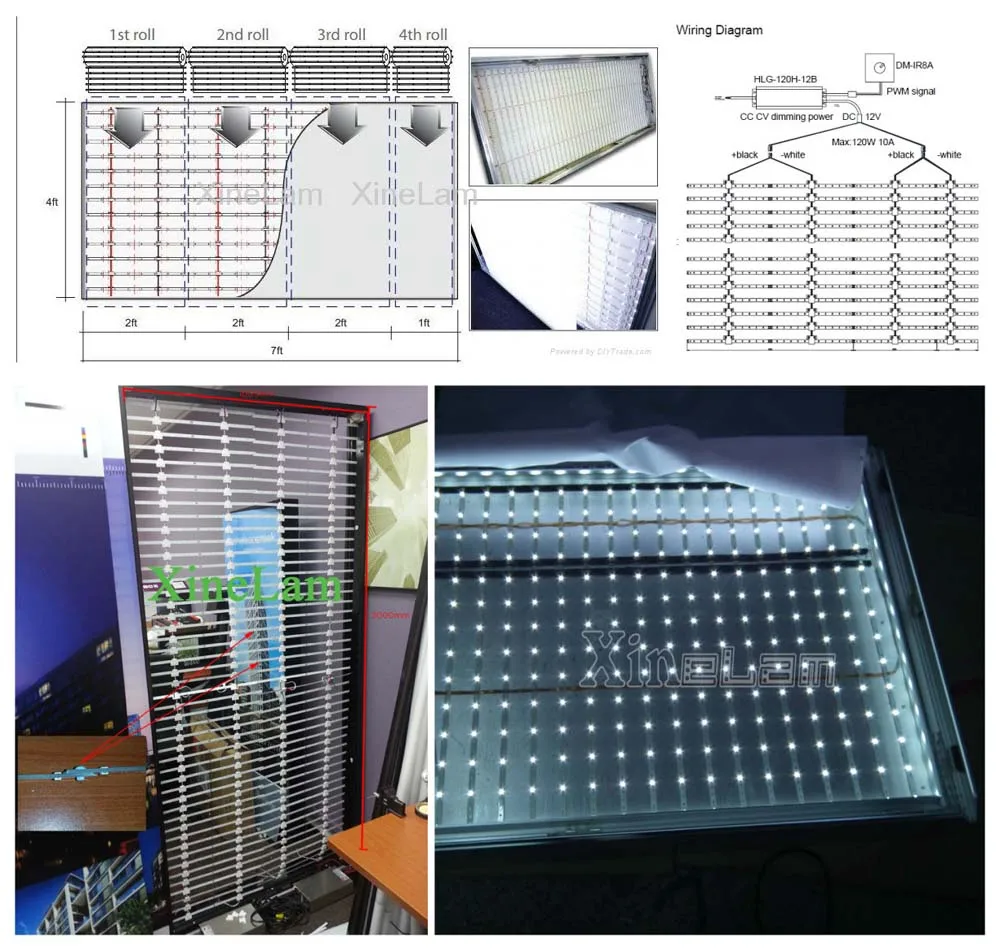

60x60 led panel rigid pcb connection for backlight simple installation

Product Overview

Description

 60x60 led panel rigid pcb connection backlight simple installation



•  Quick View





• High Color Redering Index:  Ra >75/85
• Luminous efficiency : Up to 115Lm/W
• Low and Safe voltage input: DC 12V / DC 24V
• Lamp design: Single / Double-sided
• Viewing Angle: 120 degree
• LED Chip: Top SMD 2835 Epistar
• Waterproof Rating: Optional Conformal Coated IP66
• LED to face distance:>72mm/2.83''
• Available Color: Warm White:2700-3200K,Neutral White:4200-4700K,Cool White:5800-6500K
• Terperature:-30~50 oC ,Storge Temperature:-30~75 oC
• Main Material : LED ,Rigid PCB,Cable wire
• Life-Span : >40000 hours
• Warranty: 3 Years
• Certification: CE,RoHS,FCC
• Patent No.: ZL20120134846







•  Data Sheet

MODEL	BKT50S-50-600	BKT50S-50-150
Strip size	600x10x2.8mm	150x10x2.8mm
Power/strip	2.7W	0.68W
Lumen/strip	270Lm	68Lm
LED QTY	12 LED*SMD 2835	3 LED*SMD 2835
LED Spacing	50mm
Strip Spacing	50mm
Voltage Input	DC 12V / DC 24V
Lamp design	Single / Double Sided options
Cut Increment	Every 3 LED
Series connection	48 pcs / 12V 96 pcs / 24V
Main Applications: Dedicated direct type backlight Advertising signs backlight Advertising light boxes Decorative lighting solutions Ceiling lights source DIY Lighting projects

















•  Lens LED Curtains / RGB LED Curtians / Bi-Color LED Curtains





MODEL	Strip Diameter	Lumen Strip	Power Strip	Input DC	LED spacing	Strip spacing	Series connection	Comment
BKT41X2-50018	496x18x7mm	400Lm 6 LED	4.2W	24V	83mm	93mm	Max: 50pcs	High thermal MCPCB   SMD2835

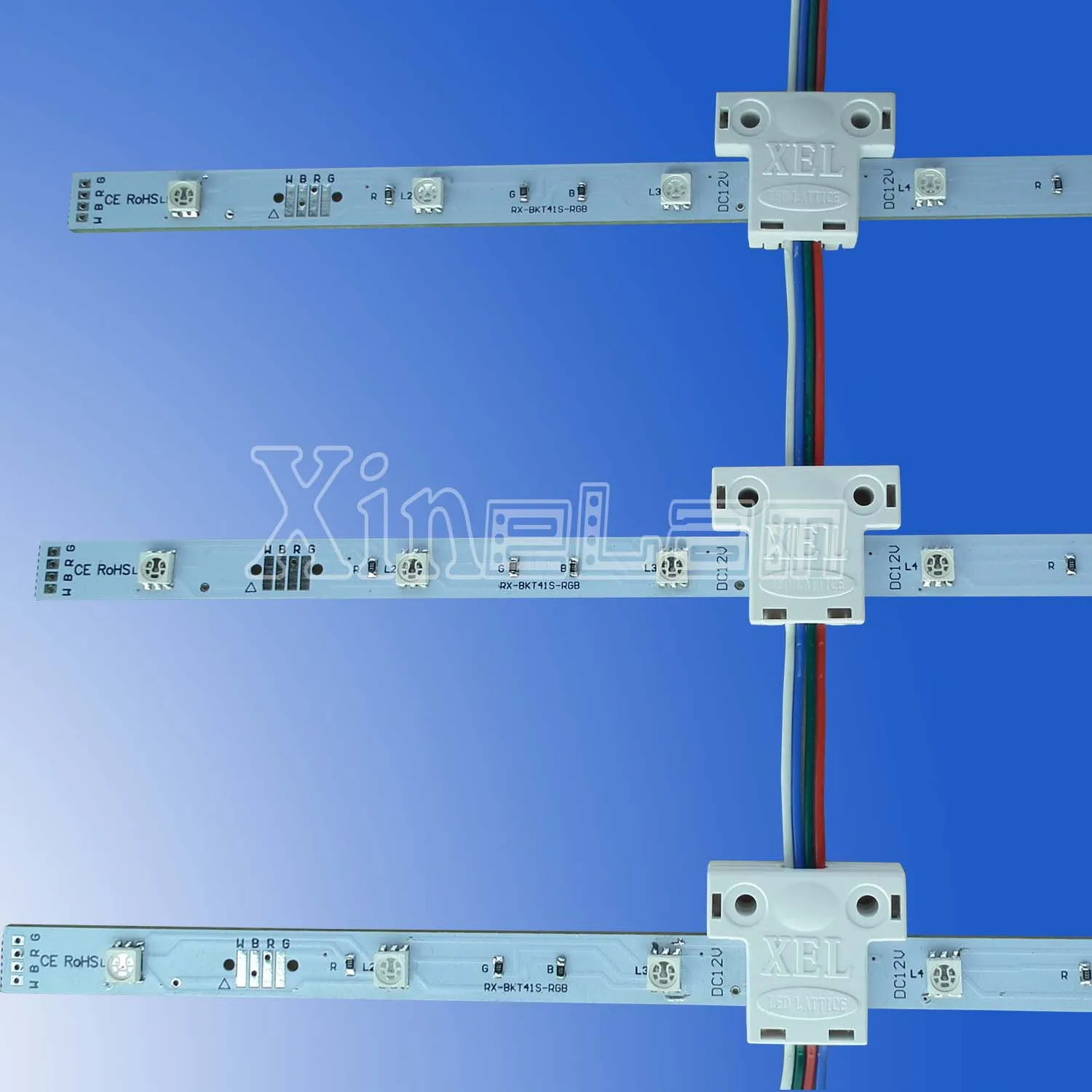

BKT41S-60-RGB	500X10X2.8mm	78Lm 12 LED	2.8W	12V	41.6mm	60mm	Max: 48pcs	PCB Strip SMD 5050 RGB
BKT41S-60-CCT	500X10X2.8mm	540Lm 24 LED	5.4W	12V	41.6mm	41~60mm	Max: 24 pcs	PCB Strip SMD 2835 Bi-Color
