flexible led strip Addressable 5050 RGB built in IC WS2811 WS2812B Led magic Strip lcd led backlight strip

Product Overview

Description

 flexible led strip Addressable 5050 RGB built-in IC WS2811 WS2812B Led magic Strip lcd led backlight strip

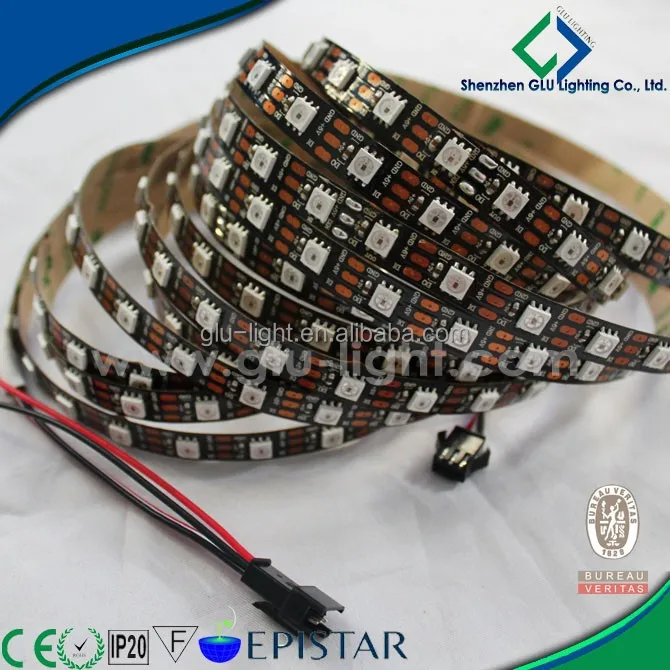

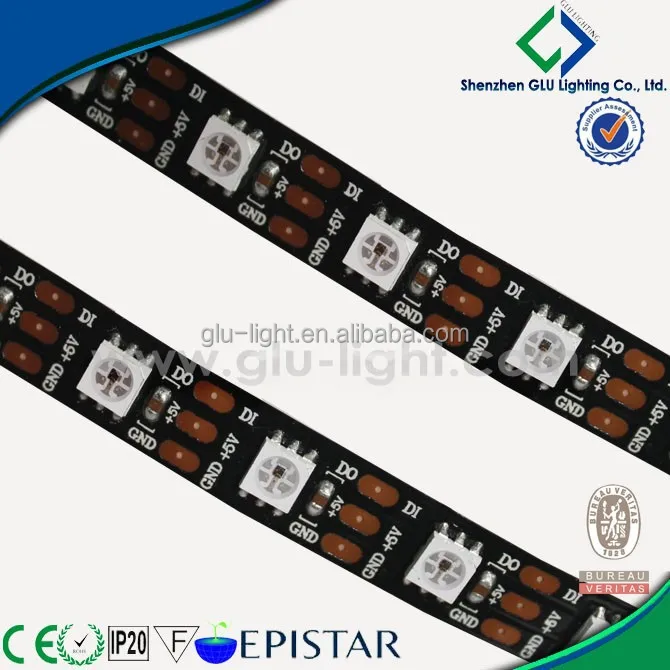

1. Top quality Epistar chip 5050 SMD LEDs with built-in IC are used as light sources, each led is a pixel;
2. Double-faced soft 10mm PCB with 200MP 3M back tape;

3. High brightness, more color chaging modes;

4. 3P JST SM connectors are used, which makes the strip very easy and convenient to use;

5. Both white and black PCB are available.

6. CE and RoHS

7. 3 years warranty.













Addressable 5050 RGB built-in IC WS2811,WS2812B Led magic Strip,WS2812 WS2811 digital Led strip features



1. Ws2812/WS2812B led digital strip,60leds/m,5m/reel ,DC5V input,

 2. 5050 RGB SMD with built-in WS2812B IC as light source.

 3. Each LED is a pixel, each led is individually address controlled.



 4. You can design any customized lighting effects you want.



This digitally-addressable type of WS2812/WS2812b LED strip are more fun and glowy.















 Addressable 5050 RGB built-in IC WS2811,WS2812B Led magic Strip,WS2812 WS2811 digital Led strip  Technic Data







Absolute Maximum Rating at TA=25℃

Parameter	Symbol	Absolute Maximum Rating	Unit
		GLU-MFBN-ICRGB-60-WS2811-5V
Forward Voltage	VF	5	V
Viewing Angle	2θ 1/2	120	deg
Operating Temperature	Topr	-25~+80	℃
Storage Temperature	Tstg	-40~+105	℃

Electrical / Optical Characteristics at TA=25℃

Part No.	Color	CCT/WLD	IC type	Working Voltage	LED Qty.	Grey levels	Power
GLU-MFBN-ICRGB-60-WS2811-5V	Red	620-625nm	WS2812B	5VDC	60	256*256*256	18W
	Green	522-525nm
	Blue	467-470nm

Note: 1. Test Temperature (Ambient temperature: TA=25°℃)

     2. All the technical parameters are based on per meter with max value.



















 Addressable 5050 RGB built-in IC WS2811,WS2812B Led magic Strip,WS2812 WS2811 digital Led strip  Dimension













Notes:

1. All dimension units are millimeters.

2. All dimension tolerance is ± 0.5mm unless otherwise noted.

















 Addressable 5050 RGB built-in IC WS2811,WS2812B Led magic Strip,WS2812 WS2811 digital Led strip  Connection





















Note:1.      Please connect strips before power on;
          2.      There are three cables, +5V, GND, DAT, +5V and GND connect to power supply, GND and DAT
                   connect to controller;
          3.      Working voltage is DC5V, high voltage drop, multiterminal power sources is strongly suggested to
                    ensure the color consistence. We ensure power-up by every 1.8m length.































































































  Addressable 5050 RGB built-in IC WS2811,WS2812B Led magic Strip,WS2812 WS2811 digital Led strip  Application





1.Cove lighting
2.Architectural light for canopy ,corridor ,window, archway
3.Backlight for edge lighting for signage
4.DIY lights for home use
5.Path and contour marking
6.Decorative lights for holiday ,event ,show exhibition

































Addressable 5050 RGB built-in IC WS2811,WS2812B Led magic Strip,WS2812 WS2811 digital Led strip  recommendation







GLU-MC3PT-RF8K enables  more than 80 programs which are various color changing and almost magic effect. Try it out,it is fun!
