Hook strip flat shaker screen mesh

Share on (60219713296):


Price:

Quantity:


Product Overview

Description


hook strip flat shaker screen

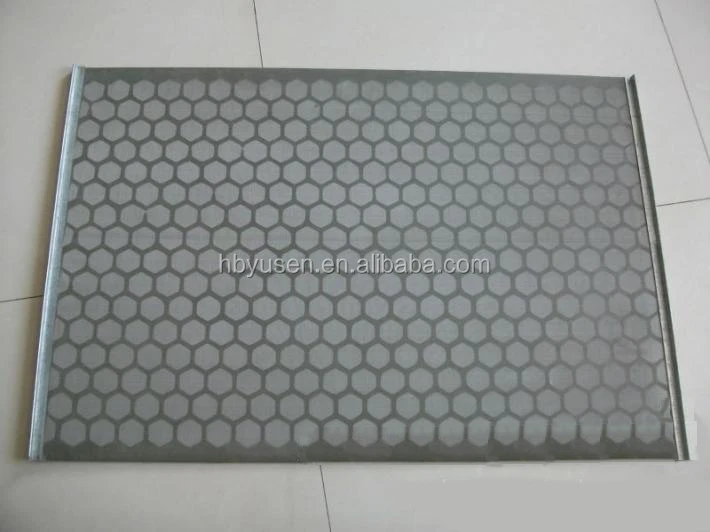

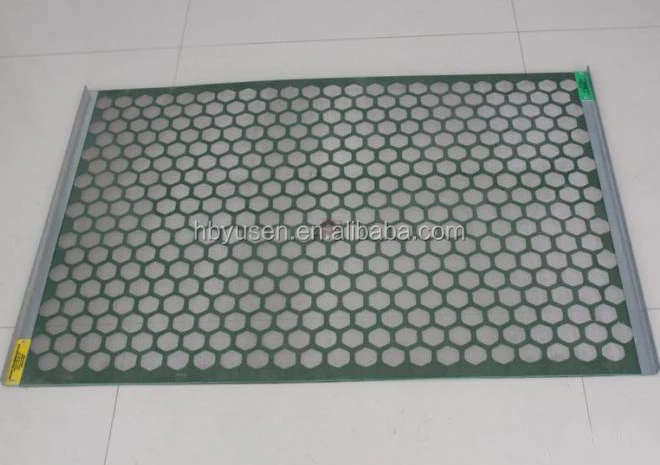

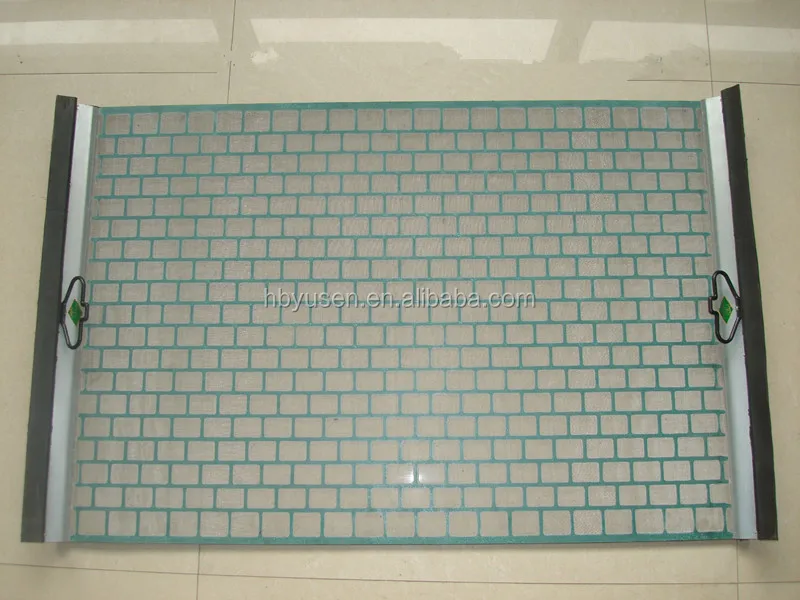

Hook strip flat screen


Hook strip flat screens are the series applied most widely at present. These products can be fit for


all kinds of shale shakers that use the hookstrip flat screen. This screen panel is constructed with


two or three stainless steel layers bonded to a steel support plank. Accessory rubber plugs may be


inserted to the rips or tears of the screen. By doing this, we can cut down time and the production


cost. We can supply hookstrip flat screens with mesh sizes ranging from 12 to 275.


Features of Hook strip flat screen


.Different layers with different density. To arrange these layers reasonably and exactly, the


screening effect will become more and better. Screen with different mesh counts with suitable


opening sizes of the backing plate. Doing so, our products will obtain the largest effective area


under the condition of enough strength.
.The bottom layer with low mesh counts has coarse wire  and can be tight bonded to the backing


to make up one block. So the strength of whole screen mesh get up and the useful life is increased


Ⅲ.The mesh, divided into many independent small units by grids of the backing plate, can prevent


rigs of tears from spreading overmuch. Accessory prepared rubber stoppers can be used to repair


damages. By doing so, the operator can cut down the stop time and reduce the cost.












































































Screen Model



Pange of Mesh



Dimension (Width x Length)



Brand & Model Of Shaker



weiht(Kg)



HLP-1



16-325



903×1155mm



SWACO BEW-3



5.6



HLP-2



16-325



1212×1141mm



SWACO ALS-11



9



HLP-3(PWP)



16-325



697×1050mm



DERRICR FLC500 Series



6



HLP-4(PWP)



16-325



697×1053mm



DERRICR FLC2000



4.2



HLP-5



16-325



697×846mm



DERRICR FLC313M



4



HLP-6(PWP)



16-325



915×1150mm



BRANDT LCM-20



8.6



HLP-7(PWP)



16-325



720×1220mm



KEMTRON KTL48 Series



5.6



HLP-8(PWP)



16-250



700×1165mm



S250



4.6



HLP-9(PWP)



16-250



1186×1280mm



ZX60



9.2



Note: We can produce a variety of sizes of products according to different customer needs .
