factory produce 350ml PET Plastic Juice Bottle filler
- Category: >>>
- Supplier: Zhangjiagang Sheenstar Technology Co. Ltd.
Share on (60219887590):
Product Overview
Description
Product Description
factory produce 350ml PET Plastic Juice Bottle filler
(affordable price and customized product)
Specification:
Applicable for: juice, tea, coffee etc. hot filling liquid.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, pump filling, low vacuum filling and so on.
Production capacity: 2000 bottle/h - 24000 bottle/h
General description
1. Using the wind sent access and thumb wheel, it is easy for customer to change the different bottle, which can keep the bottle shape and high-speed.
2. With clamp hanging the bottle neck, change bottle no need to adjust the height of the bottle, only change the guide plate which is related with the bottle body.
3. Washing bottle mouth with special designed washing manipulator, clip in the bottle neck, stable and avoid secondary pollution.
4. Filling: The clean bottle will from the washing part to the filling part, it will move up or down by the lifting structure, between this process, the bottle will top the filling valve and then start to fill, the capacity is controlled by transducer.
5. Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.
6. The cap sorting device is installed in the above of the capping part, the cap will be sorted and come into the capping part by conveying. And the cap is sent to the cap sorting device by fan.
Technical data
MODEL | RCGF14-12-5 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 | RCGF50-50-15 |
PRODUCTION CAPACITY(500ML BPH) | 2000-2400 | 4000-6000 | 6000-10000 | 10000-15000 | 15000-20000 | 20000-24000 |
FILLING PRECISION | LIQUID LEVEL±2MM | |||||
BOTTLE SIZE(MM) | DIAMETER50-100 HEIGHT 150-310 | |||||
CAP SHAPE | PLASTIC SCREW CAP | |||||
WASHING WATER PRESSURE(MPA) | 0.2-0.25 | |||||
GAS CONSUMPTION(M3/MIN) | 0.1 | 0.1 | 0.4 | 0.5 | 0.5 | 0.6 |
POWER(KW) | 3 | 4.4 | 5.2 | 6.2 | 7.8 | 10 |
WEIGHT(KG) | 2000 | 2800 | 4500 | 6000 | 7000 | 9500 |
DIMENSIONS(L*W*H MM) | 2080*1560*2130 | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 | 4500*3500*2400
|
Kindly remind
Please kindly send us your requirements:
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottlesper hour you want to produce ?
4, do you need this water filling machines only or whole water production line

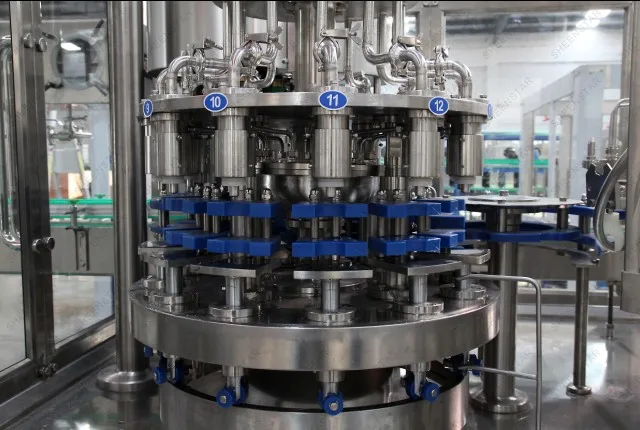

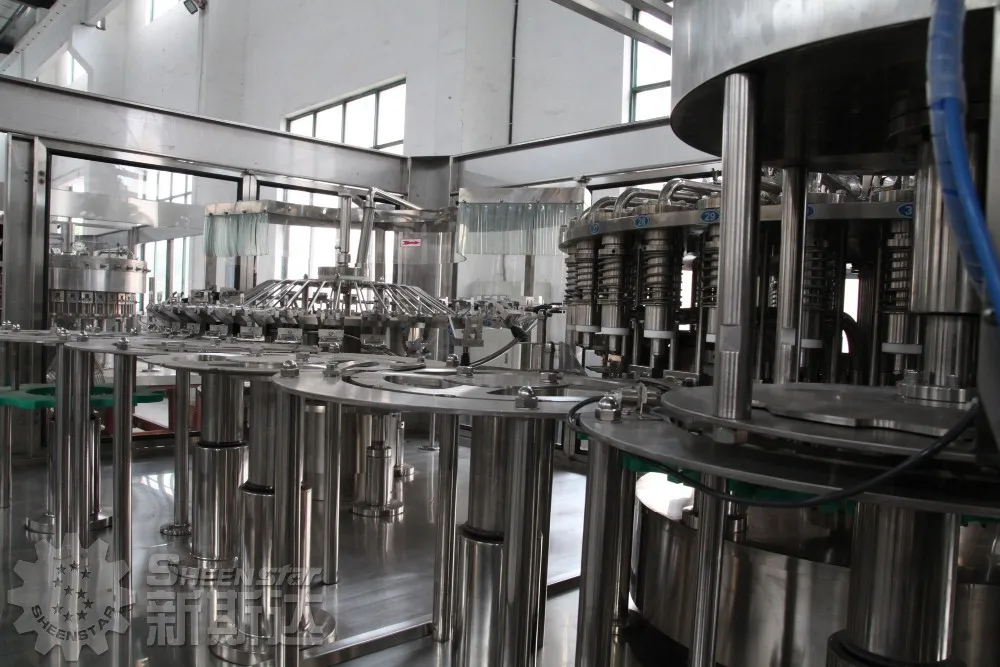

Outside Look
Packaging & Shipping
We provide safe and standard wooden packing
Our Services
The sample service
1.we can send you the video of the running machine
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
Company Information
Company Profile
Zhangjiagang Sheenstar Technology Co., Ltd. has been specialized in the production of beverage machinery for many years. is a professional manufacturer of beverage packaging solutions. we have rich experience in manufacturing and maintenance.We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans.different sizes bottle from 100ML to 20L can be filled.
We are providing customized services to supply customers with the most suitable machine.
Export market
Our machine has been sold to more than 40 countries,almost of the customers are satisfied with the machines and our service.
FAQ
why choose sheenstar
1.we have powerful productivity. because we have a professional designers and
operators and we possess a independent factory
2.we will offer. you superior service and competitive price. we have done many trade
with foreigners,so we have rich experience in export that made us professional.
3. we are sincerely want to establish business relationship with you on the basis of
mutual benefit.we hope our physical plant can offer a good purchase platform
welcome to contact us for more information
sincere service for you
