AHD cctv camera Vandalproof
- Category: >>>
- Supplier: Shenzhen Topwill Electronic Co. Limited
Share on (60220043611):
Product Overview
Description

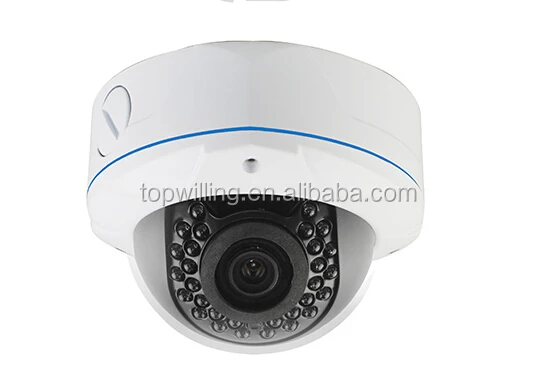

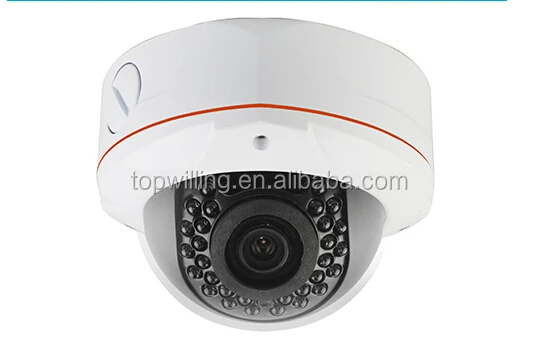

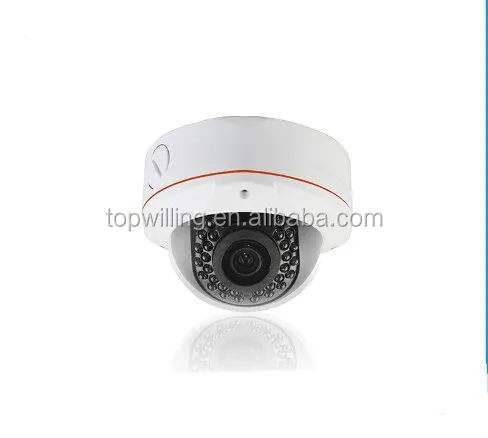

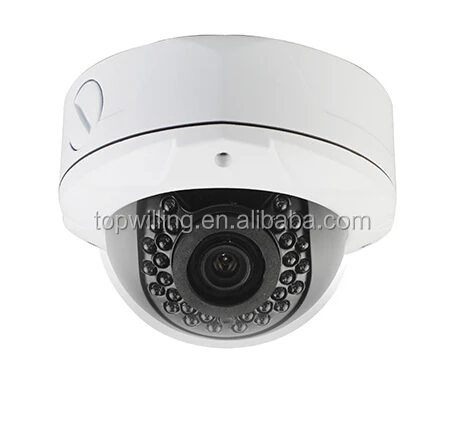

AHD cctv camera Vandalproof and waterproof AHD dome cctv camera 1.3 megapixel 960P security camera CCTV dome camera
Specifications
1)Vandalproof and waterproof AHD dome cctv camera 1.3 megapixel
2)2.8-12mm MP lens
3)30PCS*F5 Led
4)30M IR Night
5)OSD/WDR
AHD cctv camera Vandalproof and waterproof AHD dome cctv camera 1.3 megapixel 960P security camera CCTV dome camera
High definition AHD cctv camera 1.3MP 960P with 2.8-12mm varifocal lens
AHD Introduction:
1)AHD (Analog High Definition), this is a new video format for enhanced CVBS (COMET*) & HD video transmission.
2)HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
3)Usually use Coaxial-Cable,SYV-75-3 cable can transfer video over 300meters.
4)AHD DVR compatible with 1.0Megapixel AHD camera,1.3Megapixel AHD camera, and D1 analog camera.
AHD Camera Character:
1)30-40m ir night vision distance, 36pcs ir leds
2)IP67 weatherproof
3) 2.8-12mm varifocal MP lens
4)white color, metal
5)Nuked size:150mm(dia.)*90(L); nw:1500g
6)High speed, long distance real-time transmission;
7)HD and standard definition switch. Control over coaxial cable.

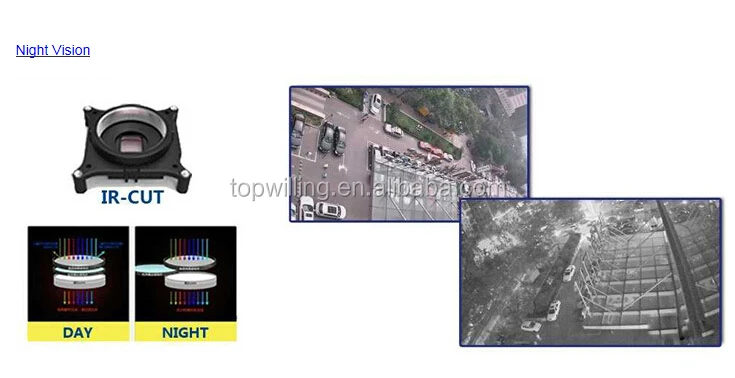

8)Day/Night(ICR), AWB, AGC, BLC, 3D-DNR.
Sensor Chip | 1/3" Color CMOS | |
Image Sensor | 1/3" SONY IMX 238 CMOS | |
Horizontal Resolution | 1280*960 | |
Effective Pixels | PAL:1280*960@25fps NSTC: 1280*960@30fps | |
Signal System | PAL/NSTC | |
Infrared Led | 30 PCS*F5 Infrared (Imported from TaiWan) | |
Infrared Ray Distance | 30M | |

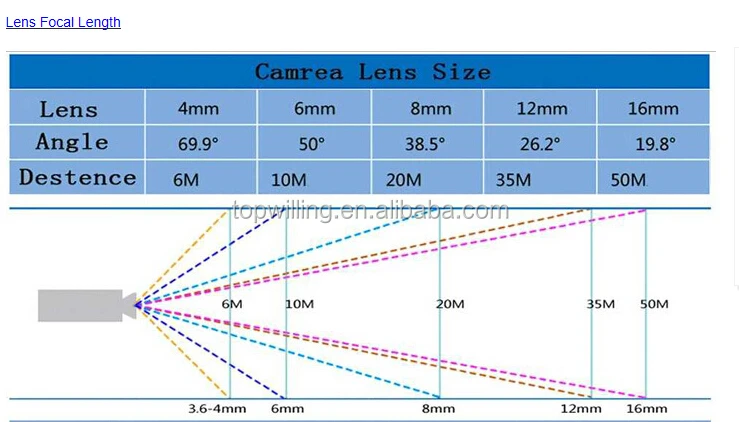

Lens Mount | 2.8-12mm varifocal MP lens | |
Synchronizing System | Internal | |
Minimum Illumination | 0.01 Lux/F1.2 | |
S/N Ratio | More 50 dB (AGC OFF) | |
Electronic Shutter | 1-1/50 (1~1/60) ~100,000 | |
Gamma Correction | 0.45 | |
Video Output | 1 CH Video Output,Support CVBS, AHD | |
OSD Menu | White Balance | ATW/WTW-SET/Manual/Indoor/Outdoor |
Backlight Compensation | OFF/HSBLC/BLC | |
Exposure Mode | Shutter/AGC/DWDR | |
Day/Night | Auto/Color/Exit/B/W | |
NR | 2-DNR,3D-DNR | |
Special | Cam Title | ON/OFF |
Motion | ON/OFF | |
Privacy | ON/OFF | |
D-Effect | Freeze/Mirror/Neg Image | |
Language | More than Ten Different Lauguages | |
RS485 | Cam ID/ ID Display/Brudrate | |
Defect | Live DP/White DCP/Black DCP | |
Adjust | Shutter | Auto/Manual |
AGD | YES | |
Sens-up | YES | |
Brightness | YES | |
D-WDR | OFF/ON/Auto | |
De-Fog | OFF/Auto | |
Dimension/Weight | 120*90(mm)/ 1500 g | |
Waterproof | IP 66 | |
Power Supply | DC 12V. 2A | |
Operating Temperature | -20 *C~+50 *C | |
