24 key controller led flexible light magic dmx led strips supplier 30 leds

Product Overview

Description

flexible magic dmx led strips supplier led strip ip65 300 leds strip flex

cart-led strip ip65 PRODUCT SPECIFICATION:



1.led type:5050smd,30leds per meter,60leds per meter

2.voltage:DC12v,24v

3.grade of weaterproof:ip20,ip65,ip67,ip68

4.power:7.2w,14.4w

5.led strip light color:R,G,B,Y,W,RGB can be optional





YLL-flexible magic dmx led strips supplier TECHNICAL PARAMETER:



LED Type/Qty		Color	Unit	Voltage(V)	Power(W/M)	WL/CCT(nm/K)	IV(mcd&lm)/led
5050(10mm)	30leds/M	RED	M	12&24	7.2	625-630	1800-2000
		GREEN	M	12&24	7.2	520-525	4000-5000
		BLUE	M	12&24	7.2	465-470	1000-1200
		YELLOW	M	12&24	7.2	588-592	1800-2000
		WHITE	M	12&24	7.2	7000-8000/ 8000-10000	16-18LM
		WARM WHITE	M	12&24	7.2	2700-3000	16-18LM
		Colorful/RGB	M	12&24	7.2	R625-630/ G520-525/ B465-470	R1800-2000/ G4000-5000/ B1000-1200
5050(8mm)	30leds/M	Colorful/RGB	M	12	7.2	R625-630/ G520-525/ B465-470	R1800-2000/ G4000-5000/ B1000-1200
5050(10mm)	60leds/M	RED	M	12&24	14.4	625-630	1800-2000
		GREEN	M	12&24	14.4	520-525	4000-5000
		BLUE	M	12&24	14.4	465-470	1000-1200
		YELLOW	M	12&24	14.4	588-592	1800-2000
		WHITE	M	12&24	14.4	7000-8000/ 8000-10000	16-18LM
		WARM WHITE	M	12&24	14.4	2700-3000	16-18LM
		Colorful/RGB	M	12&24	14.4	R625-630/ G520-525/ B465-470	R1800-2000/ G4000-5000/ B1000-1200



YLL-300 leds strip flex PRODUCT FEATURES:



1.We suggest you use the product under the required temperature(working temperature: -20°~40°,storage temperature:  -20°~80°)and make sure the voltage accord with product specifications.

2.Our normal packing is 20pcs per string,for the single color led module we adopt gray and white wire to connect(gray+white-),but for RGB color we use red green blue and white four wires to connect.

3.For product shell we use ABS plastic,anti-corrosion,non-discolouring,PCB is made of half a glass fiber and fire prevention material,good heat dissipation,low power consumption.

4. We use high brightness 3528 smd led as our light sources,it has high brightness,good consistency and good aperture.

5. Our light surces are all packed with silicone glue,under rated conditions,it works 1000 hours and without light failure,and the lifespan is more than 50000 hours.



6.In order to fix the single led module we can stick 3M glue back and install screw.Fixed way can be chosen by yourself,each way is convenient and quick.

7.Products are glued by transparent or milky glue,the protection grade up to IP65.Fully comply with outdoor installation use.

8. All the raw material meet RoHS standards.



YLL- LED Strip Light CERTIFICATES:





YLL-LED STRIP LIGHT PACKING DETAILS:





YLL- LED STRIPS APPLICATION:



1.Advertising signs:back light/acrylic/glowing words.

2. Interior decoration:shop/store/car decoration/corridor lighting/furniture decoration lighing/window decoration.

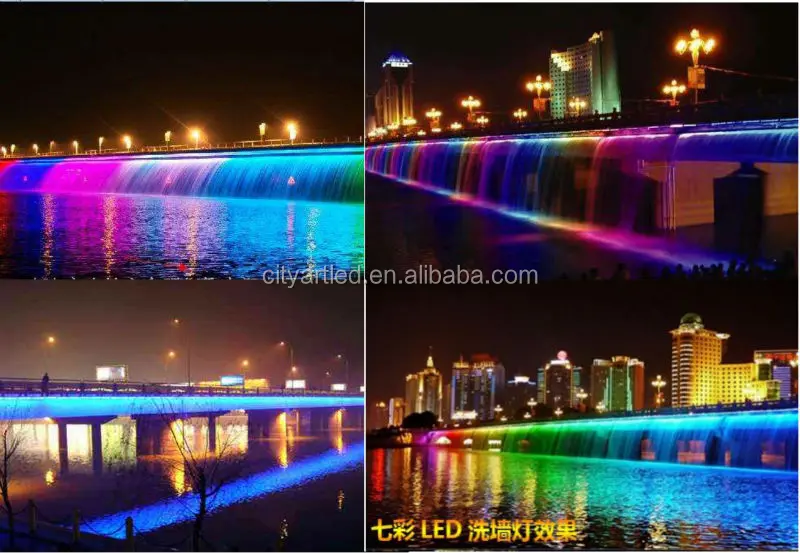

3. Outdoor lighting:the edge lighting/decorating building/mark lighting/sign lighting/underwater engineering lighting.



4. Atmosphere lighting:the bar/KTV/coffee shop and leisure entertainmen
