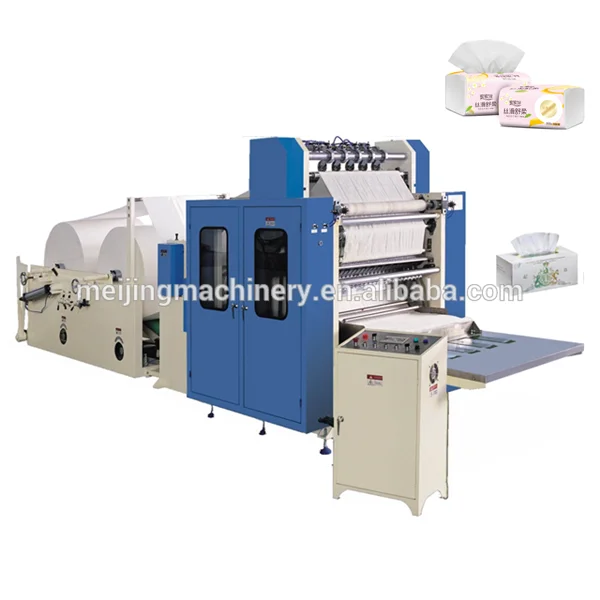

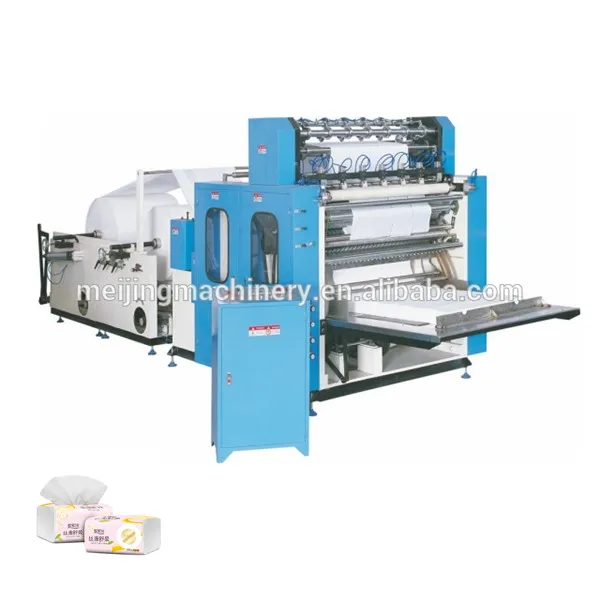

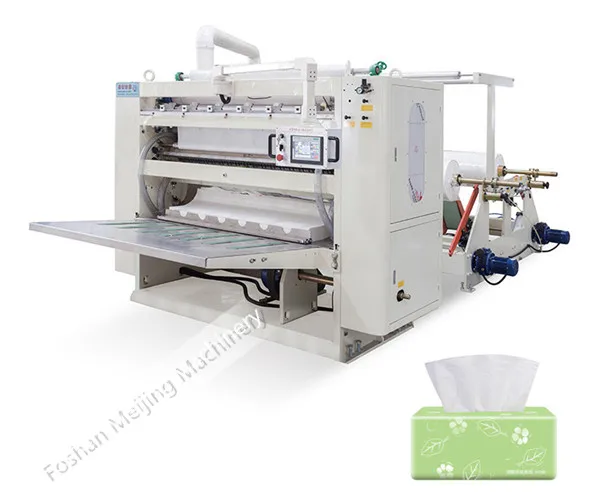

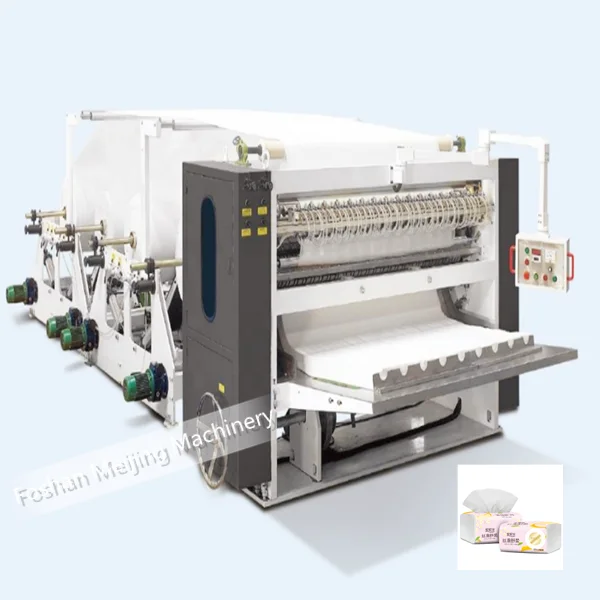

Popular 6 Lines Carob Box Drawing Facial Tissue Making Machine Can Used for Hand Towel Production Line
Product Description
This Machine Is The Ideal Model For Paper Making Or Processing Factory To Fold The Paper Into Desired Size Of Tissue. It Is Consist Of Back Stand Unit, Paper Feeding Rollers, Transmission, Folding Unit, And Output Line.
Machine Model | CS(170~220)/7 |
Raw Material Gram Weight | 2 Plies, Each Ply:14~18g/sqm |
Parent Roll Width | 1470mm |
Parent Roll Diameter | Maximum 1200mm |
Parent Roll Core Inner Diameter | 76.2mm |
Qty. of Back Stand | 2 Stands |
|
|
Folded Shape | 1/2 Fold, V Or C Fold |
Finished Product Unfold Size (LxW) | 210mm x 200mm |
Finished Product Folded Size (LxW) | 105mm x 200mm (Width Can Be Adjusted) |
Speed | 900~100 Sheets/Min |
Output Line | 7 Lines |
|
|
Programmable controller | "Mitsubishi" Brand |
Parameter setting | Touch Screen Operating Interface(Chinese and English Language) |
Parent Roll Loading Unit | Pneumatic Loading |
Driving System | Timing belt Driving System |
Pneumatic System | 3H.P. Air Compressor, Mini Pressure:5kg/sqm, (Air Compressor Provided By User) |
Vacuum Suction System | Roots Vacuum Pump: 15~18.5Kw |
Counting System | Alternate Stack By Stack |
Motor | Motor With Frequency Conversion Speed Regulator |
Installed Power | 380V, 50Hz, 5.5Kw |
|
|
Machine Weight | Approximate 5400Kg |
Machine Dimension (LxWxH) | Approximate 7.0M x 2.2M x 1.8M |
High Speed, Stable Running, Folding Neatly, High Efficiency And Low Energy Consumption
Applies Advanced PLC Programmed Controlling: Mitsubishi PLC; Touch Screen Operating Interface: Domestic Famous Brand LCD Touch Screen; Frequency Conversion Speed Regulator; Vacuum Suction System For Folding And Automatic Alternate Stacking By Stacking For Easily Counting.
Slitting Unit Is Full Automatic And Consist Of A Group Of Small Round Knife Which Can Cut The Paper Into Desired Length.
