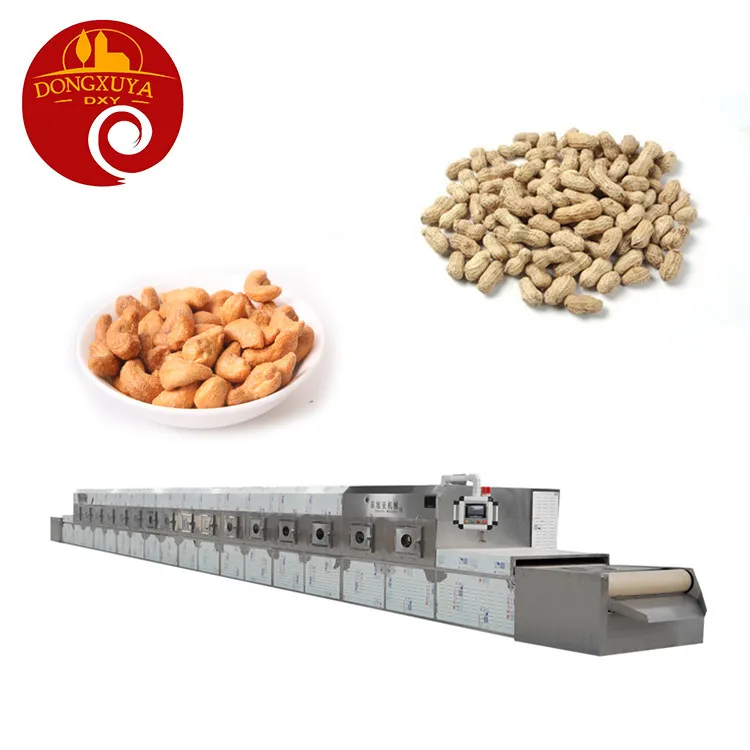

Microwave Drying Equipment for Nuts and Dried Fruits Drying Sterilizer
- Category: >>>
- Supplier: Shandong Dongxuya Machinery Co. Ltd.
Share on (60220855082):
Product Overview
Description

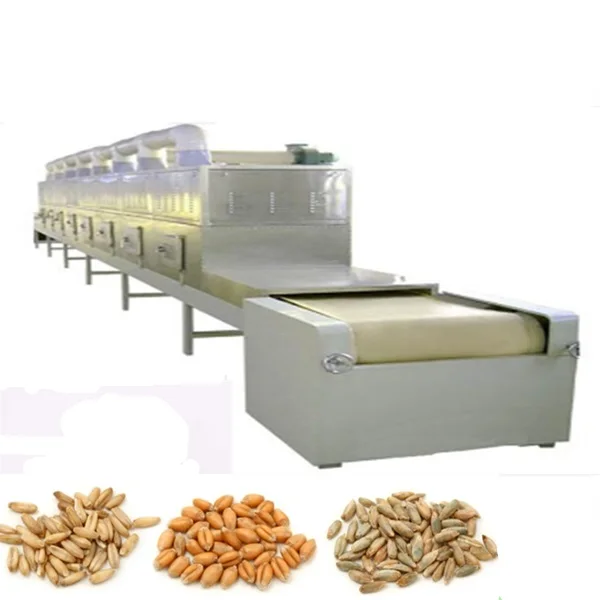

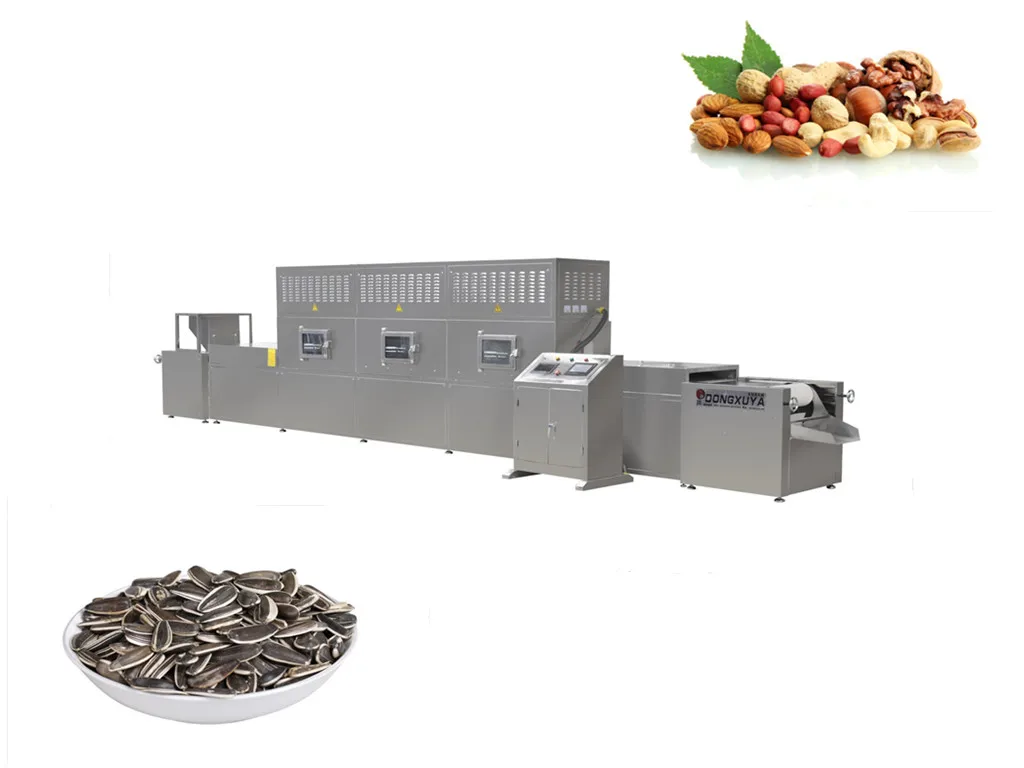

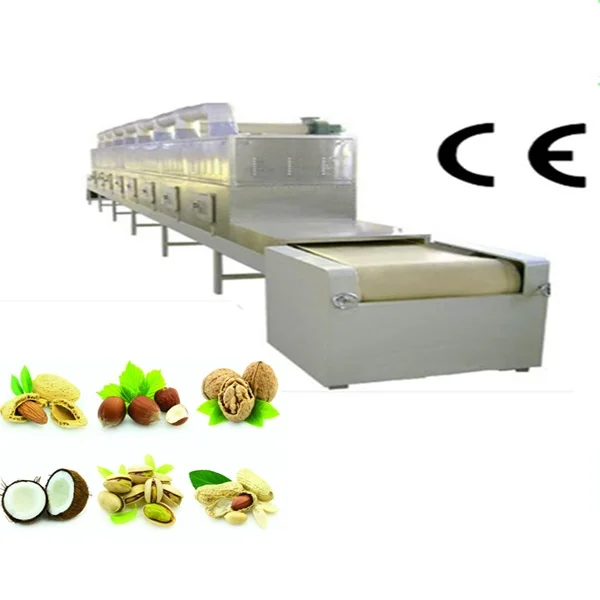

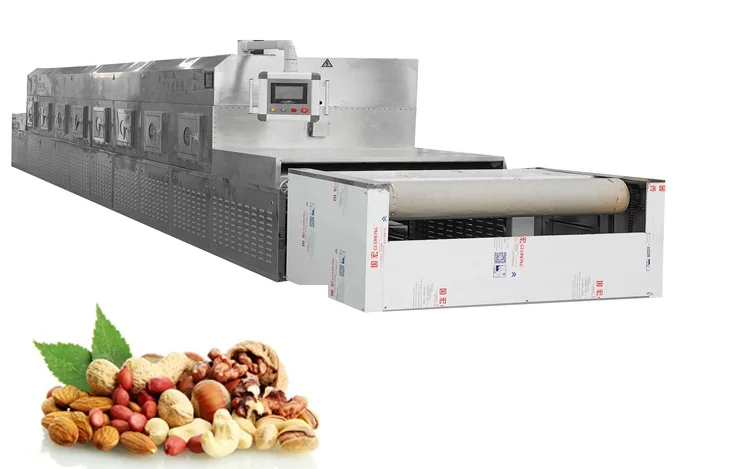

Microwave Drying Equipment for Nuts and Dried Fruits Drying Sterilizer
Product Description
The device uses the microwave heating principle, the materialin the process of heating dehydration, softening, volatile smell of grass, the activity of the purified enzyme,appearance,
colour and lustre is good. Equipment design is reasonable, compact structure, reliable
performance, simple operation,convenient maintenance, following are ain characters of it .
1. Microwave heating speed: directly heat on the internal and external of material at the same time, do not
need to preheat. While there must be a preheating process in the traditional production.
2. Heating evenly: microwave drying is completed through electromagnetic waves produced by
magnetron.The internal and external of material will be heated at the same time , no leaf scald ,
focal side, fragment and etc.
3. Less nutrition loss: material just stay in the microwave heating box for a short time, and do not
need air and steam to conduct heat, therefore can maximize keep nutrients in the material.
4. Sterilization and alcoholization: there will be probably second pollution to the material
during making process. This microwave drying equipment also have sterilizing and alcoholizing function.
5. Reduce the labor intensity, improve work efficiency: this equipment could finish feeding and
baiting automatically. The operator simply press the button, monitor equipment operation
condition and degree of killing out. The whole production only takes 1-2 people.
While the traditonal takes 5 to 6 people.
6. Friendly environment equipment: this equipment will not create high temperature, dust and
noise.
Pictures of Samples
Technical parameter
Item | XH-20KW | XH-30KW | XH-40KW | XH-60KW | XH-100KW | XH-200KW |
Power supply | 380V,50Hz 3phase 5 line | 380V,50Hz 3phase 5 line | 380V,50Hz 3phase 5 line | 380V,50Hz 3phase 5 line | 380V,50Hz 3phase 5 line | 380V,50Hz 3phase 5 line |
Microwave output frequency | 2450 ± 50MHZ | 2450 ± 50MHZ | 2450 ± 50MHZ | 2450 ± 50MHZ | 2450 ± 50MHZ | |
Related input apparent power | ≤ 26KVA | ≤ 38KVA | ≤ 50KVA | ≤ 72KVA | ≤ 130KVA | ≤ 230KVA |
Microwave output power | ≥ 20KW | ≥ 30KW | ≥40KW | ≥60KW | ≥100KW | ≥200KW |
Microwave power adjust range | 0-20kw | 0-30KW | 0-40KW | 0-60KW | 0-100KW | 0-200KW |
Temperature range & accuracy | 0-200℃;1℃ | 0-200℃;1℃ | 0-200℃;1℃ | 0-200℃;1℃ | 0-200℃;1℃ | 0-200℃;1℃ |
Environment temperature | 0-50℃ | 0-50℃ | 0-50℃ | 0-50℃ | 0-50℃ | 0-50℃ |
Relative humidity | ≤80% | ≤80% | ≤80% | ≤80% | ≤80% | ≤80% |
Inlet and outlet height | 80mm(adjustable) | 80mm(adjustable) | 80mm(adjustable) | 80mm(adjustable) | 80mm(adjustable) | 80mm(adjustable) |
Transport belt width | 500mm (adjustable) | 750mm (adjustable) | 750mm (adjustable) | 1200 (adjustable) | 1200 (adjustable) | 1200 (adjustable) |
Outline size(mm)(LXWXH) | 8500x820x1750 (adjustable) | 8500x1500x1750 (adjustable) | 10500x1500x1750 (adjustable) | 10500x1800x1750 (adjustable) | 16200x1800x1750 (adjustable) | 16200x1800x1750 (adjustable) |
Transmission speed | 0-8m/min (adjustable) | 0-8m/min (adjustable) | 0-8m/min (adjustable) | 0-8m/min (adjustable) | 0-8m/min (adjustable) | 0-8m/min (adjustable) |
Our related extrusion machine/ processing line:
- Grain microwave baking equipment
- Condiments microwave sterilizing machine
- Rice microwave sterilizing machine
- The tea microwave drying machine
- Packaged food microwave sterilization machine
- Seafood microwave drying equipment
- Liquid beverage microwave sterilizing machine
- Apple slices of microwave drying equipment
- Pepper microwave dryer
- Red jujube microwave dryer
Our Services
a. We can provide factory layout according to customer's factory size in advance.
b. When we received your deposit of this order, we will ask our engineers to prepare to apply
the visa, when the equipment arrived your country, and we will send two engineers to go and
help you to install the line, teach your worker(3-4 workers) how to operate the line, until your worker know the line well. c. Our engineers has responsibility to teach your worker how to clean the extruder, how to
change the screw, how to change barrel etc. and we have responsibility to provide technology
support with you forever.
d. Our engineers can provide basic formula and help customer to produce good quality food
according customer's detailed formula.
e.The spare parts We provide will at preferential price for an extended long time.

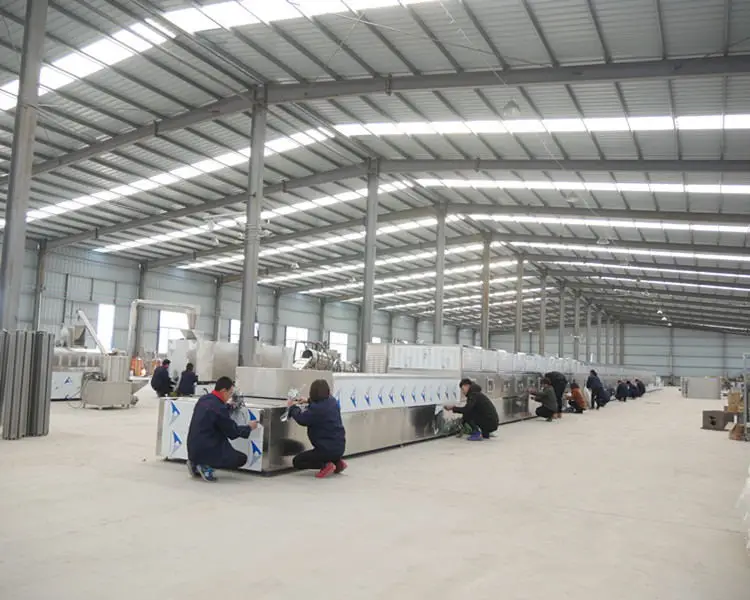

Company Information
