Product Overview

Description

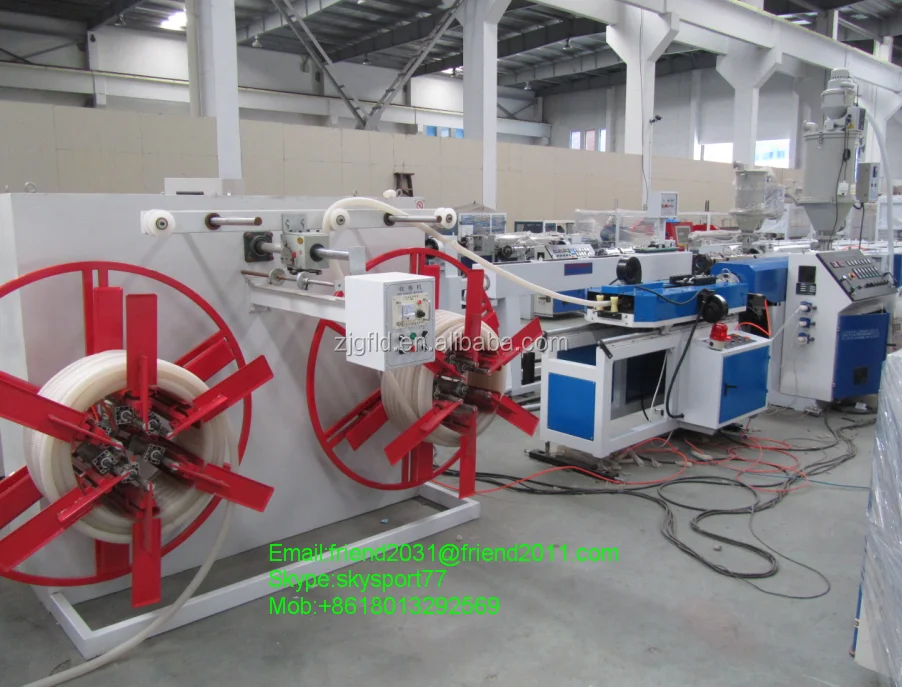

pe single wall corrugated pipe extruding machine : plastic conduit pipe extruder

16-63mm plastic pvc single wall corrugation pipe extruder for electrical conduit lastic wire conduit corrugated pipe extruder E/PP threading corrugation pipe extruding machine.

PE,PVC,PP EVA PA Plastic Single-wall Corrugated Pipe Machine

pe pvc pp single wall corrugated pipe machine



Description for the machine



1) material for the single wall corrugated pipe :

This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes



2) application for the single wall corrugated pipe:

Plastic single-wall corrugated pipes have feathers of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.



They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.



3) advatanges

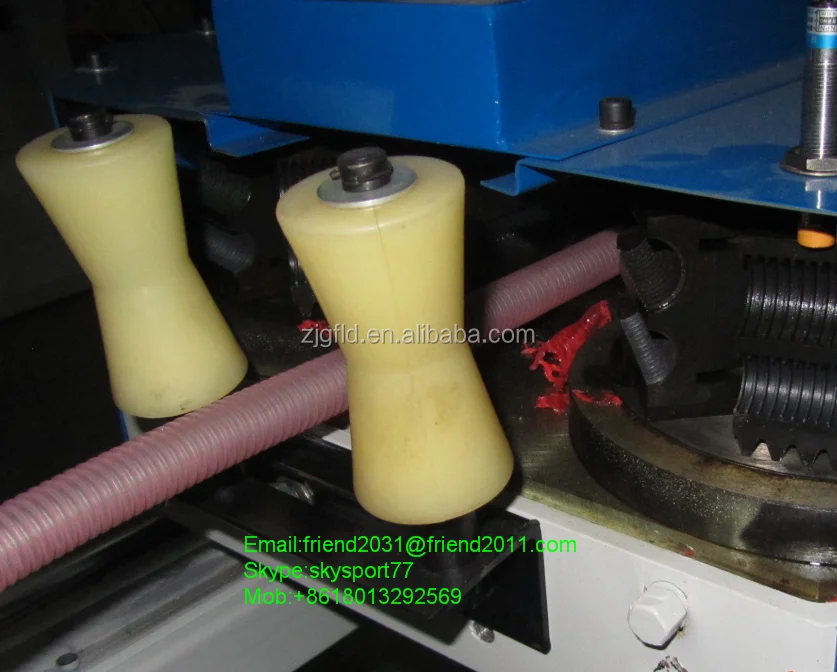

SJDBGZ seies plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars.



4) Machine parameters show:

Pipe diameter range(mm)	4.5-9	9-32	32-50
Main machine model	SJ-30	SJ-50	SJ-65
Main machine l/d	30:1	30:1	30:1
Production capacity kg/h	10	40	80
Main motor capacity kw	4	11	18.5
Moiding machine capacity kw	1.1	1.5	1.5
Pair of modules	42	38	38
Cooling mode	Water cooling and fan cooling
Production (m/min)	6-10	8-12	8-15
Metering mode	inductiing mode

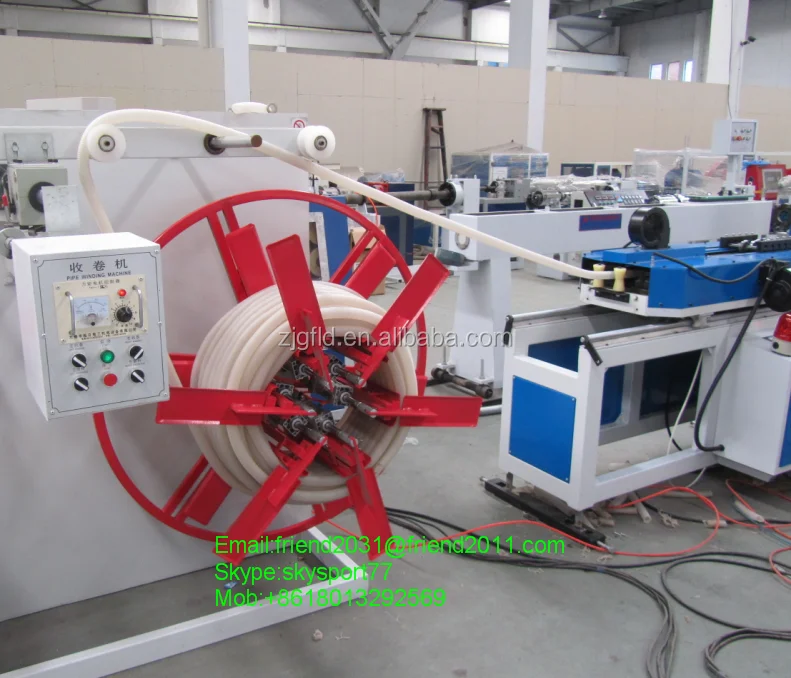

Coiling machine mode	Motor-drivenManually-operated
Pipe mold quantity	42 pairs                       62 pairs                      68pairs
Winder control	frequency converter control(better than torque motor control)
