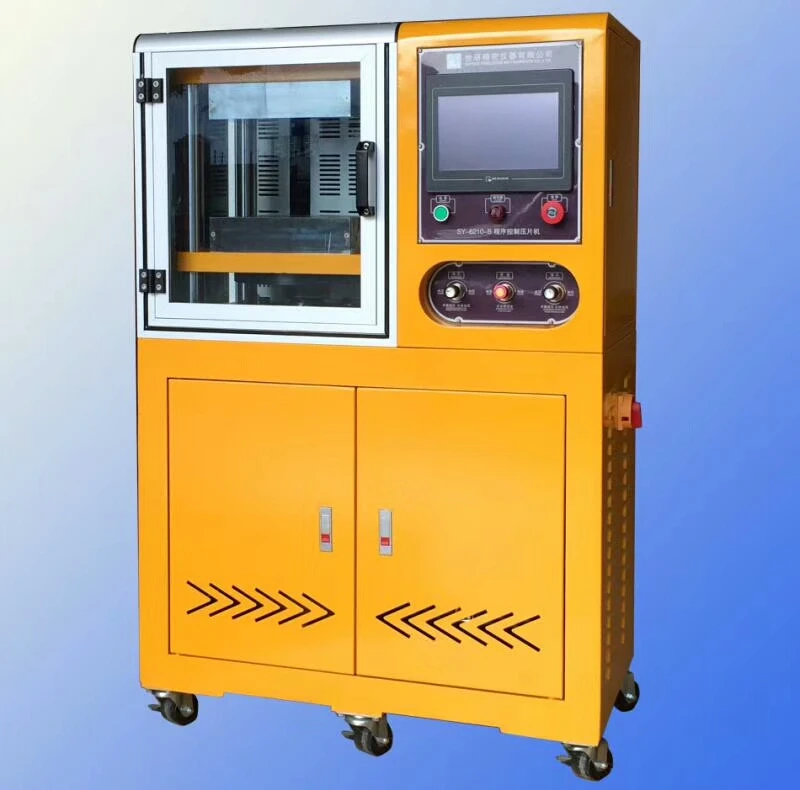

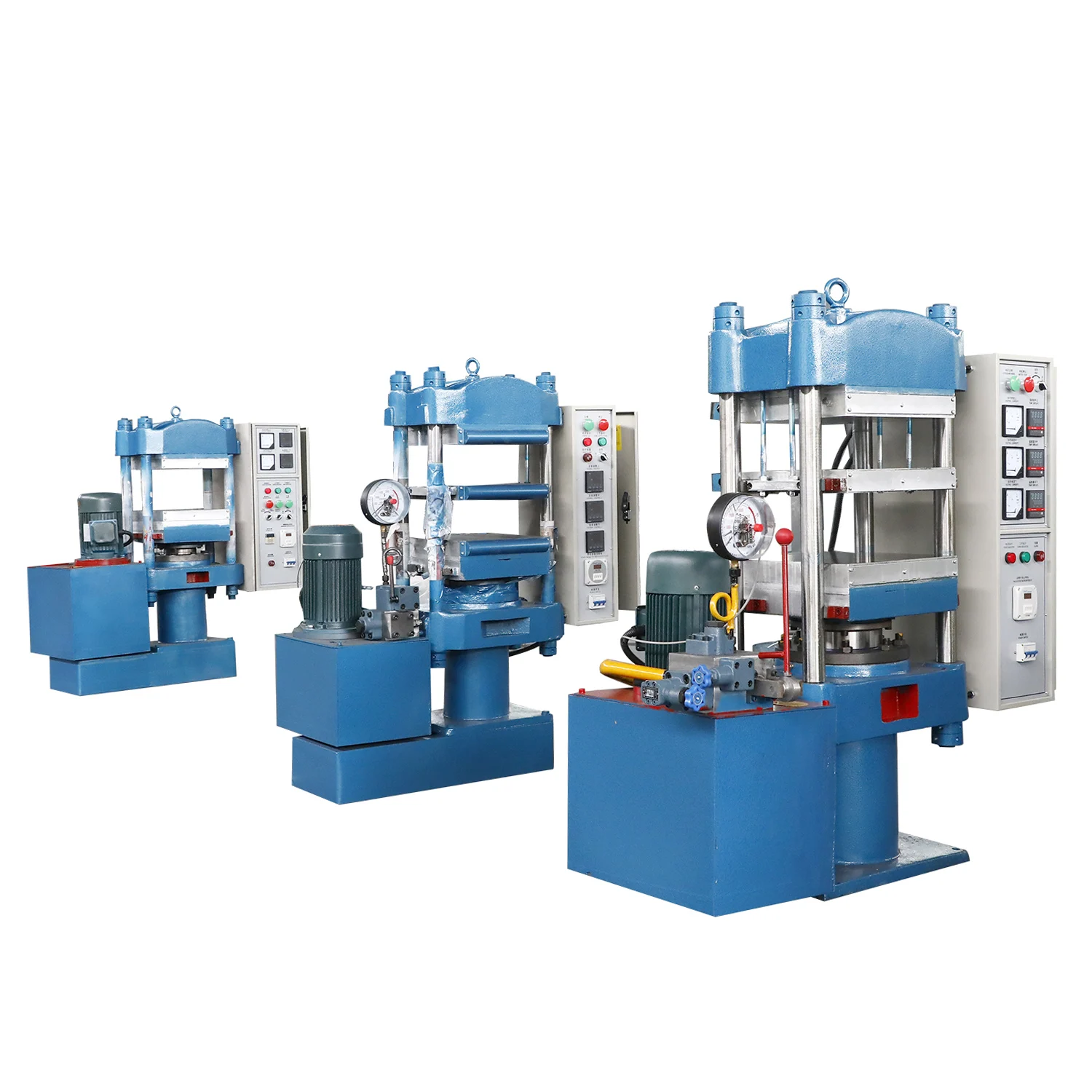

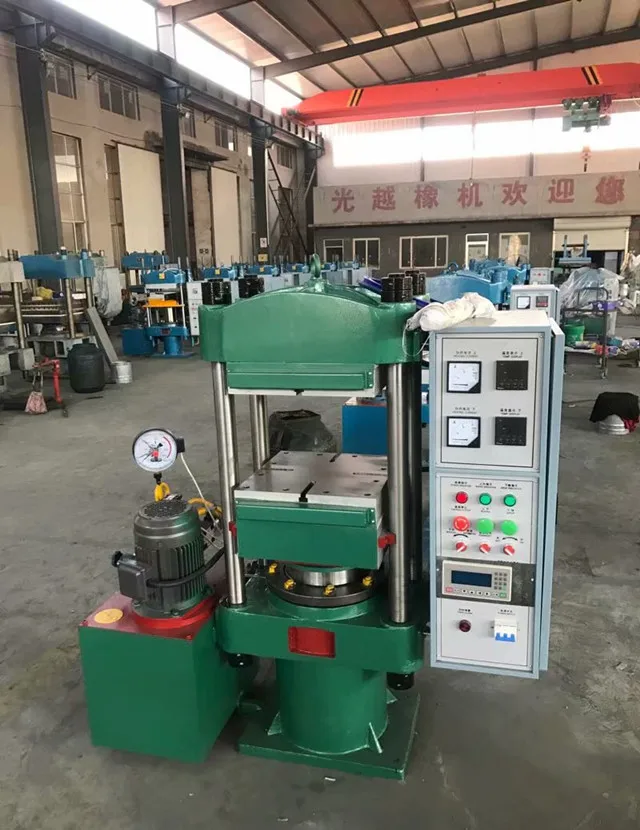

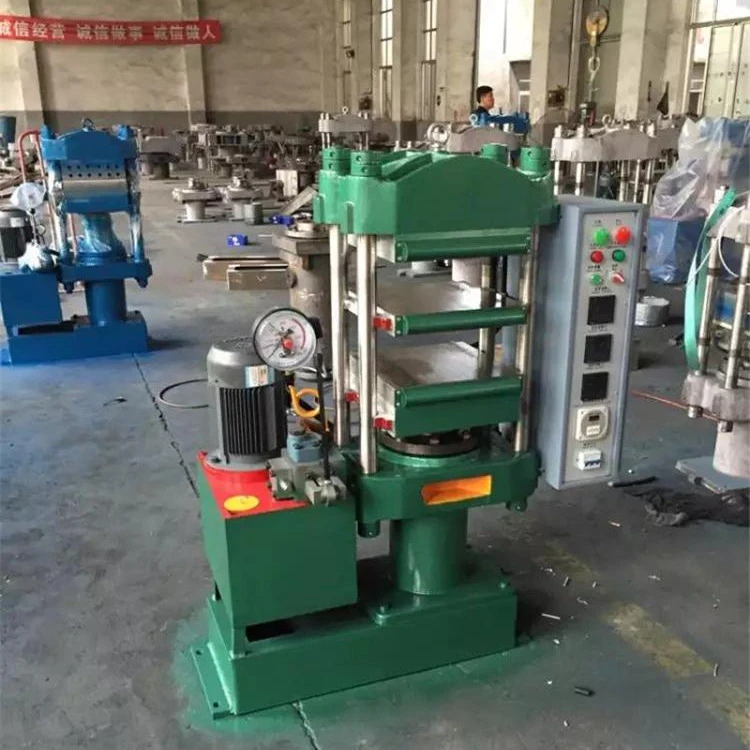

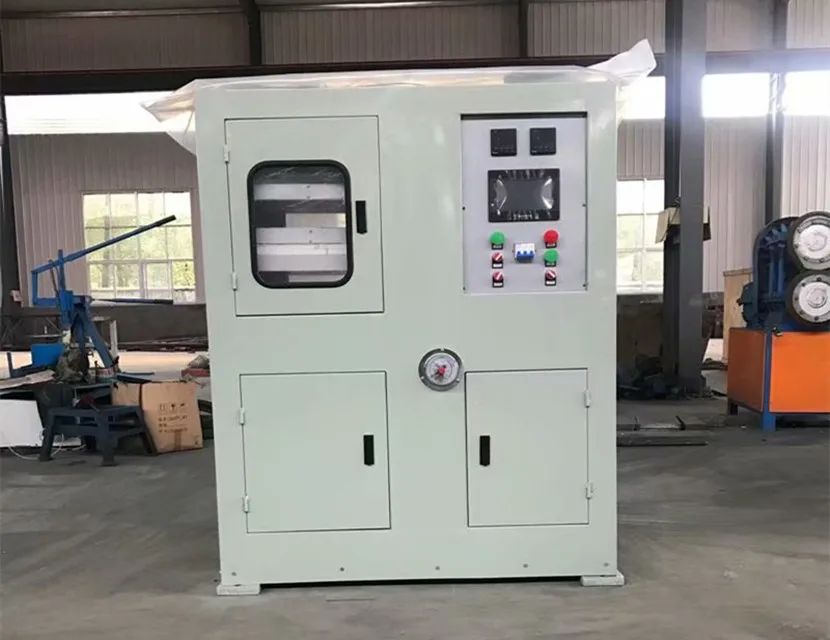

University Best Use PLC Control Lab Curing Press Rubber Vulcanizing Machine

Product Overview

Description

University Best Use PLC Control Lab Curing Press Rubber Vulcanizing Machine



1,Use:

This   Lab vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.



2, Structure of  Lab press

This rubber vulcanizing machinery including main machine, hydraulic station, electric controlling cabinet.



Main machine is composed by base, plunger piston, platform, beam, automatic mould pushing-out device and compulsory mould opening device.



Under the control of PLC, this machine achieves automatic mould closing, vulcanization timing, exhausting time and frequency setting, mould opening, mould pushing, and so on.





Construction	1)Four Pillar Type   2)window type   3)C-frame type
Control	1)Manual   2)Semi-automatic   3)Fully automatic PLC controlled with touch screen user interface.
Operation:-	1)Hydraulic Up-Stroke   2)Hydraulic Down-Stroke   3)Hydro-Pneumatic Operation   4)Vacume Molding Hydraulic Press
Heating:-	1)Electrical heaters   2)platens with thermic fluid heating suitability   3)platens with steam heating suitability.
Application:-	Our presses are used in variety of application in rubber molding article.   It includes automaotive components,   pharmaceutical products, butyl rubber stoppers, rubber traffic safety products, anti-vibration   mountings, bridge bearing with testing facility, rubber fenders.
Capacity:-	Tonnage-30 tonne to 10000 tonne   Cylinder ram diameter:-100mm to 600mm   Cylinder Strokes:-upto 1500mm   Platen size:- upto 6mtrs X 4mtrs





3, Specification of  Lab press

Model		XLB-D/Q 350X350X1(2)	XLB-D/Q 400X400X2	XLB-D/Q 500X500X2	XLB-D/Q 600X600X2	XLB-D/Q 750X850X2(4)
Nominal pressure(MN)		0.25	0.50	0.60/0.80	1.00	1.60
Plate size(mm)		350X350	400X400	500X500	600X600	750X850
Plate clearance(mm)		125	125	125	125	125
Working layer number		1(2)	2	2	2	2(4)
Plate unit pressure(Mpa)		1.56	3.1	3.2	2.8	2.5
Piston stroke(mm)		250	250	250	250	250(500)
Motor power(kw)		3.0	2.2	2.2	2.2	3.0
Overall dimension(mm)	L	1200	1400	1650	1410	1900
	W	400	550	600	680	950
	H	1300	1500	1600	1750	2000
Weight(kg)		800	1300	1500	3500	6500(75
