Carbon Black powder

Product Overview

Description

Carbon Black

Product Name:           Carbon Black

Molecular formula:    C

CAS No.:                      1333-86-4

EINECS No.:                 215-609-9





Product Description:

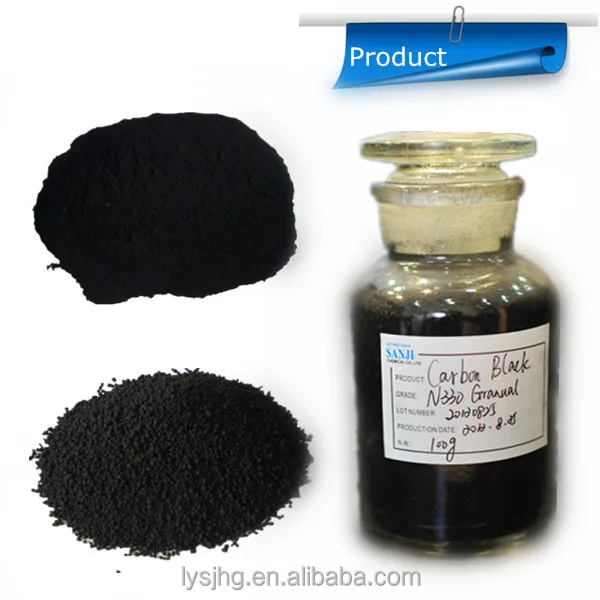

Carbon black [C.A.S. NO. 1333-86-4] is virtually pure elemental carbon in the form of colloidal particles that are produced by incomplete combustion or thermal decomposition of gaseous or liquid hydrocarbons under controlled conditions. Its physical appearance is that of a black, finely divided pellet or powder. Its use in tires, rubber and plastic products, printing inks and coatings is related to properties of specific surface area, particle size and structure, conductivity and color.



Specification:

No.	Name of Product Indicators Item	N220	N330	N550	N660
1	Iodine Absorption Value,g/kg	121±7	82±7	43±6	36±6
2	DBP Absorption Value,10-5m³/kg	114±7	102±7	121±7	90±7
3	DBP Absorption of Compressed sample,10-5m³/kg	90-106	80-96	77-93	66-82
4	CTAB Absorption Area,103m2/kg	102-120	73-91	35-49	29-43
5	Adsorptive Specific Surface Area of Nitrogen, 103m2/kg	106±9	75±9	39±9	34±9
6	Nitrogen Absorption Surface Area, 103m2/kg	112-126	71-85	34-46	29-41
7	Tint Intensity, %	108-124	96-112	--	--
8	Decrement After Heating,%≤	2.5	2.5	1.5	1.5
9	Ash, %≤	0.7	0.7	0.7	0.7
10	45µm Sieve Residue, %≤	0.100	0.100	0.100	0.100
11	150µm Sieve Residue, %≤	0.001	0.001	0.001	0.001
12	Impurities	--	--	--	--
13	300% Stretching Stress, Mpa≥	-2.3±1.6	-0.9±1.6	-0.9±1.6	-2.6±1.6



Application:

• Tires and Industrial Rubber Products: Carbon black is added to rubber as both a filler and as a strengthening or reinforcing agent.  For various types of tires, it is used in innerliners, carcasses, sidewalls and treads utilizing different types based on specific performance requirements. Carbon black is also used in many molded and extruded industrial rubber products, such as belts, hoses, gaskets, diaphragms, vibration isolation devices, bushings, air springs, chassis bumpers, and multiple types of pads, boots, wiper blades, fascia, conveyor wheels, and grommets.

• Plastics: Carbon blacks are now widely used for conductive packaging, films, fibers, moldings, pipes and semi-conductive cable compounds in products such as refuse sacks, industrial bags, photographic containers, agriculture mulch film, stretch wrap, and thermoplastic molding applications for automotive, electrical/electronics, household appliances and blow-molded containers.

• Electrostatic Discharge (ESD) Compounds: Carbon blacks are carefully designed to transform electrical characteristics from insulating to conductive in products such as electronics packaging, safety applications, and automotive parts.

• High Performance Coatings: Carbon blacks provide pigmentation, conductivity, and UV protection for a number of coating applications including automotive (primer basecoats and clearcoats), marine, aerospace, decorative, wood, and industrial coatings.

• Toners and Printing Inks: Carbon blacks enhance formulations and deliver broad flexibility in meeting specific color requirements.
