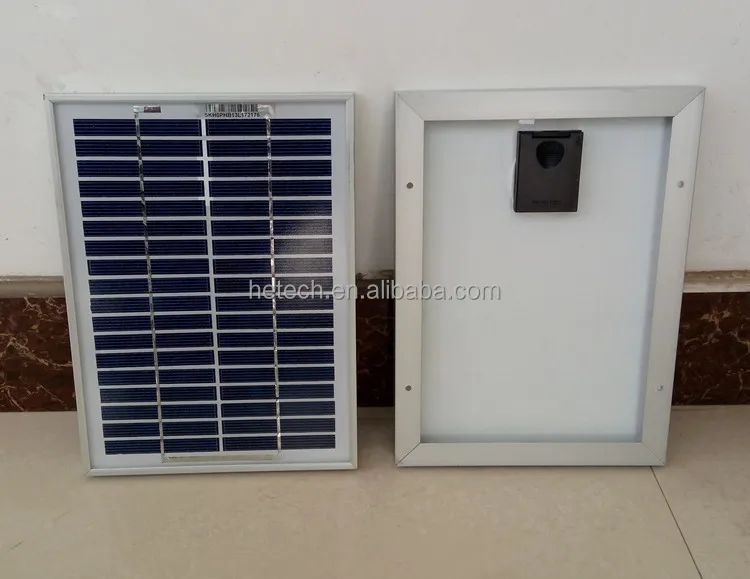

Sample free 5w solar panels for hong kong with good price

Product Overview

Description

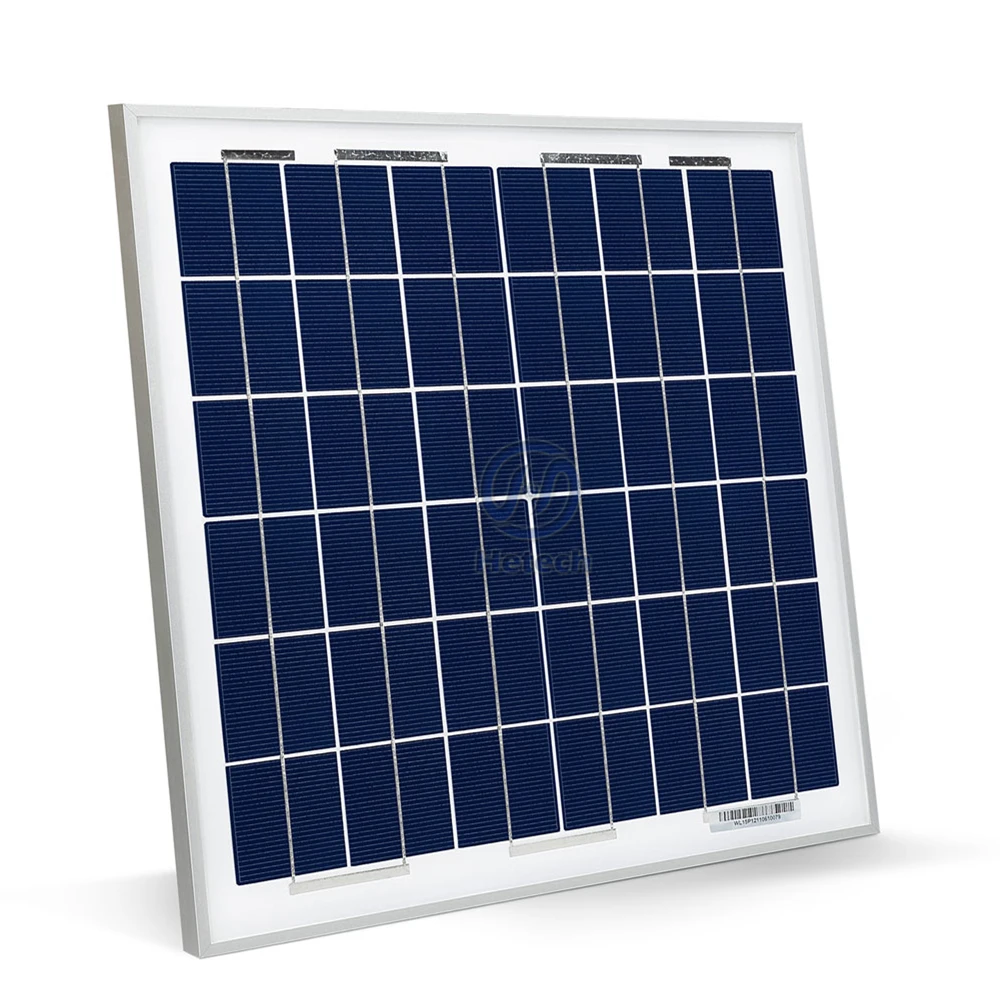

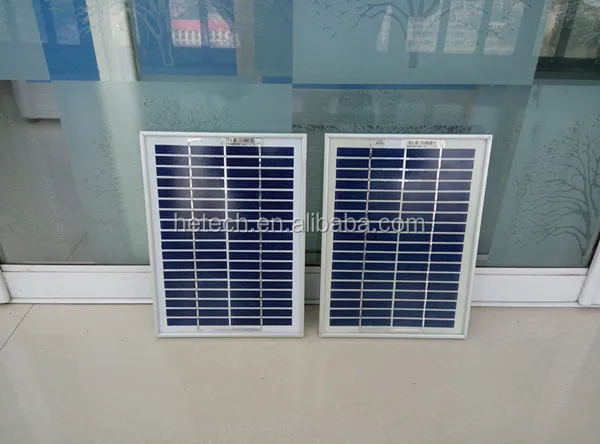

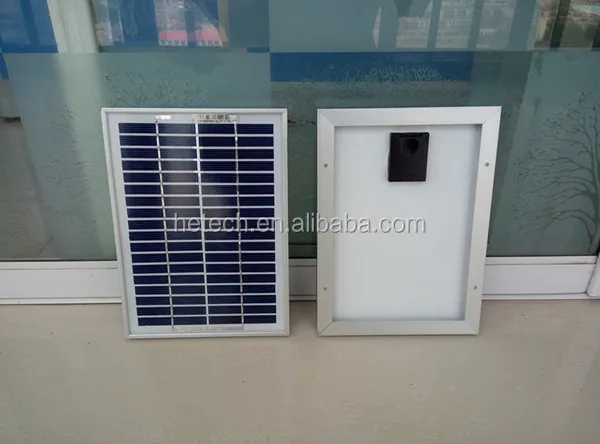

We can supply Sample free 5w solar panels for hong kong with good price



Brand	HTSOLAR
Modelnumber	HT-P5W-36P
characteristics
Size		260*190*17mm
Weight		0.62 Kg
Cell dimension		125*125mm
No. Of cells		36(2*18) pieces
Certificates		CE ISO
Electrical Performance
Maximum power voltage			18.0 V
Maximum power current			0.28 A
Open circuit voltage			21.6 V
Short circuit current			0.31 A
Peak power			5 W
Power tolerance			0~+3%
Maximum system Voltage (V)			600 V
Working Conditions & Parameters
NOCT cell			46±2 °C
Temperature coefficient Isc (%)			+0.04±0.015%/ °C
Temperature coefficient Voc (%)			-0.3±0.02%/ °C
Temperature coefficient Pm (%)			-0.45±0.05%/ °C
Temperature coefficient Im (%)			+0.04%/ °C
Temperature coefficient Vm (%)			-0.32±0.02%/ °C
Operating temperatures			-40°C ~+90 °C
Surface pressure			60m/s (200kg /m2)
Warranty:5 years product defect warranty.  25 years power output warranty: 90% in 10 years, 80% of 25 years.



Q: How about the performance of your solar panel?
A: We use A class solar cells which made in Taiwan, and good material. It's enough power and good performance.
Q: How about the conversion rate of the solar panel?
A: The poly solar panel is about 16.8%, the mono solar panel is about 17.6%.
Q: Can we customize the size of the solar panel?
A: Yes, we accept customized order, but the quantity needs to reach at least 100 pieces.
Q: What kind of certificate of the solar panel you have?
A: We have CE, SGS, ROHS, SONCAP, etc.

Q: What is MOQ of the solar panel?
A: The MOQ of the solar panel is 1 piece for sample.
Q: What is the warranty for the solar panel?
A: For the all in one solar panel, we offer 5 years warranty for free.
Q: What is the terms of payment?
A: T/T, L/C,western union, paypal, trade assurance or cash; 30% for deposit, the balance 70% before shipment.
Q: What is the delivery time?
A: 3 work day with stock after receiving the payment. No stock, 20 work days after receiving the payment.
