Supercritical Fluid CO2 Machine for Oil Extraction
- Category: >>>
- Supplier: Shanghai Better Industry Co. Ltd.
Share on (60222300431):
Product Overview
Description
Supercritical Fluid CO2 Machine for Oil Extraction
Product Description
Introduction of Supercritical Fluid CO2 Machine for Oil Extraction
This system is multi-function equipment, the working mode is intermittent or continuous way to extract solvent from solid or liquid material, the additive can be add to the supercritical fluid;
The system has one extractor and two separators
The highest working pressure of solid extractor is 50Mpa, the highest working temperature is 85°C;
The design of pressure vessels according the related national standard and rule demand and with over pressure protection system which means enough safety valve;
The whole equipment beauty, safety and easy operation, pressure temperature flow number can be showed from pressure meter and digital instrument. The material of pipe parts, valves, pipe lines, are all stainless steel(0Cr18Ni9Ti).
Main technical parameters of Supercritical Fluid CO2 Machine for Oil Extraction
| Type | Power(KW) | Design Pressure(Mpa) | Design Temperature(°c) | Floor Area(m²) | Height(m) |
| 0.5L | 5 | 50 | Home temperature ˜ 85°c | 1.5 | 1.8 |
| 1L | 8 | 2 | 1.8 | ||
| 5L | 16 | 4 | 1.8 | ||
| 10L | 25 | 8 | 2 | ||
| 20L | 40 | 40 | 10 | 4 | |
| 24L | 40 | 10 | 4 | ||
| 24L*2 | 45 | 12 | 4 | ||
| 25L*4 | 60 | 15 | 4 | ||
| Description | 1.All the types have two separators; | ||||
| Type | Design Pressure(Mpa) | Design Temperature(°c) | Design Flow(L/H) | Floor Area(m²) | Height(m) |
| 50L*3 | 35-55 | 60-90 | 600 | ≤80 | ≤6 |
| 100L*3 | 1000 | ≤130 | ≤7 | ||
| 200L*3 | 1500 | ≤200 | ≤9 | ||
| 300L*3 | 2500 | ≤250 | ≤9 | ||
| Description | All the types are 3 extract and 2 separate system, don’t contain countercurrent extraction and extraction tower, All purchased part are famous brands home and abroad, pressure vessels contacting with CO2 is packing up structure, the material of inner is 304 stainless steel, PLC auto and manual double control system, with tail-gas recover system and electro-heating system. | ||||
| More than 400L*3 can be customized | |||||

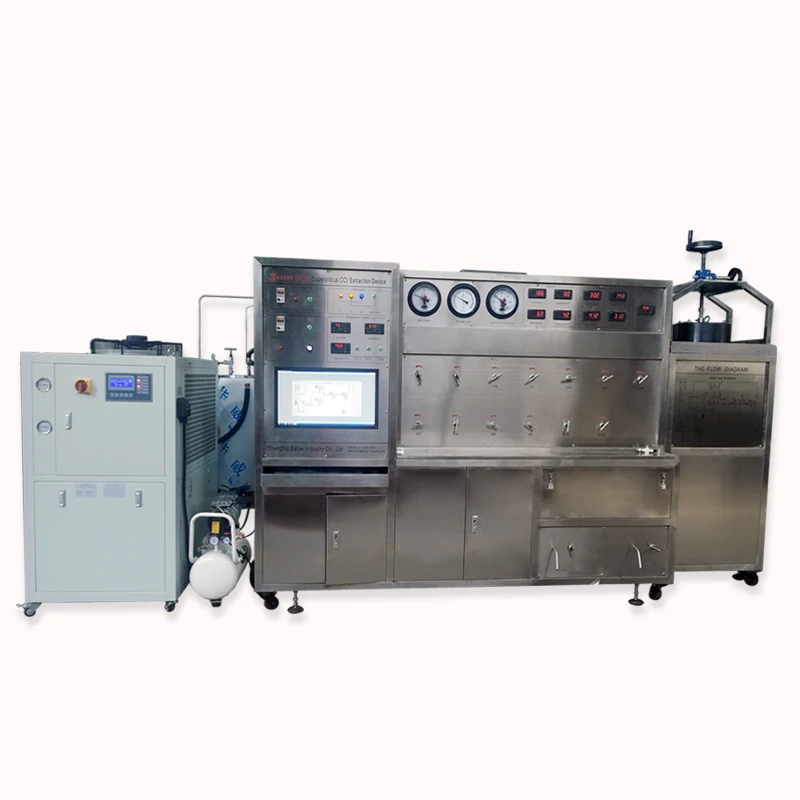

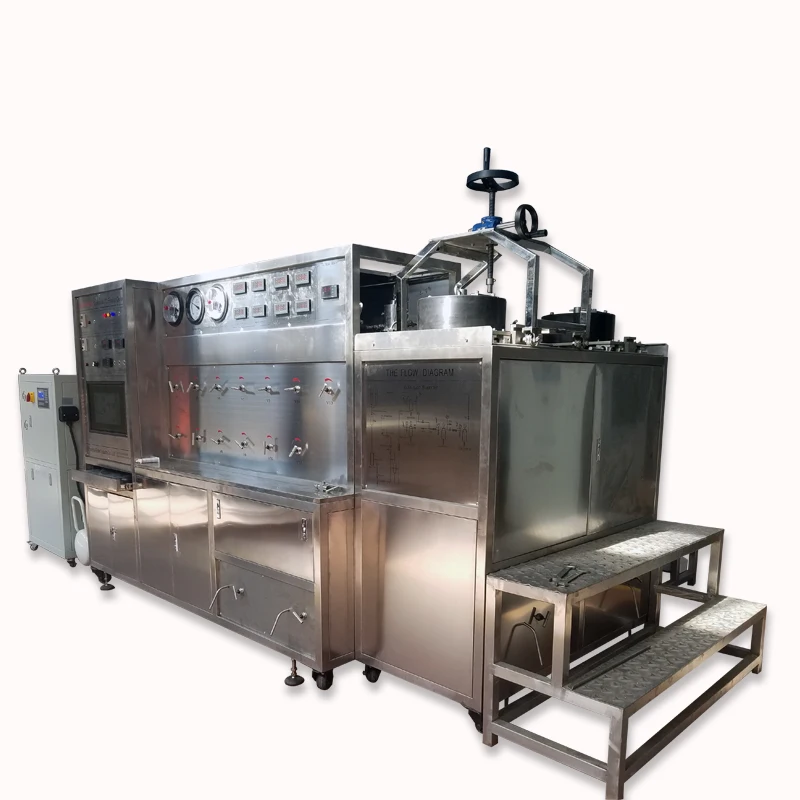

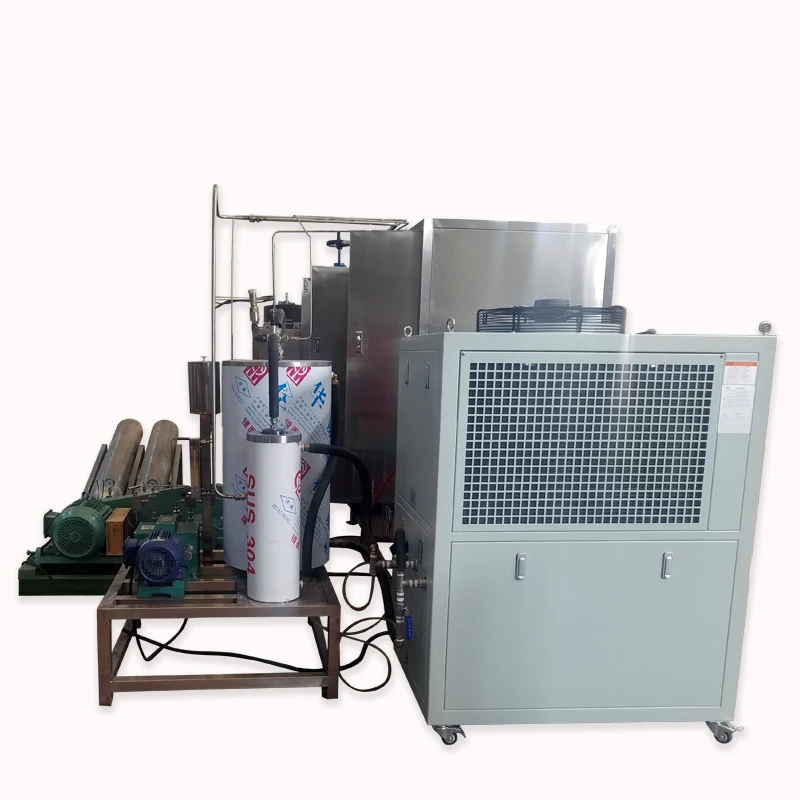

Product Picture
Application
Application Scope | Description |
Agriculture Food | Extraction of pesticides and soil contaminants. Separation of fats and contaminants, flavors. |
Pharmaceutical | Extraction of active components, preparation of natural products, vitamins. |
Cosmetic | Extraction of fragrances and oils. |
Laundry | Dry cleaning of garments. |
Mechanical | Degreasing of parts, precision cleaning of high-value components. |
Packaging & Shipping
Company Information
Why Choose BETTER?
1.We are Alibaba Assessed 8 years Gold Supplier.
2.We are a factory manufacturing citronella oil distillation plant , best production capability, best quality control, best Service.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. CE listed,competitve price.
Certifications
FAQ
1.What does BETTER need from me to quote a price?
a).Raw material
b).Production capacity per batch,we supply 0.5L~200L machine for you,big capacity of machine can be customized according to your request for your request.
2.What material can you process with this machine?
Our CO2 extract machine is widely used in extracting hemp oil, wheat embryo oil,fish oil,tobacco essential oil,Arteannuin,Sundrops oil,Gingerol,Pepper haematochrome,Hops extract etc.
3.What is the machine material you use?
Stainless steel.
4.What is the highest pressure does your machine can suffer?
50Mpa.Our standard design is 40Mpa.
5.Does the CO2 can be reused?
YES. CO2 can be used in circulation.
6.Does you machine can work under the conditions of supercritical and subcritical?
No,it can only work at supercritical state.
7.Can we do extraction test before purchasing?
Of course,we can do extraction test with your raw material and send you videos and pictures
for your reference.
8.Do you have machine in stock?
No,every machine is customized according to your order.
9.How long does it take to produce the machine once I place my order ?
The Supercritical CO2 extract machine’ process flow is complex.Generally it takes about 60 workdays to Produce.We are responsible for the quality of machine our customers.Every procedure and details has to be inspected strictly.
10.How will my order be packed, can you provide the installation service?
Plywood case. And we will assemble and test the machine before packing.
Installation:We will send English manual after your purchase. If customer need, we will send one engineer for assembling and training for workers.
