Laboratory Rolling Mill, Mini Lab Powder Mixer, Lab Rotator Grinding Machine

Product Overview

Description



Laboratory Rolling Mill, Mini Lab Powder Mixer, Lab Rotator Grinding Machine



>> Product Introduction <<



YLK Roll ball mill, a type of grinder machine, is a cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw materials and paints, etc. It is widely applied to industries of electronic material, mineral material, ceramics, magnetic material, building material, biological medicine, cement, metal powder, non–metallic minerals, etc. The machine consisits of mechanical transmission mechanism, PLC control and grinding jar three main parts, with characteristics of beautiful design, compact structure, easy operation, high efficiency, and uniform granularity, etc.





>> Application Area <<



Applied Industry	Mill Substance
Laboratory	Soil, metal, rigid specimens, powder material, etc
Medical	Medicine, drug, pharmaceutical, pills, etc
Mineral	Ore, stone, mine, litharge, alumina, coal, chromium, chrome, etc
Construction	Stone, glass, cement, concrete, sand, slag, etc
Ceramic	Pottery, porcelain, clay, chinaware, ceramic glaze, etc
Paint	Ink, color, coating, pigment, spices, etc
Food	Grain, sugar, pepper, slice, chocolate, malt, plant material, etc
Geology	Powder metallurgy, corrosion materials, catalysts, chemical, etc
Others	Comestic, herb, clinker, pearl, linestone, environmental, etc

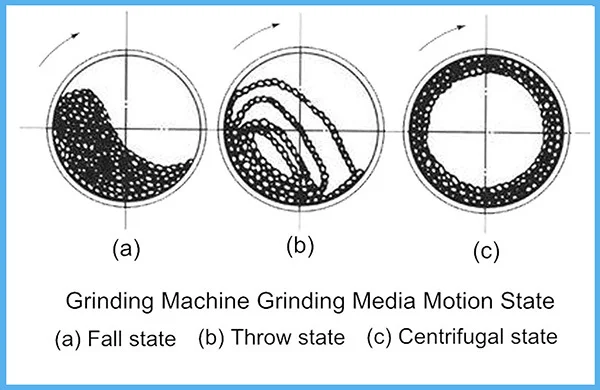

>> Working Principle <<



Grinding media and grinding material will rotate with barrel to a certain height, when roll mill works, then grinding material and grinding media will drop along with parabola, material will be grinded under the friction and cutting of grinding media.

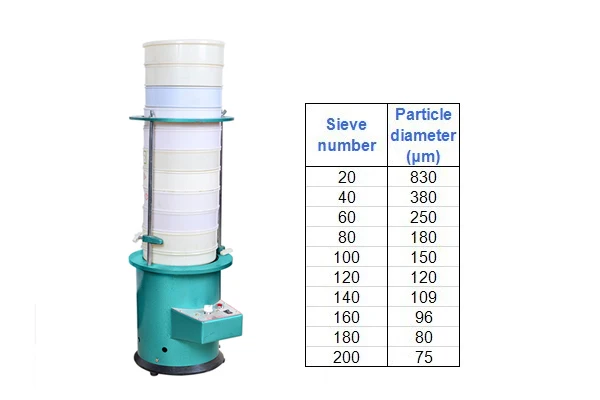

>> About sieve/screening <<



Every YLK Ball Mill Machine is equipped with a round frame sieve. While grinded powder passing through the
sieve, the particle can be classified into different sizes. The screen has 10 types, including 20/40/60/80/100/
120/140/160/180/200 sieve number. You can get different size powder by choosing the appropriate screen.
Matches between sieve & particle is as followed:

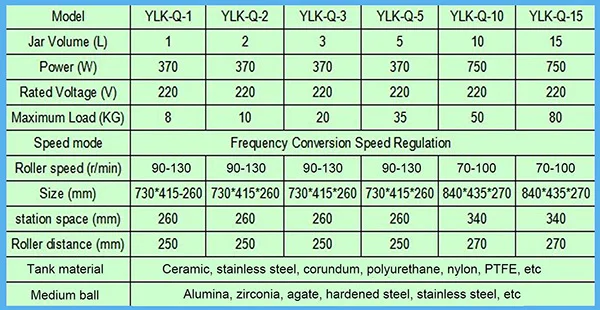

>> Standard Specifications for Model YKQ 1-15L <<





Remark: \u0081(1) Single tank, feeding grain size: ≤10MM diameter, output grain size: ≤1μm minimum diameter.

(2) Loading rate of ball mill can not exceed 70% of the effective volume of grinding cylinder.





>> 1-15L Roller Mill Grinder Machine  Accessory - Mill Pot and Mill Balls <<

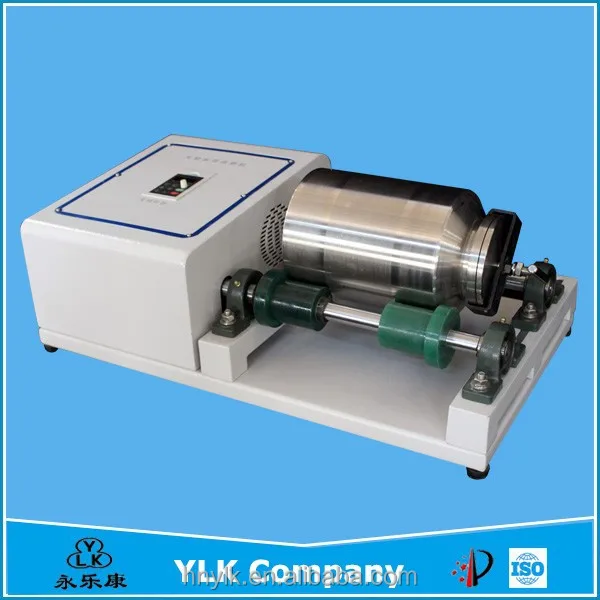

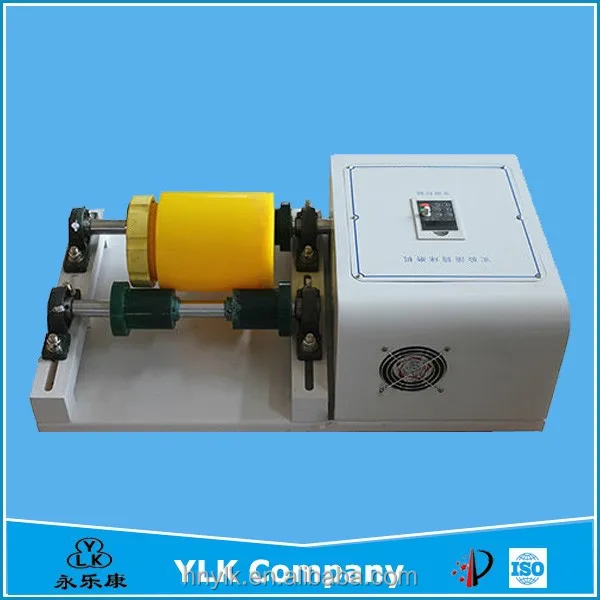

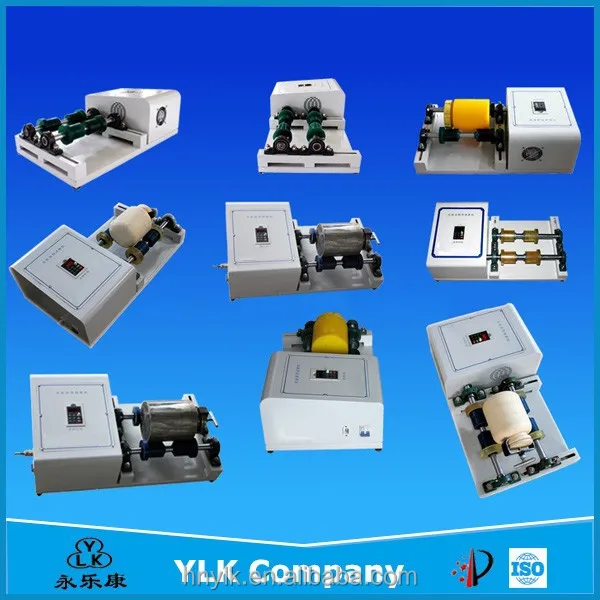

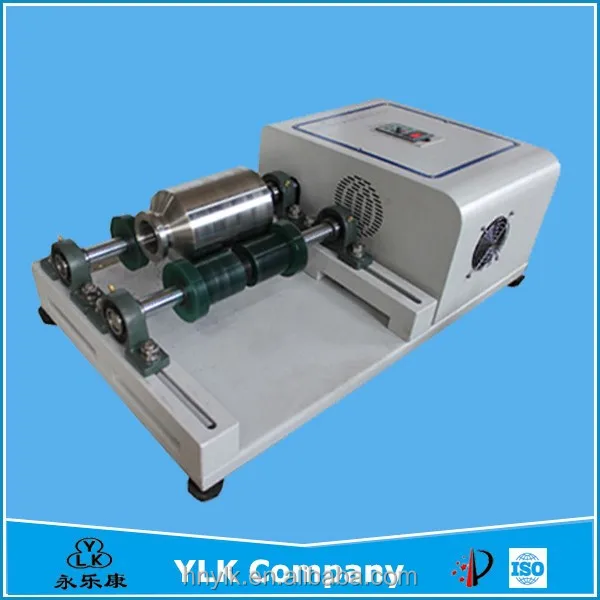

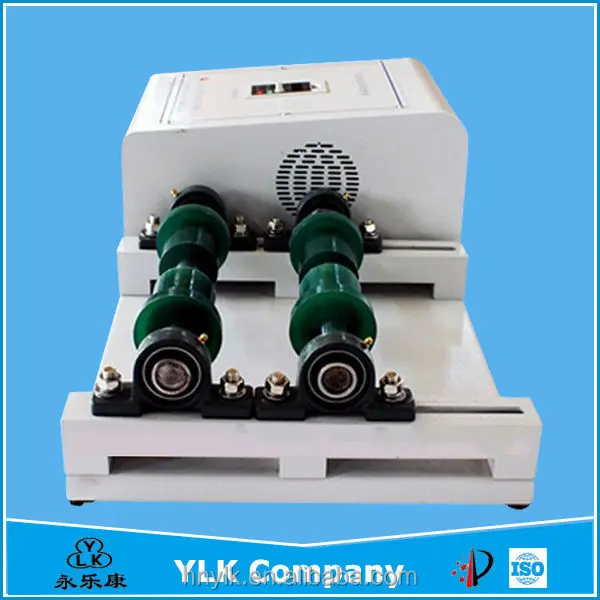

>> Detail Images <<





>> The Advantages of YLK <<



1. With 8 years self research & manufacture experience;
2. National innovation fund supported;
3. Lab pretreatment machines stipulated by Chinese standard HJ637-2012, HJ/T300 2007, American EPA 1311.
4. Reasonable price for customer.
5. Warm service.





>> Profile of YLK <<



YLK is founded in 2006, specialized in researching & manufacturing varies laboratory pretreatment equipment.As one of Chinese National Innovation Fund Support Enterprise, we insist on selfinnovation and have

successfully broken up the foreign companies monopoly in China by inventing varies laboratory equipment,

such as automatic rotationagitator, zero head space extractor and automatic digestion equipment. During 10

years developing, we have successfully met varies requirements from customers and owned great reputation

from Chinese Academy of Sciences, Tsinghua University, Guangdong Environmental Monitoring Center,

Centre Testing International, Zijin Mining Group Company Limited, etc.



The members of YLK researching & technical support team are all with bachelor above degree & 5 years

above working experience. And all the products are with independent intellectual property, including 2 patents and 45 utility models.





1.  We have strict production testing procedures, high quality guaranteed.

2.  According to customer requirements , can be customized production.

3.  Nearly three months we have experience to export UK, Germany, Africa and other countries.

4.  Welcome to visit our factory in your free time.
