HD model low headroom crane single girder europe standard overhead crane

Product Overview

Description

HD model low headroom crane single girder europe standard overhead crane:





1. The frame of crane beam is square box frame, it is made by Q235B steel plate, it has smaller body to get more lifting space, the crane's traveling speed is 2~20m/min or 3~30m/min, it is controled by frequency inverter, the working condition is very well.



2. The lifting unit is wire rope electric hoist, it is low headroom frame electric hoist, it takes smaller space on vertical direction; the lifting motion is driven by double speed motor, the lifting speed is 5/0.8m/min(4/0.66m/min), and traveling motion is driven by single speed motor and matching with frequency inverter. the traveling speed is 2~20m/min or 3~30m/min.



3. This low headroom overhead crane(bridge crane) has several safe protection functions, such as up/down limit switch, overload protection, low-voltage protection and long travelling limit switch, and the cross and long travelling motors have soft start function, the crane is very easy to use.



4. This overhead crane is medium duty class overhead crane, the capacity from 1ton to 20tons. The span from 7.5m to 31.5m, the working grade is A5, it is suitable for frequently working. Working temperature within -25 to +42 centigrade.

5. This overhead crane(bridge crane) is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.



6. The control model are pend handle control or wireless remote control or two control model together.







If you want to order single girder overhead crane, Pls tell me the details as follows:



1. The Max. lifting capacity? (Ton)
2. The span of crane?(m)
3. The Max. lifting height? (m)
4. What type meterial will you to lift?
5. The power source standard?(380V, 50Hz, 3phase or others).

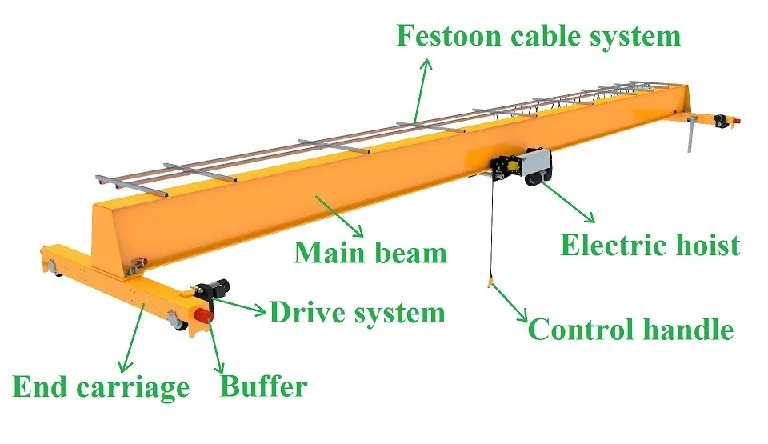

The frame of europe style single beam overhead crane:

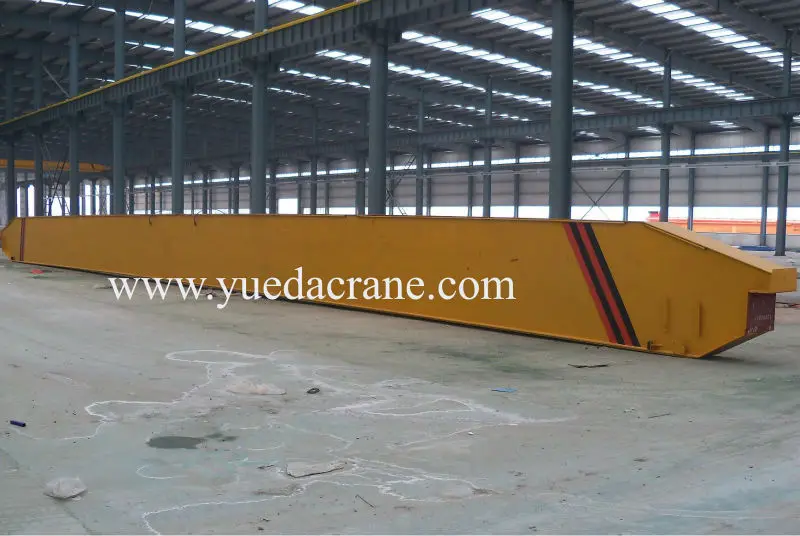

The frame of crane beam, it is square box frame body, it is made by Q235b steel plate:

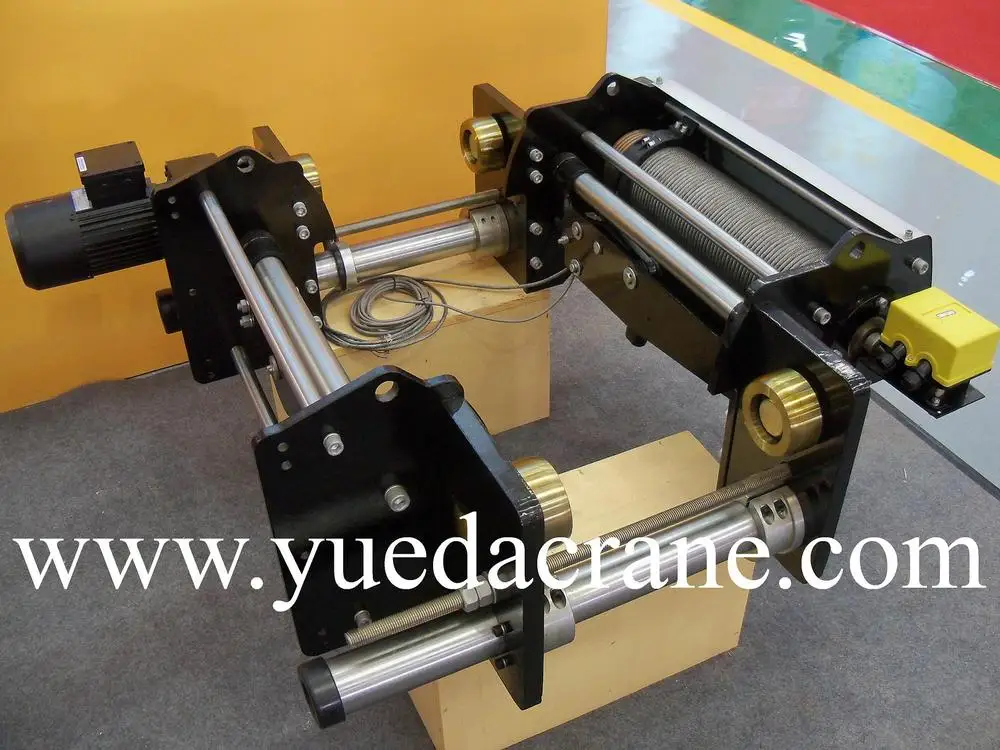

The frame of lifting unit(low headroom electric hoist), the lifting motor is ABM brand, the traveling motor is SEW brand:

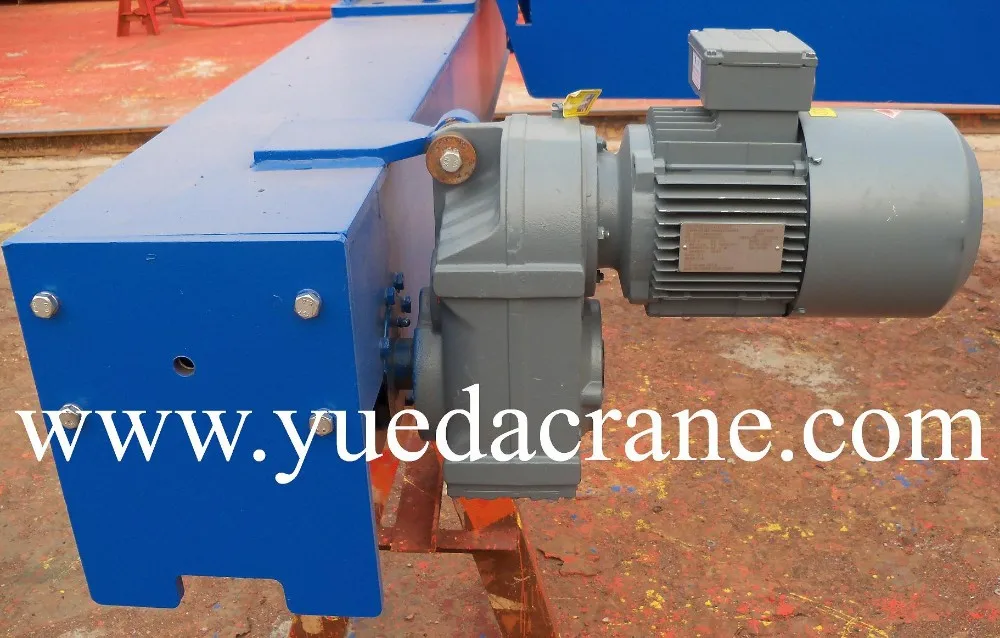

The frame of end carriage, the motors are SEW brand and driven by frequency inverter:

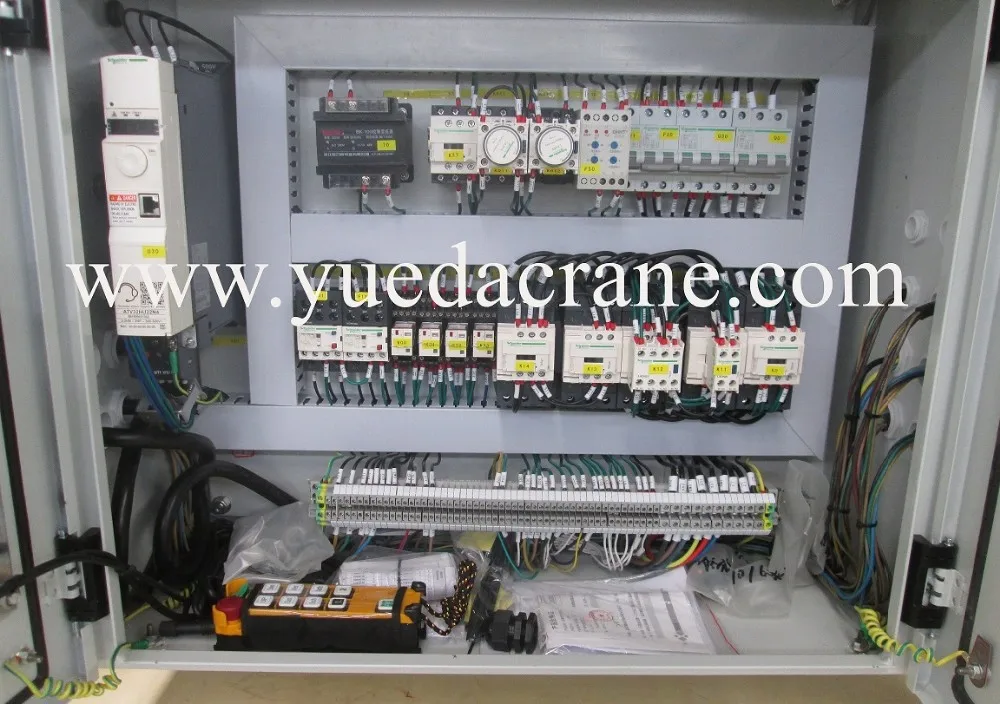

The picture of electrical control box, the electrical contactors are Schneider brand:
