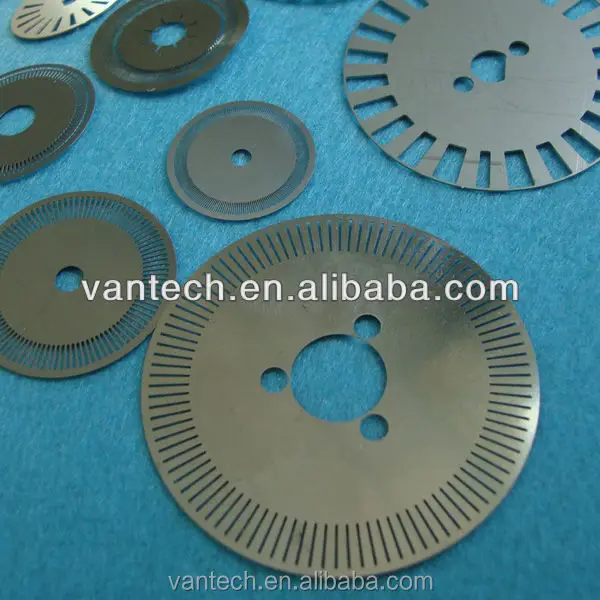

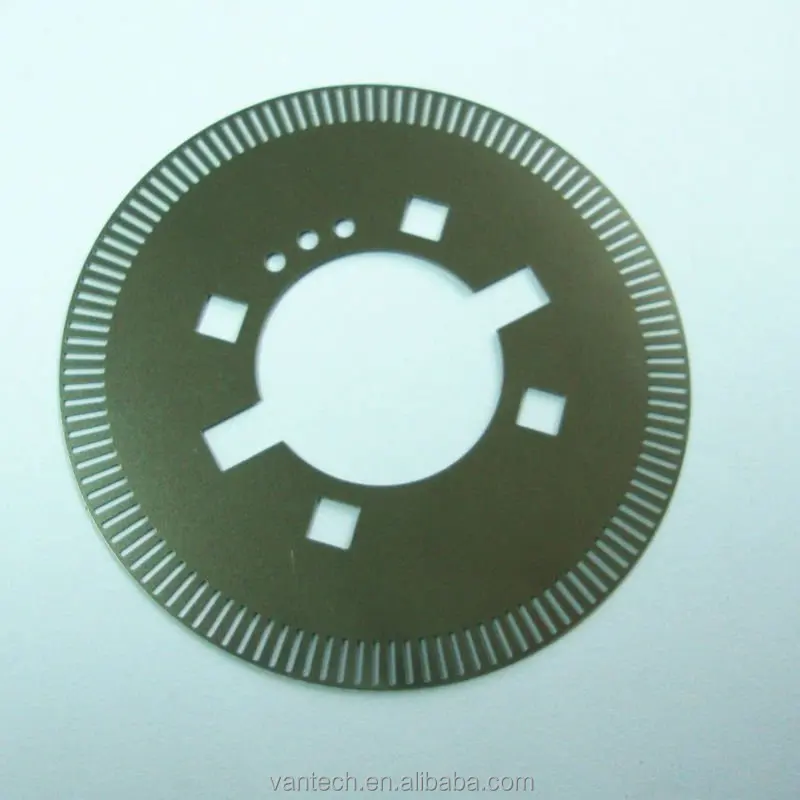

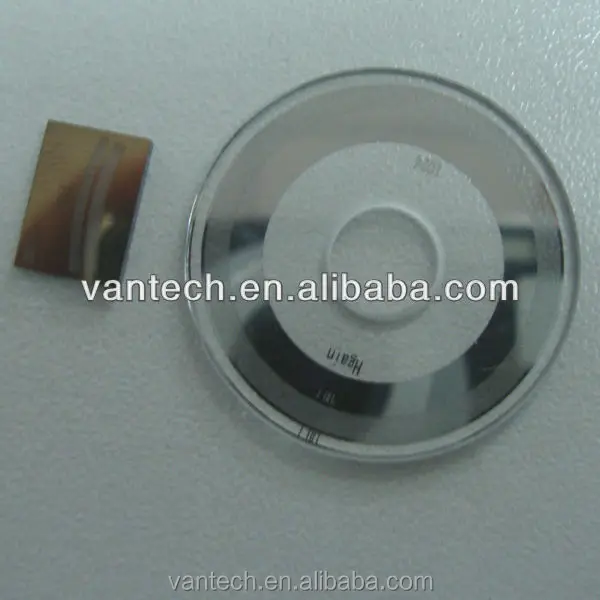

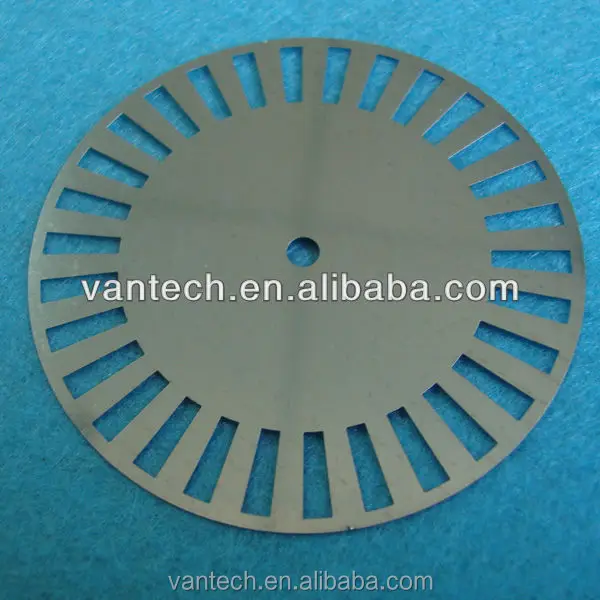

absolute multiturn rotary encoder disk

Product Overview

Description

absolute multiturn rotary encoder disk(20150422007)

1) Advantages



1, Certification: ROHS & ISO9001 & SGS.

2, Feature: small, compact configuration, durable and easy to install, Etc.

3, Application: subminiature motor, small instrument, etc., for automation control



2)Advantages:



1.different design, material, color for your choice
2.no burr or connected etching spots
3.high quality and reasonable price



3.Specifications:







Item	metal linear encoder
Material	Stainless steel, copper, silicon steel plate, aluminum, nickel, magnetic material and so on.
Product thickness	0.03mm—1.5mm
Product size	1*1mm—300*500mm
Smallest open hole	Ø0.1mm
Smallest line width	+/-0.025mm
Product precision	+/-0.01, It’s generally 20% of material thickness.









We professionally manufacture metal encoding disc of different specifications and materials including brass or copper, stainless steel, nickle, or other magnetic materials. The products will be no residue or burr. If you are interested, welcome to send us drawings in PDF or CAD.





We professionally manufacture all kinds of metal components by etching process



Product thickness can be achieved between 0.03mm to 1.5mm.



Product size can be achieved between 1mm* 1mm to 600mm* 780mm.



Smallest open hole is Ø 0.1mm.



Smallest line width is 0.025mm.



Product precision is ± 0.01mm (common difference). It’s generally 20% of material thickness.



We also provide imported stainless steel thin belts with many kinds of models such as 301,304,430.

Just freely to contact us if any interest.
