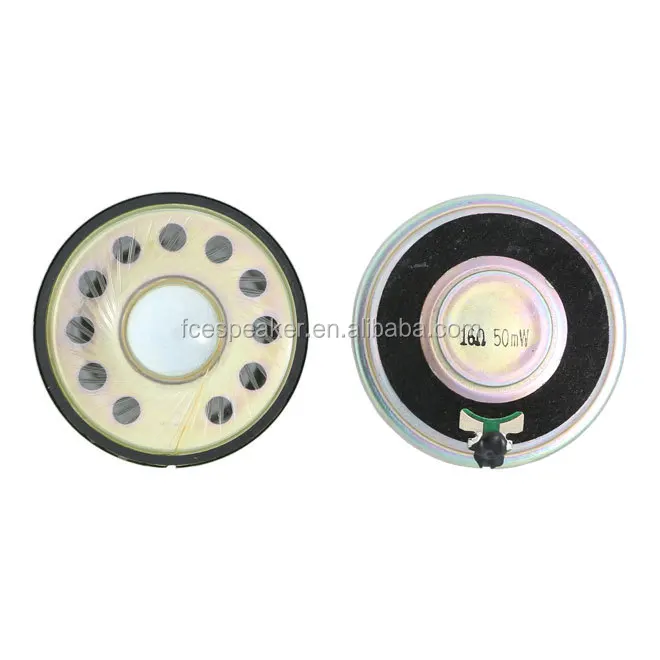

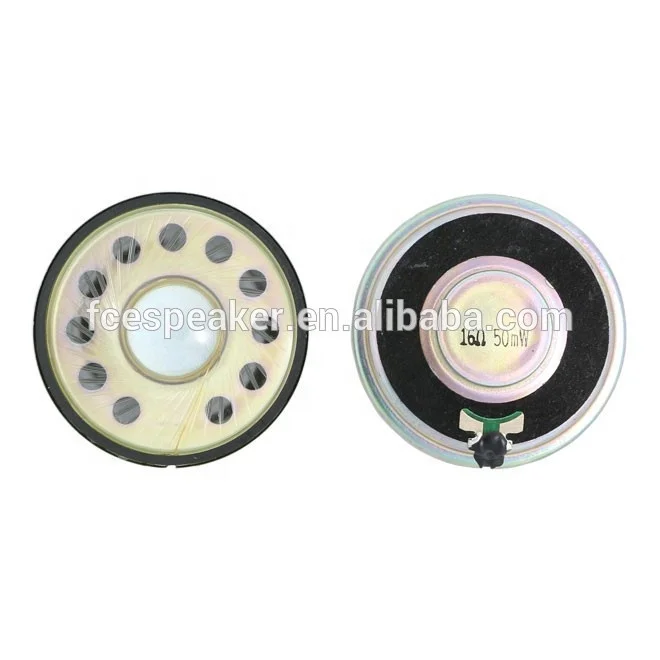

57mm 16 ohm 0.05w small round raw speaker for headphone

Share on (60223102726):


Price:

Quantity:


Product Overview

Description







Product Description


- Raw speaker / Small round speaker

- Metal basket with clear mylar cone

- Waterproof

- ROHS compliant



 1 Model  F57M45C(GP)

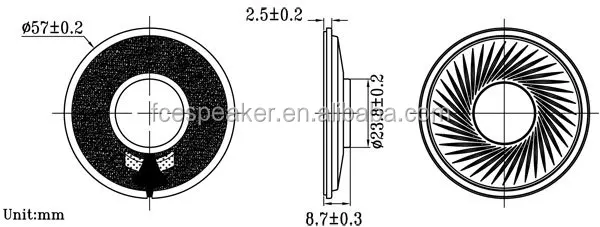

 2 Dimension Outer Diameter 57mm,thickness 8.7mm
 3 Nominal Impedance 16ohm
 4 Power Rating 0.05W~0.1W
 5 Lowest Resonant Frequency 200 ± 40 Hz
 6 Output Sound Pressure Level 89 ± 3 dB/1mW 1cM
 7 Frequency Range 80~20K Hz
Typical Application

 - Music and singal output in machines and other equipment both indoors and outdoors



Detail Display
