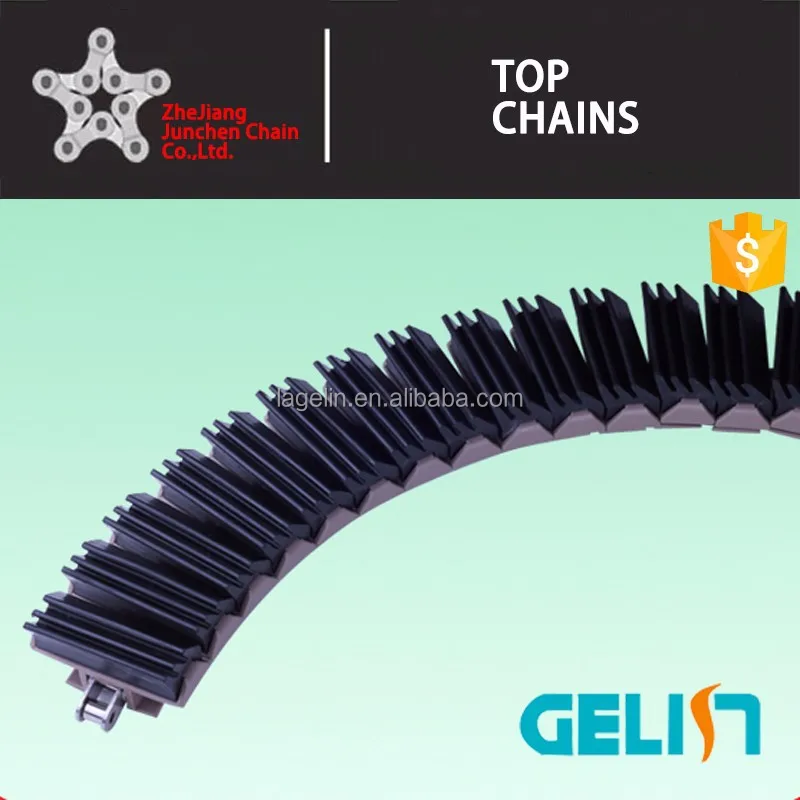

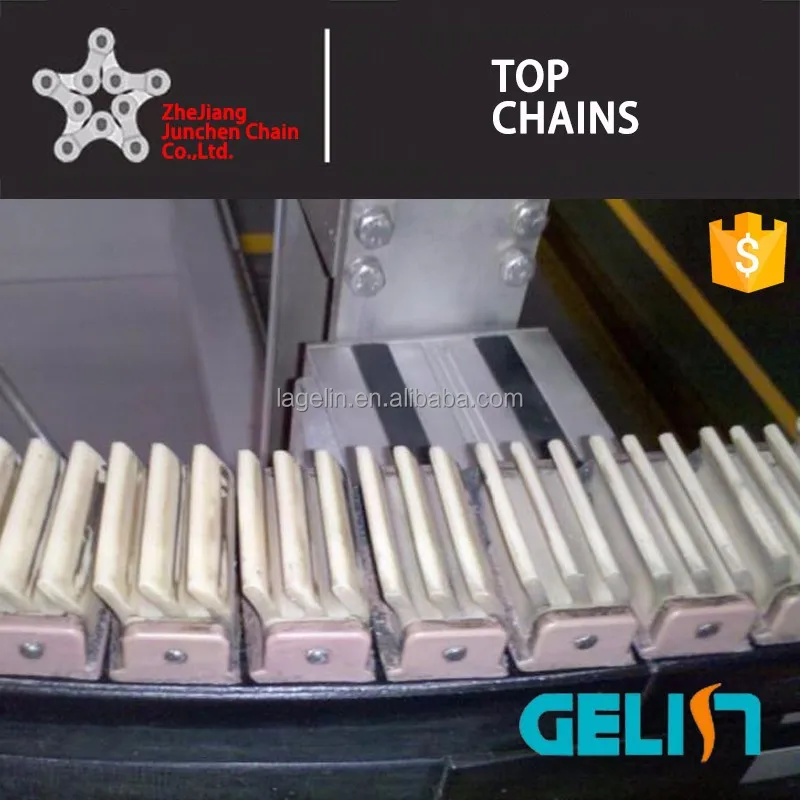

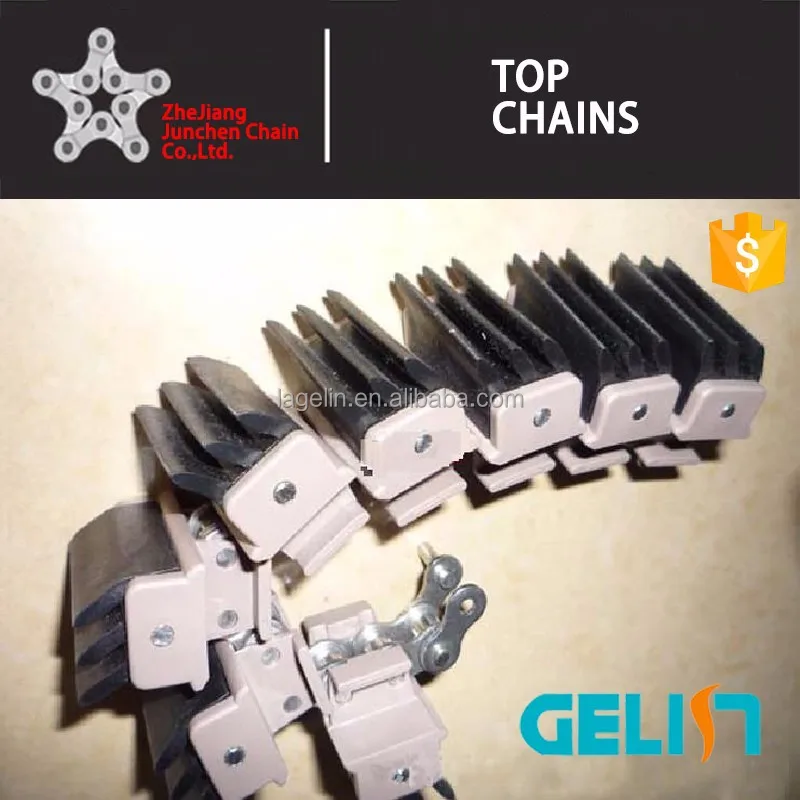

G4 Vertical Lifting Clamp Conveyor chains for Bottles /snap-on side flexing chain/gripper conveyor chain
Temperature range: -40°~90° Plates material: POM
Color: brown Roller base chain: standard 12A roller chain
Supply unit:1.524mtr (5ft) Max speed: 80m/min lubrication 50m/min dry
Working load: 3200N (mat.: CS), 1600N (mat.: SS) Packaging:1.524m/pc
Base roller chain material: stainless steel or carbon steel
Max conveying length: 30m (mat.: CS), 24m (mat.: SS)

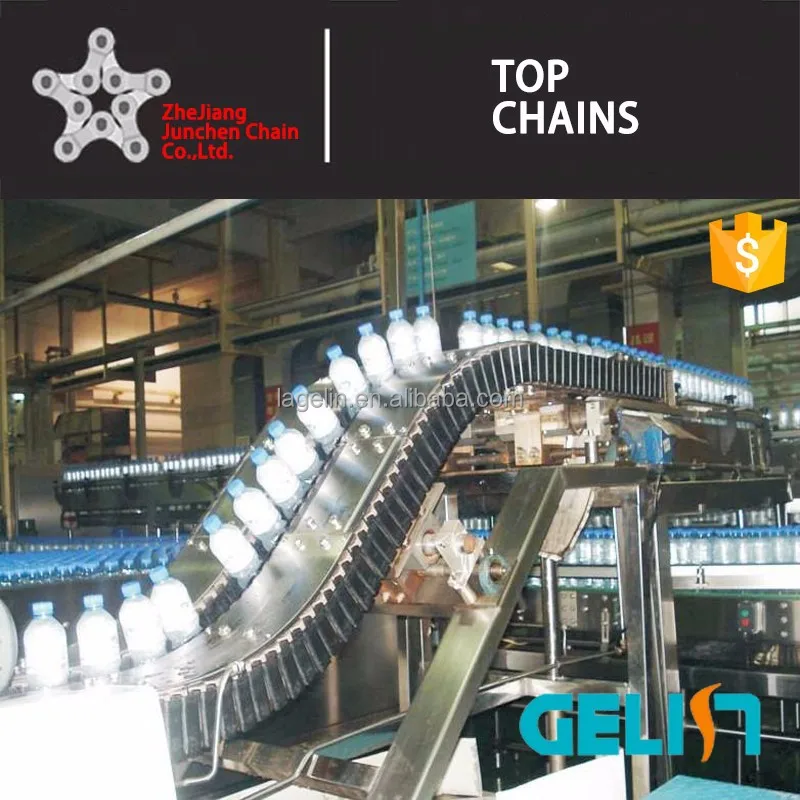

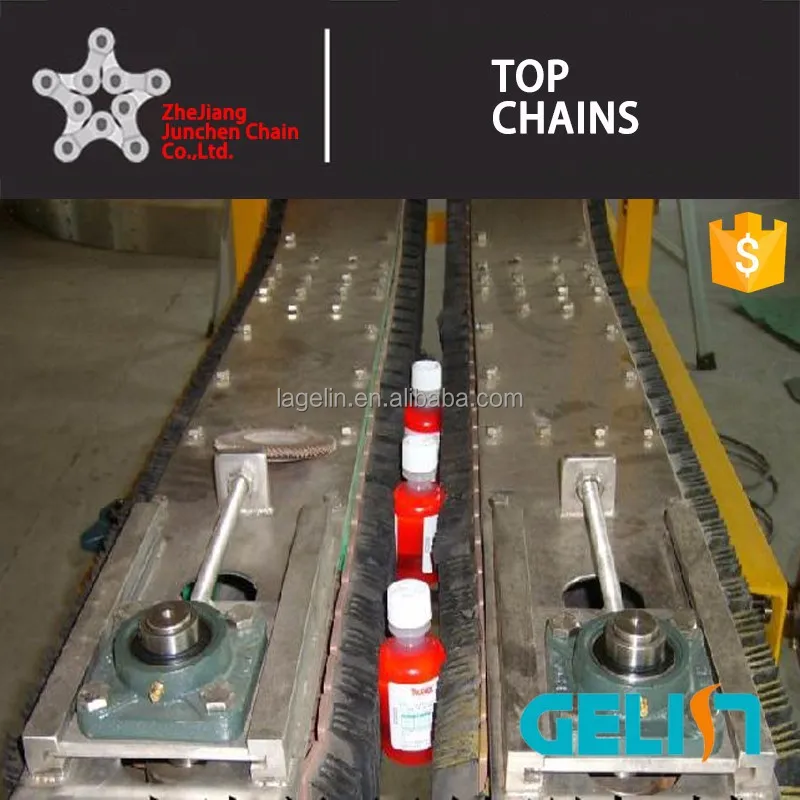

Main application : for vertical conveying of cans, glass bottles, etc..

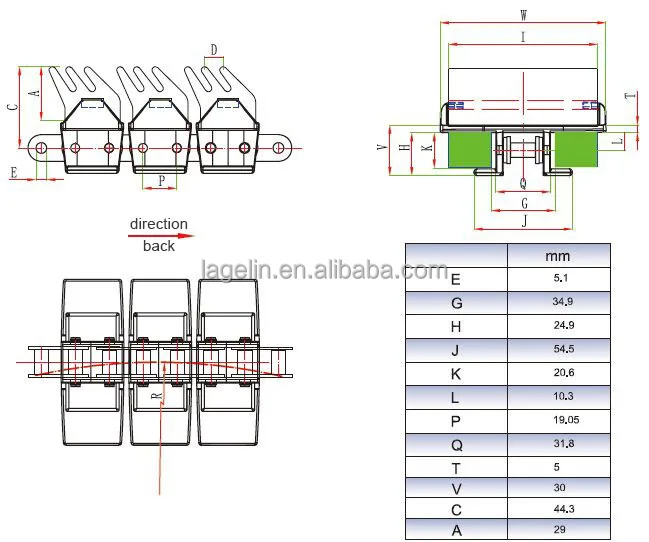

Code
WW Plates width
Rubber width
Weight
Backfle×R
Min. Radius
c
ss
mm
mm
Kg/m
mm
mm
1873-G4-K375
1873SS-G4-K375
93.2
84
4.475
150
356
Packaging & Shipping
Packaging:
• Inner packing :pack in paper box
• Out packing: Cartons or wooden pallet
• Suitable for sea and inland shipment
• As customers' request
Recommend products
Our Services
1. GELIN chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Company Information
Lin'an Gelin Transmission Machinery Factory is a private joint-stock company. Our company lies in the west of Hangzhou, nears the beautiful Hengfan Town, with No.06 Provincial Road running through.
Our products are widely used in concrete, electric power, metallurgy, mine, sea port and other places. In 1996, we introduced advanced technology to produce machines by ourselves and got good praise from customers. Our products have been exported to many countries and regions. Our company puts quality in the first place. We welcome all the customers to come and visit us.
FAQ
Q: Are you a manufacture or a trading company?
Gelin is a chain factory for 20 years.
Zhejiang Junchen Chain Co.,Ltd is a part of Gelin especial for foreign customer.
Q:Which port do you near about?
Gelin is located in Hangzhou, Zhejiang ,3 hours drive to Ningbo port and Shanghai port.
Q:Does your factory customize basing on the drawing?
Yes, Gelin has a professional technical team for customize.
Q:What should I provides in order to get a accurate price?
We need drawings. If no ,please send me some data or I can provide some for choose.
Q:Can I have samples before place an order?
Yes ,you can .we have cooperation with UPS,TNT,FEX express.
Q:What is your payment,how can we pay you?
You can use TT,L/C at sight ,Paypal and western union.
