KLN 9JY Type Goat Automatic Milking Parlour Equipment

Product Overview

Description

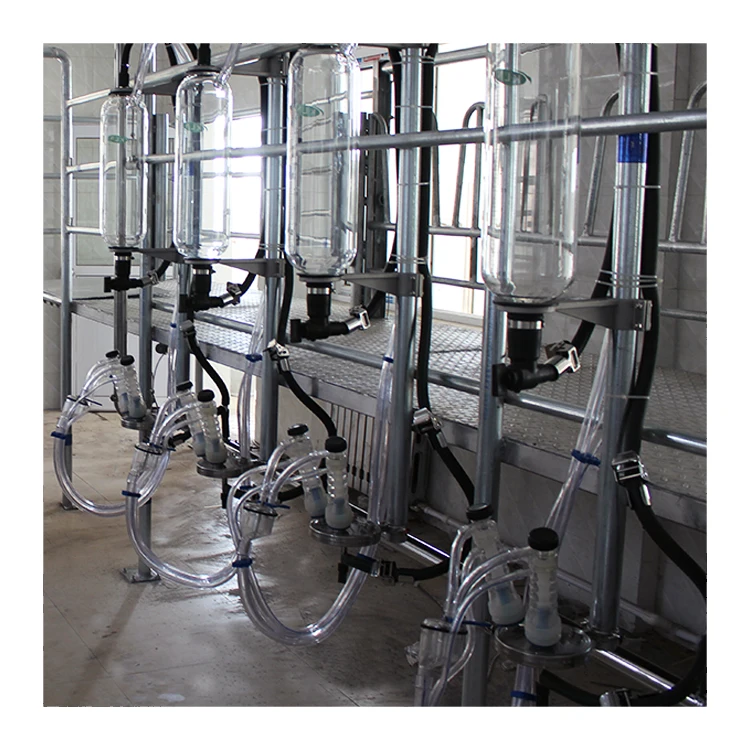

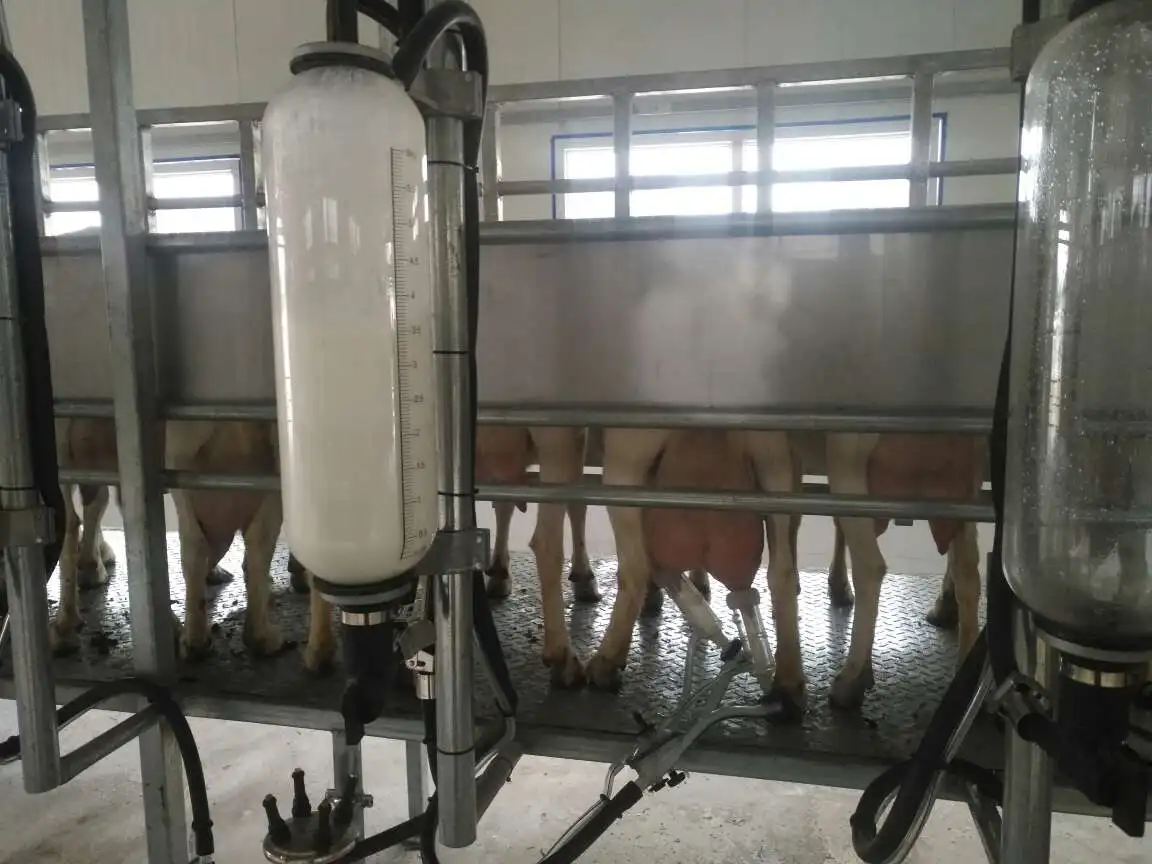

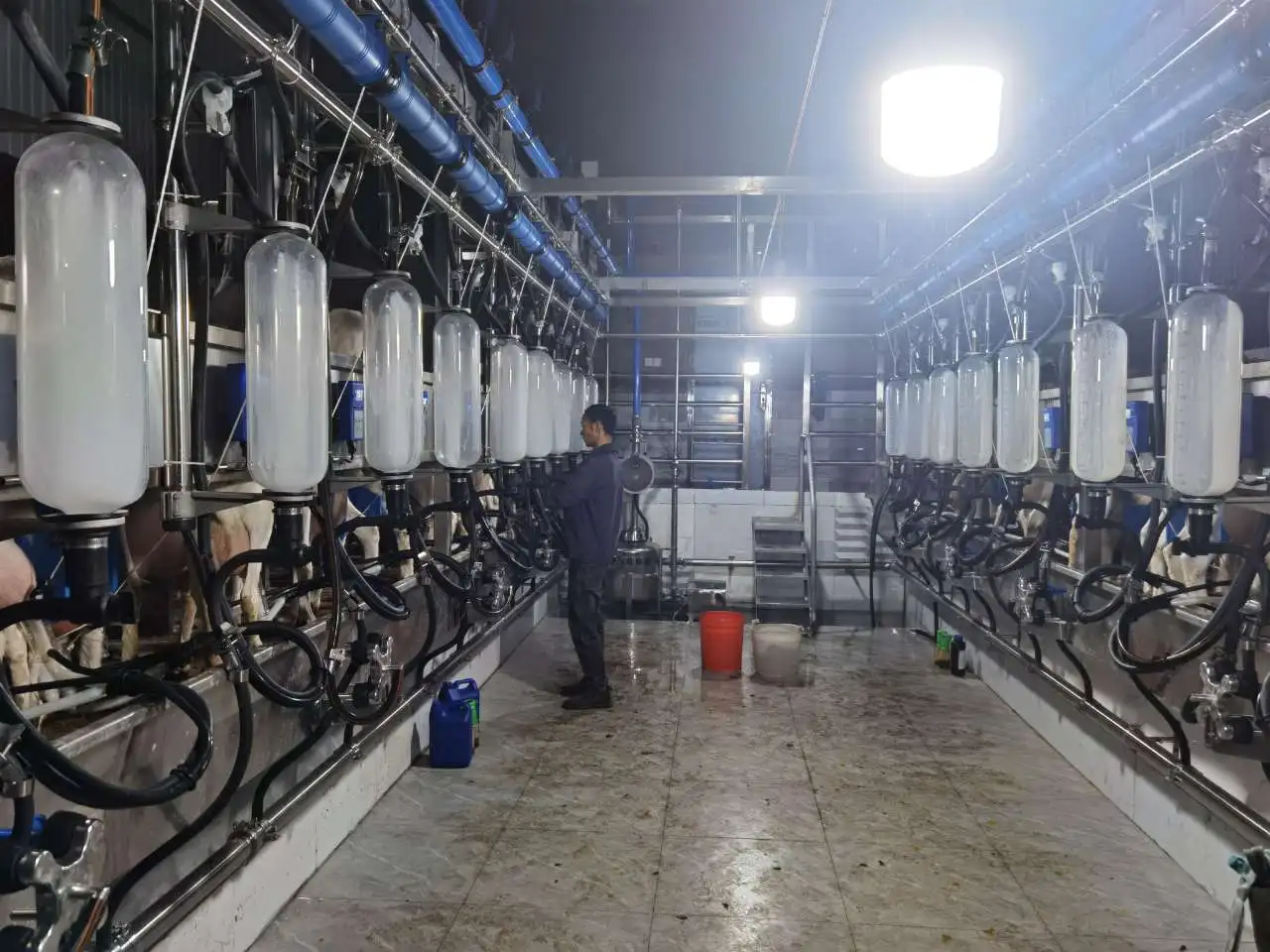

KLN 9JY Herringbone type Glass Jar Milking Parlour for goat and sheep





It include the following functions:



1. Recycling Residual Milk System:

After finished milking, the surplus milk will come into the collecting tanks with the help of sponge ball and butterfly valve,

which decreased bacteria and saved labor, water and electricity and increased income.

This system is our unique advantage from other factories.

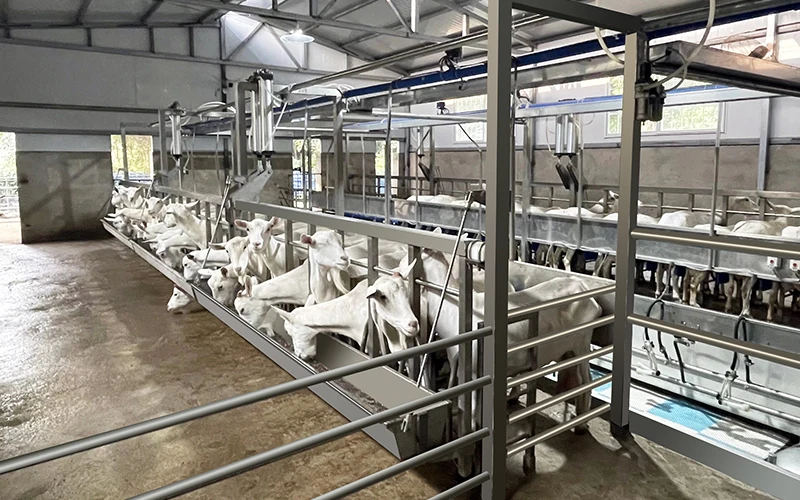

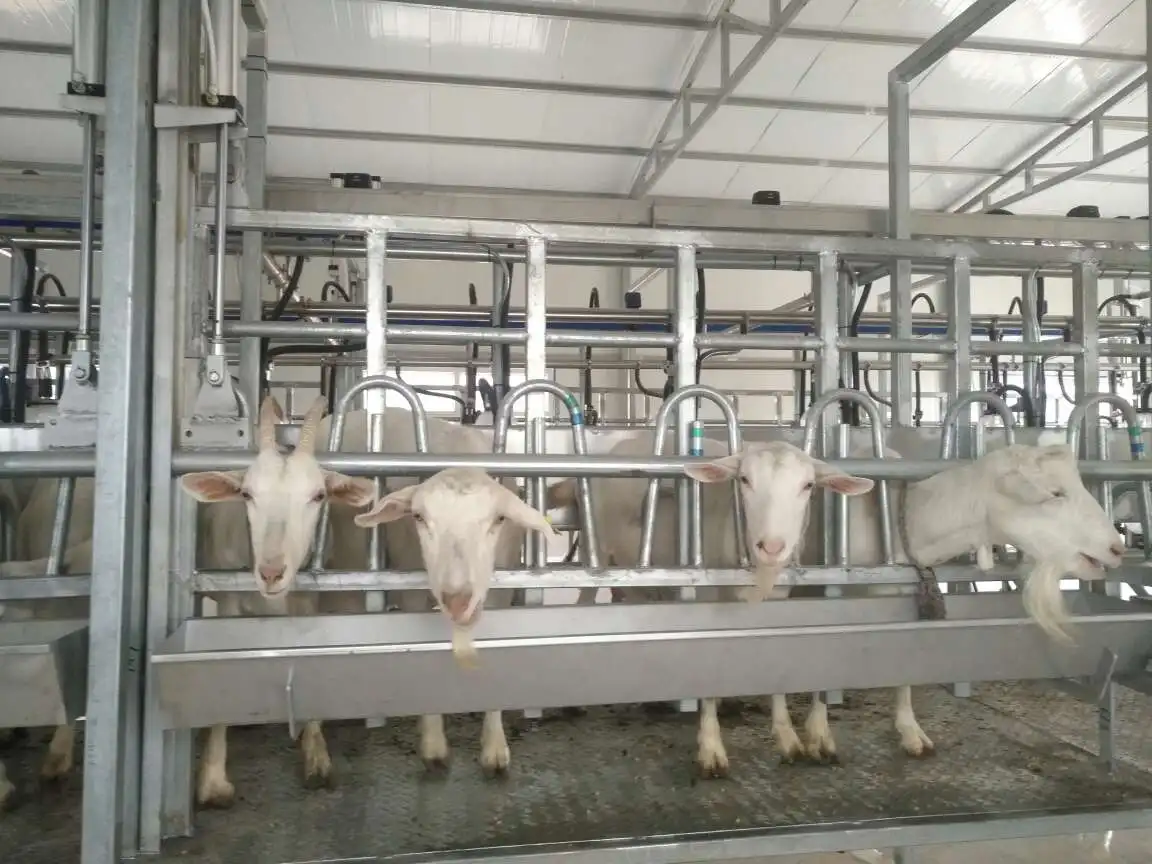

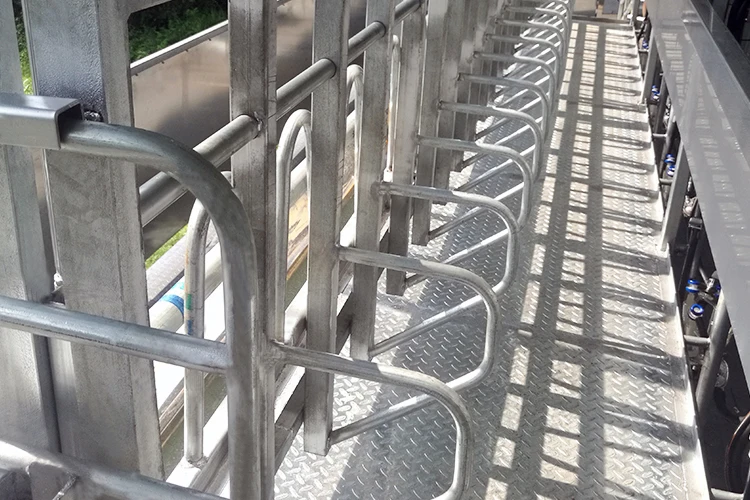

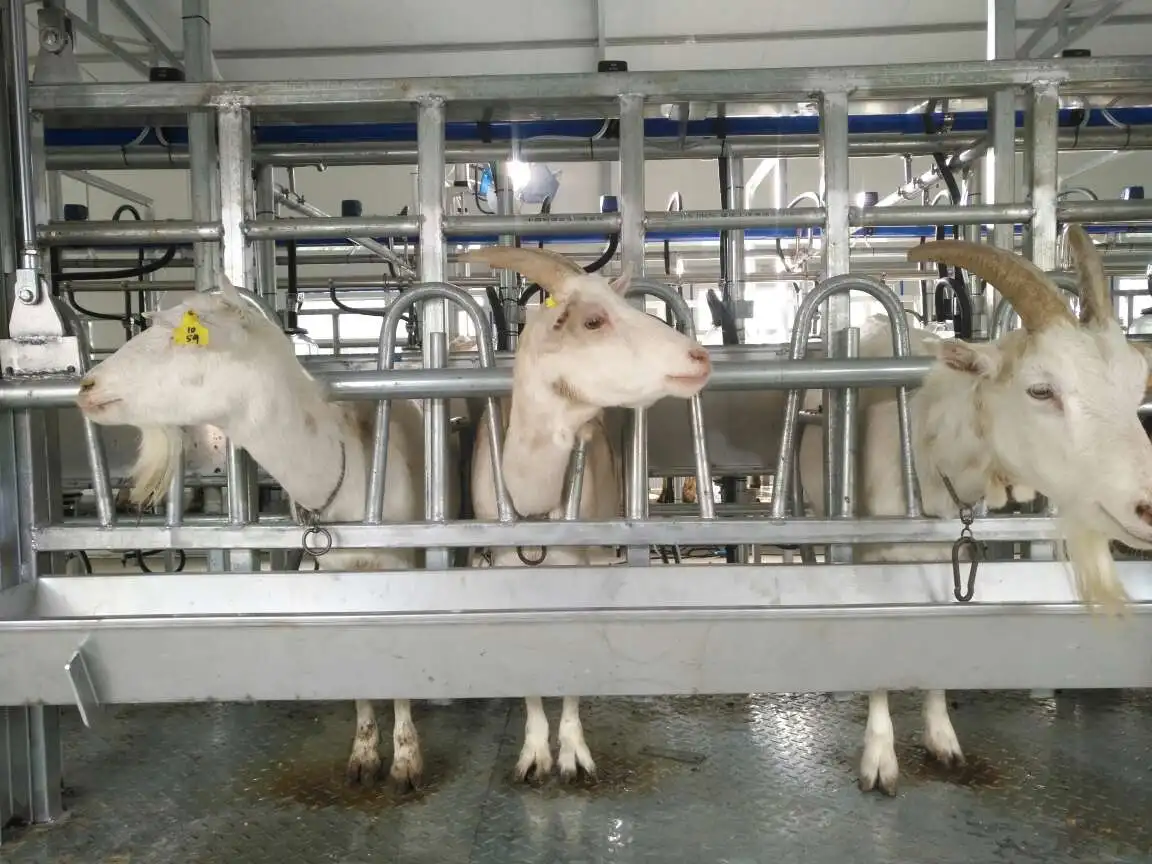

3. Common Cow Exit Canopy Frame:

The goats enter the frame through one exit, after milking, they can go out through another exit one by one.







Technical Parameters:



	9JY-2*6	9JY-2*8	9JY-2*12	9JY-2*16	9JY-2*20
Working Vacuum	50Kpa	50Kpa	50Kpa	50Kpa	50Kpa
Pulsation Ratio	60/40	60/40	60/40	60/40	60/40
Frequency	60 ± 3 RPM	60 ± 3 RPM	60 ± 3 RPM	60 ± 3 RPM	60 ± 3 RPM
Vacuum pump power	4 KW	5.5 KW	2*4 KW	2*4 KW	2*5.5 KW
Vacuum pump speed	1200L/min	2300L/min	2*1400L/min	2*1400L/min	2*2300L/min
Milk pump speed	8T/h	8T/h	20T/h	20T/h	20T/h
Milk pump power	2KW	2.2KW	4KW	4KW	4KW

 Other quantity of heads could also be made according to your actual requirements.

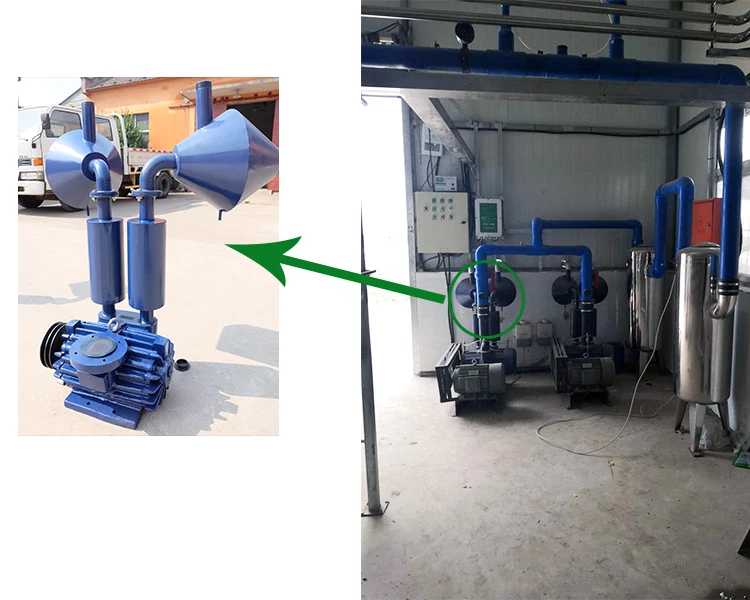

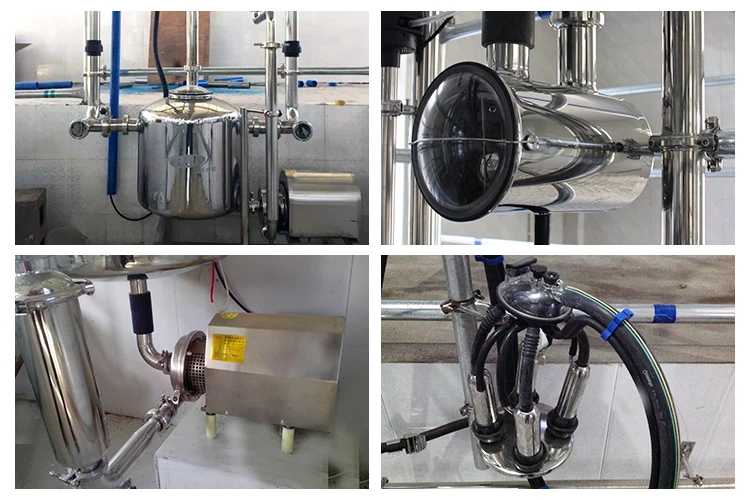

Pumping Room:

Different head of milking parlor will have different pumps.

We will design the most suitable type for you.

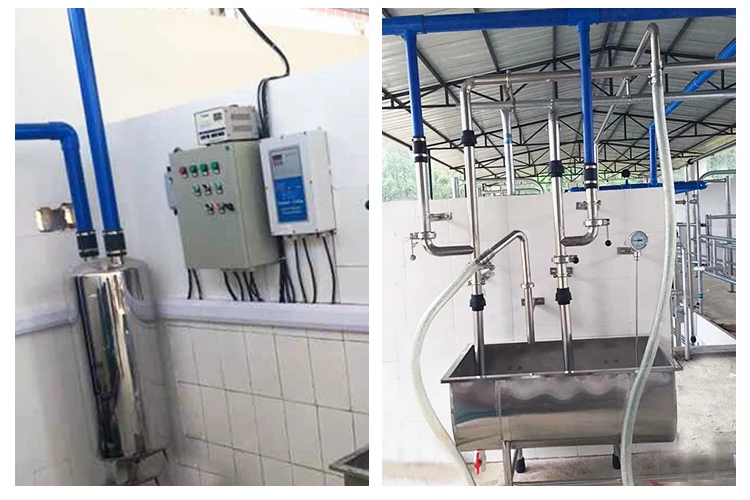

 Half Automatic Cleaning System:

This cleaning system should add acid&alkid cleaning solution by manual.

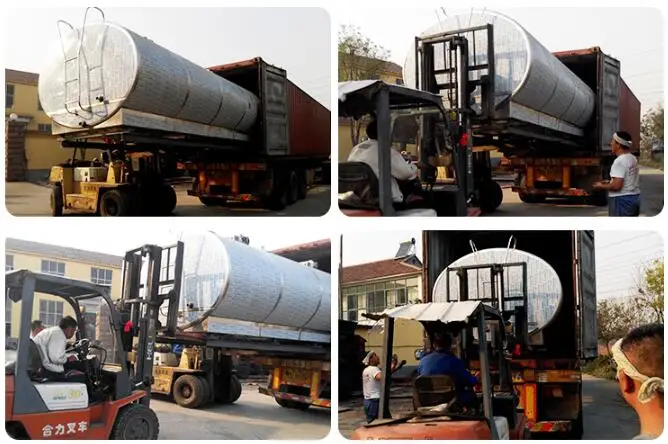

Milk Cooling Tank:

When purchase milking parlor, a milk cooling tank will be needed to store milk.

We have 500L to 10000L milk cooling tank.







Delivery:

The milking parlor should use a whole 20' or 40' container to put every parts in it.







Certification:

We got CE and ISO certification on milking system and milk cooling tank.







Company profile:

Shandong Yuejiang Machinery Co., Ltd is manufacturer of pasture equipment, who provides pasture management system and reliable after-sales service.

We main produce: small vacuum pump/ piston type movable milking machine; medium fish-bone/ mid-set type milking parlor; large rotary type/ parallel type/ herringbone type milking parlor; feed mixer; livestock solid-liquid manure separator; cow head lock; cow free stall; fresh milk cooling tank, 5L-100L milk buckets, 5L-500L milk pasteurization machine etc.

We have experienced sales and technical teams to provide best service for you!
