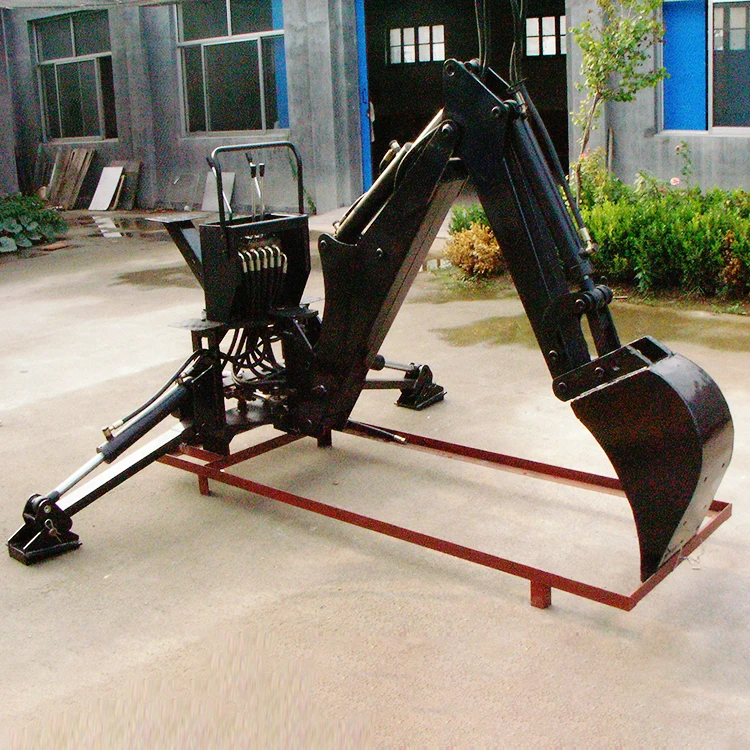

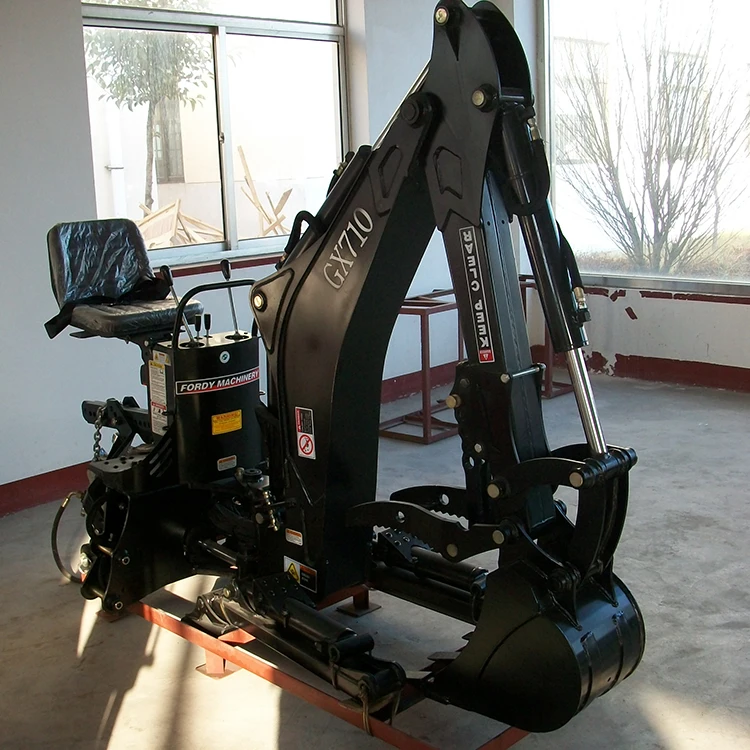

Introduction of Tractor Backhoe:
Our 3-point hitch backhoe have gotten CE certificate already. Our three point backhoe is a powerful digging machine that will fit on virtually any tractor. If your tractor has a 3 point hitch, this backhoe will work. The backhoe can be powered by your
tractor's hydraulic system or by a PTO drive with gear pump. Both methods of powering the backhoe are equally effective.
These hydraulic backhoes are easy to detach and reattach because of their quick Attach 3 point hitch. And can be used for all sorts of digging projects. Additional bucket sizes are available.
Performance of Tractor Backhoe:
Dig machinery is dig with bucket mining above or below the material bearing machine,and load transport vehicles or discharge to heap of yard earthwork machinery. Mining materials mainly soil, coal, sediment and through the advance loose rocks and minerals. Work device is done directly mining task device. It consists of moving arm, dou lever, the bucket hinged three parts and into. Moving arm ups, dou stem telescopic and bucket with reciprocating double role turning the hydraulic cylinder control.
In order to adapt to the different needs of construction operation, hydraulic excavator with a variety of work device can be, such as mining, lifting, loading, smooth, clamps, earth-moving, impact hammer and so on many kinds of operation equipments.
Our 3-point hitch backhoe have gotten CE certificate already. Our three point backhoe is a powerful digging machine that will fit on virtually any tractor. If your tractor has a 3 point hitch, this backhoe will work. The backhoe can be powered by your
tractor's hydraulic system or by a PTO drive with gear pump. Both methods of powering the backhoe are equally effective.
These hydraulic backhoes are easy to detach and reattach because of their quick Attach 3 point hitch. And can be used for all sorts of digging projects. Additional bucket sizes are available.
Performance of Tractor Backhoe:
Dig machinery is dig with bucket mining above or below the material bearing machine,and load transport vehicles or discharge to heap of yard earthwork machinery. Mining materials mainly soil, coal, sediment and through the advance loose rocks and minerals. Work device is done directly mining task device. It consists of moving arm, dou lever, the bucket hinged three parts and into. Moving arm ups, dou stem telescopic and bucket with reciprocating double role turning the hydraulic cylinder control.
In order to adapt to the different needs of construction operation, hydraulic excavator with a variety of work device can be, such as mining, lifting, loading, smooth, clamps, earth-moving, impact hammer and so on many kinds of operation equipments.
Model | LW-5 | LW-6 | LW-7 | LW-8 | LW-9 |
Horse power Range | 16-25 | 20-35 | 25-45 | 60-100 | 65-125 |
Dimension | 1550x1480x1900 | 1550x1480x2130 | 2000x1860x2500 | 2140x1860x2800 | 2300x1750x2800 |
Max. digging depth(mm) | 1612 | 1850 | 2150 | 2640 | 2900 |
Max. digging radius(mm) | 2290 | 2800 | 3360 | 3930 | 3977 |
Max. digging height(mm) | 1700 | 2500 | 3400 | 3510 | 3900 |
Discharging height(mm) | 740 | 1400 | 1760 | 2000 | 2362 |
Max. digging depth(2ft) Flat bottom(mm) | 1460 | 1600 | 2000 | 2500 | 2760 |
Swing Angle | 140 | 140 | 140 | 140 | 160 |
Bucket Rotation | 160 | 160 | 160 | 160 | 150 |
Operating Digging Force(KG) | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 16Mpa |
Dipper-stick Digging Force(KG) | 750 | 790 | 950 | 1000 | 1270 |
Shipping Weight(kg) | 410 | 470 | 540 | 600 | 820 |
Company Profile

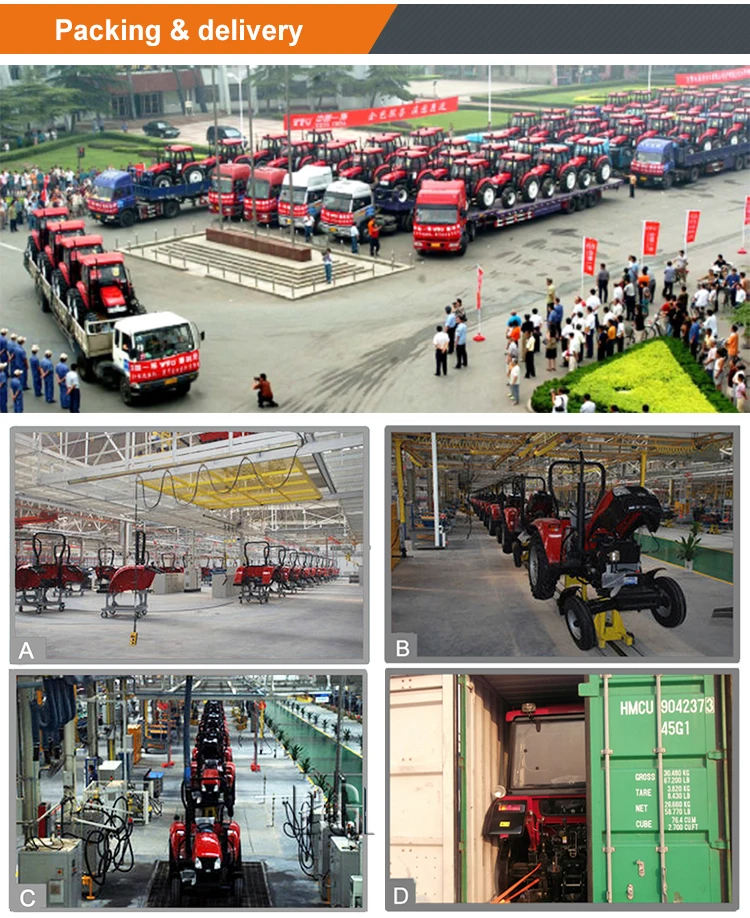

Product packaging
FAQ
Q: Can you tell us the price level?
A: We offer wholesale price directly even if you buy one piece, so our price will be 5% to 10% lower than other suppliers with the same quality.
Q: How about the quality?
A: All our products are tested before shipping, and offer quality report,all are Guaranteed
Q:Do you accept to customize the products as the customer’s requirement?
A:Yes, we accept to customize. Such as color, size, logo,capacity, etc.
Q.How can I pay you?
A: After you confirm the order, we will send you the PI, you can pay to our company account directly; Or you make the payment by Alibaba according to the Alibaba trade assurance Contract.All are safe, Alibaba will protect your money until you receive the goods when you choose the payment by Alibaba.
Q: How many days it takes before you deliver the mini excavator china to us?
A:Generally, 20 days are ready.
Q: How should get the spare parts when we need in future?
A: We offer you directly at any time.
A: We offer wholesale price directly even if you buy one piece, so our price will be 5% to 10% lower than other suppliers with the same quality.
Q: How about the quality?
A: All our products are tested before shipping, and offer quality report,all are Guaranteed
Q:Do you accept to customize the products as the customer’s requirement?
A:Yes, we accept to customize. Such as color, size, logo,capacity, etc.
Q.How can I pay you?
A: After you confirm the order, we will send you the PI, you can pay to our company account directly; Or you make the payment by Alibaba according to the Alibaba trade assurance Contract.All are safe, Alibaba will protect your money until you receive the goods when you choose the payment by Alibaba.
Q: How many days it takes before you deliver the mini excavator china to us?
A:Generally, 20 days are ready.
Q: How should get the spare parts when we need in future?
A: We offer you directly at any time.
