Product Overview
Description
ASME Flanged & Dished Hi-Crown large tank heads are more resistant to internal pressures than Standard ASME Code F&D heads with a comparable thickness. Hi-Crowns have an 80% dish radius and 3T (T= thickness) knuckle or 7% of the diameter, whichever is greater. A test report of elements & mechanicals is provided with full traceability.
Material surface protection
Material mark
![{ZXNCY]YZF68Y{1KLMJGISA.jpg](http://sc01.alicdn.com/kf/HTB1EnigHXXXXXclXXXXq6xXFXXXh/201002540/HTB1EnigHXXXXXclXXXXq6xXFXXXh.jpg)
Protective groove machining surface
The processing
![P2TL)[7]PAZO~~$2RYE%37.jpg](http://sc01.alicdn.com/kf/HTB1uyecHXXXXXXtXVXXq6xXFXXXP/201002540/HTB1uyecHXXXXXXtXVXXq6xXFXXXP.jpg)
![))M5X]ROM~`FRPH]{~T40T.jpg](http://sc01.alicdn.com/kf/HTB1_G5lHXXXXXXmXXXXq6xXFXXX5/201002540/HTB1_G5lHXXXXXXmXXXXq6xXFXXX5.jpg)

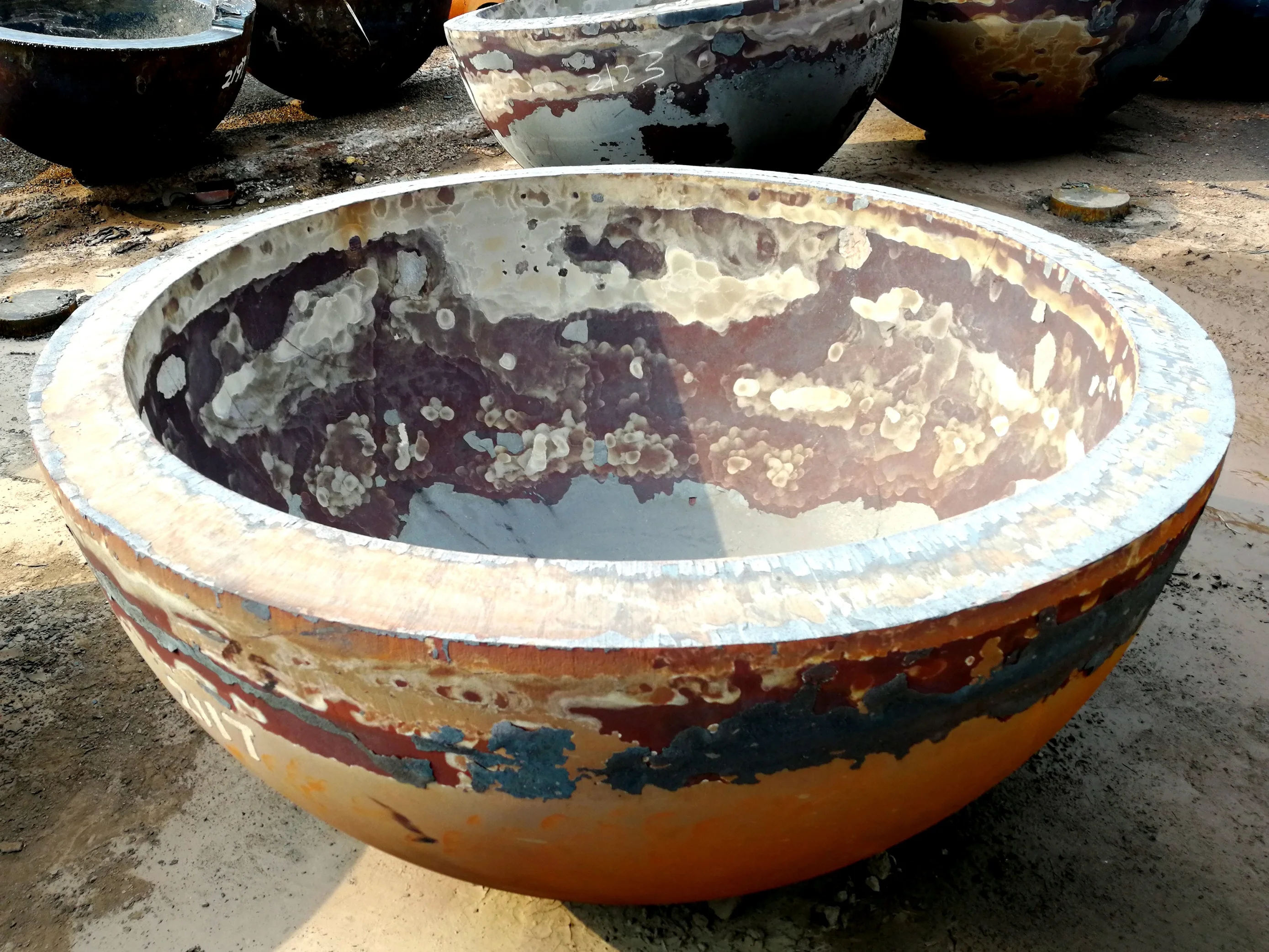

Products into the water cooling
![QQH`YJ(R75DQ6FM4_S5]]GY.jpg](http://sc01.alicdn.com/kf/HTB1ST0nHXXXXXaQXXXXq6xXFXXXt/201002540/HTB1ST0nHXXXXXaQXXXXq6xXFXXXt.jpg)
Measurement of product water temperature
The surface MT

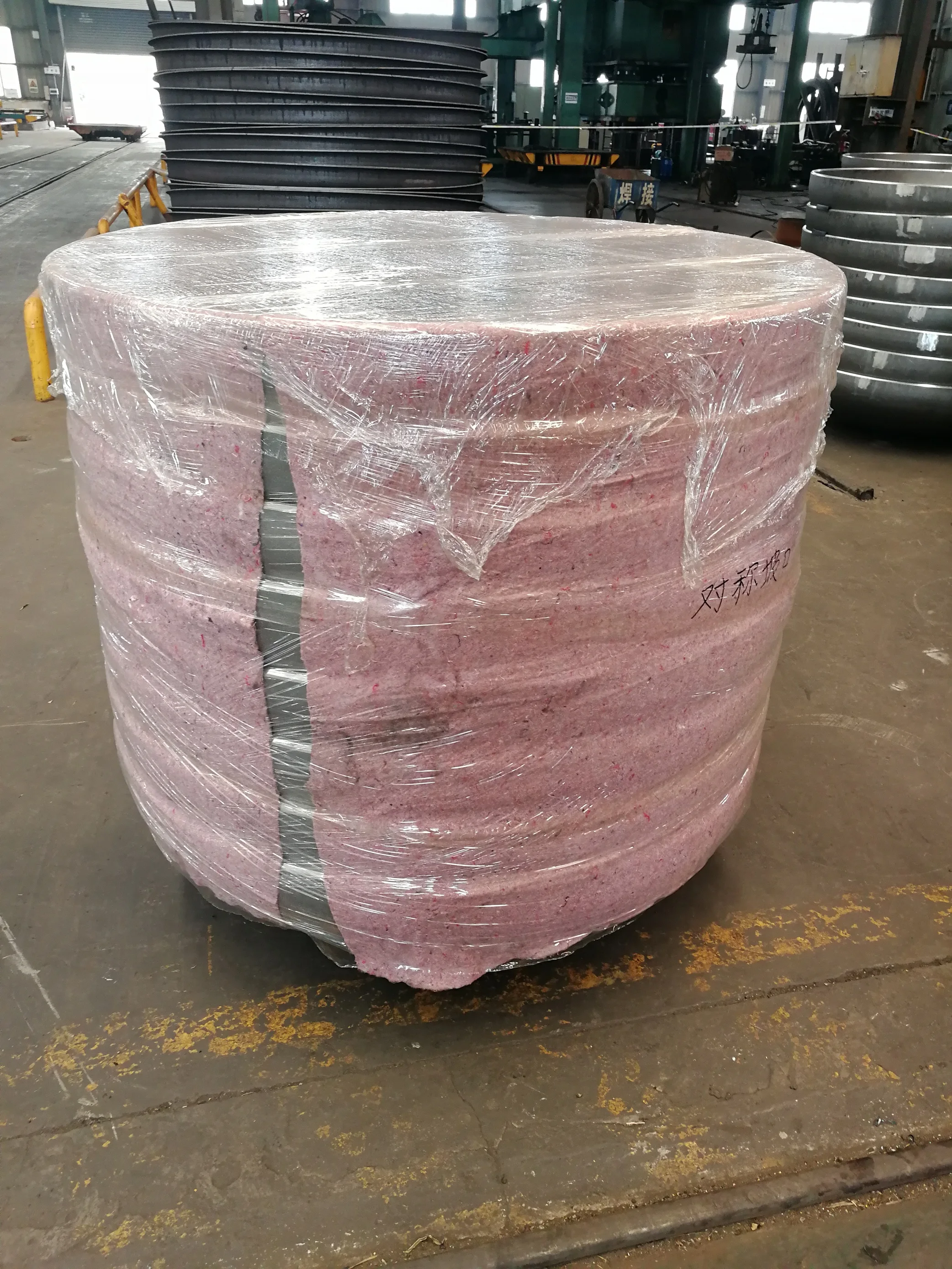

Package
