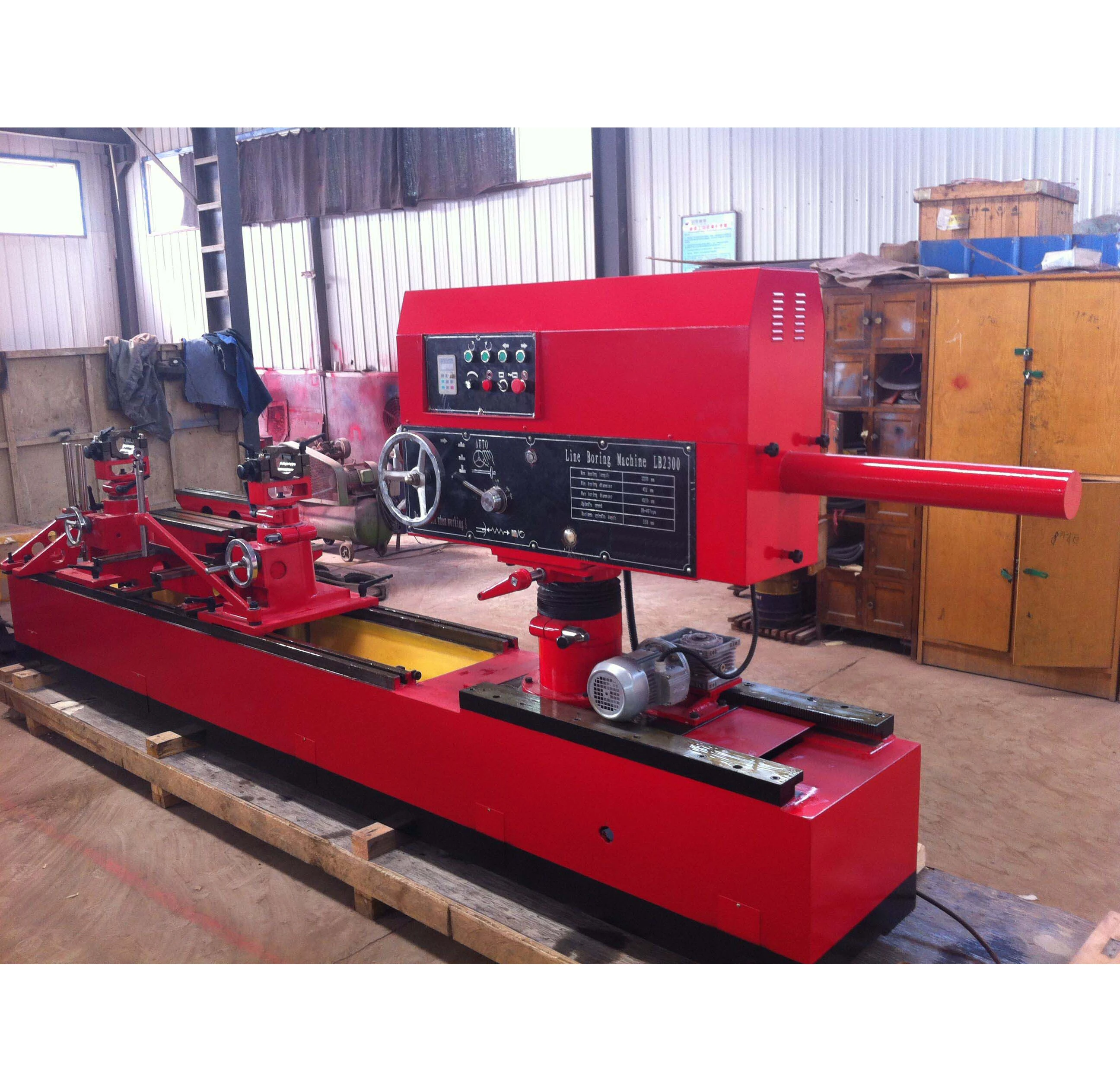

cylinder block line Boring Machine LB2300
- Category: >>>
- Supplier: Shanghai THL Machine Tool Co. Ltd.
Share on (60223628790):
Product Overview
Description
Gearbox moves 450mm and the main spindle traverses 550mm. Feed distance up to 1000mm one time! Provide a high efficiency work and make the job congruously. The main spindle is inverter motor (stepless speed).4 grades feed speed, widely used for work with different kinds of materials. The maximum working length of cylinder block up to 2300mm.
Main specifications
|
Model
|
LB2300
|
|
Max. boring length of cylinder
|
2300mm
|
|
Range of boring diameter
|
Φ22~Φ250mm
|
|
Max. elongation of spindle
|
550mm
|
|
Max. movement of spindle box
|
450mm
|
|
Spindle speed
|
30-467rpm stepless
|
|
Boring spindle feed
|
0.044mm,0.078 mm,0.121 mm,0.176 mm
|
|
Main motor power
|
1.5kw
|
|
Motor power of spindle box
|
0.37 kw
|
|
Distance between center of spindle to surface of T slot
|
570mm~870mm
|
|
Overall dimension
|
4520×900×1540mm
|
|
Packing dimension:
|
4720×1000×1750mm
|
|
N.W./G.W.
|
2300/2500kgs
|
Standard boring bar of LB2300
