Fully automatic metallographic sample cutting machine
Fully automatic metallographic sample cutting machine
Fully automatic metallographic sample cutting machine
Fully automatic metallographic sample cutting machine
Fully automatic metallographic sample cutting machine
Fully automatic metallographic sample cutting machine
Fully automatic metallographic sample cutting machine

Fully automatic metallographic sample cutting machine

Share on (60223732134):


Price:$999.00

Quantity:


Product Overview

Description






Product Description


.jpg

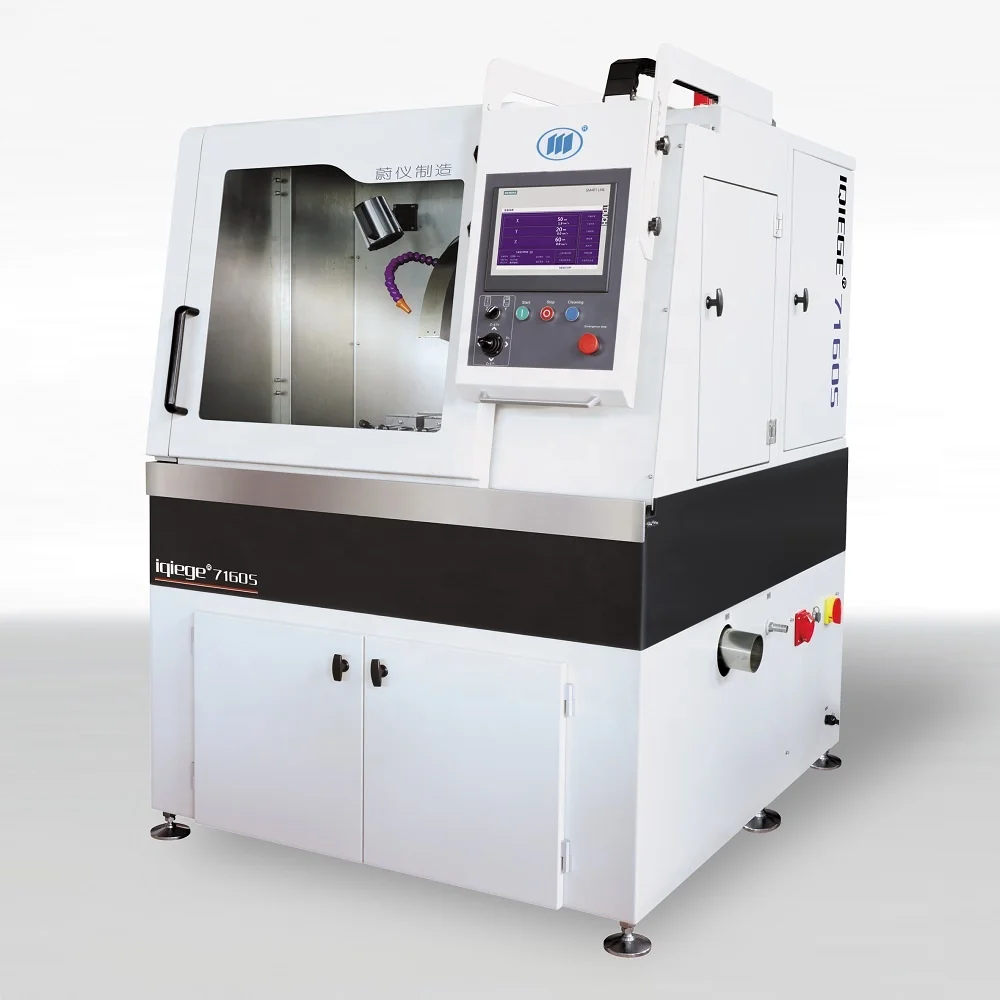

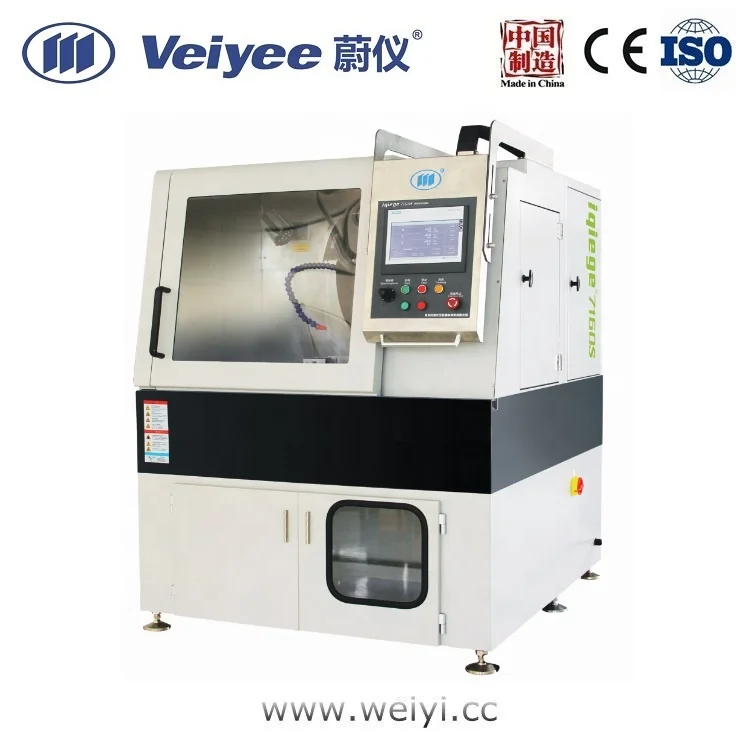

Metallographic cutting machine iqiege 7160s











7160 (2) - .jpg





Application


IQIEGE 7160S automatic metallographic sample cutting machine is a large automatic cutting machine, using SIEMENS PLC with a very high reliability, strong control ability; in human-computer interaction using a touch screen; the control adopts high precision stepper motor; it is suitable for cutting various metal specimens. Metal materials, in order to observe the metallographic, petrographic tissue. The machine cutting process automation with low noise,simple operation, safe and reliable, is one of the important equipment in modern laboratory production of solid material samples.





 Technical Paramenters






















































Model



Iqiege 7160s



Cutting mode



chop-cutting, push cutting



Feed way



Automatic Feed rate, Rapid Pulse



Cutting speed



0.03-1mm/s(adjust 0.01)



Variable spindle speed



500~2300r/min



Max movement



Z 220mm Y200mm X 240mm



Cutting room



1240mm × 780mm



Cutting capacity(Max)



Φ160mm



Cut-off wheel



Φ450×3.2×32mm



Cutting motor



7.5kw



Input voltage



380V /50HZ



Dimension



1300mm(1670mm)x1465m×1900mm





















































































Related Products


 HRS-150S (2)_.jpg


 Model:    HRS-150S       HR-150A        DHB-3000         HV-1000SPTA      HV-5SPTA


Enter to Related website on Alibaba by Clicking  product models













Model:  MoPao 3s     MoPao 200DE        MoPao 200DE       MoPao 200         MoPao 3


Enter to Related website on Alibaba by Clicking  product models







Model:   Iqiege7160s    LDQ-350A     Iqiege6100Z         Iqiege 50S      Iqiege 160Z


Enter to Related website on Alibaba by Clicking  product models










Model:   Ixiang-5       Ixiang-5S         VIM-1          ZXQ-2        XQ-2B


Enter to Related website on Alibaba by Clicking  product models
















 Laizhou Weiyi experimental machine manufacturing Co.,Ltd.


was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .





  In 2004 the company passed the ISO9001 quality management system certification,


in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.





Our Product range is following,kindly let me know which model do you need.


Metallographic grinding polishing machine


Metallographic specimen cutting machine


Metallogrphic mounting press


Hardness tester(Rockwell,Brinell ,Vickers,Multifunctional ,Shores)


Spin coater


Diamond wire saw








Contact Person: Ichuka Lang


Skype: ichuka.lang


Mobile: 86 133 2515 5105 (We Chat and Whatsapp)


Email: sales(@weiyi.cc)
