Name : Powerful Manual permanent magnetic lifters supplier
Permanent Magnetic Lifter | ||||||||||
Code | Model | Capacity(T) weight(Kg) | brake load (Kg) | size(mm) | net weight | Gross weight | Dimension L*W*H(cm) | |||
L | B | H | R | kg | ||||||
YC6001001 | PML-100 | 100 | 300 | 90 | 63.5 | 68 | 145 | 3 | 4 | 25*16*16 |
YC6001002 | PML-400 | 400 | 1200 | 160 | 95 | 180 | 210 | 10 | 12 | 32*20*17 |
YC6001003 | PML-600 | 600 | 1800 | 220 | 115 | 125 | 230 | 20 | 22 | 37*23*21 |
YC6001004 | PML-1000 | 1000 | 3000 | 260 | 145 | 1450 | 280 | 37 | 40 | 43*28*24 |
YC6001005 | PML-1500 | 1500 | 3750 | 310 | 145 | 1450 | 280 | 48 | 50 |
|
YC6001006 | PML-2000 | 2000 | 5000 | 340 | 160 | 165 | 410 | 68 | 74 | 52*30*31 |
YC6001007 | PML-3000 | 3000 | 7500 | 420 | 185 | 185 | 510 | 87 | 93 | 60*30*31 |
YC6001008 | PML-4000 | 4000 | 10500 | 480 | 200 | 200 | 510 | 113 | 121 | 68*30*41 |
YC6001009 | PML-5000 | 5000 | 15000 | 580 | 300 | 300 | 650 | 198 | 213 | 73*40*48 |
Features for Powerful Manual permanent magnetic lifters supplier :
1.Nd-Fe-B Magnet as core component,smaller size,stronger lifting force and lasting magnetic force.
2. High safety factor up to 3.5 times pulling-out force than rated lifting

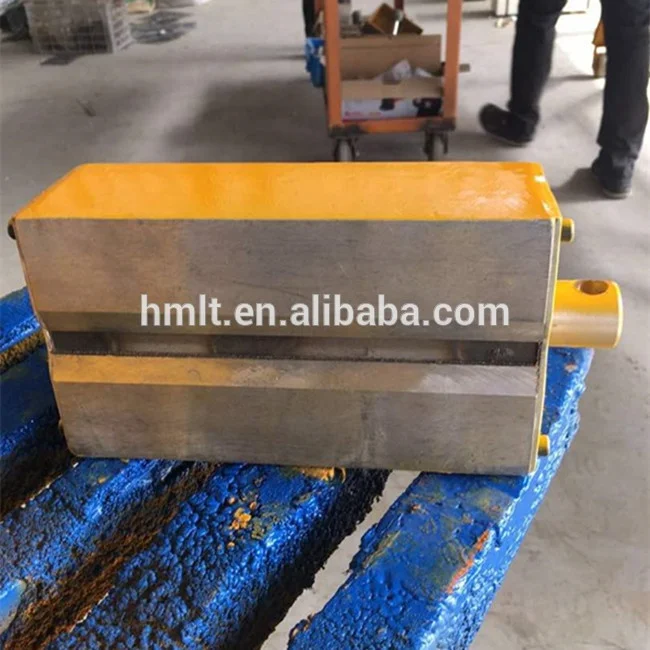

3. V style design at the bottom of lifter,can lift opposite round steel or steel board
4. Easy to use and free to power
5. Optimized magnetic circuit design makes residual magnetism almost zero
6. Professional appearance design makes product more attractive
Usage
Widely use for lifting flat mechanical parts and steel,and in some mechanical manufacturing industries,such as machine-building plant,machining center,shipping building industry etc
Quality assurance
1. Magnet:four year warranty under normal usage.(magnetism will loss or even disappear under more than 70℃ and severe crash)
2. Other parts:four year warranty under normal usage

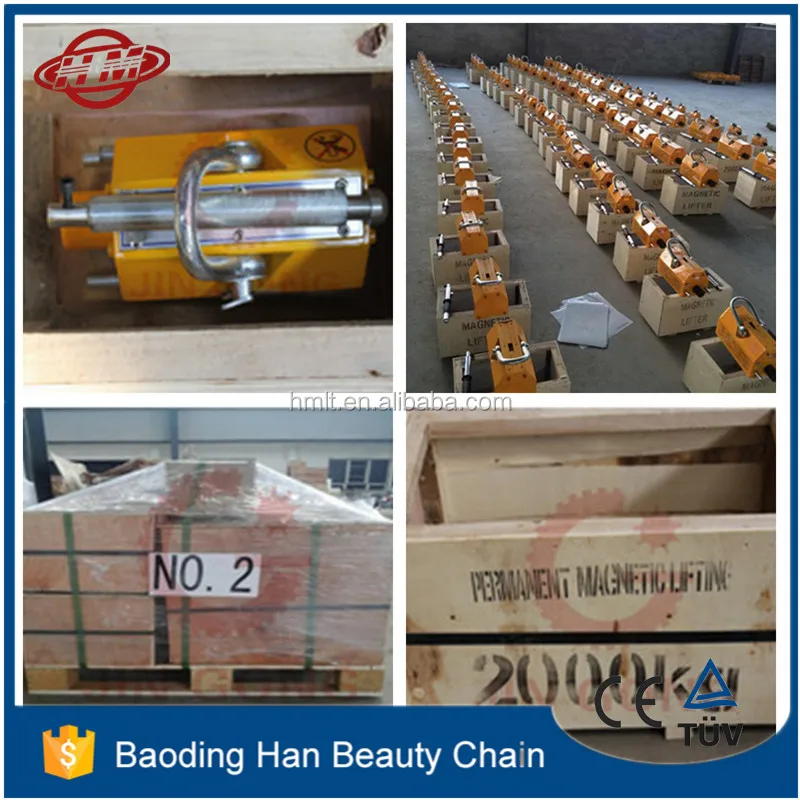

3. It is packed in wooden box package.

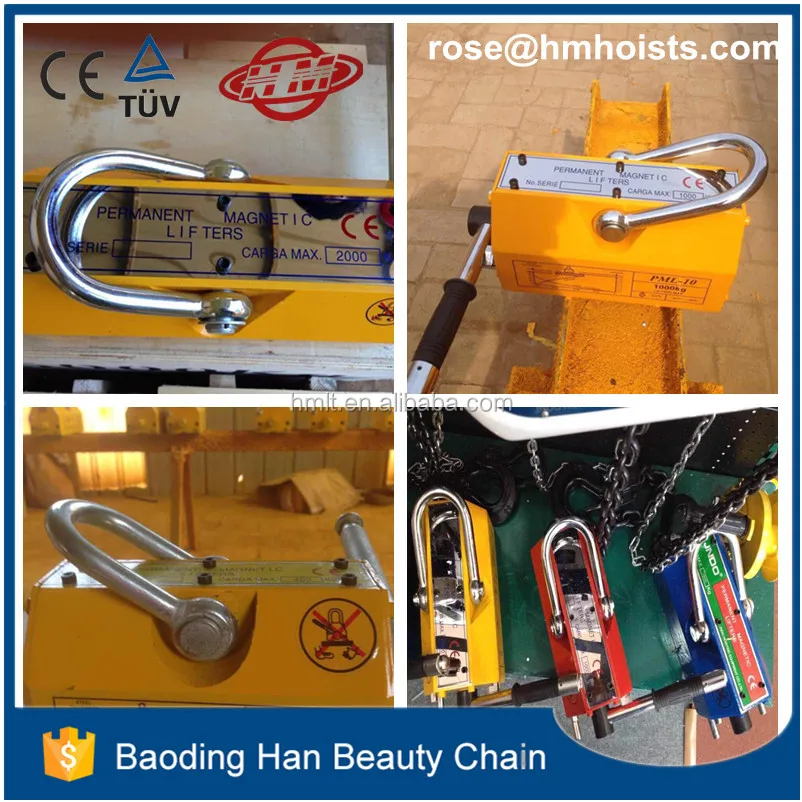

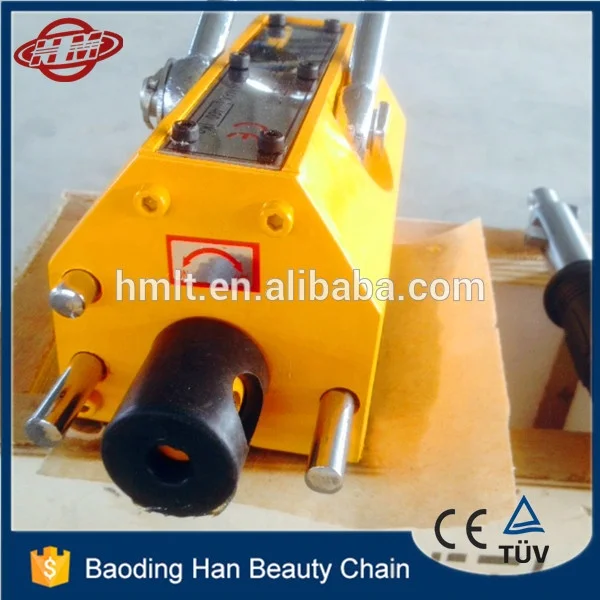

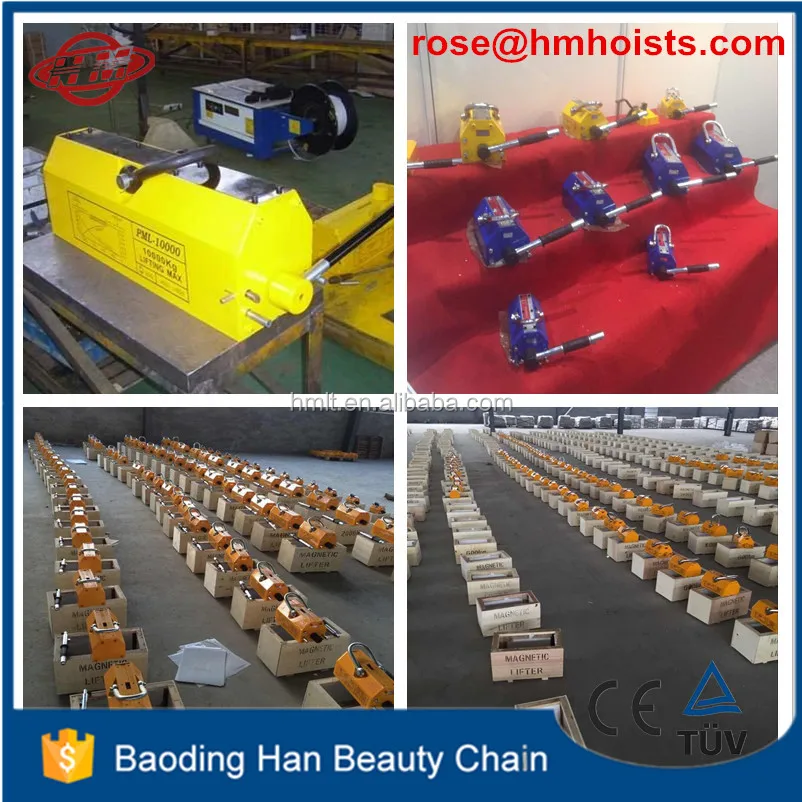

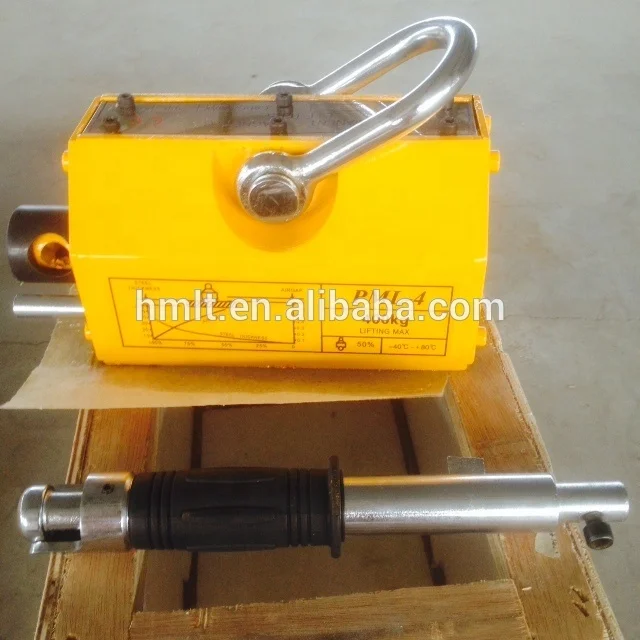

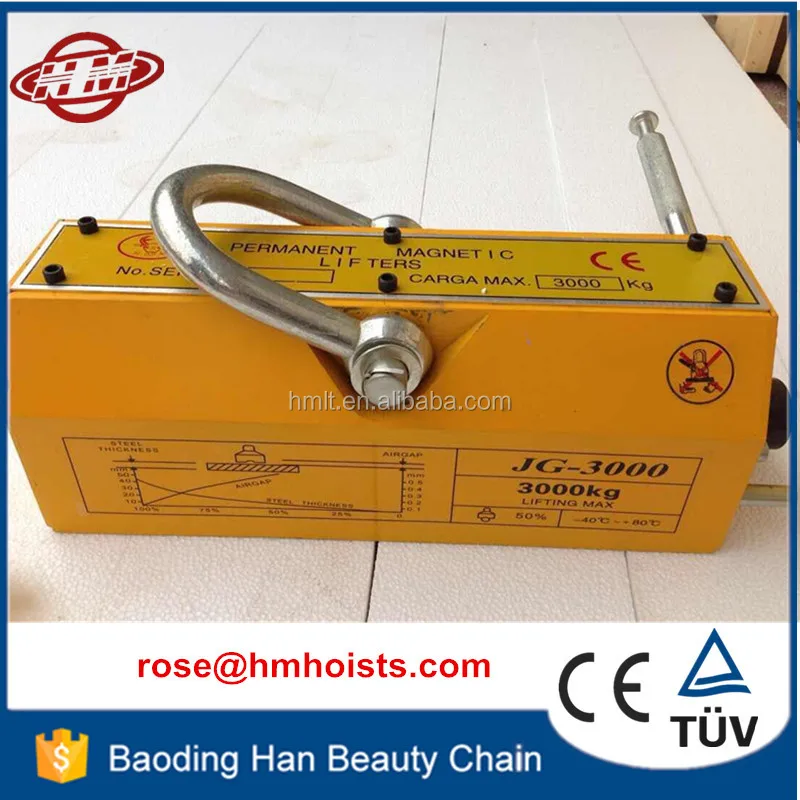

Photos for Powerful Manual permanent magnetic lifters supplier

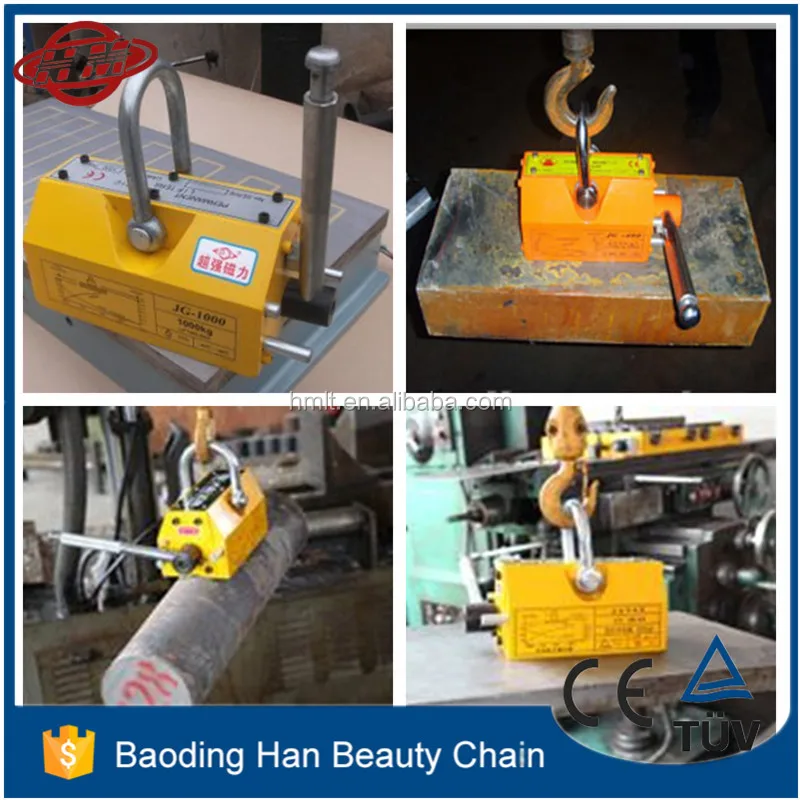

Application of Powerful Manual permanent magnetic lifters supplier



1. Prompt reply for inquiry within 24 hours
2. One on one service guarantees you the best purchasing experience.
3. Strong production capacity and professional technical engineer can gusrantee the delivery time and quality.
4. Strict quality control.

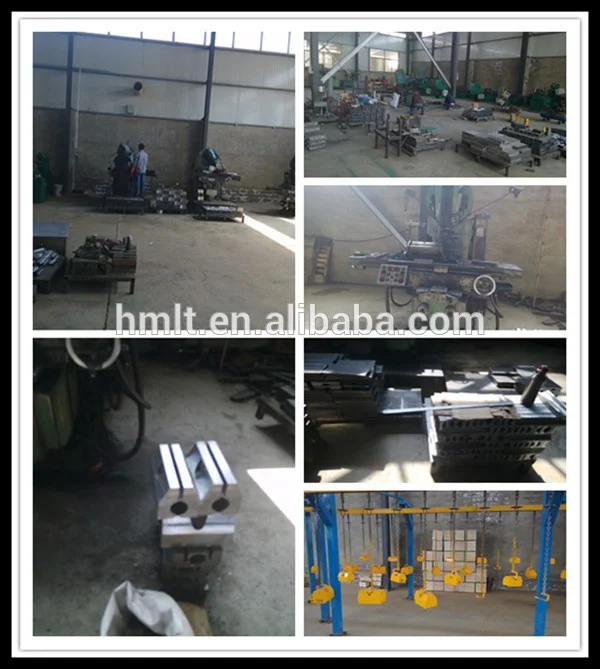

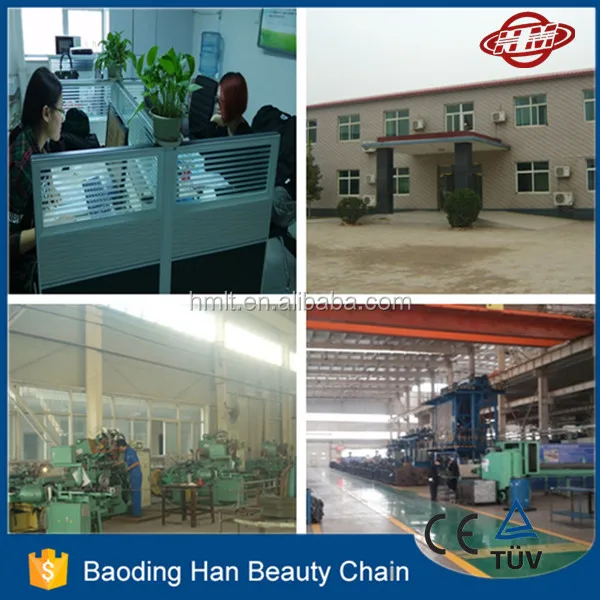

Our factory is located in the donglv village,we have 15 sets of Automatic chain production equipment .
We have over 20 years experience in the lifting chain production and research!
Our export sales department is separated with factory,in baoding city.
