Natural NTL 1000A manual reset temperature limiter thermostat temperature controller thermostat for fan heating
- Category: >>>
- Supplier: Wenzhou Natural Automation Equipment Co. Ltd.
Share on (60224016031):
Product Overview
Description
Products Description
NTL-1000 Series of Mechanical Thermostat
Summary
NTL-1000 series of thermostats are usually used on the commercial,industrial and civil constructions.which can control the fan
coil of air-conditioning ,water valve and wind valveect.It can make the temperature balance in the setting range in the
location,and all switches are manual switch.Very simple to manipulate.
NTL-1000 series of thermostats are usually used on the commercial,industrial and civil constructions.which can control the fan
coil of air-conditioning ,water valve and wind valveect.It can make the temperature balance in the setting range in the
location,and all switches are manual switch.Very simple to manipulate.
Characteristics

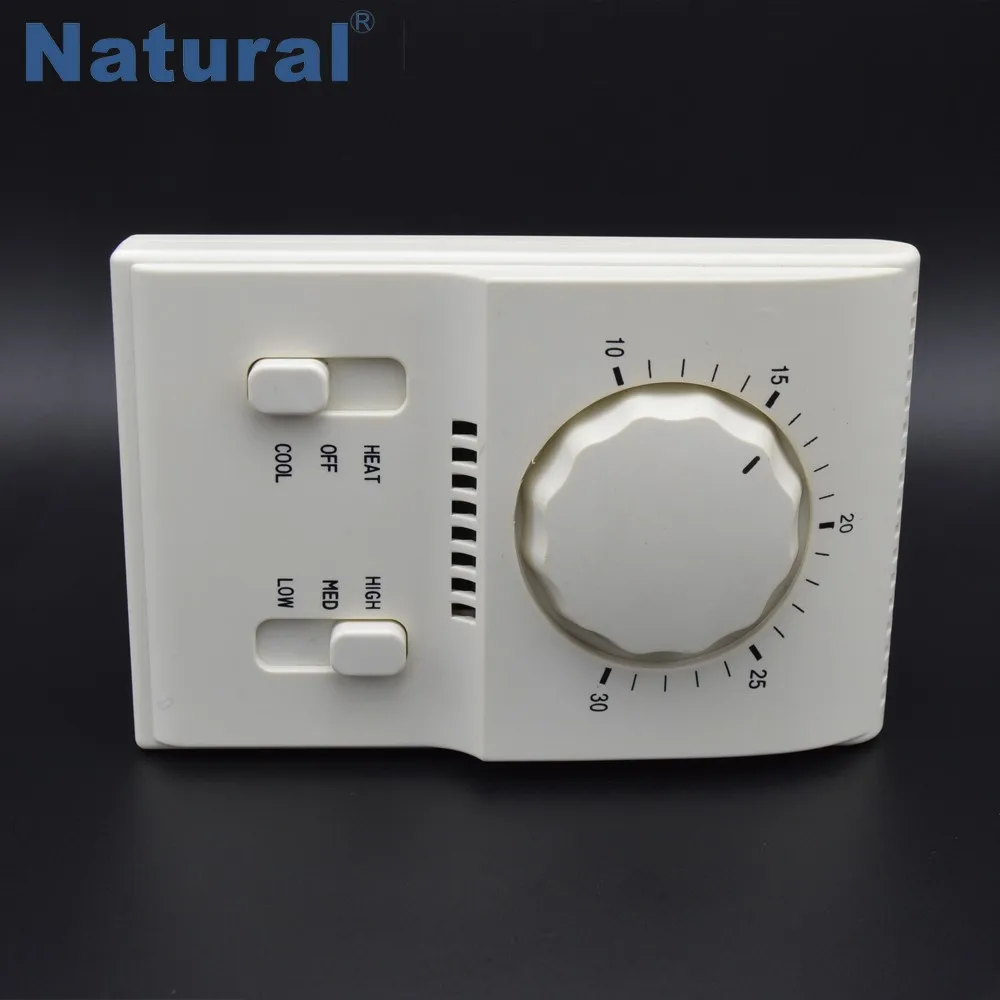

1. Dialing button for setting the temperature:The place the finger points to is the current temperature value.
2. ON/OFF Switch for System:Press ON/OFF Key to turn on/off of the thermostat
3. Working Mode Switch:Press HEATCOOL key to switch the heating /Cooling mode.
4. Fan Speed Key:L-M-H.that is,Low speed-Middle speed-High speed.Wind valve controller does not have this fL Jnction
1. Dialing button for setting the temperature:The place the finger points to is the current temperature value.
2. ON/OFF Switch for System:Press ON/OFF Key to turn on/off of the thermostat
3. Working Mode Switch:Press HEATCOOL key to switch the heating /Cooling mode.
4. Fan Speed Key:L-M-H.that is,Low speed-Middle speed-High speed.Wind valve controller does not have this fL Jnction
Model Name | Function Explanation | Objects controlled |
NTL-1000A | 2 tubes tan coil controller,can be set up to control the fan coil | 3 gears of fan coil,2 and 3 wire of motorized valve,magnetic valve on/off wind valve,3 wires of wind valve. |
NTL-1000B | 4 tubes tan coil controller,can be set up to control the fan coil | 3 gears of fan coil,2 and 3 wire of motorizes valve.magnetic valve on/off wind valve,3 wires of wind valve. |
Technique Parameters
1. Emperature Controlling Range:10-30°C
2. Working Voltage:230VAC±10% , 50Hz/60Hz
3. Current Load:<3A(Resistant Load)
4. Sensing element:Box with the gas.
5. Temperature differential:≤1°C(at the 25°C)
6. Storing Environment:temperature:-20°C-55°C.relative humidity:RH<92°C
7. Surface material:ABS engineering plastic,manual Switch is Off-white,the rest is ivory-white
8. External dimension:85*130*40mm(W*H*D)
9. Installation:Standard 86 installing box
1. Emperature Controlling Range:10-30°C
2. Working Voltage:230VAC±10% , 50Hz/60Hz
3. Current Load:<3A(Resistant Load)
4. Sensing element:Box with the gas.
5. Temperature differential:≤1°C(at the 25°C)
6. Storing Environment:temperature:-20°C-55°C.relative humidity:RH<92°C
7. Surface material:ABS engineering plastic,manual Switch is Off-white,the rest is ivory-white
8. External dimension:85*130*40mm(W*H*D)
9. Installation:Standard 86 installing box
