New Products Red Blue Green 660nm 450nm 380nm LED grow light

Product Overview

Description



New Products Red Blue Green 660nm 450nm 380nm LED grow light



LED Specification:



Item:30W High Power LED



Input current :900mA



Input voltage:26-35V



Lumens:1200LM



Chip:Epistar 33mil Epileds 32mil



Driver:30W Constant Current Driver



Circuit Relationship:10 series & 3 parallels



Color temperature:6000-6500K/5500-6000k/3000-3200k/4000-4500k





Driving Circuit





 As high power LED lamp bead complies with the diode VI characteristic curve, if the floating current with the floating voltage could damage the led bead, that suggest customer using constant current power or IC, not using constant voltage power or IC. The LED lamp bead can’t be drove reversely;





Storage Conditon







Before open the package, the LED lamp bead could be stored below 30°C/90%RH. After open the package, the LED lamp bead should be used in 30°C/70%RH;



Should be used in 168hrs (7days) after open the package;



 LED lamp bead with lens should be used with dustproof measures;

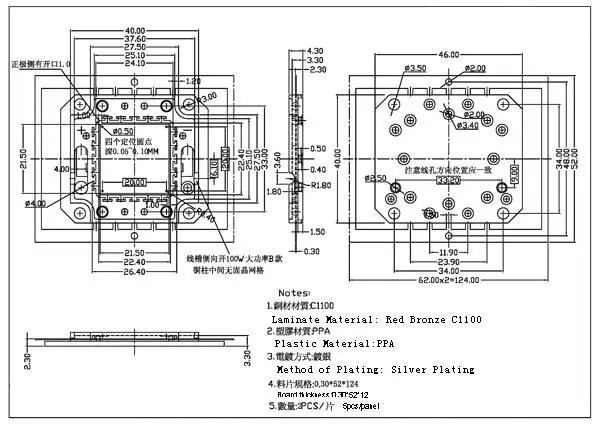

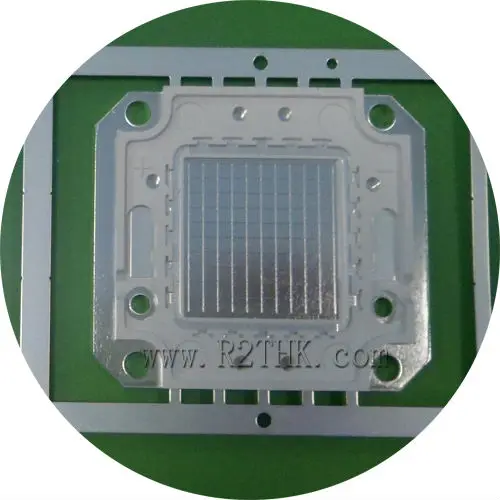

30W High power LED  PCB



1.Base material:Copper  Alloy



2.Dimensions of PCB :34*34mm



3.Advantages of Copper  PCB:better lighting effect than usual aluminum PCB;better heat dissipation than usual aluminum PCB



4.Technical specifications:Min.hole diameter :1.0mm,Min trace width:0.2mm,Min line spacing:0.2mm,Thickness of  immersion gold:3 inches









Workshop:

Application of products in Russia

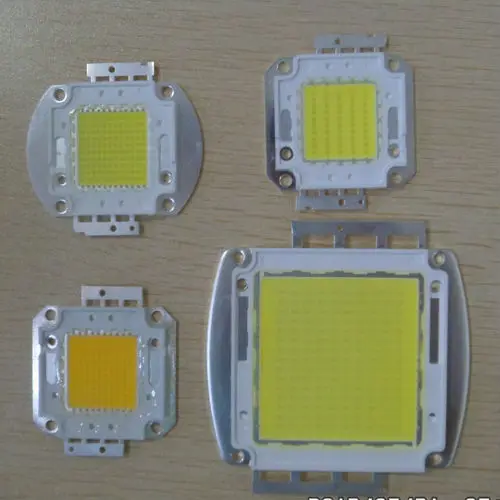

High power Led Series Products

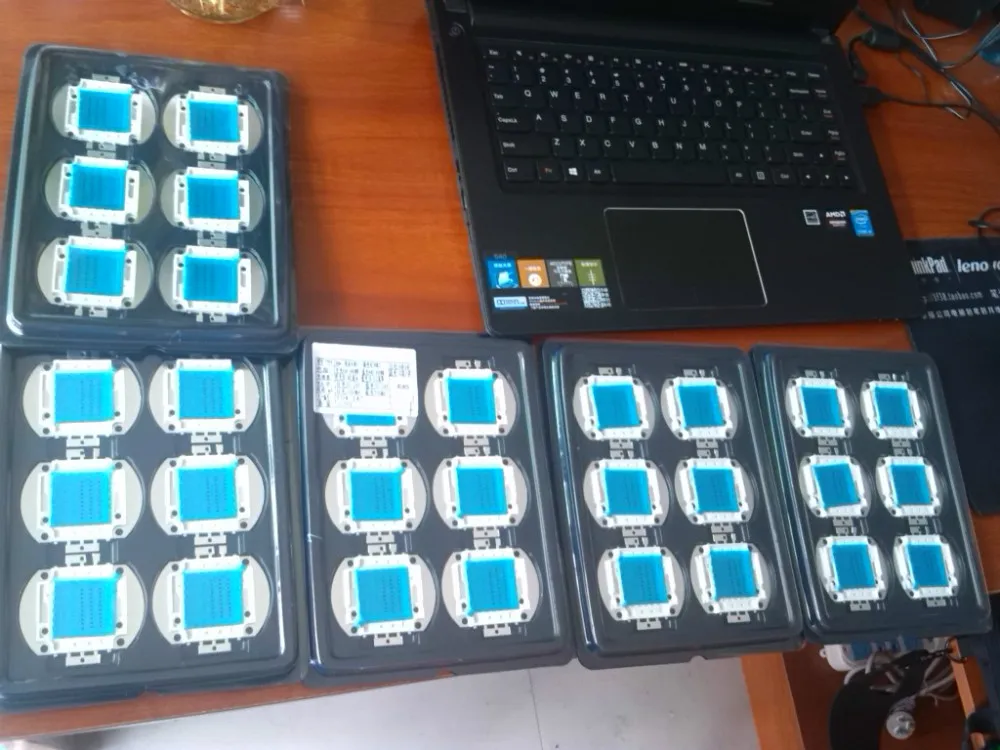

Packging Style
