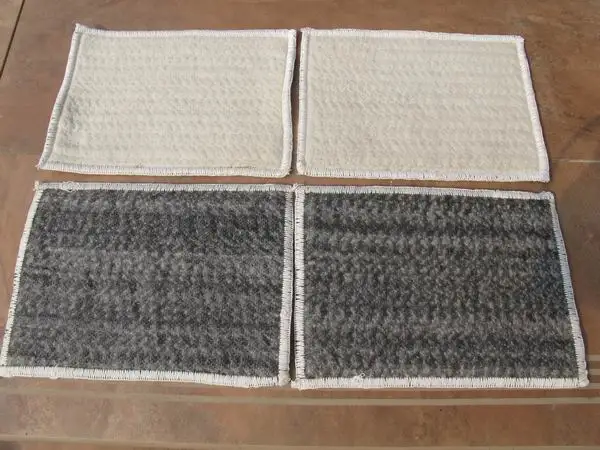

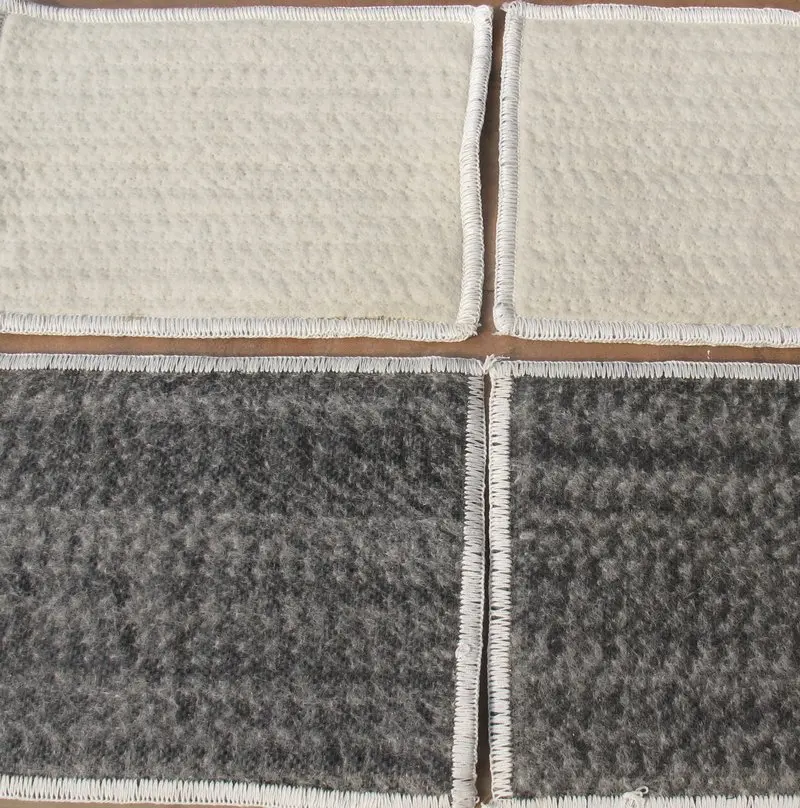

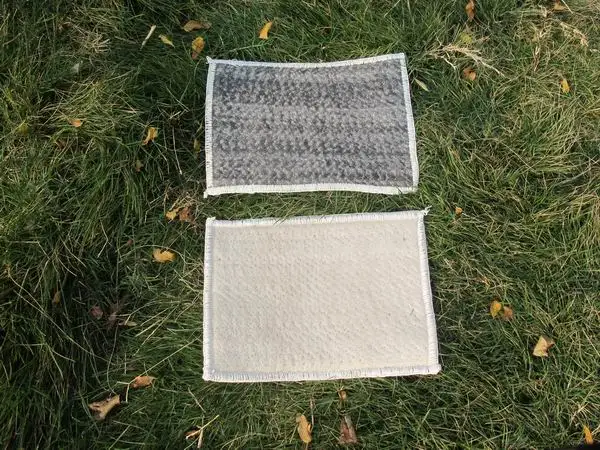

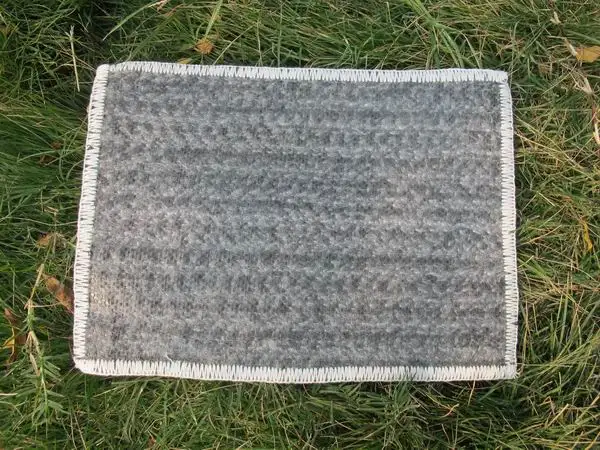

5000g/m2 GCLs (Geosythetic Clay Liners)

Installation Methods

Disposal of sub grades

1. The sub grades must be tamped before paving the GCLs, the surface   should be smooth. And it should not have the obvious hollow space.

2. The surface should be dry.

3. The minimum angle of land surface exposed to the sun should be more   than 30cm.

4. The construction of GCLs should be begin until checking out the   foundation

Preparation before paving the GCLs

1. Drawing the GCLs paving order


2. Examining the GCLs appearance quality


3. The construction of GCLs should be processed under the weather with no   rain and snow

GCLs paving

1. When paving the GCLs, it can use the machine and also the manpower.


2. Paving the GCLs according to the stated order and way.


3. Paving the GCLs, seaming overlapping between mat and mat should be   staggered.


4. There should not be sand and soil, hydrocele and so on impurity, to   avoid affecting on the over lapping quality.


5. To avoid the GCLs gliding, had best to fix it with nails when installing   in vertical and

level.   Such as drawing

1. Both sides of the GCLs are geotextile and woven geotextile, when paving,   the geotextile should be nextto the water


2. When paving, examine the GCLs appearance at any moment

Backfill

1. GCLs paved must be backfilled on the day.


2. The sand or the sifted soil is the best choice, and the soil should not   have impurity with
     more than10mm.


3. The soil must be tamped every backfilling 50cm, and the degree of density should   be more than 85%.


4. Pay attention to the GCLs when tamping, it can not be damaged.


5. When backfilling in the planar surface, the thickness should be 30cm at least.
